66.22
[2.61]
55.41
[2.18]
INLAY
WIDTH
21.80
[.86]
INSIDE
HEIGHT
A
2.50
[.10]
4.50
[.18]
140.22
[5.52]
128.89
[5.07]
INLAY
LENGTH
B
B
1.00
[.04]
INLAY
DEPTH
132.09
[5.20]
INSIDE
LENGTH
A
TOP VIEW
28.00
[1.10]
SECTION A-A
SIDE VIEW
21.80
[.86]
59.39
[2.34]
INSIDE
WIDTH
Enclosures can be Factory Modified ( Milling, Drilling, Printing etc.)
Contact Factory
mjm@hammondmfg.com for quotes
Solid models of this enclosure available in STEP or IGES.
(Part number and text placement/orientation on our products are subject to change,
we do not recommend using them as a locating reference for modification purposes)
NOTE
56.24
[2.21]
.80
[.03]
Enclosure molded from GP ABS (UL94-HB) plastic.
Purchased assembly includes top and bottom cover, 4 plastic panels for front and
rear (2 types - flat and contoured) and 4 cover screws.
Recommended Cover Screw Torque - 57lbf-in ( 40cN-m)
1593

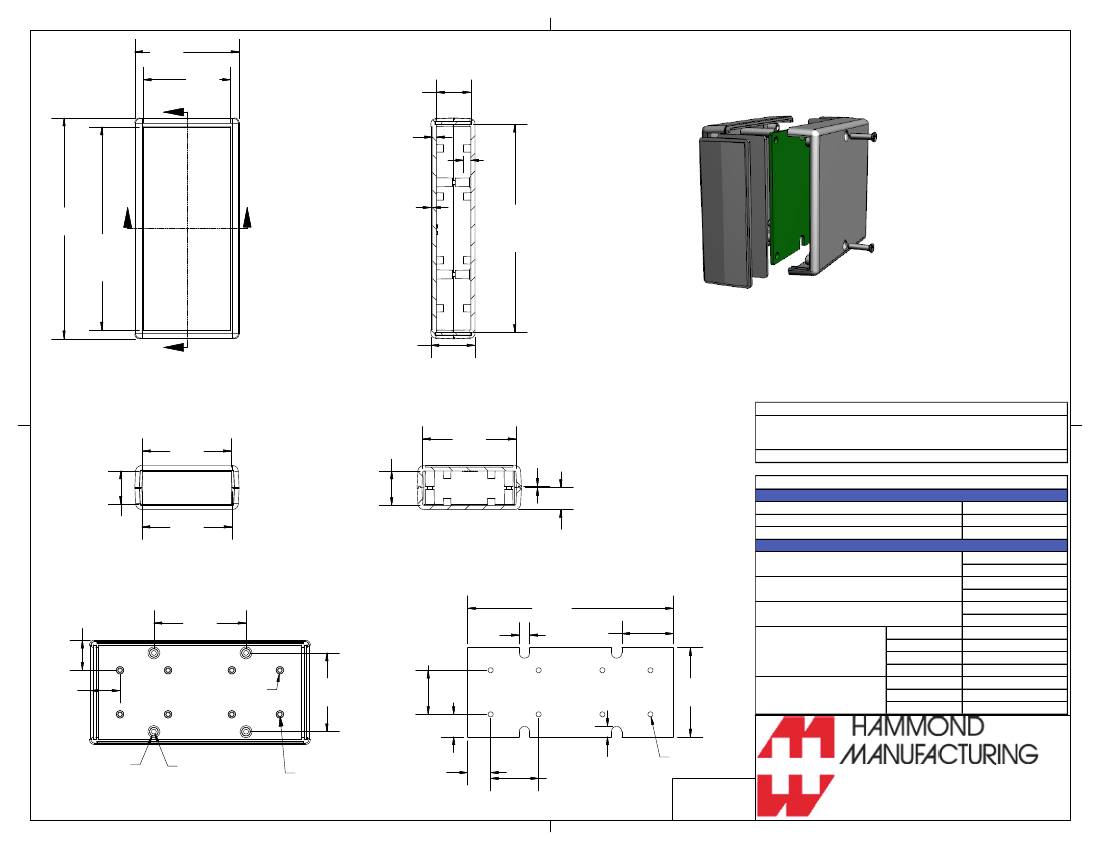

1593X Regular Enclosure
21.12
[.83]
57.05
[2.25]
END VIEW
SECTION B-B
END VIEW
14.00
[.55]
Black Enclosure
Grey Enclosure
Translucent Blue Enclosure
ACCESSORIES
Cover Screws #4 X 3/4" Self-Tapping (100 Pkg)
P.C. Board Screws #4 X 1/4" Self-Tapping
1593XBK
1593XGY
1593XTBU
1593QS100 (Silver)
1593QS100BK (Black)
1593ATS50 (Pkg 50)
1593ATS100 (Pkg 100)
1599CLIP (Black)
1599CLIPGY (Grey)
1593PLBK‐BULK
1593PLGY‐BULK
1593PLTBU‐BULK
1593PIR10
1593KCLBK‐BULK
1593KCLGY‐BULK
1593KCLTBU‐BULK
19.09
[.75]
58.50
[2.30]
28.00
[1.10]
130.66
[5.14]
6.63
[.26]
32.76
[1.29]
Nylon Belt Clip
Black
1593X STD FLAT PANEL
(SINGLE PANEL)
Grey
Translucent Blue
Infrared
Black
Grey
Translucent Blue
18.88
[.74]
4.75
[
.19]
50.00
[1.97]
14.31
[.56]
P.C. BOARD
(NOT SUPPLIED)
56.61
[2.23]
1593X STD CONTOURED PANEL
(SINGLE PANEL)
[
.22]
5.52
3.00
[
.12]
ACCEPTS #4
SELF-TAPPING
SCREW
3.20
14.58
[.57]
30.50
[1.20]
6.62
[.26]
[
.13]
Dimensions:
mm
[inches]
®
INSIDE BOTTOM
1593X
