RS1A - RS1M
Taiwan Semiconductor
CREAT BY ART

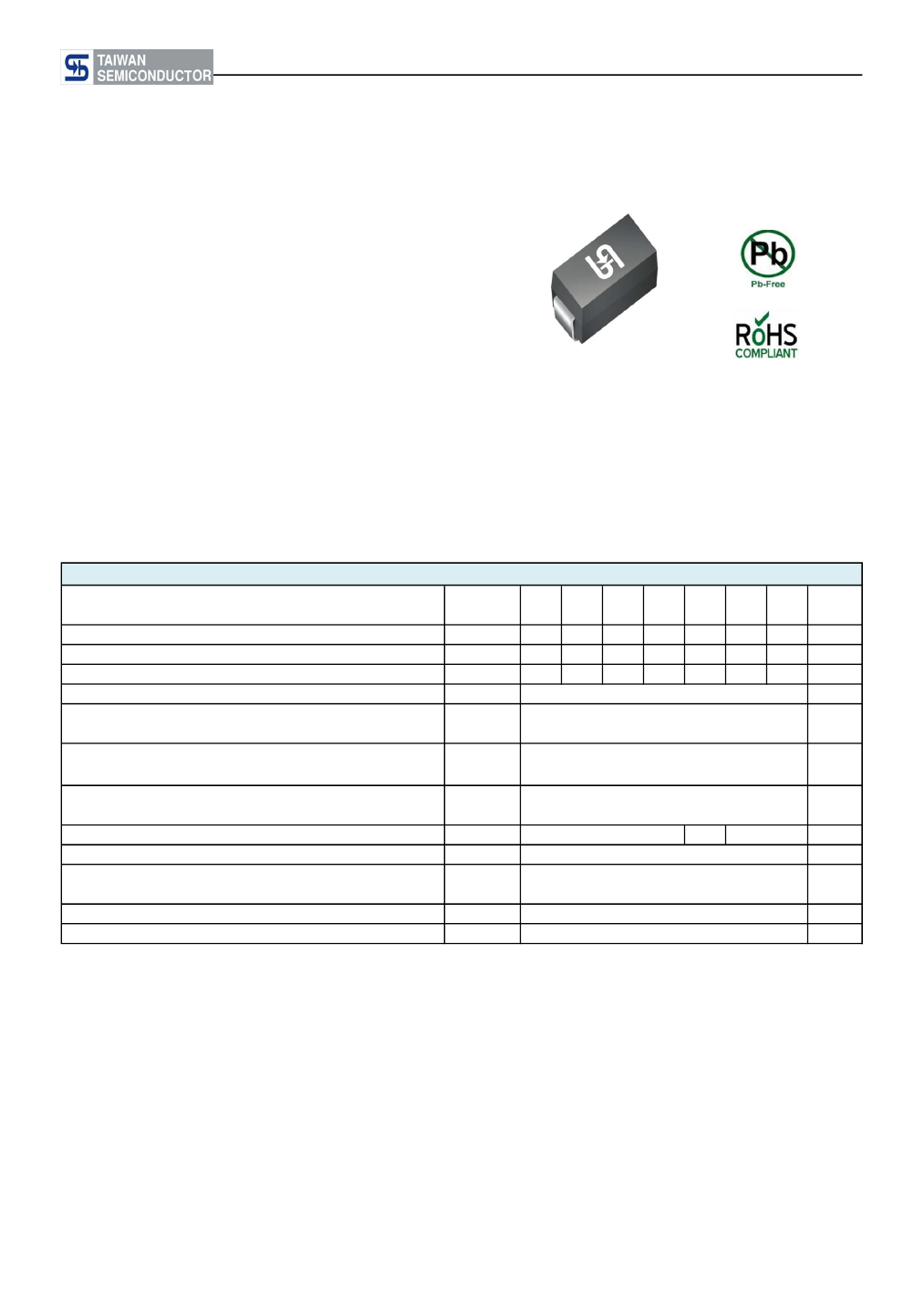

1A, 50V - 1000V Surface Mount Fast Recovery Rectifiers
FEATURES
- Glass passivated chip junction
- Ideal for automated placement
- Fast switching for high efficiency
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
MECHANICAL DATA
Case:
DO-214AC (SMA)
Molding compound, UL flammability classification rating 94V-0
Moisture sensitivity level: level 1, per J-STD-020
Part No. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
Indicated by cathode band
Weight:
0.06 g (approximately)
DO-214AC (SMA)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@1A
Maximum reverse current @ rated V
R
Maximum reverse recovery time (Note 2)
Typical junction capacitance (Note 3)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
T
J
=25°C
T
J
=125°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
t
rr
C
J
R
θJC
R
θJA
T
J
T
STG
150
10
32
105
- 55 to +150
- 55 to +150
RS
1A
50
35
50
RS
1B
100
70
100
RS
1D
200
140
200
RS
1G
400
280
400
1
30
1.3
5
50
250
500
RS
1J
600
420
600
RS
1K
800
560
800
RS
1M
1000
700
1000
UNIT
V
V
V
A
A
V
μA
ns
pF
°C/W
°C
°C
Document Number: DS_D1411069
Version: K15
RS1A - RS1M
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
PART NO.
SUFFIX
R3
R2
RS1x
(Note 1)
H
M2
F3
F2
F4
N/A
E3
E2
G
PACKING CODE
PACING CODE
SUFFIX
SMA
SMA
SMA
Folded SMA
Folded SMA
Folded SMA
Clip SMA
Clip SMA
1,800 / 7" Plastic reel
7,500 / 13" Paper reel
7,500 / 13" Plastic reel
1,800 / 7" Plastic reel
7,500 / 13" Paper reel
7,500 / 13" Plastic reel
1,800 / 7" Plastic reel
7,500 / 13" Plastic reel
PACKAGE
PACKING
Note 1: "x" defines voltage from 50V (RS1A) to 1000V (RS1M)
EXAMPLE
PREFERRED
PART NO.
RS1MHR3G
PART NO.
RS1M
PART NO.
SUFFIX
H
PACKING CODE
R3
PACING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound

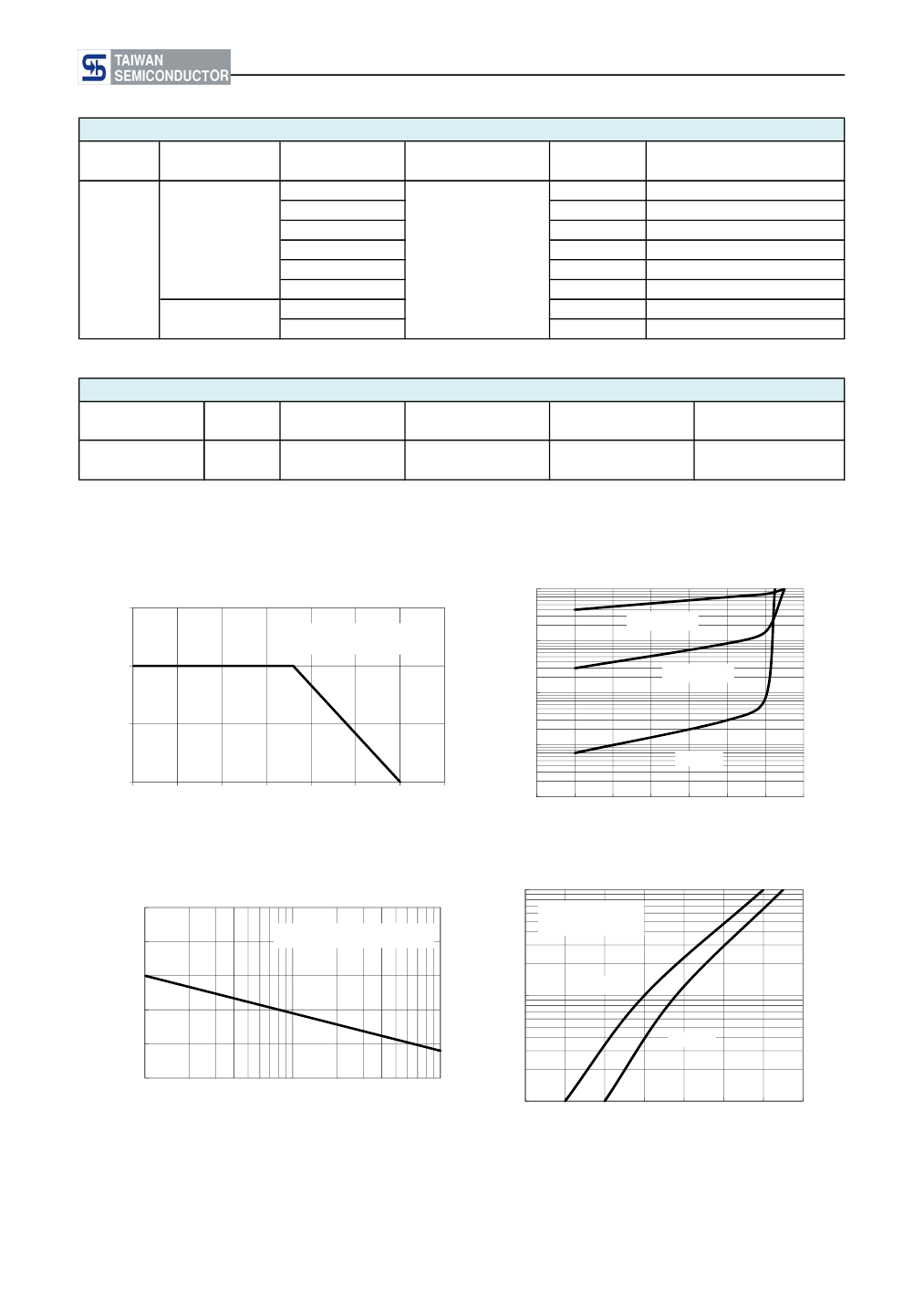

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
10
INSTANTANEOUS REVERSE CURRENT (μA)
T
J
=150
°
C
1
T
J
=100
°
C
0.1
FIG.1 FORWARD CURRENT DERATING CURVE
1.5
AVERAGE FORWARD CURRENT
(A)
RESISTIVE OR
INDUCTIVE LOAD
1
0.5
0.01
T
J
=25
°
C
0.001
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
0
0
25
50
75
100
125
150
175
LEAD TEMPERATURE (
°
C)
50
40
30
20
10
0
1
INSTANTANEOUS FORWARD CURRENT
(A)
PEAK FORWARD SURGE CURRENT
(A)
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
10
FIG. 4 TYPICAL FORWARD CHARACTERISTICS
Pulse Width=300μs
1% Duty Cycle
8.3ms Single Half Sine Wave
1
T
J
=125
°
C
T
J
=25
°
C
10
NUMBER OF CYCLES AT 60 Hz
100
0.1
0.4
0.6
0.8
1
1.2
1.4
FORWARD VOLTAGE (V)
1.6
1.8
Document Number: DS_D1411069
Version: K15
RS1A - RS1M
Taiwan Semiconductor
FIG. 5 TYPICAL JUNCTION CAPACITANCE
100
f=1.0MHz
Vsig=50mVp-p
CAPACITANCE (pF)
10
1
1
10
REVERSE VOLTAGE (V)
100

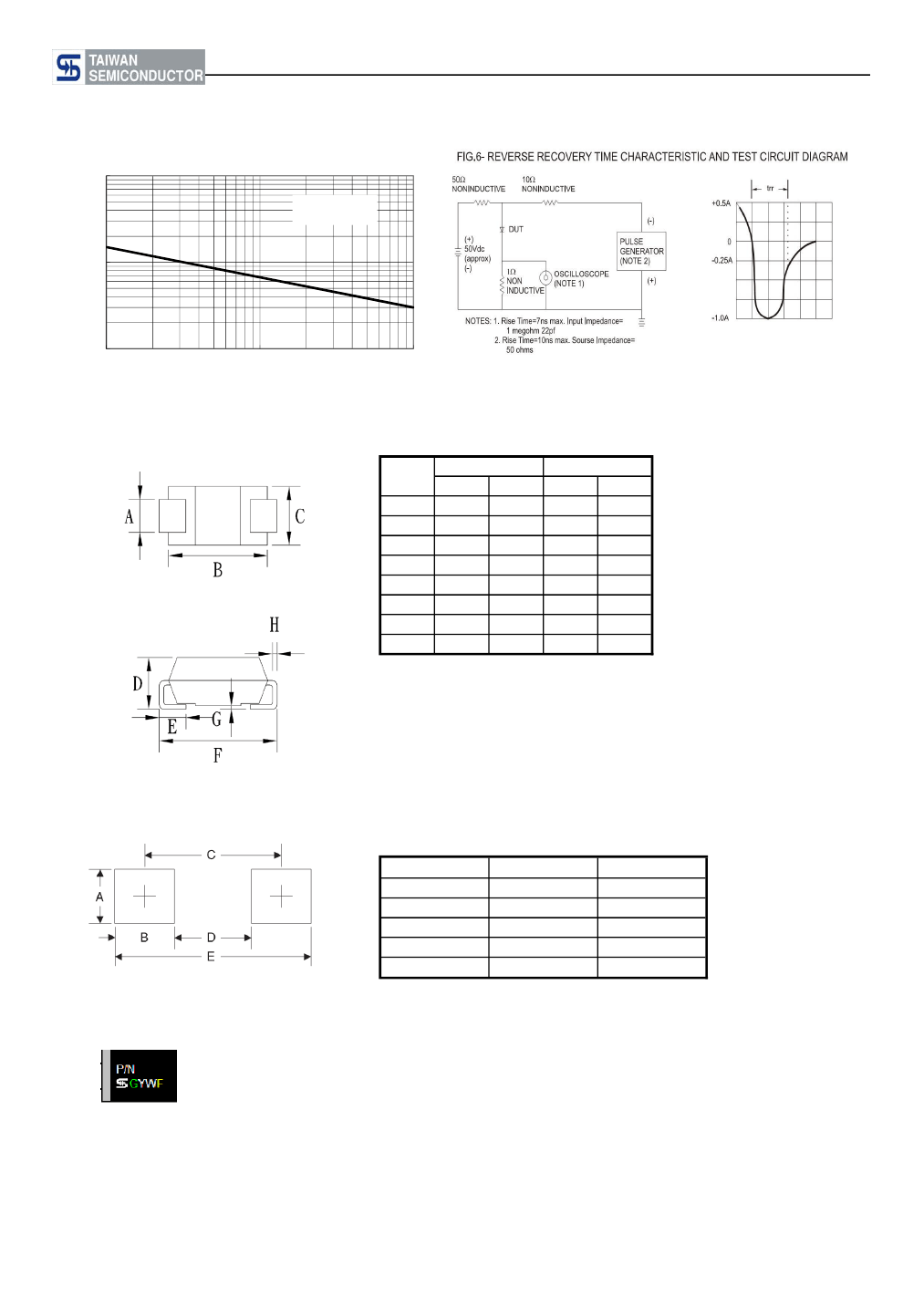

PACKAGE OUTLINE DIMENSIONS
DO-214AC (SMA)
DIM.
A
B
C
D
E
F
G
H
Unit (mm)
Min
1.27
4.06
2.29
1.99
0.90
4.95
0.10
0.15
Max
1.58
4.60
2.83
2.50
1.41
5.33
0.20
0.31
Unit (inch)
Min
0.050
0.160
0.090
0.078
0.035
0.195
0.004
0.006
Max
0.062
0.181
0.111
0.098
0.056
0.210
0.008
0.012
SUGGESTED PAD LAYOUT
Symbol
A
B
C
D
E
Unit (mm)
1.68
1.52
3.93
2.41
5.45
Unit (inch)
0.066
0.060
0.155
0.095
0.215
MARKING DIAGRAM
P/N =
G=
YW =
F=
Specific Device Code
Green Compound
Date Code
Factory Code
Document Number: DS_D1411069
Version: K15
RS1A - RS1M
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_D1411069
Version: K15
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Taiwan Semiconductor
:
RS1D RS1J RS1B RS1M RS1G RS1K RS1A RS1B R3 RS1J R3 RS1M R2 RS1G F2 RS1M F3G RS1D R2
RS1MHR3G RS1B R3G RS1K F2 RS1DHR3G RS1G R2G RS1DHF3G RS1A F2G RS1A F2 RS1D F2 RS1A
R3G RS1A R2 RS1BHR2G RS1J F2G RS1KHR2 RS1D R2G RS1DHF3 RS1GHF3 RS1K R3 RS1JHR2 RS1D
R3 RS1KHF2G RS1GHR2G RS1BHR3G RS1MHR2G RS1G F3G RS1J R2G RS1K R2G RS1M F2 RS1JHF3
RS1J R2 RS1G R3G RS1JHF3G RS1AHR2G RS1GHR2 RS1GHF3G RS1KHF2 RS1KHR3G RS1DHR3 RS1B
R2 RS1MHF3G RS1DHR2G RS1D F2G RS1BHR2 RS1GHF2 RS1KHF3 RS1G R2 RS1AHF3 RS1BHF2
RS1AHR3G RS1B F2 RS1D R3G RS1G R3 RS1J R3G RS1B R2G RS1JHR3 RS1JHF2 RS1MHR3 RS1MHF2G
RS1MHR2 RS1KHF3G RS1GHR3G RS1BHF3G RS1KHR3 RS1DHF2 RS1K R2 RS1DHF2G RS1B F3G
RS1DHR2 RS1J F2 RS1M R2G RS1A R3 RS1KHR2G RS1MHF2 RS1A R2G RS1AHR3 RS1K F3G RS1M F2G
RS1K R3G RS1M R3G RS1AHF3G RS1GHF2G RS1K F2G RS1MHF3 RS1B F2G RS1G F2G RS1M R3
RS1BHR3
