ADG202ATQ/883B datasheet, PDF - EEWORLD Datasheet

ADG202ATQ/883B: DescriptionAnalog switch IC LC2MOS+-15V Quad SPST; CategoryAnalog mixed-signal IC The signal circuit; File Size229KB，6 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric View All

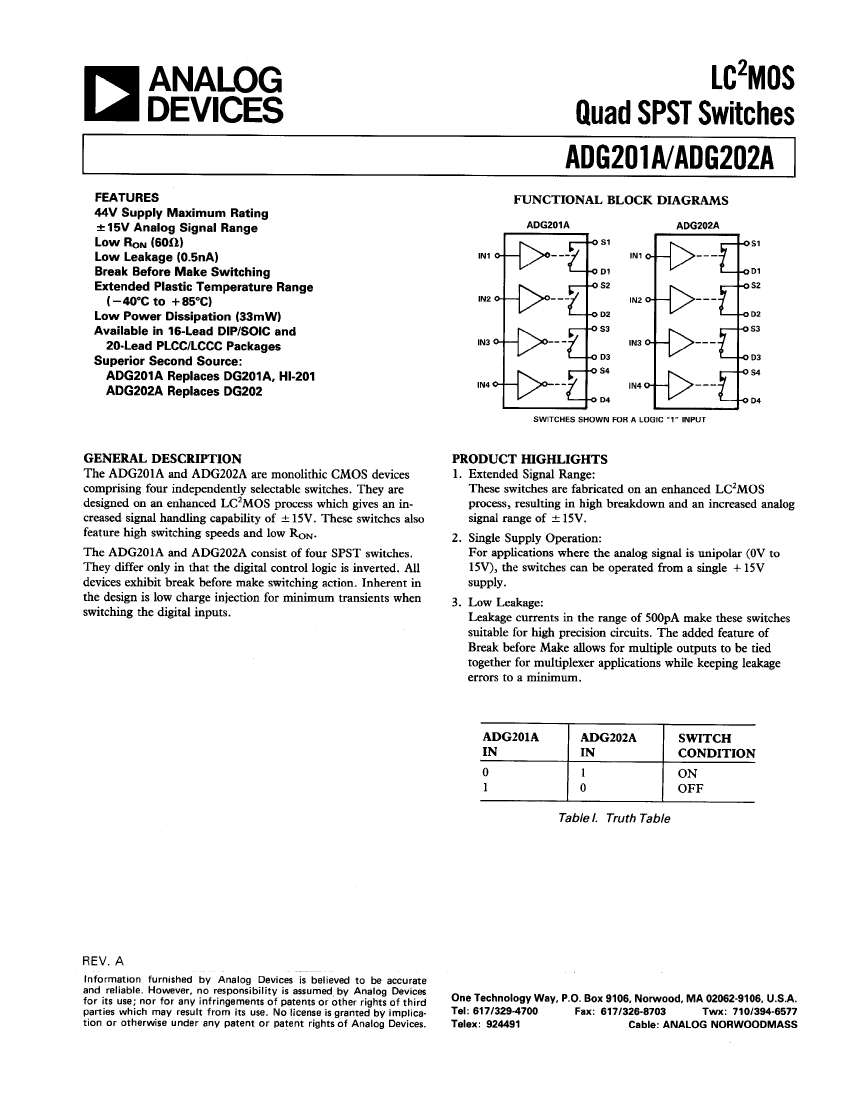

ADG202ATQ/883B Overview

Analog switch IC LC2MOS+-15V Quad SPST

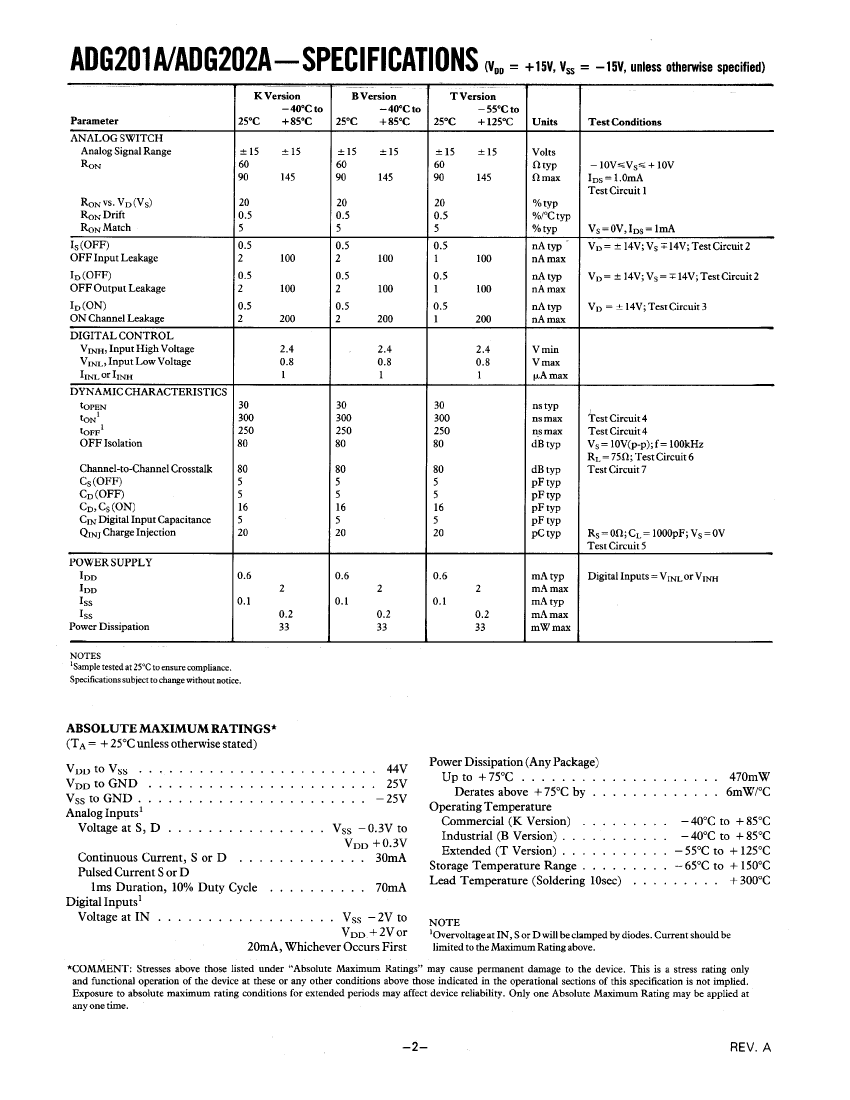

Parameter Name	Attribute value
Source Url Status Check Date	2013-05-01 14:56:36.797
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible

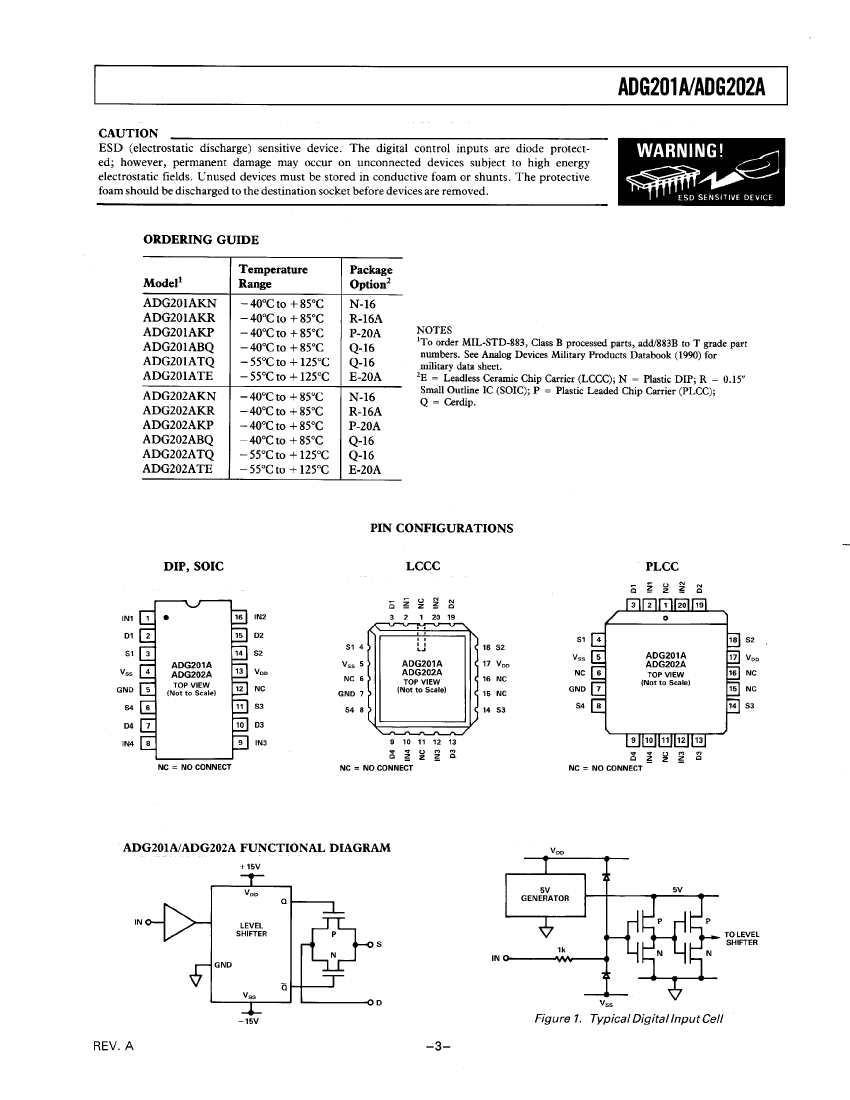

Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	not_compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	19.495 mm
Nominal Negative Supply Voltage (Vsup)	-15 V
normal position	NO
Number of channels	1
Number of functions	1
Number of terminals	16
Nominal off-state isolation	80 dB
On-state resistance matching specifications	5 Ω
Maximum on-state resistance (Ron)	90 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
output	SEPARATE OUTPUT
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT APPLICABLE
power supply	+-15 V
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B
Maximum seat height	4.572 mm
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	250 ns
Maximum connection time	300 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn63Pb37)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT APPLICABLE
width	7.62 mm
Base Number Matches	1
