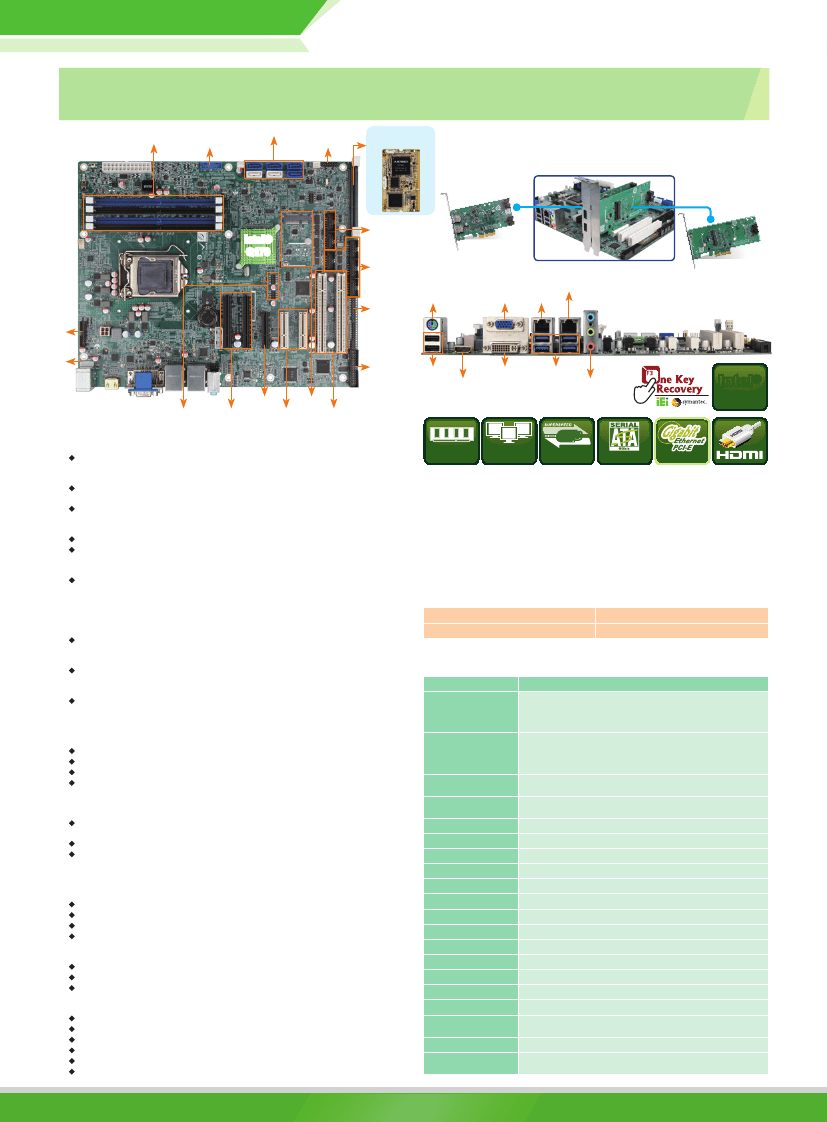

Single Board Computer
Industrial Motherboard
w w w.ieiworld.com
IMBA-Q170-i2
Dual-channel DDR4
2133 MHz
USB 3.0
6 x SATA 6Gb/s
Front panel
ATX motherboard supports 14nm LGA1151 Intel® CPU, Intel® Q170,
DDR4, triple independent display VGA/ DVI-D/ HDMI 2.0, dual Intel®
PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio, IPMI 2.0 and RoHS
Slot for iRIS-2400
module (optional)
Flexible I/O support
IEI USB 3.0 & mSATA/PCIe Mini expansion card
The expansion card can provide more choices to meet users demand
Intel®
Q170
RS-232/422/485
PCIE-USB3S
RS-232
KB/MS
TPM
VGA
Combo RJ-45
LAN2/IPMI
LAN 1
PCIE-2PIMSATA
iDP
KB/MS
LPT
2 x USB 2.0
HDMI 2.0
DVI-D
4 x USB 3.0
Audio
Intel
®
AMT 11
USB 2.0
Specifications
PCIe x 4
PCIe Mini
2 x PCIe x8 2 x PCIe x4 2 x PCI
flexible I/O
CPU
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or
Celeron® processor
Chipset
Intel® Q170
Memory
Four 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to
64 GB
BIOS: UEFI BIOS
Graphics Engine
Intel® HD Graphics Gen 9 engine with 16 low-power execution units, supports DX11/12,
OpenGL 4.3/4.4 and OpenCL2.x, ES 2.0
Display Output
Triple independent display
1 x VGA (up to 1920x1200@60 Hz)
1 x DVI-D (up to 1920x1200@60Hz)
1 x HDMI 2.0 (up to 4096x2160@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
Ethernet
LAN1: Intel® I219LM with Intel® AMT 11.0 support
LAN2: Intel® I210AT PCIe controller with NCSI support
External I/O Interface
2 x USB 2.0
4 x USB 3.0
Internal I/O Interface
1 x KB/MS (1x6 pin)
4 x RS-232 (2x5 pin, P=2.54)
1 x LPT (2x13 pin, P=2.54)
4 x USB 2.0 (2x4 pin, P=2.0)
2 x USB 3.0 (2x10 pin, P=2.0)
6 x SATA 6Gb/s (RAID 0/1/5/10 supported)
2 x RS-232/422/485 (2x5 pin, P=2.54)
SMBus: 1 x SMBus (1x4 pin)
I²C: 1 x I²C (1x4 pin)
TPM: 1 x TPM (2x10 pin)
Audio
Realtek ALC662 HD codec supports 5.1-channel
3 x Audio jacks (line-out, line-in, mic-in) on rear IO
1 x Front audio (2x5 pin)
Front Panel
1 x Front panel (2x7 pin, power LED, HDD LED, speaker, power button, reset button)
LAN LED: 2 x LAN LED (1x2 pin)
Expansion
1 x Full-size PCIe Mini card slot (support mSATA)
2 x PCI slot
2 x PCIe x 8 slot (Gen3)
3 x PCIe x 4 slot (Gen3)
iRIS Remote Management Module: 1 x iRIS-2400 slot
Watchdog Timer: Software programmable supports 1~255 sec. system reset
Digital I/O: 8-bit digital I/O (2x5 pin)
Fan Connector
1 x CPU smart fan (1x4 pin)
2 x System smart fan (1x3 pin)
Chassis Open: 1 x Chassis intrusion (1x2 pin)
Power Supply: ATX/AT power supply
Power Consumption
3.3V@1.65A, 5V@3.4A, 12V@8.58A, 5VSB@3.4A
(Intel® Core™ i7 6700K 4.0GHz CPU with 32 GB (four 4 GB) 2133 MHz DDR4 memory)
Operating Temperature: -20°C ~ 60°C
Storage Temperature: -30°C ~ 70°C
Operating Humidity: 5% ~ 95%, non-condensing
Dimensions: 244mm x 305mm
Weight: GW: 1200g / NW: 700g
CE/FCC compliant
DDR4
2133
Triple
Display
USB
USB 3.0
SATA 6Gb/s
PCIe GbE
Features
● LGA 1151 Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor
supported
● Dual-channel DDR4 2133 MHz
● Support triple display with HDMI, DVI and VGA
● Support USB 3.0, SATA 6Gb/s and PCI Express Gen3
● Support IPMI 2.0 via iRIS-2400 module
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Packing List
1 x IMBA-Q170-i2 single board computer
1 x I/O shielding
2 x SATA cable
1 x QIG
Ordering Information
Part No.
IMBA-Q170-i2-R10
Description
ATX motherboard supports 14nm LGA1151 Intel® CPU, Intel®
Q170, DDR4, triple independent display VGA/ DVI-D/ HDMI 2.0,
dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio, IPMI 2.0
and RoHS
ATX motherboard supports 14nm LGA1151 Intel® CPU, Intel®
Q170, DDR4, triple independent display VGA/ DVI-D/ HDMI 2.0,
dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio, ECO
packing and RoHS
IPMI 2.0 adapter card with AST2400 BMC chip for DDR3 SO-
DIMM socket interface
Peripheral card for flexible I/O, 1 x PCIe Mini, 2 x mSATA
expansion
Peripheral card for flexible I/O, USB 3.0 expansion
LPT flat cable, 240mm, P=2.54
PS/2 KB/MS cable with bracket, 220mm, P=2.0
Dual port USB cable with bracket, 30mm, P=2.54
USB 3.0 cable 457mm with bracket
SATA power cable, MOLEX 5264-4P to SATA15P
RS-232 cable, 230mm, P=2.54
LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45W
LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65W
High-performance LGA1155/1156 cooler kit, 95W
DisplayPort to DisplayPort converter board (for IEI iDP connector)
DisplayPort to DVI-D converter board (for IEI iDP connector)
DisplayPort to HDMI converter board (for IEI iDP connector)
DisplayPort to 24-bit dual-channel LVDS converter board
(for IEI iDP connector)
DisplayPort to VGA converter board (for IEI iDP connector)
20-pin Infineon TPM 2.0 module, software management tool,
firmware v5.5
IMBA-Q170-ECO-R10
iRIS-2400-R10
PCIES-2PIMSATA-R10
PCIES-USB3-R10
19800-000049-RS
19800-000075-RS
19800-003100-100-RS
19800-010500-200-RS
32102-000100-200-RS
32205-000702-100-RS
CF-1156C-R20
CF-1156D-R20
CF-115XE-R10
DP-DP-R10
DP-DVI-R10
DP-HDMI-R10
DP-LVDS-R10
DP-VGA-R10
TPM-IN02-R20
IMBA-Q170-i2-2018-V13
