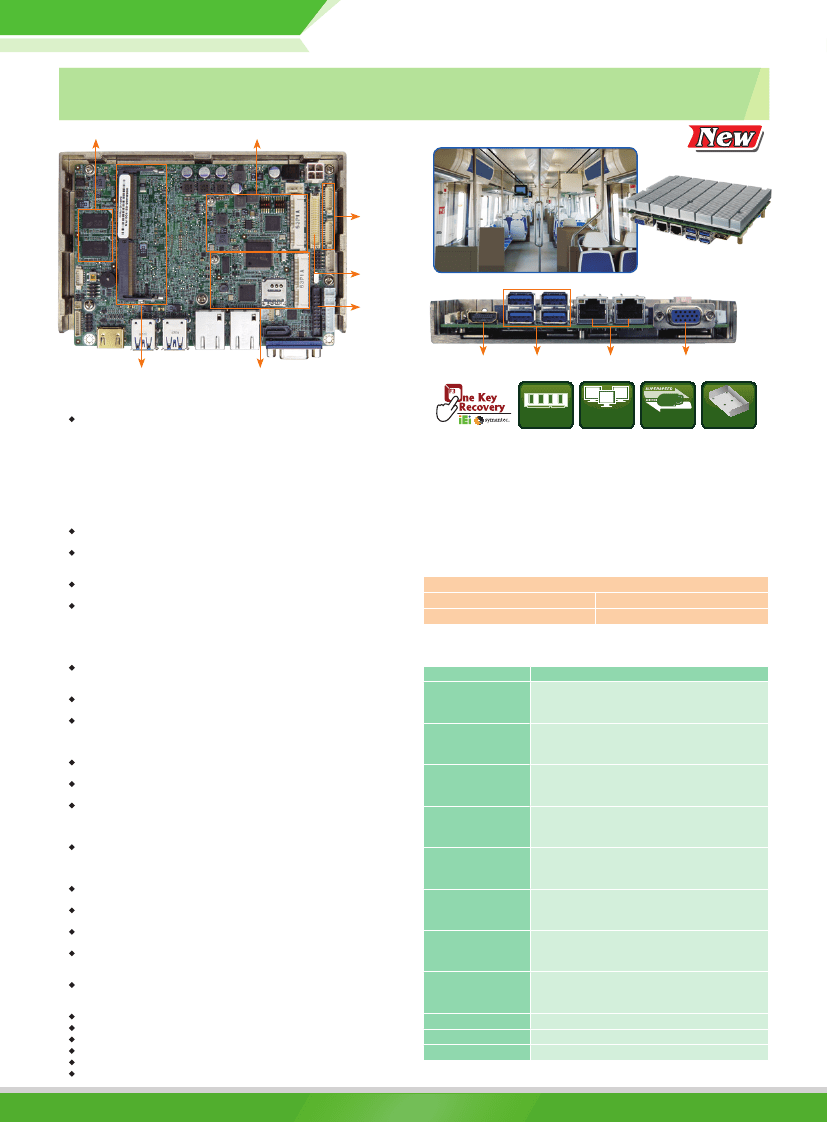

Single Board Computer
Embedded Board
w w w.ieiworld.com
WAFER-
DDR4 on-board memory (optional)
ULT3
ULT4
3.5” SBC supports Intel® 6th/7th Generation ULT Processor with DDR4
SO-DIMM/On-board Memory Support, Triple Display, PCIe Mini with SIM
Card Slot/mSATA Support, SATA 6Gb/s, COM, Audio, and RoHS
Passenger information system for transportation
PCIe Mini (with mSATA support)
RS-232/422/485
LVDS
34000-000673-RS
Fanless heatsink module
(optional)
iDP
HDMI
DDR4 memory slot
PCIe Mini (with SIM card slot)
4 x USB 3.0
Dual LAN
VGA
Specifications
CPU
7th generation Intel® mobile ULT processor
Intel® Core™ i7-7600U (up to 3.9GHz, dual-core, 4MB cache, TDP=15W)
Intel® Core™ i5-7300U (up to 3.5GHz, dual-core, 3MB cache, TDP=15W)
Intel® Core™ i3-7100U (up to 2.4GHz, dual-core, 3MB cache, TDP=15W)
6th generation Intel® mobile ULT processor
Intel® Core™ i7-6600U (up to 3.4GHz, dual-core, 4MB cache, TDP=15W)
Intel® Core™ i5-6300U (up to 3.0GHz, dual-core, 3MB cache, TDP=15W)
Intel® Core™ i3-6100U (up to 2.3GHz, dual-core, 3MB cache, TDP=15W)
Intel® Celeron® processor 3955U (up to 2.0GHz, dual-core, 2MB cache, TDP=15W)
Intel® Celeron® processor 3855U (up to 1.6GHz, dual-core, 2MB cache, TDP=15W)
BIOS
AMI UEFI BIOS
Memory
1 x 260-pin 2133MHz DDR4 SDRAM SO-DIMM (channel 1, supports up to 16GB)
On-board 4GB/8GB DDR4 memory (channel 2, optional support by request)
Graphics Engine
Intel® HD Graphics
Display Output
Triple independent display
1 x VGA (up to 1920x1200@60Hz)
1 x HDMI (up to 4096x2160@30Hz)
1 x 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (co-layout with VGA)
Ethernet
1 x Intel® I219LM
1 x Intel® I211AT
External I/O Interface
4 x USB 3.0
Internal I/O Interface
1 x SATA 6Gb/s with 5V SATA power connector
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (1x9 pin, P=1.25)
SMBus
1 x SMBus (1x4 pin, P=2.0)
Audio
1 x HD audio (2x5 pin, supports 7.1-channel HD audio by AC-KIT-892HD-R10)
Front Panel
1 x Power LED & HDD LED (1x6 pin)
1 x Power button (1x2 pin)
1 x Reset button (1x2 pin)
Expansion
1 x Full-size PCIe Mini slot (w/ SATA signal, supports mSATA)
1 x Full-size PCIe Mini slot (w/ SIM card slot support)
*3855U
belongs to Skylake ULT Base series which supports PCIe Gen 2 signal only.
Digital I/O
1 x 8-bit digital I/O (2x5 pin)
Fan Connector
1 x System fan connector (1x4 pin)
Watchdog Timer
Software programmable, supports 1~255 sec. system reset
Power Supply
12V only DC input
1 x Internal power connector (2x2 pin, or optional terminal block)
Power Consumption
12V@4.27A (Intel® Core™ i7-6600U up to 3.4GHz CPU with 16GB 2133MHz DDR4
memory running in 3.0GHz)
Operating Temperature: -20°C ~ 60°C
Storage Temperature: -20°C ~ 60°C
Operating Humidity: 5% ~ 95%, non-condensing
Dimensions: 146mm x 102mm
Weight: GW: 600g / NW: 250g
CE/FCC compliant
DDR4
Triple
Display
USB
USB 3.0
Heat Spreader
Features
● 3.5” SBC with Intel® 6th/7th Generation ULT processor supports DDR4 SO-DIMM
(on-board memory support by request)
● Triple display with VGA/iDP, HDMI and LVDS selection
● Two PCIe Mini with mSATA/SIM card slot support
● Intel® GbE LAN with Intel® AMT 11.0 supported
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Packing List
1 x WAFER-ULT3/ULT4 single board computer (heat spreader by default)
1 x Power cable
1 x RS-232/422/485 cable
1 x SATA with power cable kit
1 x QIG
Ordering Information
Part No.
WAFER-ULT3-i7-R10
Description
3.5" SBC supports Intel® 6th Generation ULT Core™ i7-
6600U processor with DDR4 SO-DIMM, triple display with
VGA/iDP, HDMI, LVDS, Dual GbE, PCIe Mini with SIM card
slot/mSATA support, SATA 6Gb/s, COM and RoHS
3.5" SBC supports Intel® 6th Generation ULT Core™ i5-
6300U processor with DDR4 SO-DIMM, triple display with
VGA/iDP, HDMI, LVDS, Dual GbE, PCIe Mini with SIM card
slot/mSATA support, SATA 6Gb/s, COM and RoHS
3.5" SBC supports Intel® 6th Generation ULT Core™ i3-
6100U processor with DDR4 SO-DIMM, triple display with
VGA/iDP, HDMI, LVDS, Dual GbE, PCIe Mini with SIM card
slot/mSATA support, SATA 6Gb/s, COM and RoHS
3.5" SBC supports Intel® 6th Generation ULT Celeron® 3955U
processor with DDR4 SO-DIMM, triple display with VGA/iDP,
HDMI, LVDS, Dual GbE, PCIe Mini with SIM card slot/mSATA
support, SATA 6Gb/s, COM and RoHS
3.5" SBC supports Intel® 6th Generation ULT Celeron® 3855U
processor with DDR4 SO-DIMM, triple display with VGA/iDP,
HDMI, LVDS, Dual GbE, PCIe Mini with SIM card slot/mSATA
support, SATA 6Gb/s, COM and RoHS
3.5" SBC supports Intel® 7th Generation ULT Core™ i7-
7600U processor with DDR4 SO-DIMM, triple display with
VGA/iDP, HDMI, LVDS, Dual GbE, PCIe Mini with SIM card
slot/mSATA support, SATA 6Gb/s, COM and RoHS
3.5" SBC supports Intel® 7th Generation ULT Core™ i5-
7300U processor with DDR4 SO-DIMM, triple display with
VGA/iDP, HDMI, LVDS, Dual GbE, PCIe Mini with SIM card
slot/mSATA support, SATA 6Gb/s, COM and RoHS
3.5" SBC supports Intel® 7th Generation ULT Core™ i3-
7100U processor with DDR4 SO-DIMM, triple display with
VGA/iDP, HDMI, LVDS, Dual GbE, PCIe Mini with SIM card
slot/mSATA support, SATA 6Gb/s, COM and RoHS
Dual-port USB 2.0 cable, 210mm, P=2.0
RS-232/422/485 cable, 250mm, P=1.25
Optional fanless heatsink module, 146mm x 102mm x 16mm
WAFER-ULT3-i5-R10
WAFER-ULT3-i3-R10
WAFER-ULT3-C-R10
WAFER-ULT3-CE-R10
WAFER-ULT4-i7-R10**
WAFER-ULT4-i5-R10
WAFER-ULT4-i3-R10**
32001-008600-200-RS
32005-003500-200-RS
34000-000673-RS
**By
order production, MOQ:100
WAFER-ULT3/WAFER-ULT4-2018-V11
