NANO-AL-N2-R10

Description
Single Board Computer EPIC SBC supports Intel 14nm quad-core Pentium N4200 2.5GHz on-board SoC with Dual HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS
CategoryEmbedded solution    To calculate    Single board computer
File Size558KB,2 Pages
ManufacturerIEI
Environmental Compliance
Download Datasheet Parametric Compare View All

NANO-AL-N2-R10 Online Shopping

Suppliers Part Number Price MOQ In stock
NANO-AL-N2-R10 - - View Buy Now

NANO-AL-N2-R10 Overview

Single Board Computer EPIC SBC supports Intel 14nm quad-core Pentium N4200 2.5GHz on-board SoC with Dual HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS

NANO-AL-N2-R10 Parametric

Parameter NameAttribute value
MakerIEI
Product Categorysingle board computer
seriesNANO-AL
physical dimensionEPIC
Processor brandIntel
Processor typeIntel Pentium N4200
frequency2.5 GHz
cache memory2 MB
storage8 GB
Working power voltage9 V to 30 V
Interface TypeAudio, DIO, Ethernet, HDMI, IDP, KB/MS, LVDS, RS-2
Minimum operating temperature- 20 C
Maximum operating temperature+ 70 C
size115 mm x 165 mm
Description/FunctionEPIC SBC Supports Intel 14nm Quad-Core Pentium N4200 2.5GHz On-Board SoC
storage typeDDR3L
Battery backup switchNo Backup Battery
coreIntel Pentium N4200
Processor seriesN4200

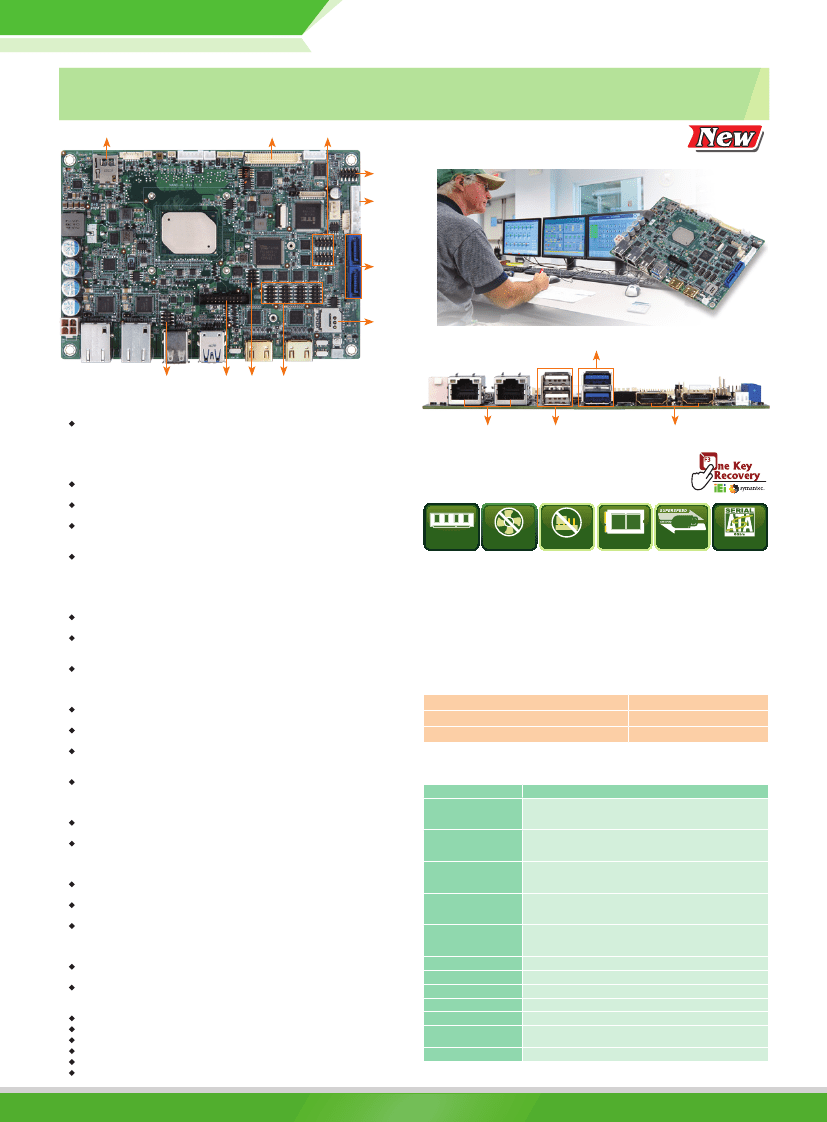

Single Board Computer
Embedded Board
w w w.ieiworld.com
NANO-AL
MicroSD (optional)
LVDS
EPIC SBC supports 14nm Intel® Pentium®/Celeron®/Atom™ on-board SoC with Dual
HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio
and RoHS, -20°C ~ 70°C
RS-232/422/485
Support Triple Display Configuration
Front Audio
KB/MS
2 x SATA 6Gb/s
MicroSIM
(optional)
USB 3.0
USB 2.0
iDP
DIO
RS-232
Specifications
SoC
Intel® Pentium® N4200 on-board SoC (up to 2.5GHz, quad-core, 2M Cache, TDP=6W)
Intel® Celeron® N3350 on-board SoC (up to 2.4GHz, dual-core, 2M Cache, TDP=6W)
Intel® Atom® x7-E3950 on-board SoC (up to 2.0GHz, quad-core, 2M Cache, TDP=12W)
Intel® Atom® x5-E3940 on-board SoC (up to 1.8GHz, quad-core, 2M Cache, TDP=9W)
Intel® Atom® x5-E3930 on-board SoC (up to 1.8GHz, dual-core, 2M Cache, TDP=6W)
BIOS
AMI UEFI BIOS
Memory
One 204-pin 1866/1600MHz Single-channel DDR3L SO-DIMM supports up to 8GB
Graphics Engine
Intel® HD Graphics Gen9 Low Power, 18 Execution Units
4K Codec Decode & Encode for HEVC 4, H.264, VP8, SVC, MVC
Display Output
Triple independent display
1 x 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)
2 x HDMI (up to 3840x2160 @ 30Hz)
1 x iDP interface for HDMI. LVDS, VGA, DVI, DP (up to 4096x2304@60Hz) (colay with
HDMI1)
Ethernet
Intel® I211-AT PCIe controller
External I/O Interface
2 x USB 3.0
2 x USB 2.0
Internal I/O Interface
1 x KB/MS (1x6 pin)
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
2 x SATA 6Gb/s with 5V SATA power connector (no RAID)
SMBus
1 x SMBus (1x4 pin)
I²C
1 x I²C (1x4 pin)
Audio
Realtek ALC662 HD codec
1 x Front audio (2x5 pin)
Front Panel
1 x Power LED & HDD LED (1x6 pin)
1 x Power button (1x2 pin)
1 x Reset button (1x2 pin)
LAN LED
2 x LAN LED (1x2 pin)
Expansion
1 x Full/Half-size PCIe Mini slot with SIM holder (optional)
1 x M.2 2242 (B key, SATA, USB 2.0, USB 3.0 signal only)
1 x Micro SD (Optional)
Digital I/O
8-bit digital I/O (2x5 pin)
Fan Connector
1 x Smart fan connector (1x4 pin)
Power Supply
9V~30V DC input
1 x Internal power connector (2x2 pin)
Support AT/ATX mode
Watchdog Timer
Software programmable, supports 1~255 sec. system reset
Power Consumption
12V@2.13A (Intel® Pentium® N4200 CPU with one 8GB 1600MHz DDR3L memory)
12V@2.81A (Intel® Atom™ x7-E3950 CPU with one 8GB 1600MHz DDR3L memory)
Operating Temperature: -20°C ~ 70°C / -40°C ~ 85°C (NANO-AL-ExW2)
Storage Temperature: -40°C ~ 85°C
Operating Humidity: 5% ~ 95%, non-condensing
Dimensions: 115mm x 165mm
Weight: GW: 850g / NW: 350g
CE/FCC compliant
Dual LAN
USB 2.0
HDMI
USB
DDR3L
Fanless
Jumper-less M.2/NGFF
USB 3.0
SATA 6Gb/s
Features
● EPIC SBC supports Intel® 14nm Generation Atom®, Celeron® or Pentium® on-board
SoC supports single-channel DDR3L SO-DIMMs
● Triple independent display support
● Wide range 9V~30V DC input design
● COM, USB 3.0, SATA 6Gb/s, M.2 and audio support
● Support temperature operation: -20°C ~ 70°C
Packing List
1 x NANO-AL single board computer with Heatsink
1 x SATA with power cable kit
1 x Screw set (for half-size PCIe Mini card)
1 x RS-232 cable
1 x Power cable
1 x QIG
Ordering Information
Part No.
NANO-AL-N2-R10**
Description
EPIC SBC supports Intel® 14nm quad-core Pentium® N4200 2.5GHz
on-board SoC with Dual HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0,
PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS
EPIC SBC supports Intel® 14nm dual-core Celeron® N3350 2.4GHz
on-board SoC with Dual HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0,
PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS
EPIC SBC supports Intel® 14nm quad-core Atom® x7-E3950 2.0GHz
on-board SoC with Dual HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0,
PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS, -40°C ~ 85°C
EPIC SBC supports Intel® 14nm quad-core Atom® x5-E3940 1.8GHz
on-board SoC with Dual HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0,
PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS, -40°C ~ 85°C
EPIC SBC supports Intel® 14nm dual-core Atom® x5-E3930 1.8GHz
on-board SoC with Dual HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0,
PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS, -40°C ~ 85°C
Dual-port USB cable, 210mm, P=2.0
PS/2 KB/MS cable, 135mm, P=2.0
DisplayPort to DisplayPort converter board (for IEI iDP connector)
DisplayPort to DVI-D converter board (for IEI iDP connector)
DisplayPort to HDMI converter board (for IEI iDP connector)
DisplayPort to 24-bit dual-channel LVDS converter board
(for IEI iDP connector)
DisplayPort to VGA converter board (for IEI iDP connector)
NANO-AL-N1-R10
NANO-AL-E3W2-R10**
NANO-AL-E2W2-R10**
NANO-AL-E1W2-R10**
32000-070301-RS
32000-023800-RS
DP-DP-R10
DP-DVI-R10
DP-HDMI-R10
DP-LVDS-R10
DP-VGA-R10
**By
order production, MOQ: 100
NANO-AL-2018-V12
