Ceramic
Housing RTD
Temperature
Sensor, Hi-Temp

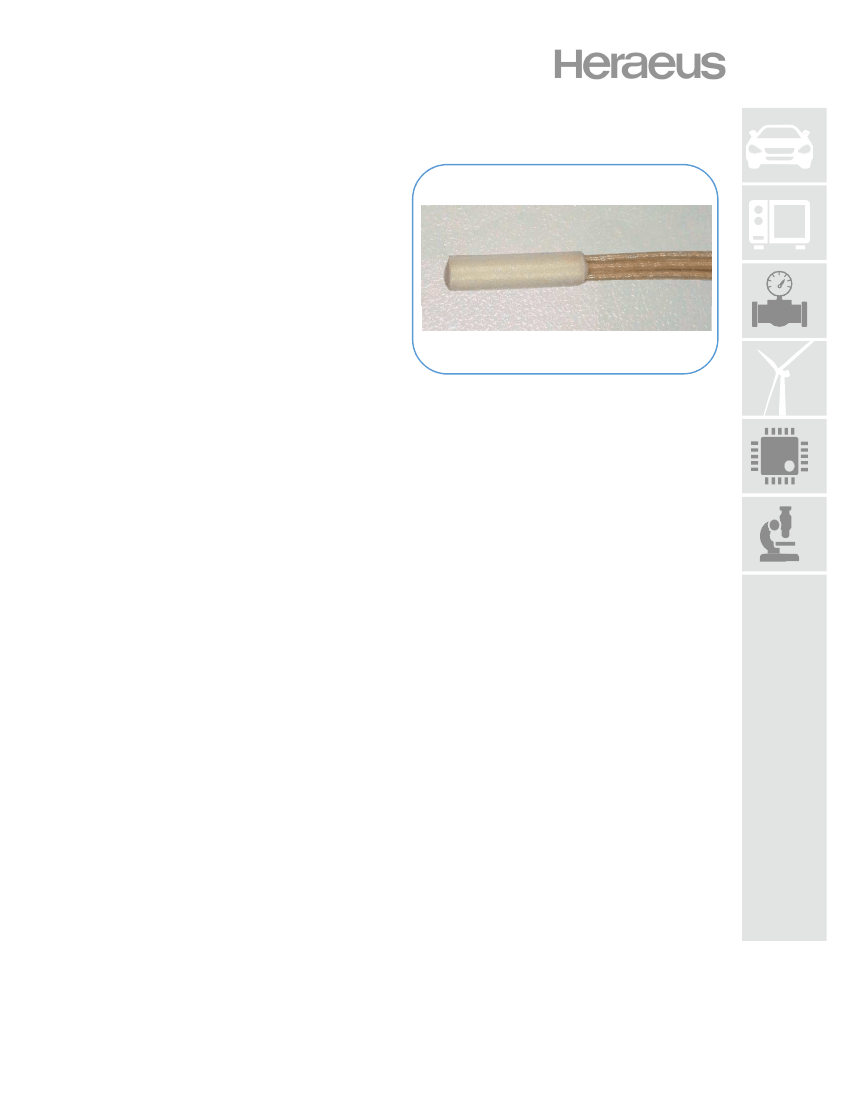

Platinum RTD element encapsulated in ceramic housing, fiberglass - insulated lead
wires.
Applications
•
Temperature probe assembly
•
Heating, ventilating, and air
conditioning
•
Laboratory instrumentation
•
Laboratory ovens & furnaces
•
Applications requiring an
electrically insulating or non-
metallic sensor body
Features
•
Alumina ceramic housing provides
excellent electrical isolation
•
Small diameter (0.135", 3.43mm) allows
insertion into metal housings with OD of
0.156"(3.96mm) and larger
•
Widely used for a variety of temperature-
sensing applications
•
Available in Pt100 or Pt1000 resistance
values
•
+500°C maximum operating temperature
Heraeus Sensor Technology
www.heraeus-sensor-technology.com
This data sheet does not constitute an offer or agreement to sell any product. Heraeus believes the information
contained in this data sheet is accurate as of the version date. HOWEVER, NO REPRESENTATION OR WARRANTY OF ANY
KIND, EXPRESS OR IMPLIED, IS MADE CONCERNING THE INFORMATION HEREIN PROVIDED OR THE PRODUCT TO WHICH THE
INFORMATION REFERS. Heraeus does not accept legal responsibility for the use of this information.
The
information contained herein may not be valid for such product used in combination with any other materials,
products, or in any process. It is the user's responsibility to satisfy itself that the product is suitable for
the intended use.
Revision Date: 09/26
Ceramic Housing RTD Temperature Sensor,
Hi-Temp Specifications

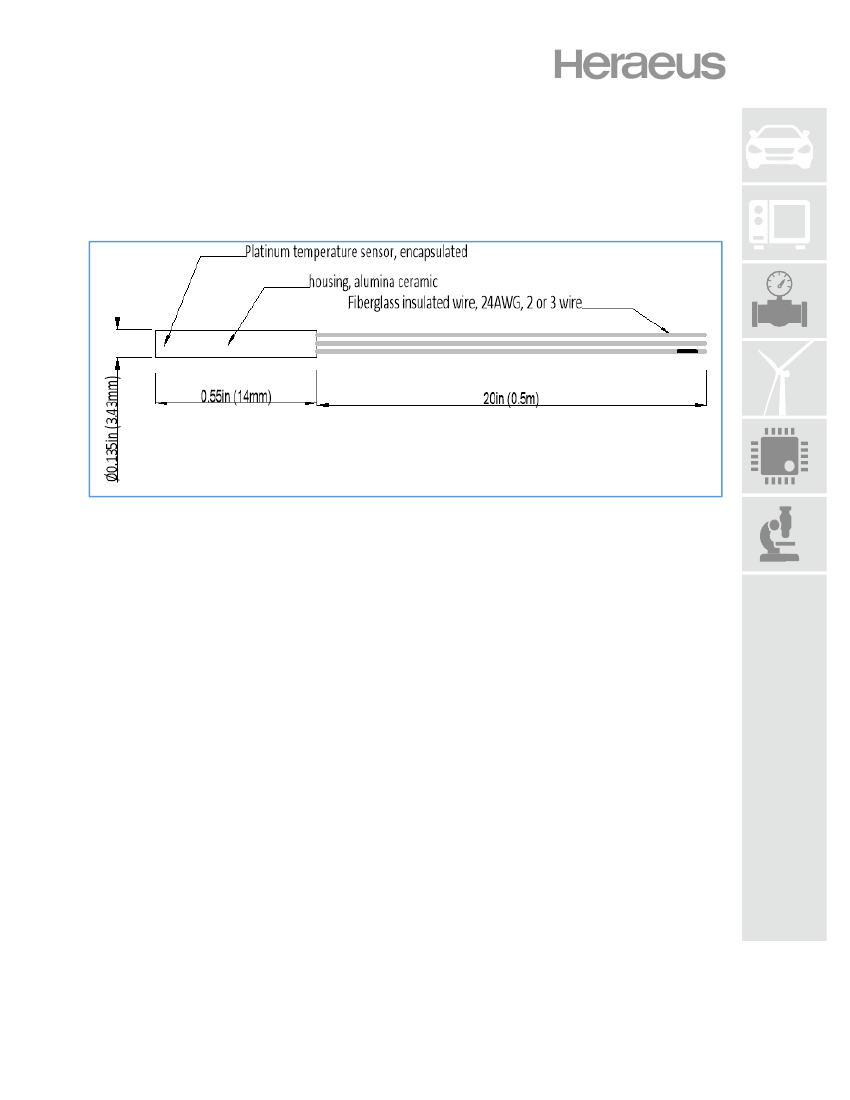

For 3 wire assemblies, one wire is marked to show polarity
Dimensions are in mm unless otherwise noted
Specifications
Operating Temperature Range
-40°C to +500°C
Connection wire
Fiberglass insulated, 2 x 0.22 mm
2
(24AWG)
Pt100: 3 wire connection (one wire marked
to indicate polarity)
Pt1000: 2 wire connection
Temperature sensing element
Platinum RTD, Pt100 or Pt1000, as per
DIN EN 60751 F0.15
Wire resistance
0.030Ω/ft. (0.098Ω/m) for each conductor
Housing
Aluminum Oxide ceramic
Heraeus Sensor Technology
www.heraeus-sensor-technology.com
This data sheet does not constitute an offer or agreement to sell any product. Heraeus believes the information
contained in this data sheet is accurate as of the version date. HOWEVER, NO REPRESENTATION OR WARRANTY OF ANY
KIND, EXPRESS OR IMPLIED, IS MADE CONCERNING THE INFORMATION HEREIN PROVIDED OR THE PRODUCT TO WHICH THE
INFORMATION REFERS. Heraeus does not accept legal responsibility for the use of this information.
The
information contained herein may not be valid for such product used in combination with any other materials,
products, or in any process. It is the user's responsibility to satisfy itself that the product is suitable for
the intended use.
Revision Date: 09/26
Ceramic Housing RTD Temperature Sensor,
Hi-Temp
Options
Wire length
Resistance value
Connectors
Ordering Code for Standard Product
Pt100 (3 wire):
35110015
Pt1000 (2 wire): 35110016
Resistance vs Temperature Table
Reference tables @
https://www.heraeus.com/en/hst/technical_information/technical_information_hst.aspx
Contact Information
Heraeus Sensor Technology USA
770 Township Line Road, Suite 300 Yardley, PA 19067 USA
Phone: 1-215-944-9010 | Fax: 1-215-944-9392 | E-mail: info.hst-us@heraeus.com | Web: www.heraeus-sensor-technology.com
Heraeus Sensor Technology
www.heraeus-sensor-technology.com
This data sheet does not constitute an offer or agreement to sell any product. Heraeus believes the information
contained in this data sheet is accurate as of the version date. HOWEVER, NO REPRESENTATION OR WARRANTY OF ANY
KIND, EXPRESS OR IMPLIED, IS MADE CONCERNING THE INFORMATION HEREIN PROVIDED OR THE PRODUCT TO WHICH THE
INFORMATION REFERS. Heraeus does not accept legal responsibility for the use of this information.
The
information contained herein may not be valid for such product used in combination with any other materials,
products, or in any process. It is the user's responsibility to satisfy itself that the product is suitable for
the intended use.
Revision Date: 09/26
