RKZE-2405S/H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The power supply> DC/DC converters> Isolated DC/DC converter> RKZE-2405S/H

RKZE-2405S/H: DescriptionIsolated DC/DC Converter 2W 24Vin 5Vout 400mA Single SIP7; CategoryThe power supply DC/DC converters Isolated DC/DC converter; File Size1MB，6 Pages; ManufacturerRECOM; Environmental Compliance

Download Datasheet Parametric View All

RKZE-2405S/H Overview

Isolated DC/DC Converter 2W 24Vin 5Vout 400mA Single SIP7

RKZE-2405S/H Parametric

Parameter Name	Attribute value
Maker	RECOM
Product Category	Isolated DC/DC converter
Shipping restrictions	Mouser does not currently sell this product.
Number of outputs	1 Output
Output Power	2 W
Input voltage	24 V
Output voltage—channel 1	5 V
Output current—channel 1	400 mA
Insulation voltage	4 kVDC
Installation style	Through Hole
length	19.65 mm
width	10.2 mm
high	10.2 mm
industry	Industrial
product	Isolated
series	RKZE
Package/box	SIP-7
Encapsulation	Tube
Maximum operating temperature	+ 80 C
Minimum operating temperature	- 40 C
Factory packaging quantity	25
unit weight	2.800 g

Preview

Download Datasheet

View All

Features

Unregulated

Converters

Description

• Low cost 2W converter

• Industry standard SIP7 package

• 3kVDC or 4kVDC isolation options

• Single or dual outputs

• Short circuit protected (/P versions)

• EN62368-1 pending

DC/DC Converter

RKZE

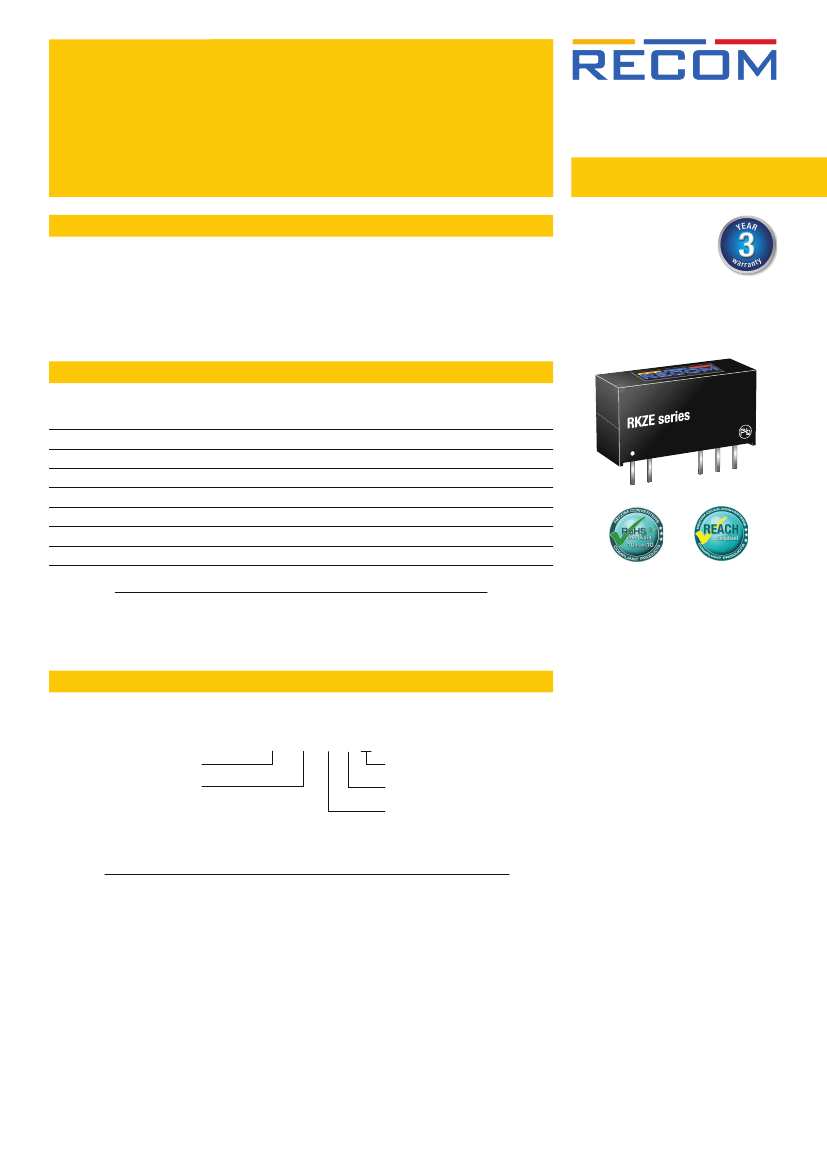

The RKZE series are low cost 2W DC/DC converters in a standard SIP7 footprint. This makes them

suitable for price sensitive industrial, test and measurement and high volume applications.

The RKZE converters are pin-compatible with the RK and RH converter series, offering a simple way

to upgrade a 1W high isolation supply to 2W. Standard isolation is 3kVDC with a /H version factory

tested to 4kVDC. The RKZE is available with single or dual outputs with optional continuous short circuit

protection (/P suffix).

2 Watt

SIP7

Single and Dual

Output

Selection Guide

Part

Number

RKZE-xx05S

(3,4)

RKZE-xx09S

RKZE-xx12S

(3,4)

nom. Input

Voltage

[VDC]

5, 12, 15, 24

Output

Voltage

[VDC]

±5

±12

±15

Output

Current

[mA]

400

222

167

133

±200

±84

±66

Efficiency

typ.

(1)

[%]

81-83

84-85

82-88

84-86

83-85

84-85

83-86

max. Capacitive

Load

(2)

[µF]

1500

680

330

±680

±220

RKZE-xx15S

(3,4)

RKZE-xx05D

(3,4)

RKZE-xx12D

(3,4)

RKZE-xx15D

(3,4)

Notes:

Note1: Efficiency is tested at nominal input and full load at +25°C ambient

Note2: Max Cap Load is tested at nominal input and full resistive load

EN62368-1 pending

EN55032 pending

EN55024 pending

Model Numbering

RKZE-__ __ _/_

nom. Input Voltage

Output Voltage

Protection

(4)

Isolation Option

(3)

Single

Dual

Notes:

Note3: standard part is without suffixes

without suffix, standard isolation voltage (3kVDC/1 second)

add suffix „/H“ for 4kVDC isolation

Note4: add suffix „/P“ for Continuous Short Circuit Protection

or add suffix „/HP“ for 4kVDC Isolation and Continuous Short Circuit Protection

Ordering Examples

RKZE-1205S

= 12V Input Voltage, 5V Output Voltage, Single Output with 3kVDC Isolation

RKZE-1509S/H

= 15V Input Voltage, 9V Output Voltage, Single Output with 4kVDC Isolation

RKZE-0505D/P

= 5V Input Voltage, 5V Output Voltage, Dual Output with 3kVDC Isolation and Continuous Short Circuit Protection

RKZE-2415D/HP = 24V Input Voltage, 15V Output Voltage, Dual Output with 4kVDC Isolation and Continuous Short Circuit Protection

www.recom-power.com

REV.: 0/2018

ECO-1
