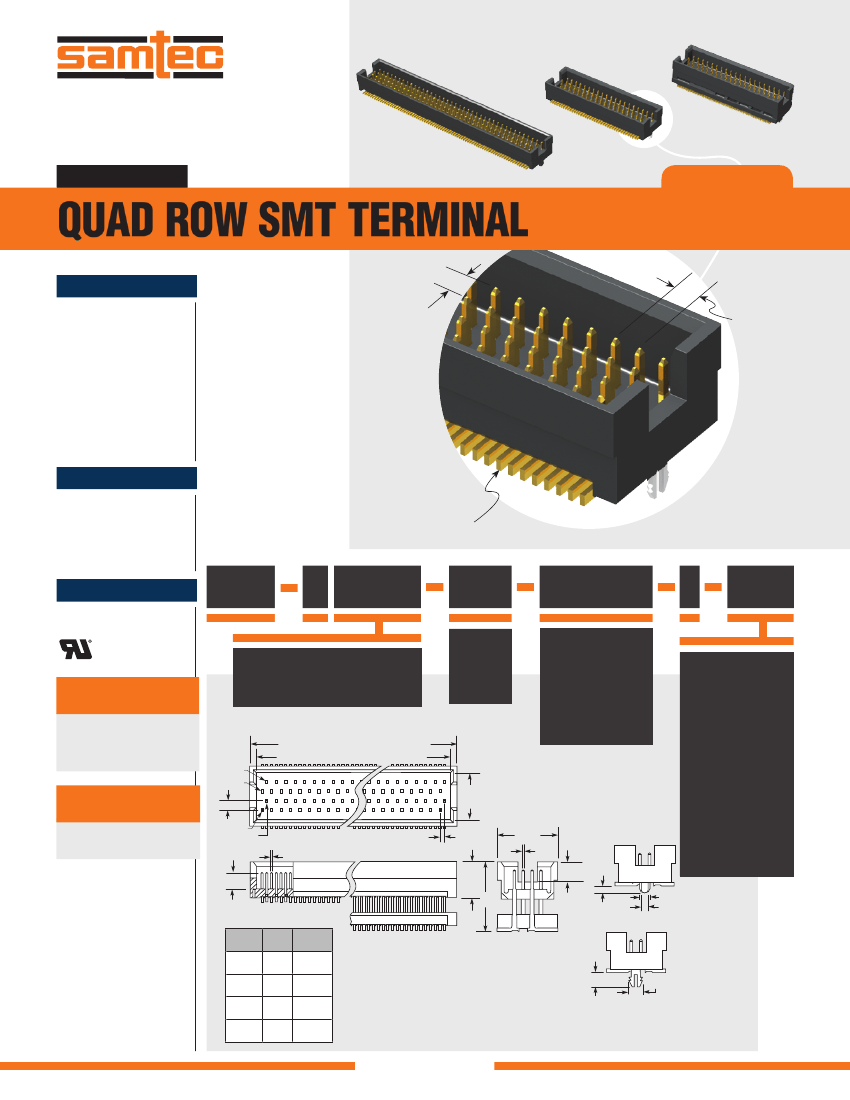

F-219
TOLC–120–12–F–Q–LC
TOLC–120–02–L–Q–LC
(1.27 mm) .050"
TOLC–140–02–F–Q–A
TOLC SERIES
QUAD ROW SMT TERMINAL
SPECIFICATIONS
For complete specifications and
recommended PCB layouts see
www.samtec.com?TOLC
Insulator Material:
Black Liquid Crystal Polymer
Terminal Material:
Phosphor Bronze
Plating:
Au over 50 µ" (1.27 µm) Ni
Current Rating:
2.4 A per pin
(6 adjacent pins powered)
Operating Temp Range:
-55 °C to +125 °C
RoHS Compliant:
Yes
Mates with:
SOLC
(1.27 mm)
.050"
(1.27 mm)
.050"
PROCESSING
Lead-Free Solderable:
Yes
SMT Lead Coplanarity:
(0.10 mm) .004" max (05-30)
(0.15 mm) .006" max (35-50)*
*(.004" stencil solution
may be available; contact
IPG@samtec.com)
Surface
mount
Drop-in replacement
for FOLC/MOLC when
mated with SOLC
RECOGNITIONS
For complete scope of
recognitions see
www.samtec.com/quality
FILE NO. E111594
TOLC
1
NO. PINS
PER ROW
LEAD
STYLE
Specify
LEAD
STYLE
from
chart
PLATING
OPTION
Q
OPTION
OTHER
SOLUTIONS
• For Micro Rugged,
see the MOLC/FOLC
pages located in the
Tiger Eye™ section.
A1
B1
05, 10, 15, 20, 25,
30, 35, 40, 45, 50
(Standard sizes)
= Gold flash on post,
Gold flash on tail
–F
–L
= Alignment Pin
(Not available with -LC)
–A
= 10 µ" (0.25 µm)
Gold on post,
Gold flash on tail
No. of positions x (1.27) .050 + (2.54) .100
No. of positions x (1.27) .050 + (0.76) .030
= Locking Clip
(Not available with -A)
(Manual placement
required)
–LC
ALSO AVAILABLE
(MOQ Required)
• Other sizes
• Other platings
(1.27)
.050 D1C1
TYP
(0.25) .010
(2.54)
.100
(0.635) .025 TYP
(6.86)
.270
(8.13)
.320
(0.38)
.015
= (9.00 mm) .354" DIA
Polyimide film
Pick & Place Pad
–K
(5.08)
.200
(2.54)
.100
(0.76)
.030
(0.89)
.035
(1.27)
.050
= Tape & Reel
–TR
Style –02
LEAD
STYLE
– 02
–12
Note:
Some sizes, styles and
options are non-standard,
non-returnable.
–22
–32
A
Styles –12,–22,–32
–A OPTION
(1.02)
.040
(1.42)
.056
A
(5.59)
.220
(7.24)
.285
(9.25)
.364
(11.23)
.442
MATED
HEIGHT
(6.35)
.250
(8.00)
.315
(10.00)
.394
(12.00)
.472
–LC OPTION
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
