EBTF-4-10-2.0-S-RA-1: DescriptionHigh Speed/Modular Connector ExaMAX 2.00 mm Right-Angle Receptacle; CategoryThe connector The connector; File Size1MB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

EBTF-4-10-2.0-S-RA-1 Overview

High Speed/Modular Connector ExaMAX 2.00 mm Right-Angle Receptacle

EBTF-4-10-2.0-S-RA-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	8 weeks
body width	0.886 inch
subject depth	1.102 inch
body length	0.823 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	10
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal pitch	1.2 mm
Termination type	PRESS FIT
Total number of contacts	80
Base Number Matches	1

Preview

Download Datasheet

View All

F-215

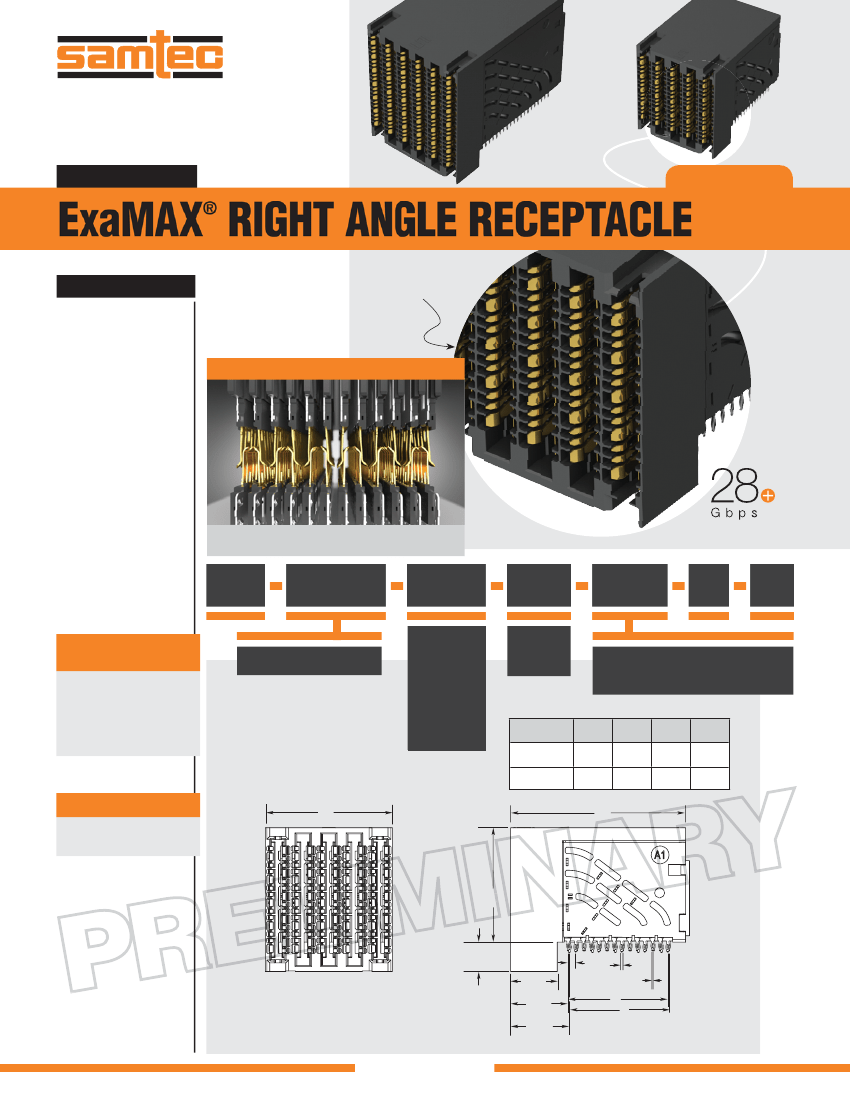

EBTF–4–10–2.0–S–RA–1

(2,00 mm) .0787"

EBTF–6–12–2.0–S–RA–1

EBTF SERIES

ExaMAX RIGHT ANGLE RECEPTACLE

SPECIFICATIONS

For complete speciﬁcations

and recommended PCB layouts

see www.samtec.com?EBTF

Insulator Material:

Liquid Crystal Polymer

Contact Material:

Copper Alloy

Plating:

Sn or Au over

50 µ" (1,27 µm) Ni

Operating Temp Range:

-55°C to +85°C

RoHS Compliant:

Yes

®

Signal wafers incorporate

a one-piece, embossed

ground structure

to improve

crosstalk

performance

APPLICATION

Processing:

Lead–Free Solderable:

Yes

The beam-on-beam contact interface creates two

reliable points of contact at all times.

EBTF

ALSO AVAILABLE

(MOQ Required)

• Pin conﬁgurations

• Guidance

• Keying

• End walls

Contact Samtec.

NO. OF PAIRS

PER COLUMN

COLUMNS

COLUMN

PITCH

PLATING

RA

1

–10

–4, –6

= Ten

Rows

(–4 only)

–2.0

= (2,0 mm)

.0787"

–S

= 30 µ" (0,76 µm) Gold in contact area,

Matte Tin on tail

–12

= Twelve

Rows

(–6 only)

NO. OF PAIRS

PER COLUMN

A

B

C

D

–4

–6

(19,90) (17,90) (28,00) (15,60)

.783

.705

1.102

.614

(23,90) (25,10) (35,60) (22,80)

.941

.988

1.402

.898

IN DEVELOPMENT

• 3,00 mm pitch

• 40 Gbps

A

C

B

(4,60)

.181

(7,30)

.287

(9,00)

.354

(1,20)

.048

(0,34)

.013

(0,19)

.007

Note:

ExaMAX

®

is a

t

trademark of FCI.

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

–4 SHOWN

D

(9,20)

.362

WWW.SAMTEC.COM

Due to technical progress, all designs, speciﬁcations and components are subject to change without notice.
