SEAR-50-10.0-10-085 datasheet, PDF

Datasheet> All Categories > The connector> The connector> SEAR-50-10.0-10-085

SEAR-50-10.0-10-085: DescriptionBoard-to-Board & Mezzanine Connectors.050" SEARAY High-Speed High-Density Riser, 85 Ohm; CategoryThe connector The connector; File Size1MB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

SEAR-50-10.0-10-085 Overview

Board-to-Board & Mezzanine Connectors.050" SEARAY High-Speed High-Density Riser, 85 Ohm

SEAR-50-10.0-10-085 Parametric

Parameter Name	Attribute value
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Connector type	BOARD STACKING CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

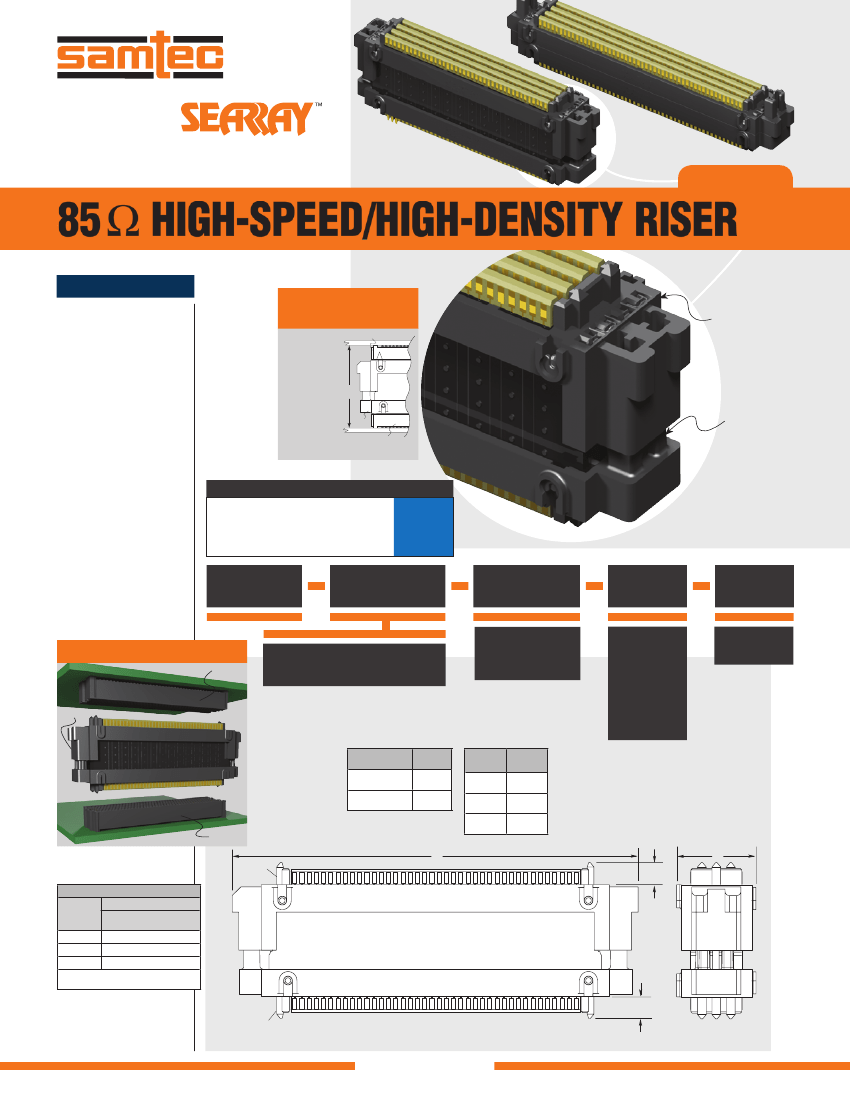

F-219

SEAR–40–20.0–08–085

SEAR–50–10.0–08–085

SEAR SERIES

HIGH-SPEED/HIGH-DENSITY RISER

SPECIFICATIONS

For complete specifications and

recommended PCB layouts see

www.samtec.com?SEAR

Insulator Material:

Black LCP

Clip Material:

Copper Alloy

PCB Material:

FR4, Copper

Operating Temp Range:

-55 °C to +125 °C

Current Rating:

Signal:

1.4 A per pin

(20 adjacent signal

pins powered)

Ground:

5.4 A per pin

(10 adjacent ground

pins powered)

Contact Area:

Hard Gold plated

Working Voltage:

240 VAC

RoHS Compliant:

Yes

Lead-Free Solderable:

Yes

Side A

Mates with:

SEAF

Side B

Mates with:

SEAF

ALSO AVAILABLE

(MOQ Required)

SEAF

• Custom

stack

heights up

to 40 mm

• 50

and

STACK

HEIGHT

100

systems

SEAR

• Additional

positions

SEAF

• Additional row options

Super

elevated,

up to 40 mm

mated height

Guide

rails

HIGH-SPEED CHANNEL PERFORMANCE

SEAR/SEAF @ 20 mm Mated Stack Height

Rating based on Samtec reference channel.

For full SI performance data visit Samtec.com

or contact SIG@samtec.com

G b p s

SEAR

NO. OF PINS

PER ROW

LEAD

STYLE

Specify

LEAD STYLE

from chart

NO. OF

ROWS

085

–085

APPLICATION

SEAF

(Call Samtec for other sizes)

–40, –50

= Six Rows

–06

–08

–10

= 85

system

= Eight Rows

SEAR

= Ten Rows

NO. OF

POSITIONS

–40

–50

SEAF

SIDE A

(71.42)

2.812

(84.12)

3.312

NO. OF

ROWS

–06

–08

–10

(11.43)

.450

(13.97)

.550

(16.51)

.650

(3.89)

.153

MATED HEIGHT*

SEAR SEAF LEAD STYLE

LEAD

STYLE –05.0 (SIDE A & B)

–10.0

–20.0

–30.0

20 mm

30 mm

40 mm

*Processing conditions will

affect mated height.

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

(3.89)

.153

SIDE B

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
