RADSOK®
Grounding contact
Characteristics
• Amphenol Radsok® technology
• IP67 wall-side to wall-side
• Oneside assembly with standard tools
• easy to mate and unmate
Wallbushing connector universal port
Applications
• Factory automation
• Windpower
• Switch gears
• ...
Amphenol-Tuchel Electronics GmbH | August - Häußer Strasse 10 | 74080 Heilbronn | Germany
Telefon: +49 (0)7131 929 - 0 | Fax: +49 (0)7131 929 - 486 | www.industrial-amphenol.com
RADSOK®
Technical Data
General Information
Number of contacts
Termination technique (pin into Radsok)
Wire gauge
Termination technique (wall-side)
Wall thickness
Dimension of wall cut-out
torque for assembly of WBC
Temperature range
IEC 60512 - 11 - 9
IEC 60512 - 11 - 10
Standard
Value
1 Pin, 1 Radsok and 1 cable socket
latching ( Pin into Radsok )
10 - 25 mm (Radsok)
Screwing
1,5 - 6 mm
Ø31,5mm ± 0,2 burr-free
6Nm ± 3%
- 40 °C to + 120 ° C
2
Mechanical and electrical characteristics
Protection class (wall-side to wall-side)
Protection class (Radsok)
Rated voltage
contact resistence
IEC 60 529
IEC 60 529
IEC 61140 cl. 6
IEC 60512; test 1
IP67
IP20
≤ 60V DC / ≤ 25V AC
≤ 0,2 mOhm
Derating-Curves according to IEC 60512-2; test 5b
160
140
A
B
A
B
C
Cable 25 mm2
Cable 16 mm2
Cable 10 mm2
current rating (A)
120
100
80
60
40
20
0
0
15
30
45
60
75
90
105
120
C
Ambient temperature (°C)
Tools
Electrohydraulic crimping tool
Crimping dies for N02 060 6164 002
Crimping dies for N02 060 6165 002
TE0500 / Klauke part number : EK 12042L
10mm² - TE0500 - 081
16mm² - TE0500 - 061
25mm² - TE0500 - 041
Amphenol-Tuchel Electronics GmbH | August - Häußer Strasse 10 | 74080 Heilbronn | Germany
Telefon: +49 (0)7131 929 - 0 | Fax: +49 (0)7131 929 - 486 | www.industrial-amphenol.com
RADSOK®

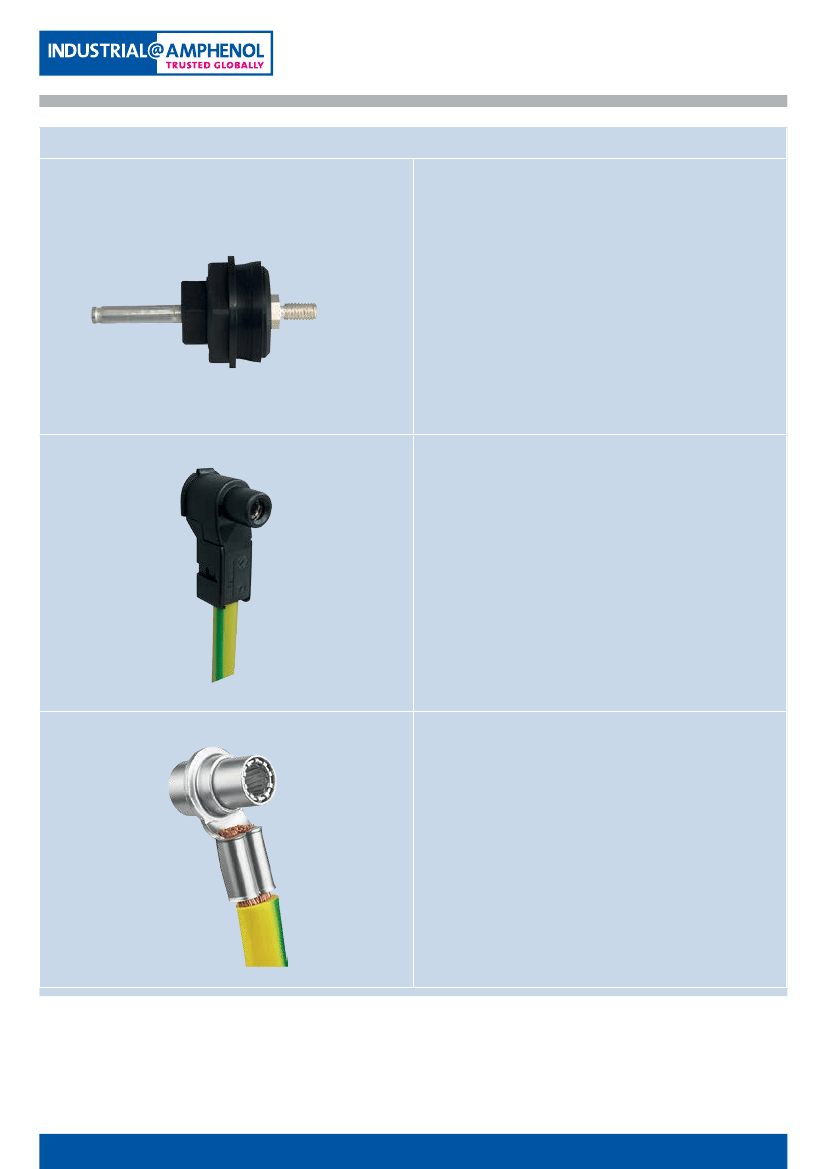

Part numbers
C
360 10
D
001 002 2 - Wallbushing Connector Universal Port 6mm
C360 G01 141 E2 - Housing for 6mm Radsok, 10 - 16mm²
C360 G01 341 E2 - Housing for 6mm Radsok, 25mm²
N02 060 6164 002 - Radsok contact 10 - 16mm²
N02 060 6165 002 - Radsok contact 25mm²
General nformation
