89K401-271N1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Rf interconnection> RF connector/coaxial connector> 89K401-271N1

89K401-271N1: DescriptionRF Connector/Coaxial Connector Panel Jack; CategoryThe connector Rf interconnection RF connector/coaxial connector; File Size330KB，3 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric View All

89K401-271N1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	89K401-271N1	-	-	View	Buy Now

89K401-271N1 Overview

RF Connector/Coaxial Connector Panel Jack

89K401-271N1 Parametric

Parameter Name	Attribute value
Maker	Rosenberger
Product Category	RF Connector/Coaxial Connector
product	Connectors
RF series	NEX10
Type	Jack (Female)
impedance	50 Ohms
minimum frequency	-
maximum frequency	20 GHz
Termination type	Solder
direction	Straight
polarity	Normal
Installation type	Panel
Main material	Brass
Contact plating	Silver
Voltage rating	500 V
Contact material	Beryllium Copper
Main body surface treatment	White Bronze
Insulation resistance	5 GOhms
Operation cycle	100 Cycle
Maximum operating temperature	+ 125 C
Minimum operating temperature	- 55 C
Factory packaging quantity	1

Preview

Download Datasheet

View All

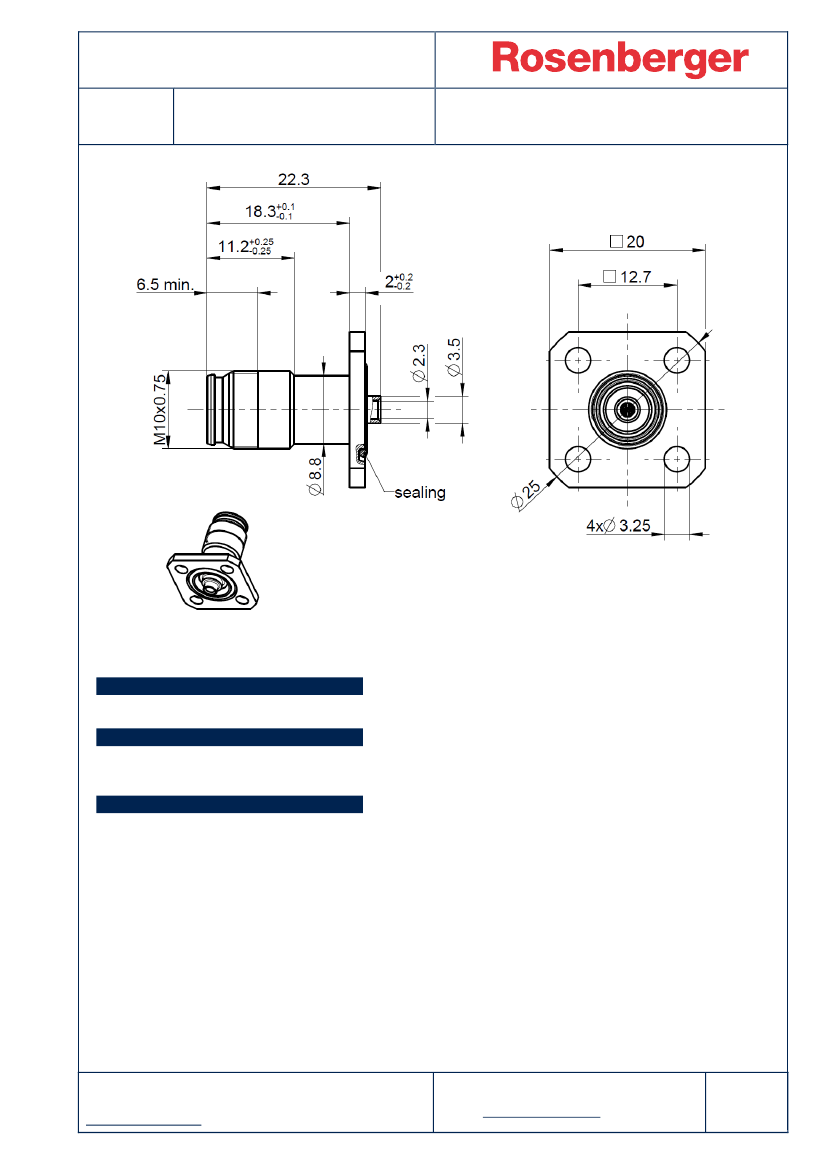

Technical Data Sheet

NEX10

Panel Jack

89K401-271N1

Dieses Dokument ist urheberrechtlich geschützt ● This document is protected by copyright ● Rosenberger Hochfrequenztechnik GmbH & Co. KG

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to

NEX10™

Documents

Assembly instruction

Panel piercing

89 B1

B 176d

Material and Plating

Connector parts

Center contact

Outer contact

Body

Dielectric

Gasket

Material

CuBe

Brass

PTFE

Silicone

Plating

Silver, 3-6 µm

White bronze(e.g. Optalloy®)

RF_35/05.10/6.0

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel. : +49 8684 18-0

Email : info@rosenberger.de

Page

1/2
