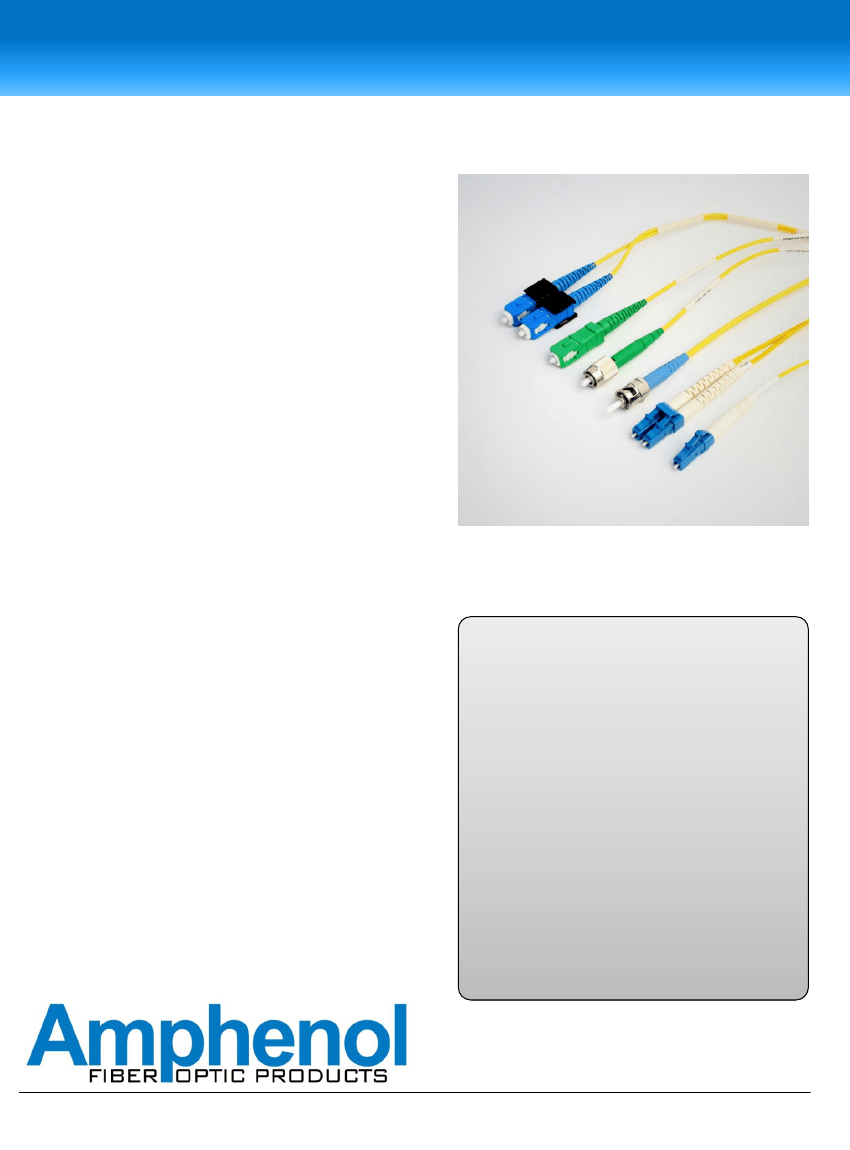

942 Singlemode Cable Assemblies
Amphenol is a premier manufacturer of
Singlemode patchords in the
telecommunications industry, meeting or
exceeding many of the industry standard
requirements for optical transmission loss,
reflectance, visual endface specifications, and
geometry. Amphenol offers standard patch
cords in a variety of configurations and
connector types. Both standard SMF-28e and
bend reduced fiber types are available.
Custom options are available upon request.
Features/Benefits
•
•
•
Available in a wide variety of connector types, cable
designs, and lengths
All assemblies meet TIA/EIA and IEC intermateability
standards
Duplex assembly version utilizes a removable
flexible clip providing a float between channels A
and B
RoHS compliant
Multiple boot size, colors and angle options
available
Assemblies are available in standard SMF-28e and
Bend reduced fiber types .
Custom configurations available upon request
Specifications
Insertion Loss:
≤ 0.15dB typical, Ultra
≤ 0.25dB typical, Angle
Return Loss:
Ultra (UPC) ≤ -55dB
Angle (APC) ≤ -65dB
Durability:
< 0.2dB change, 500mating cycles
•
•
•
•
Temperature:
-20 to +75 C
Intermateability:
The Amphenol Singlemode assemblies are
mechanically and optically intermateable with
industry standard connectors and adapters and
conform to TIA/EIA, IEC, and Telcordia
specifications.
www.amphenol-fiberoptics.com
sales@amphenol-fiberoptics.com
Customer Service 800-944-6446
R1 04/11
Standard Singlemode Assembly Ordering Information*
Side
A
Side B
942
Cable Type
2: 2mm
3: 3mm
6: 1.6mm
9: 900µm
X
X
X
X
X
X
X
Length Unit
0: Meters
F: Feet
X
X
X
Assembly Type
0: Pigtail
1: Jumper
Polish Type
4: 8° angled
5: Ultra
Connector
2: FC
4: STII
5: ST
6: SC
E: SC(D)
C: LC
D: LC(D)
Cable Length
Boot Type
1: standard
2: 90°, side A
3: 90°, side B
4: 90°, side A and B
Standard Singlemode Hybrid Polish Jumper Ordering Information*
942
9
9
X
X
Side A
Polish Type
4: 8° angled
5: Ultra
X
X
Side B
Polish Type
4: 8° angled
5: Ultra
X
X
X
X
Cable Length in meters
Assembly Type
A: Jumper
B: Duplex Jumper
Connector
2: FC
4: STII
5: ST
6: SC
E: SC(D)
C: LC
D: LC(D)
Connector
2: FC
4: STII
5: ST
6: SC
E: SC(D)
C: LC
D: LC(D)
Cable Type
2: 2mm
3: 3mm
6: 1.6mm
9: 900µm
*Please contact Amphenol for custom configurations
www.amphenol-fiberoptics.com
sales@amphenol-fiberoptics.com
Customer Service 800-944-6446
R1 04/11
