Technical Data Sheet - Draft
Adaptor
NEX10 jack – SMA plug
32S189-K00N5
Dieses Dokument ist urheberrechtlich geschützt ● This document is protected by copyright ● Rosenberger Hochfrequenztechnik GmbH & Co. KG

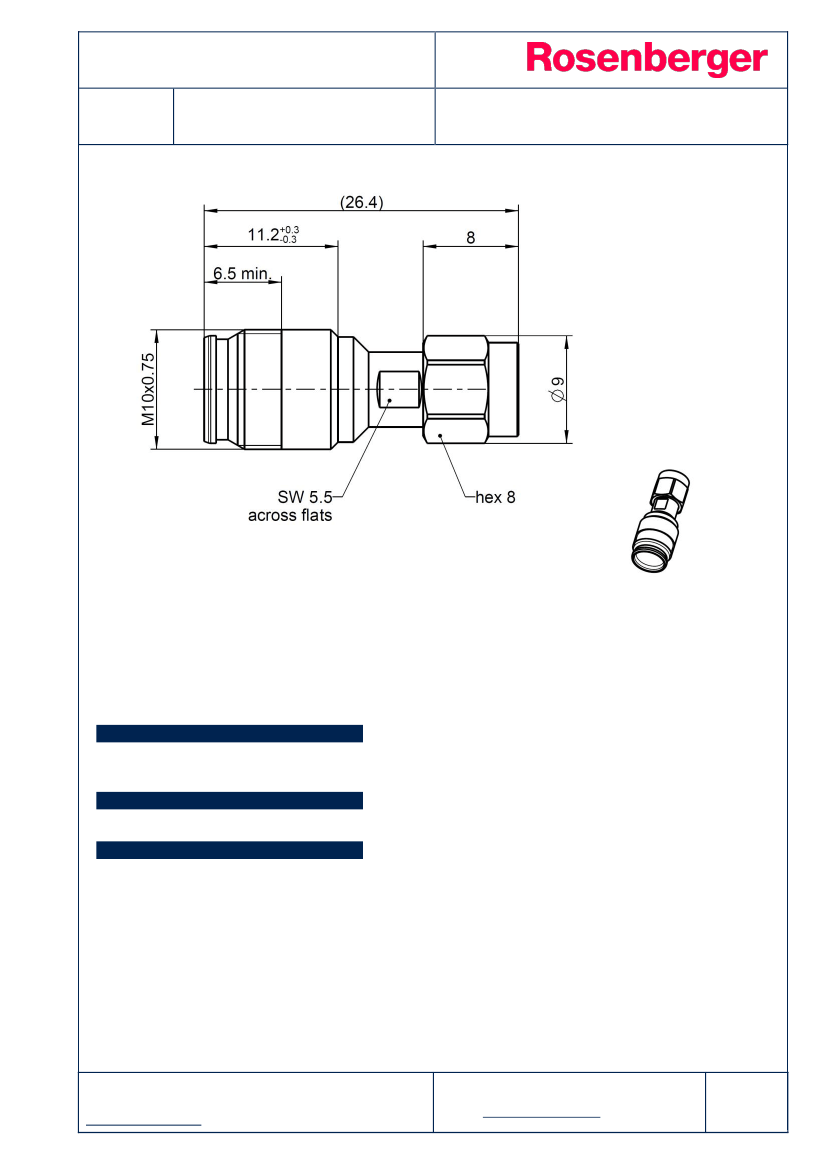

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
NEX10 side:
SMA side:
NEX10™
IEC 60169-15, EN 122110, MIL-STD-348
Documents
Assembly instruction
N/A
Material and plating
Connector parts
Center contact
Center contact
Outer contact
Body
Dielectric
Gasket
SMA side:
NEX10 side:
Material
Brass
CuBe
Brass
Brass
PTFE
Silicone
Plating
AuroDur®, gold plated
AuroDur®, gold plated
White bronze(e.g. Optalloy®)
White bronze(e.g. Optalloy®)
RF_35/05.10/6.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Email : info@rosenberger.de
Page
1/2
Technical Data Sheet - Draft
Adaptor
NEX10 jack – SMA plug
Electrical data
Impedance
Frequency
Return loss
50
DC to 12 GHz
36 dB @ DC to 4 GHz
34 dB @ 4 GHz to 6 GHz
32 dB @ 6 GHz to 10 GHz
0.05 x
f [GHz]
dB
32S189-K00N5
Dieses Dokument ist urheberrechtlich geschützt ● This document is protected by copyright ● Rosenberger Hochfrequenztechnik GmbH & Co. KG
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Working voltage
RF-leakage
Power handling
(at 20 °C, sea level, VSWR 1.0)
5 G
2.0 m, NEX10 side
3 m, SMA side
1.0 m, NEX10 side
2 m, SMA side
500 V rms
100 dB @ DC to 1 GHz
200 W @ 2 GHz
Mechanical data
Mating cycles
Center contact captivation axial
Recommended torque
NEX10 side
100
25 N
1.5 Nm
SMA side
100
0.5 Nm
Environmental data
Temperature range
Thermal shock
Vibration
Shock
Degree of protection (mated pair)
RoHS
-55 °C to +125 °C operating temperature
IEC 61169-1 9.4.4
IEC 61169-1 9.3.3 and IEC 60068-2-64
IEC 61169-1 9.3.14
IEC 60529, IP68 24h / 1m
compliant
Tooling
N/A
Suitable cables
N/A
Weight
Weight
tbd g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
Draft
F. Fraunhofer
Date
26.09.17
Approved
F. Fraunhofer
Date
20.03.2018
Rev.
300
Engineering change number
18-v215
Name
Rohith Kumar
Date
20.03.2018
RF_35/05.10/6.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Email : info@rosenberger.de
Page
2/2
