896HP-1AH-C-U2120VDC Overview

Automotive Relay PCB, 1 Form A, SPNO 1-Pole, Flux Tight

896HP-1AH-C-U2120VDC Parametric

Parameter Name	Attribute value
Maker	Song Chuan
Product Category	Automotive relay
Shipping restrictions	Mouser does not currently sell this product.
series	896HP

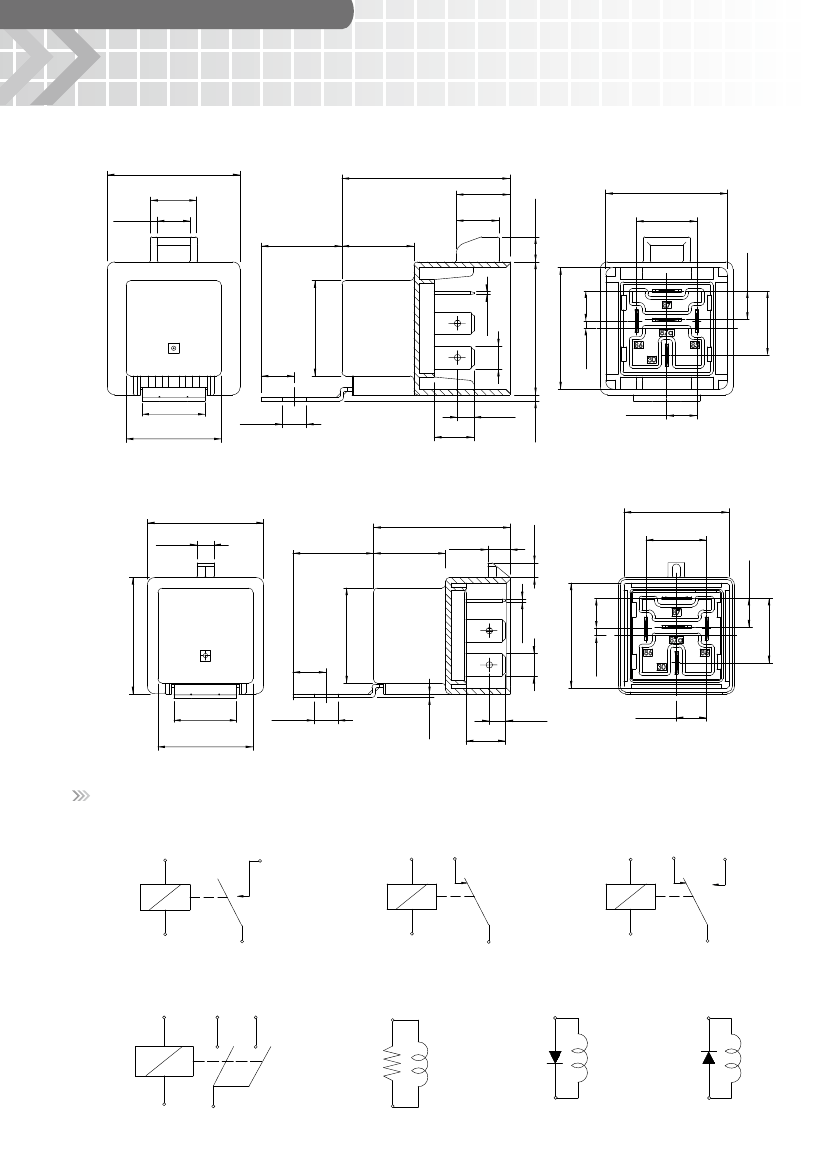

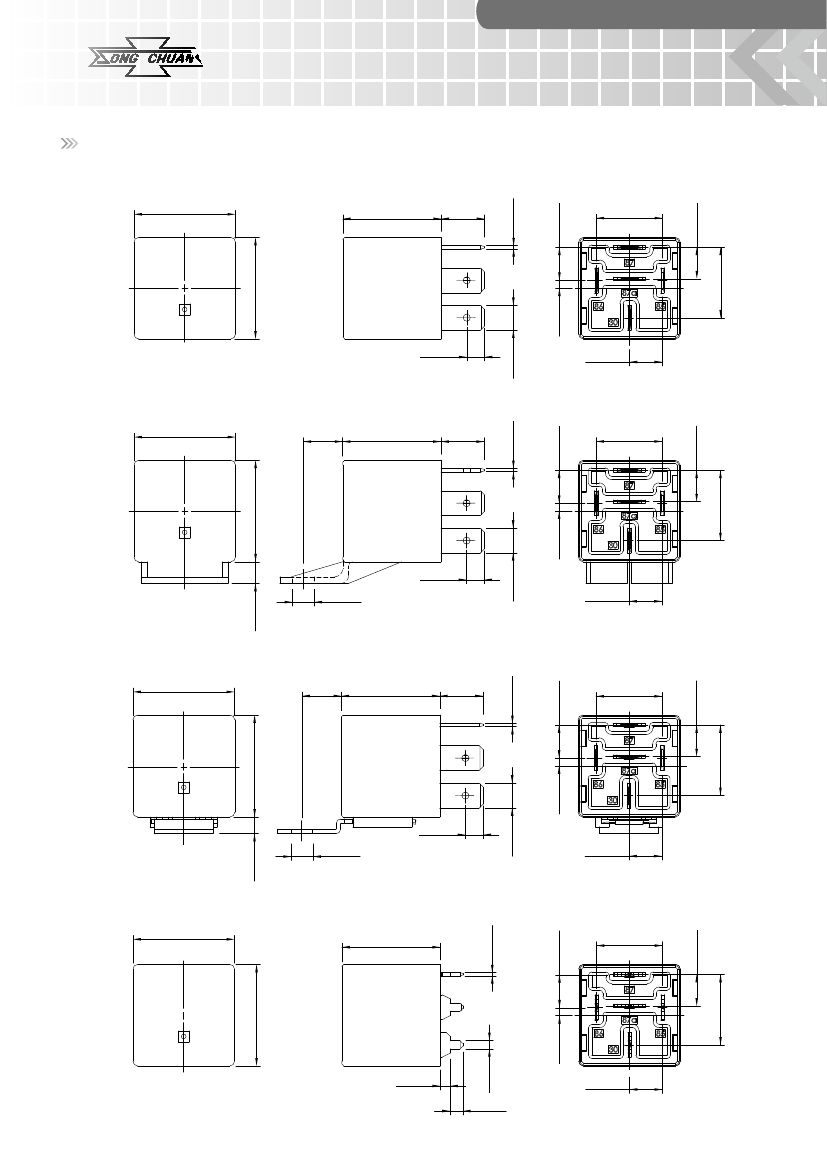

Preview

Download Datasheet

View All

896

SONG CHUAN

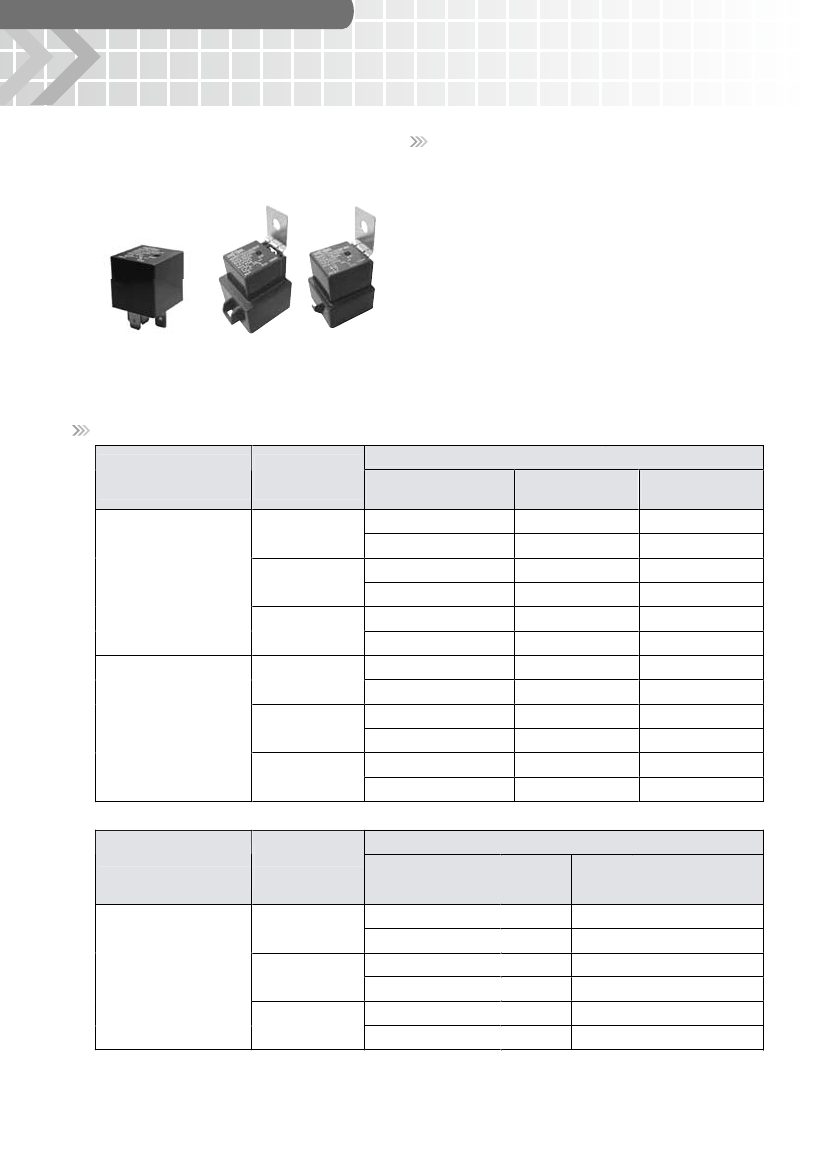

Features

Mini ISO high power automotive relay 30A/50A.

High temperature endurance up to 125 degree C.

Optional SPNC, SPNO, SPDT, DPNO contact

configurations.

Optional to be equipped with protection diode or

resistor.

Both available PCB terminal and quick connect

terminal versions.

Available for plain cover type, skirted cover flanged

cover, and weather proof versions.

Tinned terminal is available on request.

Comply with RoHS-Directive 2002/95/EC, and ELV-

Directive 2000/53/EC.

Type List

Terminal

style

Contact

form

1A (SPNO)

Dust cover

896-1AH-D

896H-1AH-D

Socket terminal

1C (SPDT)

896-1CH-D

896H-1CH-D

2A (DPNO)

896-2AH-D

896H-2AH-D

1A (SPNO)

896P-1AH-D

896HP-1AH-D

PCB terminal

1C (SPDT)

896P-1CH-D

896HP-1CH-D

2A (DPNO)

896P-2AH-D

896HP-2AH-D

Enclosure style

Flux tight

896-1AH-C

896H-1AH-C

896-1CH-C

896H-1CH-C

896-2AH-C

896H-2AH-C

896P-1AH-C

896HP-1AH-C

896P-1CH-C

896HP-1CH-C

896P-2AH-C

896HP-2AH-C

Sealed type

washable

896-1AH-S

896H-1AH-S

896-1CH-S

896H-1CH-S

896-2AH-S

896H-2AH-S

896P-1AH-S

896HP-1AH-S

896P-1CH-S

896HP-1CH-S

896P-2AH-S

896HP-2AH-S

Enclosure style

Terminal

style

Contact

form

Flanged cover

( dust cover)

896-1AH-D1

896H-1AH-D1

Socket terminal

1C (SPDT)

896-1CH-D1

896H-1CH-D1

2A (DPNO)

896-2AH-D1

896H-2AH-D1

Flanged cover

(flux tight)

896-1AH-C1

896H-1AH-C1

896-1CH-C1

896H-1CH-C1

896-2AH-C1

896H-2AH-C1

1A (SPNO)

306
