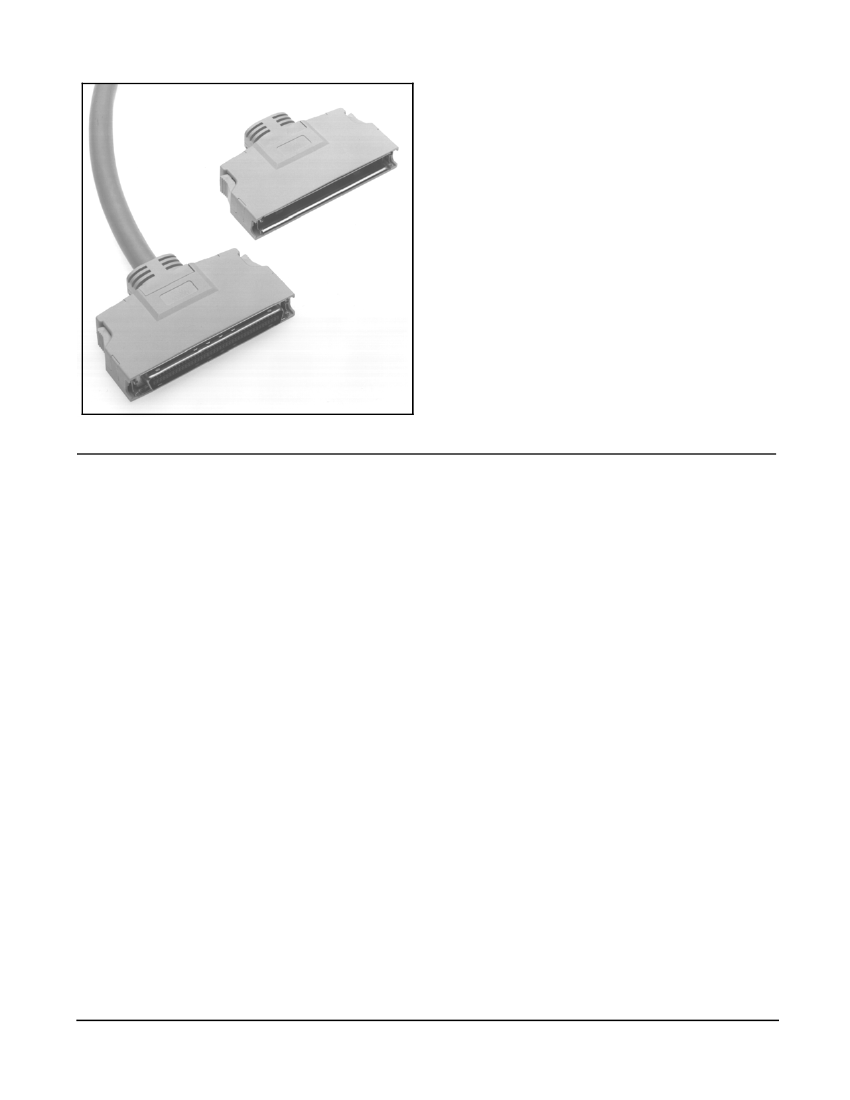

.050″ Plastic Shielded Junction Shell for Round Cable
103 Series
• Durable two piece plastic over two piece metal
junction shell for straight round cable (compatible
with 101XX-6000 EC plug)
• Quick release latching
• Contacts: 50, 68 and 80
• See Regulatory Information Appendix (RIA) for
chemical compliance information.
Date Modified: December 10, 2007
TS-0534-B
Sheet 1 of 2
Physical
Outer Shell
Material:
Flammability:
Color:
Inner Shell
Material:
Plating:
Copolyester Elastomer
UL 94V-0
See Ordering Information
Steel, .02 [ 0.5 ] Thick
Nickel
Marking:
3M Logo
UL File No.: E68080
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

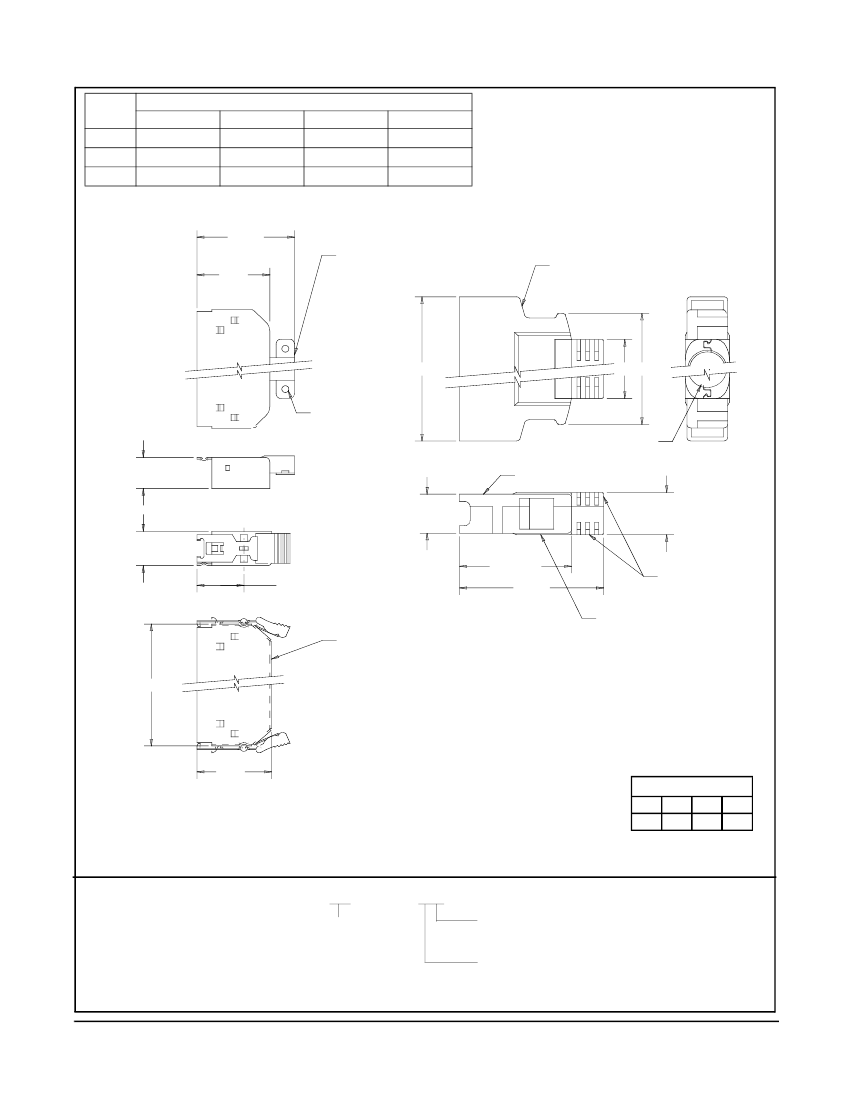

Mini D Ribbon (MDR) Connectors
.050″ Plastic Shielded Junction Shell for Round Cable
Contact
Quantity
Dimensions
A
B
C
D
103 Series
50
68
80
1.66 [ 42.3 ]
2.11 [ 53.6 ]
2.41 [ 61.2 ]
1.96 [ 49.9 ]
2.41 [ 61.3 ]
2.66 [ 67.7 ]
1.57 [ 40.0 ]
2.02 [ 51.4 ]
2.32 [ 59.0 ]
.68 [ 17.4 ]
.68 [ 17.4 ]
.79 [ 20.2 ]
1.08
[ 27.5 ]
.81
[ 20.5 ]
Upper Half
Metal Inner Shell
Plastic Outer Shell
Assembly
B
D
C
See Note 1
E Dia
(See ordering information
below.)
Cover
.45
[ 11.5 ]
.40
[ 10.1 ]
.52
[ 13.2 ]
.49
[ 12.4 ]
.36
[ 9.1 ]
1.30
[ 33.0 ]
1.65
[ 42.0 ]
Body
Lower Half
Metal Inner Shell
Cable Exit
Parts ( 2 )
A
In ch
.83
[ 21.1 ]
[m m ]
T o leranc e U nless N o te d
.0
inc h
± .1
.00
.000
± .01 ± .005
Note:
1. Part number includes a cable clamp and two M2.6 screws. These parts are not shown.
2. Panel thickness (including washers) 2.0 mm max.
[ ] D im e n sion s fo r R e fe re nce
O n ly
Ordering Information
103XX-3280-00X-X
Contact Quantity
(See Table)
(RIA E1 & C1 apply)
Cable Exit Inside Diameter of Bushing (Dim E)
0 = 10.0 mm
∅
1 = 11.0 mm
∅
Shell Color
0 = Beige (Standard)
3 = Gray (Special Order - 50 pos. only)
6 = Black (Special Order - 80 pos. only)
TS-0534-B
Sheet 2 of 2
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Regulatory Information Appendix
3M Electronic Solutions Division/Interconnect
EUROPE
Appendix E1: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product is RoHS Compliant 2005/95/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E2: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains lead in the compliant pin area in excess of the maximum concentration value allowed but is
compliant by exemption under EU Commission Decision 2005/747/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E3: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment as
amended by Commission Decision 2005/618/EC.
This product contains lead in the solder tail area in excess of the maximum concentration value allowed.
Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information
provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E4: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains decaBDE in the insulating material in excess of the maximum concentration value allowed but is
compliant by exemption under EU Commission Decision 2005/717/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
RIA-2217B-c
Appendix E5: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains lead in excess of the maximum concentration value allowed but is compliant by exemption under
Item 6 of the Annex to the Directive.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
CHINA
Appendix C1: China RoHS
Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits for
Certain Hazardous Substances in Electronic Information Products.
This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006, means
that the product or part
does not
contain any of the following substances in excess of the following maximum concentration
values in any homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium, polybrominated biphenyls
or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing, this
information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

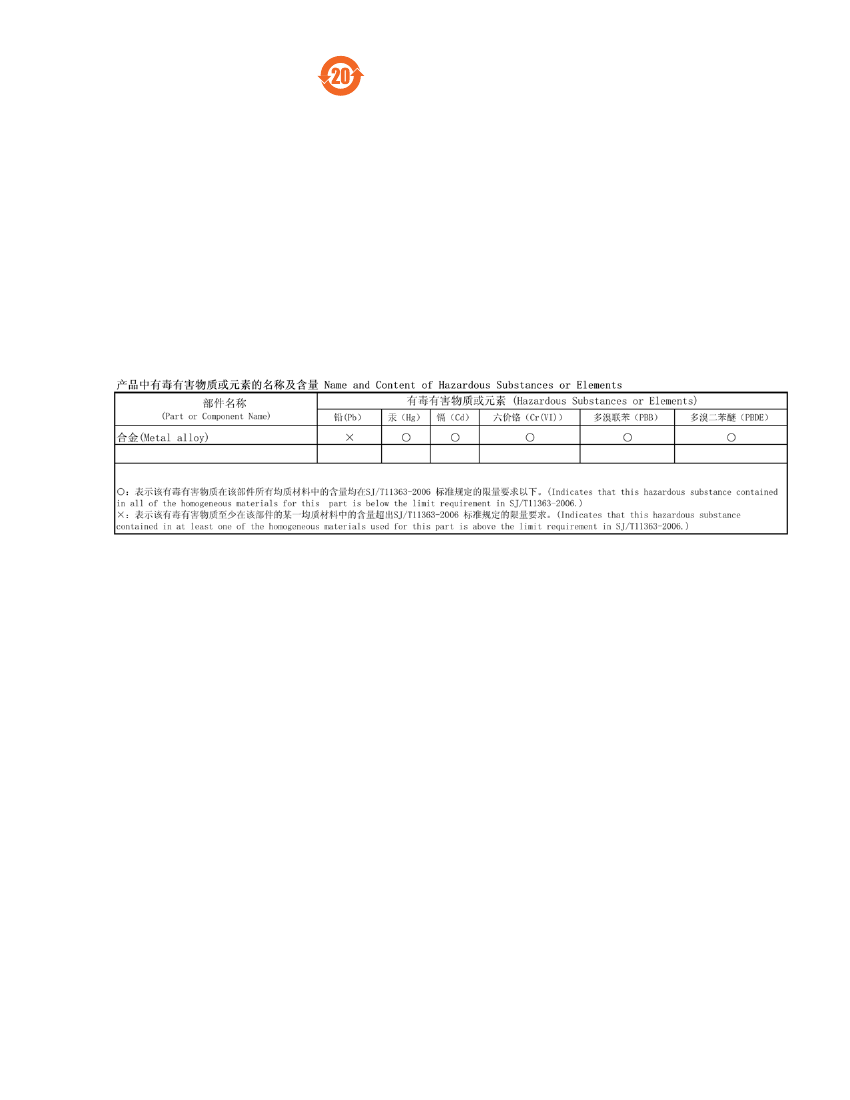

Appendix C2: China RoHS
