8-03PFFS-SH7AA5 datasheet, PDF

Datasheet> All Categories > Wire/cable> Cable package> Sensor/actuator cable> 8-03PFFS-SH7AA5

8-03PFFS-SH7AA5: DescriptionSensor cable/actuator cable WITH UL1007 WIRE L=1500MM; CategoryWire/cable Cable package Sensor/actuator cable; File Size234KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

8-03PFFS-SH7AA5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8-03PFFS-SH7AA5	-	-	View	Buy Now

8-03PFFS-SH7AA5 Overview

Sensor cable/actuator cable WITH UL1007 WIRE L=1500MM

8-03PFFS-SH7AA5 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Product Category	Sensor cable/actuator cable
Shipping restrictions	Mouser does not currently sell this product.
series	M Series
Connector port A	M8
Connector Port A Pin Count	3 Position
Connector port B	No Connector
Connector Port B Pin Count	-
Type	Female
length	1.5 m
coding	A Coded
Number of conductors	3 Conductor
Wire Gauge – American Wire Gauge (AWG)	24 AWG
Factory packaging quantity	1

Preview

Download Datasheet

View All

REV.

ECN NO.

LE31410400~02

DATE

2014-01-09

SIGN

Tony_leng

DESCRIPTION

Change Ball No.

13.8 (Ref.)

11.5 (Ref.)

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. IT IS CONFIDENTIAL AND A

& Wire Length

L(mm)

18.0

8-03PFFS-SH7AXX

8.9

Wire Length(L):150~1500mm

Wire Harness

M8*0.5

O-Ring2

8-03PFFS-SH7A00

CONFIDENTIAL

With Liquid Glue

2014-01-09

R&D DEPT.

10.0

12.0

XX:150~1500mm

15:150mm

30:300mm

50:500mm

A0:1000mm

A5:1500mm

10.0

PROPERTY OF Amphenol LTW. DISCLOSURE TO THIRD PARTY HAS TO BE AUTHORIZED BY

7.1

+0.1

-0.0

Screw Nut

3 O-Ring1

Pin Assignment

Front View

Recommended

Panel Cut-Out

TITLE

Black

Blue

Brown

Wire Color

Pin Out

黑

藍

棕

ITEM NO

Conn.

Note:

* Important Dimension.

* Waterproof Rate: IP67

* Connector: Nylon+GF, Black

* Female Pin: Copper Alloy, Gold Plated

* Shield: Zinc Alloy, Nickel Plated

* Nut: Copper Alloy, Nickel Plated

* O-Ring1: EPDM, Black

* O-Ring2: VITON, Green

* Wire Harness: UL1007, 24AWG

* For Panel Thickness Max 4.5mm

* Nut Torque: 4-6 kgf.cm

* Wire harness Tolerance: 150~300 # 15mm

301~1000 # 20mm

Over1000 # 40mm

DRAWN BY

DATE

UNIT:mm

TOLERANCE

# 0.25

.XX

# 0.1

.XXX

# 0.05

ANGLES

# 1 $

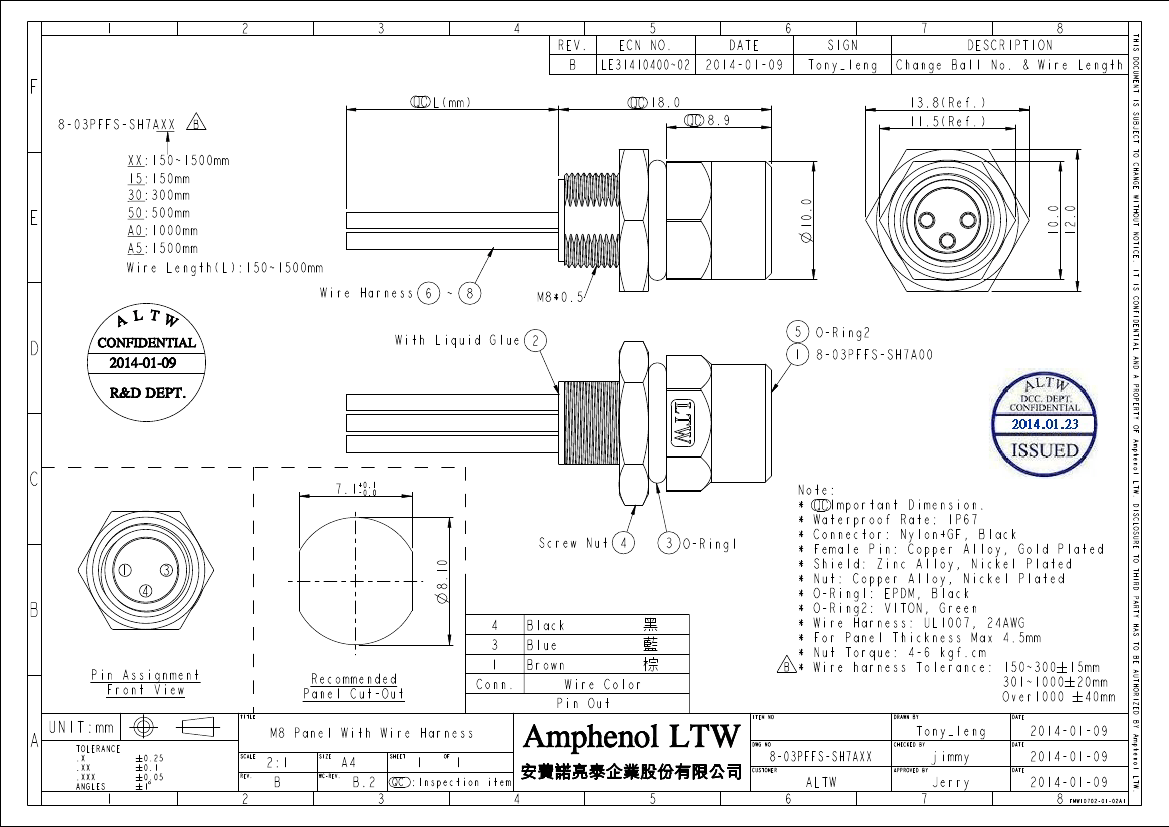

M8 Panel With Wire Harness

SCALE

2:1

SIZE

B.2

SHEET

Amphenol LTW

Tony_leng

DWG NO

CHECKED BY

DATE

2014-01-09

DATE

Amphenol LTW.

8-03PFFS-SH7AXX

CUSTOMER

APPROVED BY

jimmy

Jerry

REV.

WC-REV.

QC :Inspection item

ALTW

2014-01-09

FMW10702-01-02A1

8-03PFFS-SH7AA5 Related Products

	8-03PFFS-SH7AA5	8-03PFFS-SH7AA0
Description	Sensor cable/actuator cable WITH UL1007 WIRE L=1500MM	Sensor cable/actuator cable WITH UL1007 WIRE L=1000MM
Maker	Amphenol	Amphenol
Product Category	Sensor cable/actuator cable	Sensor cable/actuator cable
Shipping restrictions	Mouser does not currently sell this product.	Mouser does not currently sell this product.
series	M Series	M Series
Connector port A	M8	M8
Connector Port A Pin Count	3 Position	3 Position
Connector port B	No Connector	No Connector
Type	Female	Female
length	1.5 m	1 m
coding	A Coded	A Coded
Number of conductors	3 Conductor	3 Conductor
Wire Gauge – American Wire Gauge (AWG)	24 AWG	24 AWG
Factory packaging quantity	1	1
