EKI-7712E-4FI-BE datasheet, PDF

Datasheet> All Categories > Embedded solution> Ethernet and communication module> The Ethernet module> EKI-7712E-4FI-BE

EKI-7712E-4FI-BE: DescriptionEthernet Module 8FE + 4SFP Managed Ethernet Switch Wide Temp; CategoryEmbedded solution Ethernet and communication module The Ethernet module; File Size420KB，3 Pages; ManufacturerAdvantech; Websitehttp://www.advantech.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

EKI-7712E-4FI-BE Overview

Ethernet Module 8FE + 4SFP Managed Ethernet Switch Wide Temp

EKI-7712E-4FI-BE Parametric

Parameter Name	Attribute value
Maker	Advantech
Product Category	Ethernet module
product	Ethernet Switches, Managed
Number of ports	8 Ethernet, 4 SFP
data rate	10 Mb/s, 100 Mb/s
Interface Type	Serial
Working power voltage	12 V to 48 V
Minimum operating temperature	- 40 C
Maximum operating temperature	+ 75 C
size	74 mm x 152 mm x 105 mm
Power consumption	12.1 W
series	EKI-7712E
Factory packaging quantity	1

Preview

Download Datasheet

View All

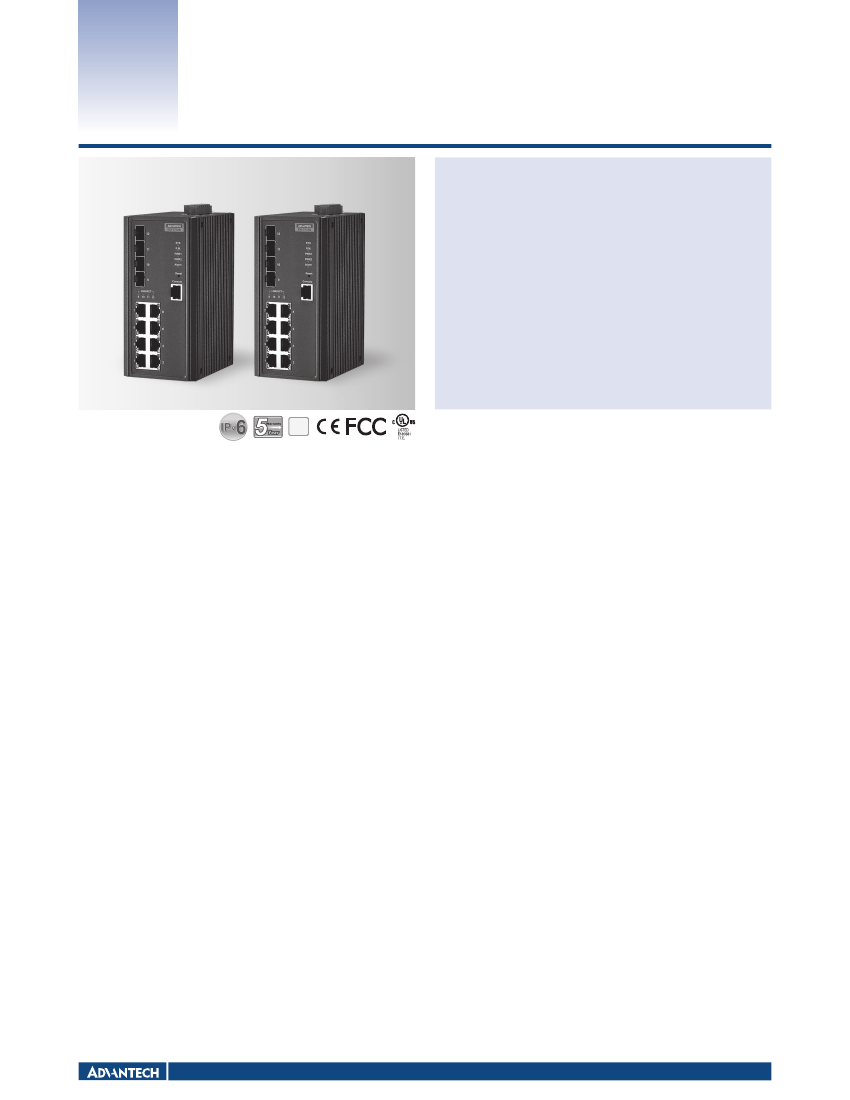

EKI-7712E-4F

EKI-7712E-4FI

8FE+4SFP Port Gigabit Managed

Redundant Industrial Switch

Features

8 Fast Ethernet ports + 4 SFP ports

SFP socket for Easy and Flexible Fiber Expansion

Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP

(802.1w/1D)

IXM function enables fast deployment

Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS

Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB

NEMA TS2 for Traffic Control

EN50121-4 approval for Railway trackside deployment

-40 ~ 75°C wide-range operating temperature (EKI-7712E-4FI)

Dual 12~48 V

power input and 1 relay output

RoHS

COMPLIANT

2011/65/EU

Introduction

EKI-7712E-4F/4FI supports 8 Fast Ethernet ports and 4 SFP (mini-GBIC) ports. It can provide users abundant ports to connect many devices. Besides, it is embedded with Advantech

IXM function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7712E series also supports NMS to help IT managers with

networking maintenance and failure prevention. Finally, the EKI-7712E series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to

ensure network stability. The switch also features a wide -40° to 75°C operating temperature(EKI-7712G-4FI) and NEMA TS2 rating, making the switch an ideal solution for use in

traffic application and have successfully passed the EN50121-4 European railway standard requirements of emission and immunity for railway platforms and trackside deployment.

Specifications

Interface

I/O Port

Console port

Power Connector

8 x 10/100Base-T/TX RJ-45

4 x SFP (mini-GBIC) port

RS-232 (RJ45)

6-pin screw Terminal Block (including relay)

Certification

EMI

Safety

EMC

CE, FCC Class A

UL61010-2-201

IEC60950*

EN 61000-4-2

EN 61000-4-3

EN 61000-4-4

EN 61000-4-5

EN 61000-4-6

EN 61000-4-8

EN50121-4*

IEC 60068-2-27

IEC 60068-2-32

IEC 60068-2-6

NEMA TS2*

Physical

Enclosure

Protection Class

Installation

Dimensions (W x H x D)

Metal Shell

IP 30

DIN-Rail

74 x 152 x 105 mm (2.91" x 5.98" x 4.13")

LED Display

System LED

Port LED

PWR1, PWR2, SYS, Alarm and R.M.

Link / Speed / Activity

Shock

Freefall

Vibration

Traffic control

*= Compliant

Environment

Operating Temperature

Storage Temperature

Ambient Relative Humidity

Humidity

-40 ~ 75°C (-40 ~ 167°F) (7712E-4FI)

-10 ~ 60°C (-40 ~ 140°F) (7712E-4F)

-40 ~ 85°C

10 ~ 95% (non-condensing)

L2 Features

L2 MAC Address

Jumbo Frame

VLAN Group

VLAN Arrange

Port Mirroring

IP Multicast

9216 Bytes

256 (VLAN ID 1~4094)

Port based VLAN, Q-in-Q (VLAN Stacking), GVRP

Per port, Multi-source port,

IGMP Snooping v1/v2/v3, MLD

Snooping, IGMP Immediate leave

Broadcast, Multicast, Unknown unicast

IEEE 802.1D-STP, IEEE 802.1s-MSTP, IEEE

802.1w-RSTP, X-Ring Pro, with ultra high-speed

recovery time less than 20ms

Power

Power Consumption

Power Input

Fault Output

12.1W @ 48V

(System)

12~48 V

, redundant dual power input

1 Relay Output

Storm Control

Redundancy

Industrial Ethernet Solutions

All product specifications are subject to change without notice

Date updated: 21-Jan-2016

EKI-7712E-4FI-BE Related Products

	EKI-7712E-4FI-BE	EKI-7712E-4F-BE	EKI-7712E-4F-AE
Description	Ethernet Module 8FE + 4SFP Managed Ethernet Switch Wide Temp	Ethernet Module 8FE + 4SFP Port Managed Ethernet Switch	Ethernet Module 8FE + 4SFP Port Managed Ethernet Switch
Maker	Advantech	Advantech	Advantech
Product Category	Ethernet module	Ethernet module	Ethernet module
product	Ethernet Switches, Managed	Ethernet Switches, Managed	Ethernet Switches, Managed
Number of ports	8 Ethernet, 4 SFP	8 Ethernet, 4 SFP	8 Ethernet, 4 SFP
data rate	10 Mb/s, 100 Mb/s	10 Mb/s, 100 Mb/s	10 Mb/s, 100 Mb/s
Interface Type	Serial	Serial	Ethernet, Serial
Working power voltage	12 V to 48 V	12 V to 48 V	12 V to 48 V
Minimum operating temperature	- 40 C	- 10 C	- 10 C
Maximum operating temperature	+ 75 C	+ 60 C	+ 60 C
size	74 mm x 152 mm x 105 mm	74 mm x 152 mm x 105 mm	74 mm x 152 mm x 105 mm
Power consumption	12.1 W	12.1 W	12.1 W
series	EKI-7712E	EKI-7712E	EKI-7712E
Factory packaging quantity	1	1	-
