SF1115-6084 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Rf interconnection> Rf adapter> Rf adapter - series2> SF1115-6084

SF1115-6084: DescriptionRF Adapter - Series 2.92mm Fem to SMPM Male Adapter, FD; CategoryThe connector Rf interconnection Rf adapter Rf adapter - series2; File Size65KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

SF1115-6084 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SF1115-6084	-	-	View	Buy Now

SF1115-6084 Overview

RF Adapter - Series 2.92mm Fem to SMPM Male Adapter, FD

SF1115-6084 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Product Category	RF Adapters - Between Series
Side 1 RF Series	2.92 mm
side 1 sex	Jack (Female)
Side 1 body type	Standard
Side 1 polarity	Normal
Side 2 RF Series	SMPM
side 2 sex	Plug (Male)
Side 2 polarity	Normal
impedance	50 Ohms
minimum frequency	-
maximum frequency	40 GHz
Frequency Range	40 GHz
Main material	Stainless Steel
Contact plating	Gold
series	2.92mm
Connector type	2.92 mm SMPM
direction	Straight
Contact material	Beryllium Copper
Installation style	Free Hanging
Factory packaging quantity	1

Preview

Download Datasheet

View All

ROHS COMPLIANT

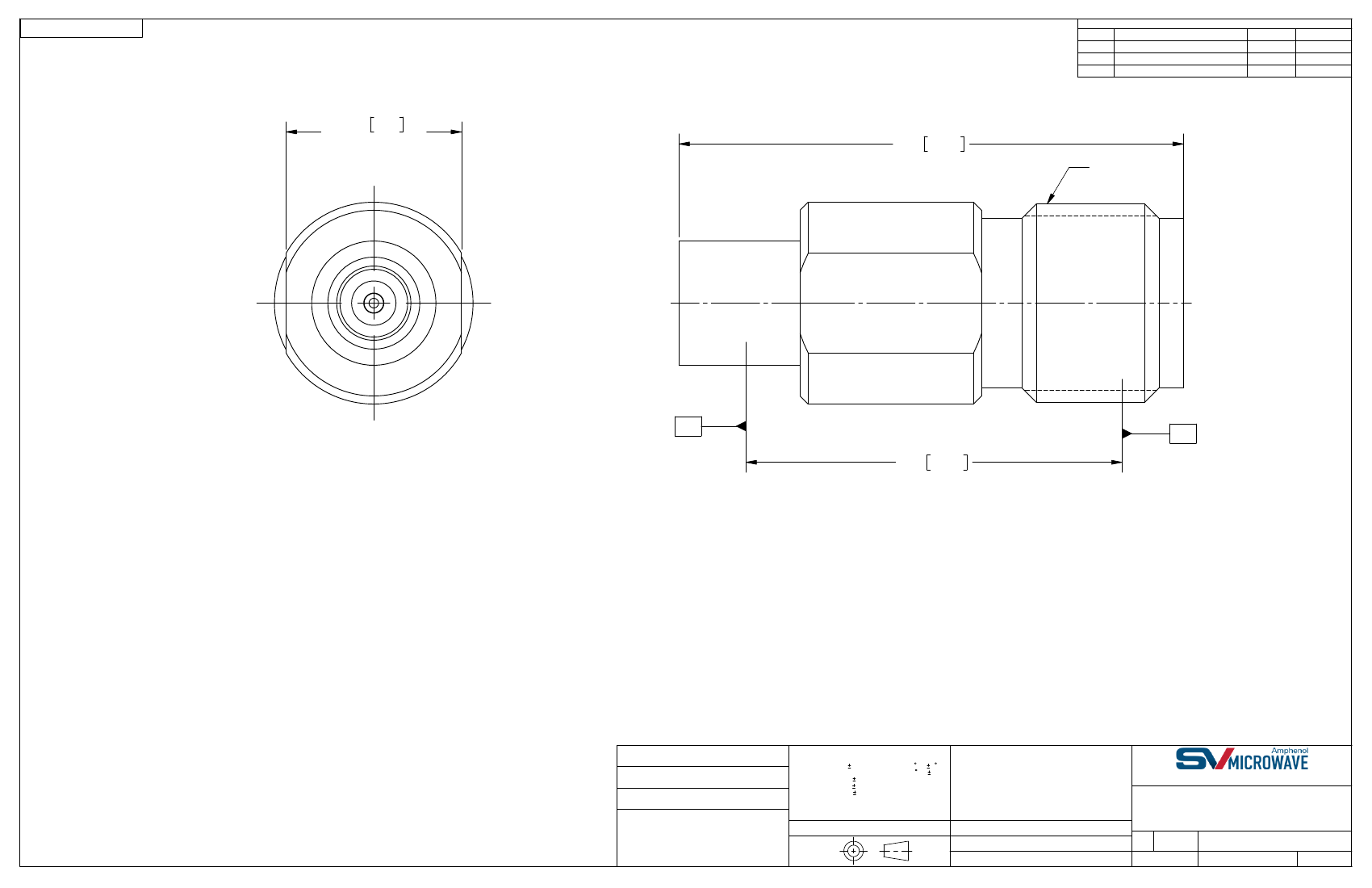

PRODUCT DATA DRAWING

REV

REVISION HISTORY

DESCRIPTION

DATE

APPROVED

DCN 46715

8/17

STW

.218 5.52

ACROSS FLATS

.625 15.88

1/4-36 UNS-2A

.466 11.84

MATERIAL:

BODY & INSERT:

STAINLESS STEEL PER AMS-5640,

ALLOY UNS S30300, TYPE 1;

OR ASTM A582 TYPE 303, COND. A

BERYLLIUM COPPER PER ASTM B196,

ALLOY No. UNS C17300, TD04

PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B

ULTEM 1000 PER ASTM D5205

CONTACT:

INSULATOR:

SVK BEAD:

FINISH:

BODY & INSERT:

CONTACT:

PASSIVATED PER AMS-2700

GOLD PER ASTM B488, TYPE II,

CODE C, CLASS 1.27, OVER NICKEL

PER AMS-QQ-N-290, CLASS 1, .00005" MIN.

MATERIAL:

FINISH:

SEE NOTES

N/A

PROPRIETARY

DIMENSIONS ARE IN INCHES TOLERANCES:

FRACTIONAL:

DECIMAL: .X

.XX

.XXX

1/64

.030

.010

.005

ANGULAR: X

X X'

1 0'

15'

UNLESS OTHERWISE SPECIFIED

1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]

2) ALL DIMENSIONS ARE AFTER PLATING.

3) BREAK CORNERS & EDGES .005 R. MAX.

4) CHAM. 1ST & LAST THREADS.

5) SURFACE ROUGHNESS 63

MIL-STD-10.

6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC

WITHIN .005 T.I.R.

7) REMOVE ALL BURRS

PERFORMANCE:

IMPEDANCE:

FREQ. RANGE:

50 OHMS

DC TO 40.0 GHz.

2400 Centrepark West Drive, Suite 100

West Palm Beach, FL 33409

TITLE:

SURFACE AREA:

INTERPRET DIMENSIONS AND TOLERANCES

PER ASME Y14.5M - 1994

THE INFORMATION CONTAINED IN THIS DRAWING

IS THE SOLE PROPERTY OF SV MICROWAVE, INC.

ANY REPRODUCTION IN PART OR AS A WHOLE

WITHOUT THE WRITTEN PERMISSION OF

SV MICROWAVE, INC IS PROHIBITED.

THIRD ANGLE PROJECTION

DRAWN:

CHECKED:

APPROVED:

GPF 8/8/17

STW 8/8/17

SMPM FULL DETENT MALE

TO SVK FEMALE ADAPTER

95077

SIZE CAGE CODE DWG. NO.

SF1115-6084

SHEET 1 OF 1

SCALE: 10:1
