EM221111H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> connection terminal > Pluggable terminal blocks> EM221111H

EM221111H: DescriptionPluggable Terminal Blocks 11P EM2211 Series Horz; CategoryThe connector connection terminal Pluggable terminal blocks; File Size1MB，1 Pages; ManufacturerBussmann (Eaton); Environmental Compliance

Download Datasheet Parametric View All

EM221111H Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EM221111H	-	-	View	Buy Now

EM221111H Overview

Pluggable Terminal Blocks 11P EM2211 Series Horz

EM221111H Parametric

Parameter Name	Attribute value
Maker	Bussmann (Eaton)
Product Category	Pluggable terminal blocks
Shipping restrictions	Mouser does not currently sell this product.
product	Headers
Number of locations	11 Position
Pitch	3.81 mm
Termination type	Through Hole
Current rating	10 A
Voltage rating	300 V
Wire gauge range	-
series	EM2211
Encapsulation	Bulk
Contact plating	Tin
high	6.9 mm
length	52.31 mm
Installation angle	Horizontal
installation method	PCB
width	9.2 mm
Contact material	Brass
Flammability rating	UL 94 V-0
Factory packaging quantity	100

Preview

Download Datasheet

View All

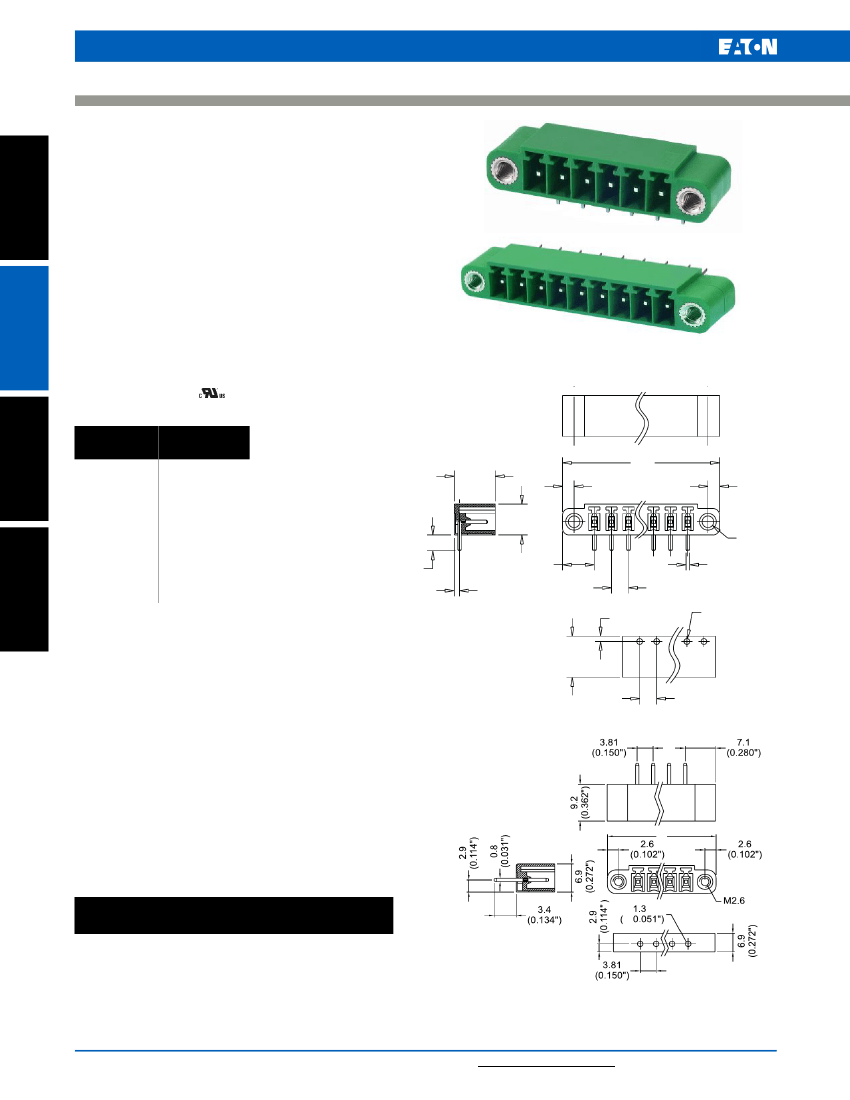

EuroMag Series PCB Mount Pluggable Terminal Blocks

Terminal Blocks:

Single Row

EM2211 Series

EuroMag Terminal Blocks

Header with Flanges (Mates with EM2423,

EM2443 Series); 3.81 Centers

SPECIFICATIONS

Rating:

10A,

300V

Center Spacing:

0.15” (3.81mm)

Consult factory for 0.30" (7.62mm)

Housing Material:

UL rated 94V0 Thermoplastic

Contact Material:

Brass Tin-Plated

Operating Temperature:

105°C (221°F) max., -40°C

(-40°F) min.

Recommended PCB Hole Diameters:

0.055" (1.40mm)

Construction:

Mold to Length

Agency Information:

File E62622; CE Certified

EM221106H

EuroMag Series

Plug & Header

EM221109V

Dimensions - mm (in)

HORIZONTAL

Edge Connectors,

One-Sided Boards

Poles

L (mm)

18.02

21.83

25.64

29.45

33.26

37.07

40.88

44.69

48.50

52.31

56.12

63.74

9.20

[.362]

6.90

[.272]

3.50

[.138]

7.10

[.280]

1.20

[.047]

1.20

[.047]

9.20

[.362]

3.81

[.150]

0.80

[.031]

Ø1.30

[Ø.051]

2.60

[.102]

2.60

[.102]

(2) M2.6

Compliance

References

3.81

[.150]

To convert to inches, divide by 25.4

PCB Hole Layout

VERTICAL

Part Numbering System

EM2211

nnnnnn nn

Series

# of Poles

Orientation

PCB Hole Layout

- horizontal

- vertical

Mating Plugs:

EM2423 pg.

EM2443 pg.

For additional product information, visit

www.eaton.com/connectors

Recommended Resources

audio power circuit

Simple light-controlled street light circuit (1)

5V power regulator circuit with symmetrical output

Phase controlled temperature regulation circuit

Fast charging charger

Russian standard caller ID phone chip circuit

[LPC54100] General timer usage: At the beginning, I quoted my reply to the post of freebsder. It is a very professional post about low power analysis. If you are interested, please read it. I like this IC more and more. The low powe...; lyzhangxiang NXP MCU

[I contribute to the XILINX Resource Center] FPGA control DS18B20 code: FPGA控制DS18B20代码libraryIEEE; useIEEE.STD_LOGIC_1164.ALL; useIEEE.STD_LOGIC_ARITH.ALL; useIEEE.STD_LOGIC_UNSIGNED.ALL;entityds1820isport(clk:instd_logic;dq:inoutstd_logic;temp_h:outstd_logic_vector(7dow...; wanghongyang FPGA/CPLD

Recommended: What is the purpose of going to college?: Not bad, you can take a look when you have time!...; totopper Industrial Control Electronics

Looking to buy a second-hand F28xx development board: RT I am a poor student, and I am currently studying tms320f2812. I am quite interested in it, but I don't think learning a bunch of theories is enough, so I want to buy a board. A development board or...; 深度迷茫 Buy&Sell

Learning microcontroller: [size=5]I want to learn about single-chip microcomputers, just for fun. Could you please tell me which single-chip microcomputer is the most widely used? Where can I buy entry-level test boards in She...; dodd MCU

Looking for a sensor that can measure engine speed?: Looking for a sensor that can measure engine speed? Thank you very much!...; yhye2world Automotive Electronics
