1N5348B THRU 1N5388B
GLASS PASSIVATED JUNCTION SILICON ZENER DIODE
VOLTAGE - 11 TO 200 Volts Power - 5.0 Watts
FEATURES
l
l
l
l
l
l
l
Low profile package
Built-in strain relief
Glass passivated junction
Low inductance
Typical I
D
less than 1 A above 13V
High temperature soldering :
DO-201AE
260 /10 seconds at terminals
Plastic package has Underwriters Laboratory
Flammability Classification 94V-O
MECHANICAL DATA
Case: JEDEC DO-201AE Molded plastic over passivated junction
Terminals: Solder plated, solderable per MIL-STD-750,
method 2026
Standard Packaging: 52mm tape
Weight: 0.04 ounce, 1.1 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 ambient temperature unless otherwise specified.
DC Power Dissipation @ T
L
=75 , Measure at Zero Lead Length(Fig. 1)
Derate above 75 (Note 1)
Peak forward Surge Current 8.3ms single half sine-wave superimposed on rated
load(JEDEC Method) (Note 1,2)
Operating Junction and Storage Temperature Range
NOTES:
1. Mounted on 8.0mm copper pads to each terminal.
2. 8.3ms single half sine-wave, or equivalent square wave, duty cycle = 4 pulses per minute maximum.
2
SYMBOL
P
D
I
FSM
T
J
,T
STG
VALUE
5.0
40.0
See Fig. 5
-55 to +150
UNITS
Watts
mW/
Amps
1N5348B THRU 1N5388B
ELECTRICAL CHARACTERISTICS (T
A
=25 unless otherwise noted, V
F
=1.2 Max @ I
F
=1A for all types.
Nominal Zener
Type No.
(Note 1.)
Voltage Vz @ I
ZT
volts
(Note 2.)
1N5348B
1N5349B
1N5350B
1N5351B
1N5352B
1N5353B
1N5354B
1N5355B
1N5356B
1N5357B
1N5358B
1N5359B
1N5360B
1N5361B
1N5362B
1N5363B
1N5364B
1N5365B
1N5366B
1N5367B
1N5368B
1N5369B
1N5370B
1N5371B
1N5372B
1N5373B
1N5374B
1N5375B
1N5376B
1N5377B
1N5378B
1N5379B
1N5380B
1N5381B
1N5382B
1N5383B
1N5384B
1N5385B
1N5386B
1N5387B
1N5388B
11
12
13
14
15
16
17
18
19
20
22
24
25
27
28
30
33
36
39
43
47
51
56
60
62
68
75
82
87
91
100
110
120
130
140
150
160
170
180
190
200
Test current
I
ZT
mA
Max reverse
Maximum Zener
Leakage
Max Surge
Max Voltage
Impedance
Current
Current Ir Amps Regulation
Vz, Volts
Z
Zk
@ I
ZK
= 1 mA
I
R
V
R
Z
ZT
@ I
ZT
(Note 3.)
A
Volts
Ohms
Ohms
(Note 4.)
(Note 2.)
(Note 2.)
Maximum
Regulator
Current
I
ZM
mA
(Note 5.)
430
395
365
340
315
295
280
265
250
237
216
198
190
176
170
158
144
132
122
110
100
93
86
79
76
70
63
58
54.5
52.5
47.5
43
39.5
36.6
34
31.6
29.4
28
26.4
25
23.6
125
100
100
100
75
75
70
65
65
65
50
50
50
50
50
40
40
30
30
30
25
25
20
20
20
20
20
15
15
15
12
12
10
10
8
8
8
8
5
5
5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
3
3
3.5
3.5
4
5
6
8
10
11
14
20
25
27
35
40
42
44
45
65
75
75
90
125
170
190
230
330
35 0
380
430
450
480
125
125
100
75
75
75
75
75
75
75
75
100
110
120
130
140
150
160
170
190
210
230
280
350
400
500
620
720
760
760
800
1000
1150
1250
1500
1500
1650
1750
1750
1850
1850
5
2
1
1
1
1
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
8.4
9.1
9.9
10.6
11.5
12.2
12.9
13.7
14.4
15.2
16.7
18.2
19
20.6
21.2
22.8
25.1
27.4
29.7
32.7
35.8
38.8
42.6
45.5
47.1
51.7
56
62.2
66
69.2
76
83.6
91.2
98.8
106
114
122
129
137
144
152
8
7.5
7
6.7
6.3
6
5.8
5.5
5.3
5.1
4.7
4.4
4.3
4.1
3.9
3.7
3.5
3.3
3.1
2.8
2.7
2.5
2.3
2.2
2.1
2
1.9
1.8
1.7
1.6
1.5
1.4
1.3
1.2
1.2
1.1
1.1
1
1
0.9
0.9
0.25
0.25
0.25
0.25
0.25
0.3
0.35
0.4
0.4
0.4
0.45
0.55
0.55
0.6
0.6
0.6
0.6
0.65
0.65
0.7
0.8
0.9
1
1.2
1.35
1.5
1.6
1.8
2
2.2
2.5
2.5
2.5
2.5
2.5
3
3
3
4
5
5
NOTE:
1. TOLERANCE AND VOLTAGE DESIGNATION - The JEDEC type numbers shown indicate a tolerance of
±
10% with
guaranteed limits on only Vz, I
R
, I
r
, and V
F
as shown in the electrical characteristics table. Units with guaranteed limits
on all seven parameters are indicated by suffix “B” for
±
5% tolerance.
2. ZENER VOLTAGE (Vz) AND IMPEDANCE (Z
ZT
& Z
ZK
) - Test conditions for Zener voltage and impedance are as
follows; Iz is applied 40
±
10 ms prior to reading. Mounting contacts are located from the inside edge of mounting
clips to the body of the diode.(T
A
=25
).
3. SURGE CURRENT (Ir) - Surge current is specified as the maximum allowable peak, non-recurrent square-wave
current with a pulse width, PW, of 8.3 ms. The data given in Figure 5 may be used to find the maximum surge
current for a quare wave of any pulse width between 1 ms and 1000ms by plotting the applicable points on
logarithmic paper. Examples of this, using the 6.8v and 200V zeners, are shown in Figure 6. Mounting
contact located as specified in Note 3. (T
A
=25
).
4. VOLTAGE REGULATION ( Vz) - Test conditions for voltage regulation are as follows: Vz measurements are made
at 10% and then at 50% of the Iz max value listed in the electrical characteristics table. The test currents are the
same for the 5% and 10% tolerance devices. The test current time druation for each Vz measurement is 40
±
10 ms.
(T
A
=25
). Mounting contact located as specified in Note2.
5. MAXIMUM REGULATOR CURRENT (I
ZM
) - The maximum current shown is based on the maximum voltage of a
5% type unit. Therefore, it applies only to the B-suffix device. The actual I
ZM
for any device may not exceed the
value of 5 watts divided by the actual Vz of the device. T
L
=75 at maximum from the device body.
RATING AND CHARACTERISTICS CURVES
1N5348B THRU 1N5388B
TEMPERATURE COEFFICIENTS

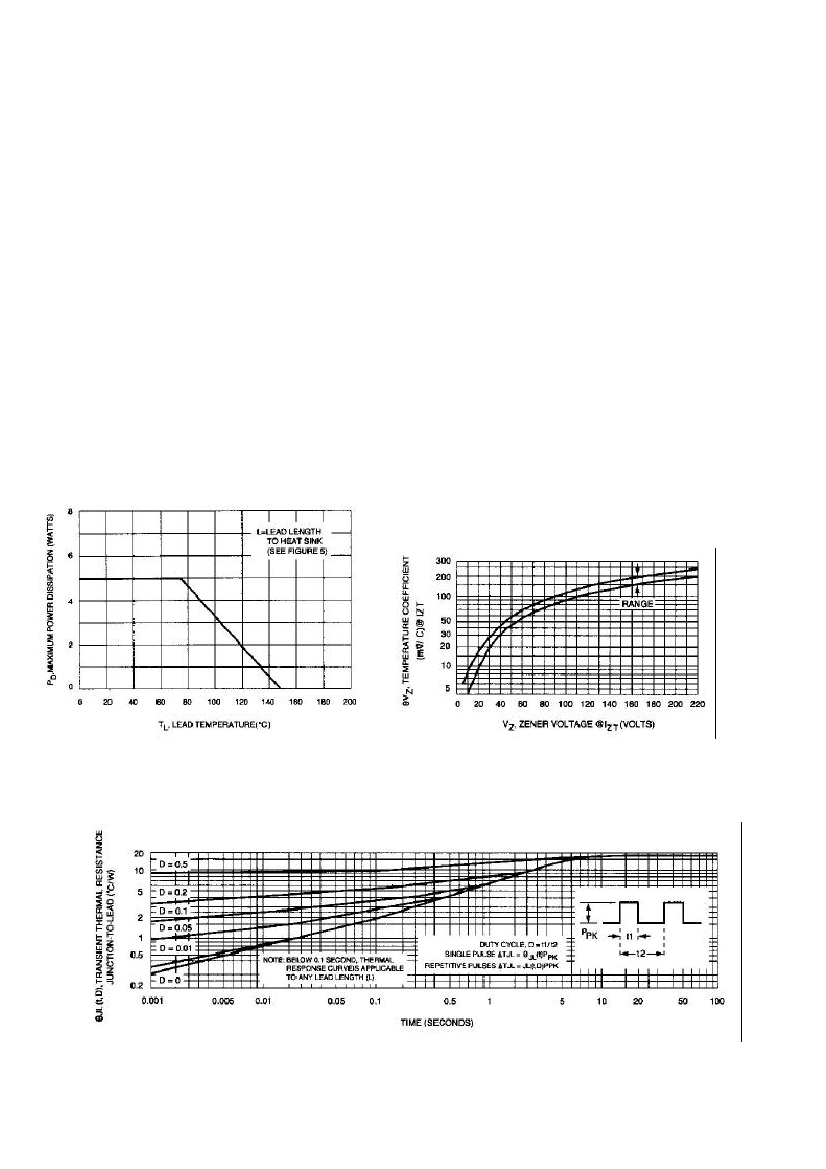

Fig. 1-POWER TEMPERATURE DERATING CURVE
Fig. 2-TEMPERATURE COEFFICIENT RANGE
FOR UNITS 6 TO 220 VOLTS
Fig. 3-TYPICAL THERMAL RESPONSE
Fig. 4-TYPICAL THERMAL RESISTANCE
Fig. 5-MAXIMUM NON-REPETITIVE SURGE CURRENT
VERSUS NOMINAL ZENER VOLTAGE(
SEE NOTE 3
)
RATING AND CHARACTERISTICS CURVES
1N5348B THRU 1N5388B

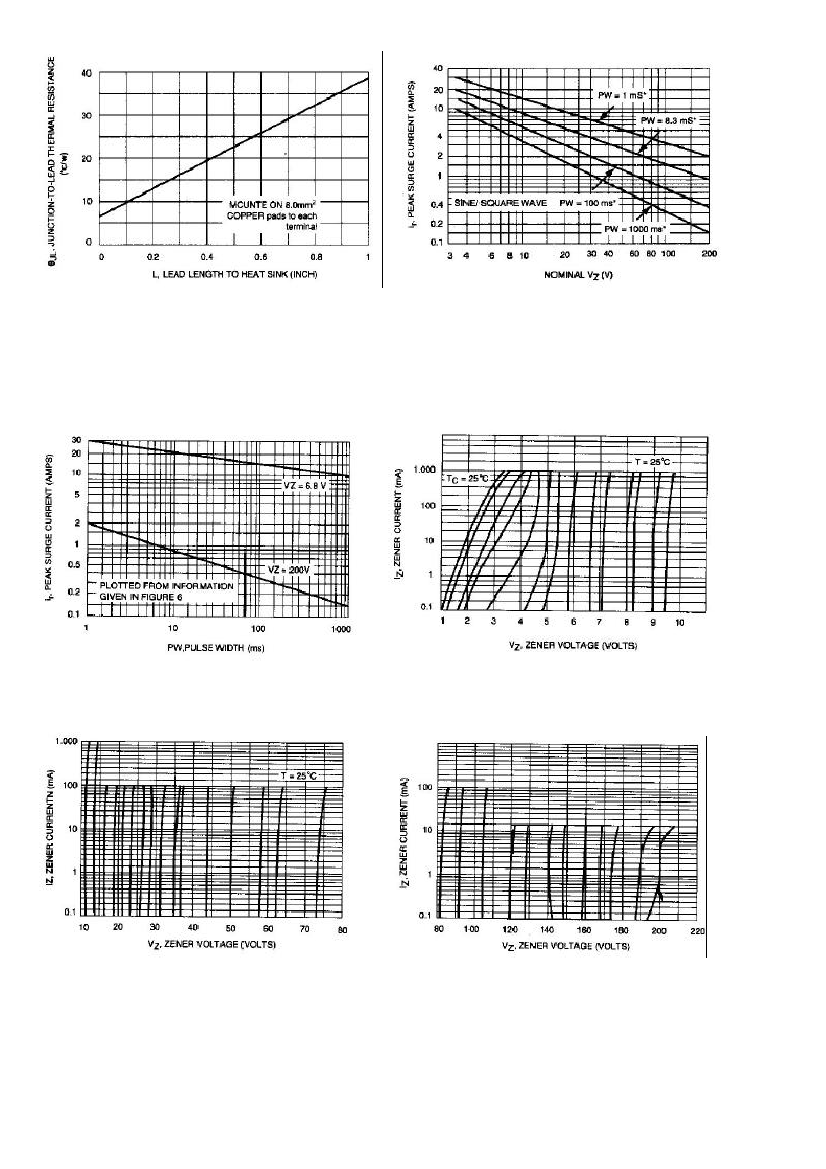

Fig. 6-PEAK SURGE CURRENT VERSUS PULSE
WIDTH(SEE NOTE 3)
Fig. 7-ZENER VOLTAGE VERSUS ZENER CURRENT
V
Z
=6.8 THRU 10 VOLTS
Fig. 8- ZENER VOLTAGE VERSUS ZENER CURRENT
V
Z
= 11 THRU 75 VOLTS
Fig. 9- ZENER VOLTAGE VERSUS ZENER CURRENT
V
Z
= 82 THRU 200 VOLTS
APPLICATION NOTE:
Since the actual voltage available from a given zener
diode is temperature dependent, it is necessary to
determine junction temperature under any set of
operating conditions in order to calculate its value. The
following procedure is recommended:
Lead Temperature, T
L
, should be determined from:
T
L
=
LA
LA
P
D
+ T
A
is the lead-to-ambient thermal resistance ( /W)
and P
D
is the power dissipation.
Junction Temperature, T
J
, may be found from:
T
J
= T
L
+ T
JL
T
JL
is the increase in junction temperature above the
lead temperature and may be found from Figure 3 for a
train of power pulses or from Figure 4 for dc power.
T
JL
=
JL
P
D
For worst-case design, using expected limits of Iz, limits
of P
D
and the extremes of T
J
( T
J
) may be estimated.
Changes in voltage, Vz, can then be found from:
V=
VZ
,
VZ
T
J
the zener voltage temperature coefficient, is fount
from Figures 2.
Under high power-pulse operation, the zener voltage will
vary with time and may also be affected significantly be
the zener resistance. For best regulation, keep current
excursions as low as possible.
Data of Figure 3 should not be used to compute surge
capability. Surge limitations are given in Figure 5. They
are lower than would be expected by considering only
junction temperature, as current crowding effects cause
temperatures to be extremely high in small spots
resulting in device degradation should the limits of
Figure. 5 be exceeded.
PCB Design
