EM366009 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> connection terminal > Fixed terminal> EM366009

EM366009: DescriptionFixed terminal block 9P EM3660 Series; CategoryThe connector connection terminal Fixed terminal; File Size838KB，2 Pages; ManufacturerBussmann (Eaton); Environmental Compliance

Download Datasheet Parametric View All

EM366009 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EM366009	-	-	View	Buy Now

EM366009 Overview

Fixed terminal block 9P EM3660 Series

EM366009 Parametric

Parameter Name	Attribute value
Maker	Bussmann (Eaton)
Product Category	Fixed terminal block
Shipping restrictions	Mouser does not currently sell this product.
Number of locations	9 Position
Pitch	5 mm
connection method	Spring Cage
Current rating	16 A
Voltage rating	300 V
Wire gauge range	26 AWG to 12 AWG
series	EM3660
Encapsulation	Bulk
Contact plating	Tin
product	Fixed Terminal Blocks
Termination type	Through Hole
Contact material	Brass
Flammability rating	UL 94 V-0
Factory packaging quantity	100

Preview

Download Datasheet

View All

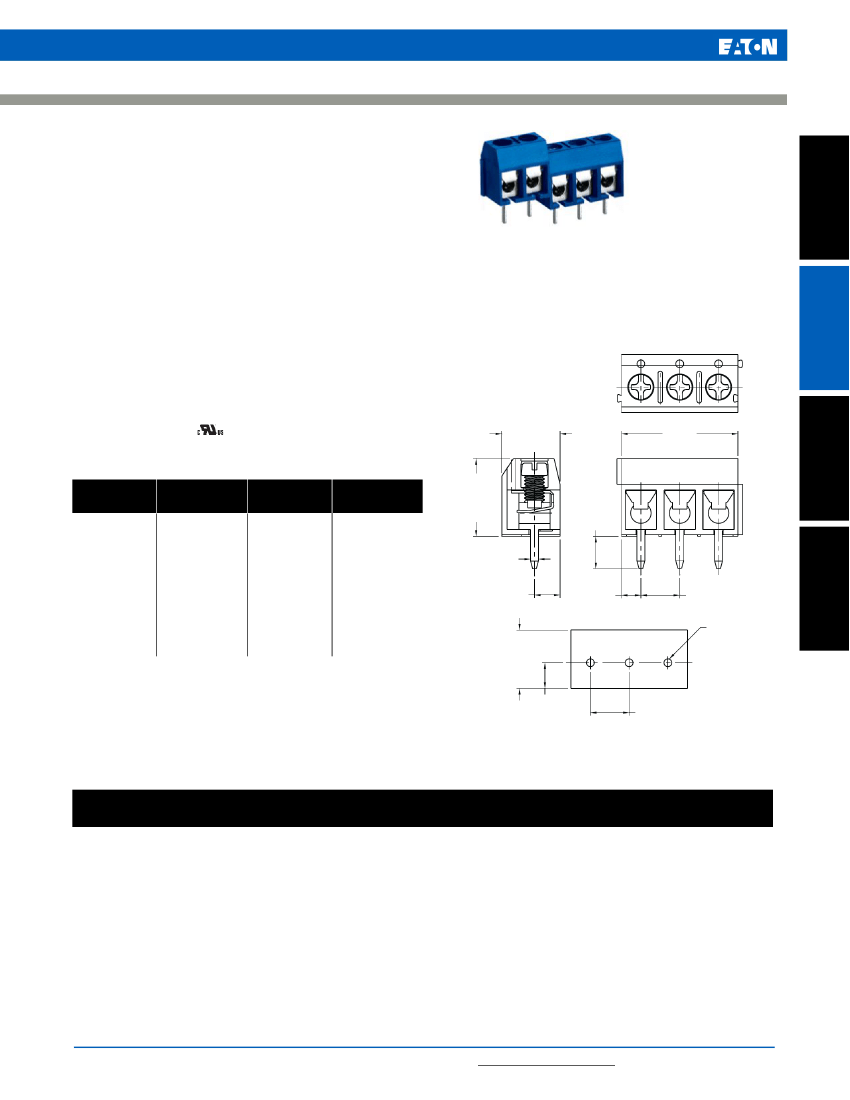

EuroMag Series PCB Mount Terminal Blocks

EM3660 Series

EuroMag Terminal Blocks

5.00 Centers; Modular

SPECIFICATIONS

Rating:

16A,

300V

Center Spacing:

0.197” (5.00mm)

Wire Range:

#12-26 AWG

Housing Material:

Blue Polyamide Type 6/6, 94V0

Contact Material:

Tin-Plated Brass

Wire Protector:

Stainless Steel

Screw Size:

M2.6

Zinc-Plated

Steel

Operating Temperature:

105°C (221°F) max., -33°C

(-27°F) min.

Torque Rating:

4.0 lb-in.

Recommended PCB Hole Diameters:

0.055" (1.40mm)

Construction:

Modular design features dovetails for

interlocking to achieve longer lengths

Agency Information:

File E62622; CE Certified

Terminal Blocks:

Single Row

EM366005

EuroMag Series

Spring & Screw

Dimensions - mm (in)

Edge Connectors,

One-Sided Boards

7.5+0.3

(0.295")

L+0.5

PCB Hole Layout

To convert to inches, divide by 25.4

7.5+0.3

(0.295")

10.0

15.0

20.0

25.0

30.0

35.0

40.0

45.0

50.0

55.0

60.0

65.0

70.0

75.0

80.0

85.0

90.0

95.0

100.0

105.0

110.0

115.0

120.0

ø1+0.1

(ø0.039")

3.3+0.3

(0.130")

2.5+0.3

(0.098")

5+0.1

(0.197")

ø1.4

(ø0.055")

4.2+0.3

(0.165")

Poles

L (mm)

Poles

L (mm)

10+0.3

(0.394")

Compliance

References

Part Numbering System

EM3660

nnnnnn nn

Series

# of Poles

3.3+0.3

(0.130")

5+0.1

(0.197")

For additional product information, visit

www.eaton.com/connectors
