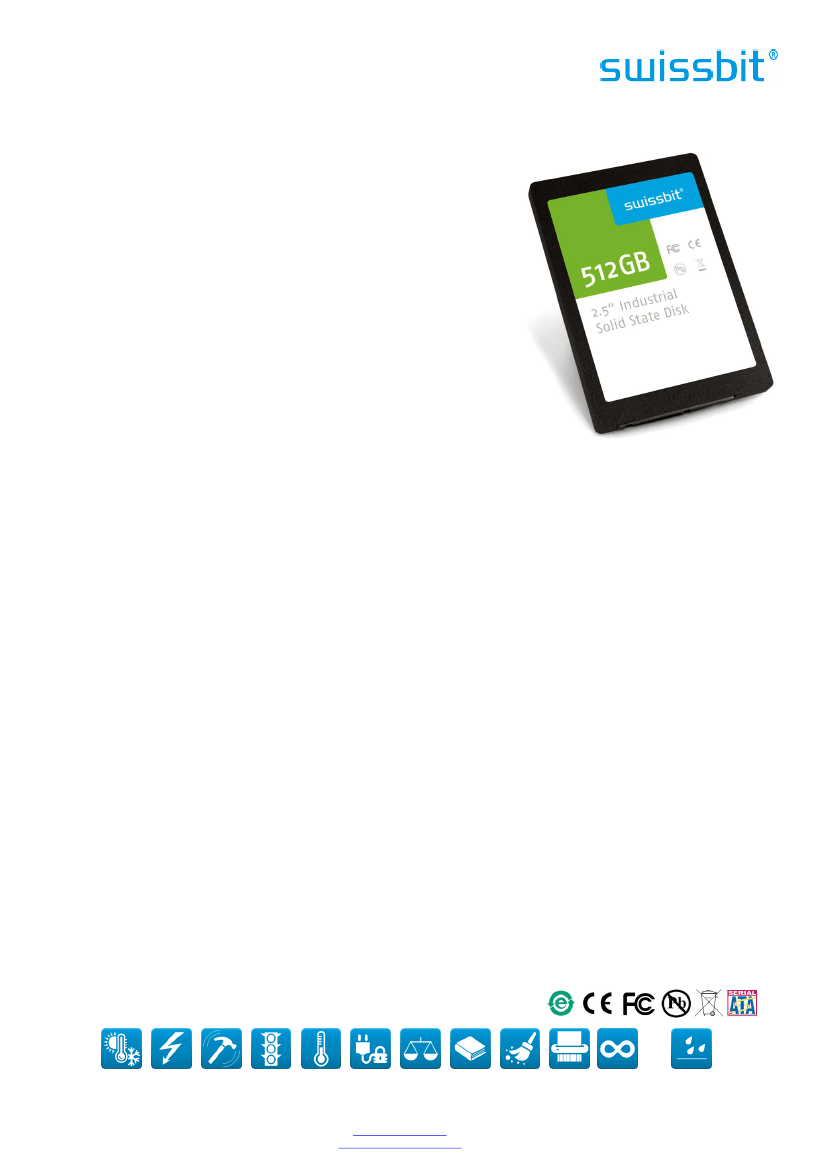

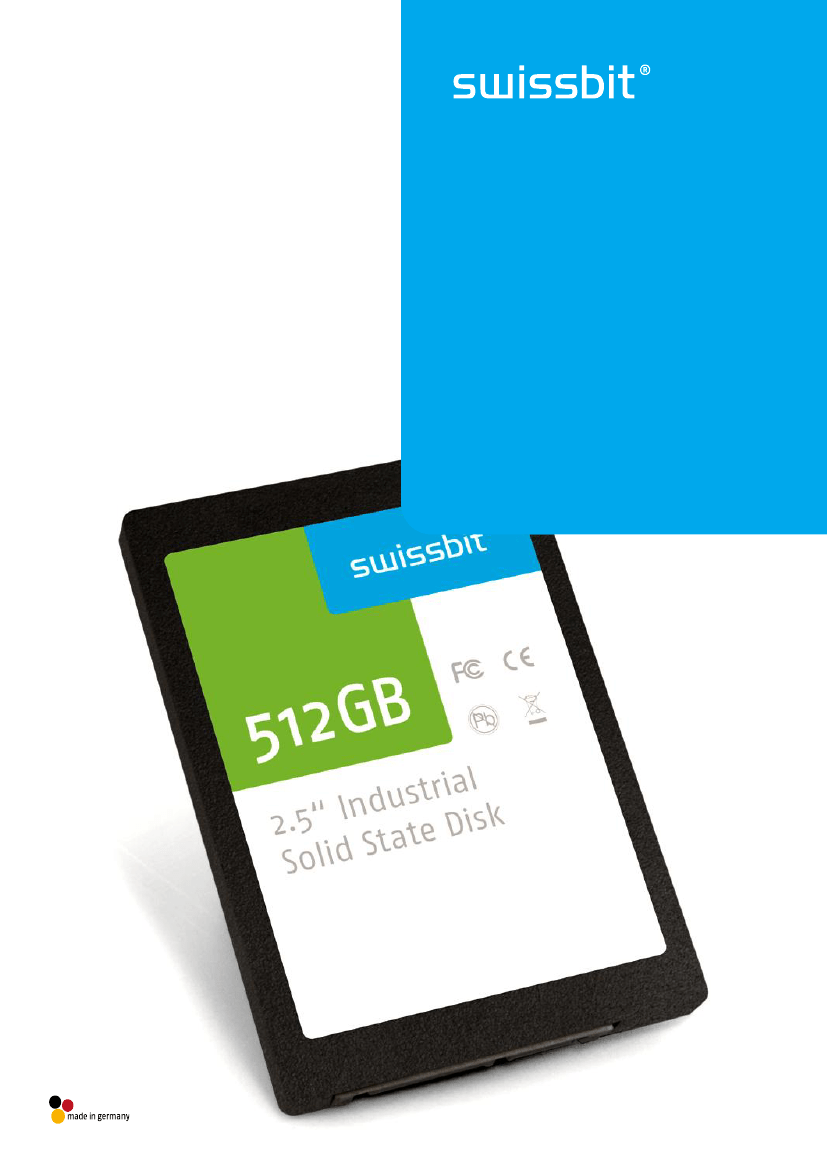

X-500 Series - Industrial SATA Solid State Drive 2.5”
16GB to 512GB based on SLC NAND flash
1 Feature summary
Form factor:
o
2.5-inch SATA Solid State Drive (SSD)
o
100.1mm x 69.85mm x 9.2mm
o
7+15 pin (SATA+power) locking/latching SATA connector
Interface:
o
SATA Rev 2.6 - 3Gbit/s (1.5Gbit/s compatible)
Feature connector for
o
Secure erase and write protect input
o
Device activity and secure erase output (LED)
o
Ground pin
Optional various secure erase/sanitize/purge methods
(HW and SW triggered, simple erase also in standard SSD)
Highly-integrated memory controller
o
SLC NAND Flash
o
Hardware BCH-code ECC (up to 40 Bit correction per 2 sectors)
o
Fix drive configuration
Low-power CMOS technology
5.0V ± 10% power supply
Low Power, less than 1 W (idle) / 3.5 W (operation) / 0.7 W slumber average current
No mechanical noise
Wear Leveling: active wear leveling of static and dynamic data
The wear leveling assures that dynamic data as well as static data is balanced evenly across the
memory. With that the maximum write endurance of the device is guaranteed.
Mechanical robustness (MIL-STD810)
High reliability
o
Best available SLC NAND Flash technology
o
Data retention 10 years
o
StaticDataRefresh and EarlyRetirement Technologies for data refresh
o
MTBF
≥
2,000,000 hours
o
Number of connector insertions/removals: 500 on SATA back plane, 50 on SATA cable
High performance
o
Up to 300MB/s burst transfer rate in SATA II - 3.0Gb/sec
o
Sustained Read / Write Performance: up to 240MB/s / 200MB/s
o
4KB Read / Write IOPS: up to 14500 / 7000
o
Access time <0.2ms
o
TRIM and NCQ support
Available densities
o
16GB up to 512GB (SLC)
S.M.A.R.T. with extended information
HPA, security feature set, 48bit feature set
Internal temperature sensor (current, minimum, maximum)
Operation systems: Microsoft Windows8, 7, Vista, XP (all 32/64bit), Linux, Apple MacOS X,
Embedded versions, RTOS
Firmware update possible
2 Operating Temperature ranges
o
Commercial Temperature range
0 … +70°C
o
Industrial Temperature range
-40 … +85°C
Life Cycle Management
Controlled BOM
RoHS, China-RoHS, REACH compatible, WEEE, CE, FCC compliant
Swissbit AG
Industriestrasse 4-8
CH-9552 Bronschhofen
Switzerland
Revision: 1.00
www.swissbit.com
industrial@swissbit.com
X-500_fact_sheet_SA-QxBJ_Rev100
Page 2 of 3
Table 1: System Performance
System Performance
Data transfer Rate (SATA burst)
Sustained Read (typ. measured)
Sustained Write (typ. measured)
Random Read 4kB
Random Write 4kB
16GB
3.0 (1.5)
226
142
14150
4900
512GB
3.0 (1.5)
236
220
14300
3800
Unit
Gbit/s
MB/s
IOPS
All values refer to Toshiba Flash chips (see part number) in UDMA5 mode (SATA 3.0Gbit/s) with Sequential write/read test (256 sectors multiple
commands) and sequential and random write/read test (8 sectors multiple commands).Sustained Speed depends on flash type and number,
file/cluster size, and burst speed.
Table 2: Current consumption
(1)
at 5V ± 10%
Current Consumption
Write (SATA-II/UDMA6)
Read (SATA-II/UDMA6)
Idle
Partial/ Slumber
Quick Erase / Sanitize
16GB
330
270
155
100/120
270/395
512GB
420
350
175
120/140
620/960
Unit
mA
1.
All values are typical at 25° C and nominal supply voltage and refer to SATAII performance test random pattern.
Table 3: Environmental Specifications
Environmental Specifications
Temperature (commercial)
Temperature (industrial)
Humidity (non-condensing)
*) Storage Temperatures above 40°C can reduce the data retention
Operating
Non Operating
0 to 70°C
-55 to 95°C *)
-40 to 85°C
-55 to 95°C *)
85% RH 85°C, 1000 hrs (JEDEC JESD22, method A101-B)
Table 4: Physical Dimensions
Physical Dimensions
Length
Width
Thickness
Weight (typ.)
Unit
100.1±0.2
69.85±0.2
9.2±0.2
80
mm
g
Table 5: SSD capacity specification
Density
16GB
32GB
64GB
128GB
256GB
512GB
Default Default
cylinders heads
16’383*)
16
16’383*)
16
16’383*)
16
16’383*)
16
16’383*)
16
16’383*)
16
Default
sectors
63
63
63
63
63
63
Sectors
drive
31’277’056
62’586’880
125'313'024
250'626'048
500’118’192
1'000'215'216
Total
addressable Bytes
16’013’852’672
32’044’482’560
64’160’268’288
128’320’536’576
256'060'514'304
512'110'190'592
Remark
IDEMA value
IDEMA value
*) The CHS access is limited to about 8GB. Above 8GB, the drive must be addressed in LBA mode.
Table 6: System Reliability and Maintenance
MTBF (at 25°C)
Data Reliability
(1) Dependent on final system qualification data.
> 2,000,000 hours
14
< 1 Non-Recoverable Error per 10 bits Read
For more information on Serial ATA Revision 2.6, please visit Serial ATA International Organization at
www.serialata.org
Why Swissbit?
Swissbit strives to create innovative technologies for future market opportunities utilizing a highly skilled in-
house product research and development team. Swissbit maintains a marketing edge by continuing to
manufacture world-class high quality memory products and providing customers with both high value and low
cost of ownership achieved through efficient processes and procedures.
Swissbit AG
Industriestrasse 4-8
CH-9552 Bronschhofen
Switzerland
Revision: 1.00
www.swissbit.com
industrial@swissbit.com
X-500_fact_sheet_SA-QxBJ_Rev100
Page 3 of 3
