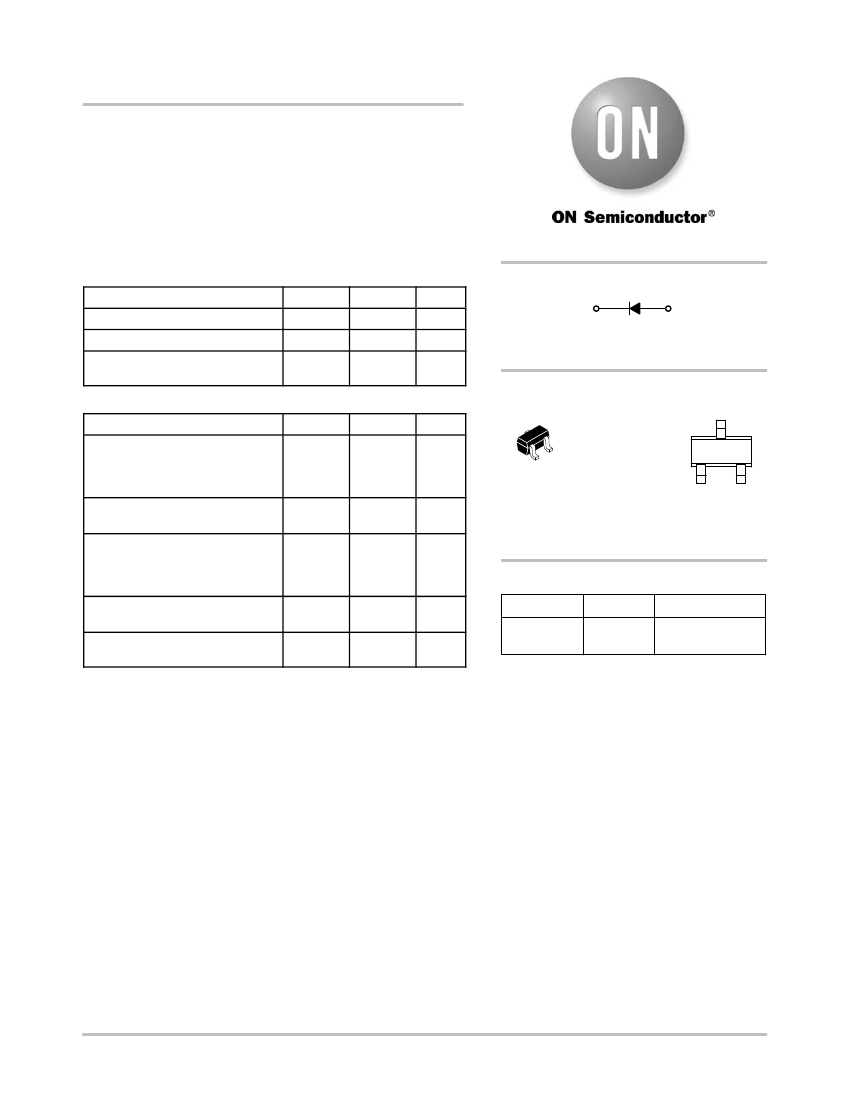

BAS16TT1G
Silicon Switching Diode
Features
•
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
http://onsemi.com
MAXIMUM RATINGS
(T
A
= 25°C)
Rating
Continuous Reverse Voltage
Recurrent Peak Forward Current
Peak Forward Surge Current
Pulse Width = 10
ms
Symbol
V
R
I
F
I
FM(surge)
Max
100
200
500
Unit
V
mA
mA
3
CATHODE
1
ANODE
THERMAL CHARACTERISTICS
Characteristic
Total Device Dissipation,
FR−4 Board (Note 1)
T
A
= 25°C
Derated above 25°C
Thermal Resistance,
Junction−to−Ambient (Note 1)
Total Device Dissipation,
FR−4 Board (Note 2)
T
A
= 25°C
Derated above 25°C
Thermal Resistance,
Junction−to−Ambient (Note 2)
Junction and Storage
Temperature Range
Symbol
P
D
Max
225
1.8
R
qJA
P
D
555
Unit
mW
mW/°C
°C/W
XX
M
MARKING
DIAGRAM
3
1
2
CASE 463
SOT−416
STYLE 2
1
= Specific Device Code
= Date Code
= Pb−Free Package
A6
M
G
G
G
360
2.9
mW
mW/°C
°C/W
°C
ORDERING INFORMATION
Device
BAS16TT1G
Package
SOT−416
(Pb−Free)
Shipping
†
3000 / Tape & Reel
R
qJA
T
J
, T
stg
345
−55
to
+150
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
1. FR−4 @ Minimum Pad
2. FR−4 @ 1.0
×
1.0 Inch Pad
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
©
Semiconductor Components Industries, LLC, 2013
May, 2013
−
Rev. 4
1
Publication Order Number:
BAS16TT1/D
BAS16TT1G
100
IF, FORWARD CURRENT (mA)
IR , REVERSE CURRENT (μA)
10
T
A
= 150°C
1.0
T
A
= 125°C
10
T
A
= 85°C
T
A
= 25°C
T
A
= - 40°C
T
A
= 85°C
0.1
T
A
= 55°C
0.01
T
A
= 25°C
1.0
0.1
0.2
0.4
0.6
0.8
1.0
V
F
, FORWARD VOLTAGE (VOLTS)
1.2
0.001
0
10
20
30
40
V
R
, REVERSE VOLTAGE (VOLTS)
50

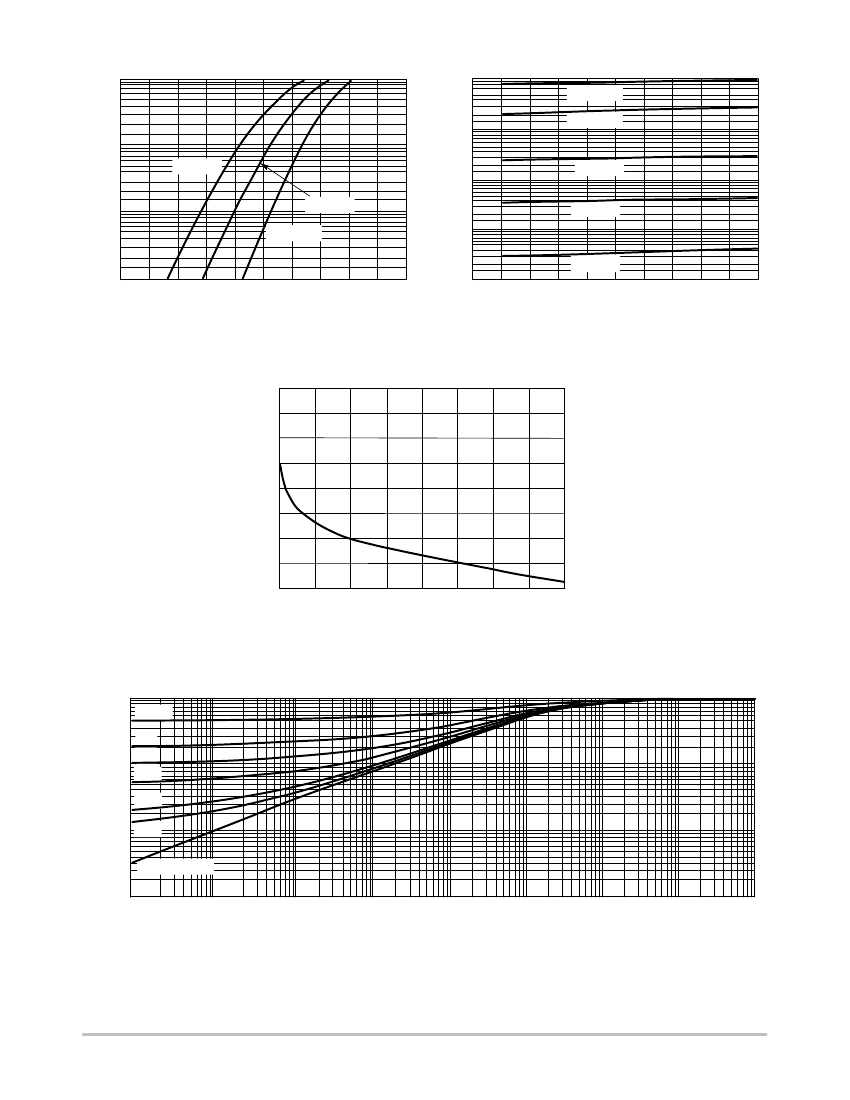

Figure 4. Forward Voltage
Figure 5. Leakage Current
0.68
CD, DIODE CAPACITANCE (pF)
0.64
0.60
0.56
0.52
0
2
4
6
8
V
R
, REVERSE VOLTAGE (VOLTS)
Figure 6. Capacitance
r(t), NORMALIZED TRANSIENT THERMAL RESISTANCE
1.0
D = 0.5
0.2
0.1
0.05
0.02
0.01
0.01
SINGLE PULSE
0.001
0.00001
0.0001
0.001
0.01
0.1
t, TIME (s)
1.0
10
100
1000
0.1
Figure 7. Normalized Thermal Response
http://onsemi.com
4
BAS16TT1G
PACKAGE DIMENSIONS
SC−75/SOT−416
CASE 463−01
ISSUE F
−E−
2
3
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: MILLIMETER.
e
1
−D−
b
3 PL
0.20 (0.008)
M
D
H
E
0.20 (0.008) E
DIM
A
A1
b
C
D
E
e
L
H
E
MILLIMETERS
MIN
NOM MAX
0.70
0.80
0.90
0.00
0.05
0.10
0.15
0.20
0.30
0.10
0.15
0.25
1.55
1.60
1.65
0.70
0.80
0.90
1.00 BSC
0.10
0.15
0.20
1.50
1.60
1.70
INCHES
NOM MAX
0.031 0.035
0.002 0.004
0.008 0.012
0.006 0.010
0.063 0.067
0.031 0.035
0.04 BSC
0.004 0.006 0.008
0.061 0.063 0.065
MIN
0.027
0.000
0.006
0.004
0.059
0.027
C
A
L
A1
STYLE 2:
PIN 1. ANODE
2. N/C
3. CATHODE
SOLDERING FOOTPRINT*
0.356
0.014
1.803
0.071
0.787
0.031
0.508
0.020
1.000
0.039
SCALE 10:1
mm
inches
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
