Portable communications, computing and video equipment manufacturers are challenging the semiconductor industry to develop increasingly
higher power density circuit protection components.
Bourns offers Transient Voltage Suppressor Diodes for surge and ESD protection applications, in compact chip package DO-214AB (SMC)
size format. The Transient Voltage Suppressor series offers a choice of Working Peak Reverse Voltage from 5 V up to 170 V and Breakdown
Voltage up to 209 V. Typical fast response times are less than 1.0 ps from 0 V to Breakdown Voltage.
Bourns
®
Chip Diodes conform to JEDEC standards, are easy to handle with standard pick and place equipment and the flat configuration
minimizes roll away.
Electrical Characteristics (@ T
A
= 25 °C Unless Otherwise Noted)
Parameter
Minimum Peak Pulse Power Dissipation (Tp = 1 ms)
(Note 1,2)
Peak Forward Surge Current
8.3 ms Single Half Sine Wave Superimposed on Rated Load
(JEDEC Method)
(Note 3,4)
Steady State Power Dissipation @ TL = 50 °C
Maximum Instantaneous Forward Voltage @ I
PP
= 100 A
(For Unidirectional Units Only)
Operating Temperature Range
Storage Temperature Range
1.
2.
3.
4.
Symbol
P
PK
I
FSM
P
M(AV)
V
F
T
STG
T
J
Value
5000
300
6.5
5
-55 to +150
-55 to +150
Unit
Watts
Amps
Watts
Volts
°C
°C
Non-repetitive current pulse, per Pulse Waveform graph and derated above TA = 25 °C per Pulse Derating Curve.
Thermal Resistance Junction to Lead.
8.3 ms Single Sine Wave duty cycle = 4 pulses maximum per minute (unidirectional units only).
Mounted on 8.0 mm x 8.0 mm copper pad area to each terminal.
How to Order
5.0SMDJ 12 CA - H
Asia-Pacific:
Tel: +886-2 2562-4117
Email: asiacus@bourns.com
Europe:
Tel: +36 88 520 390
Email: eurocus@bourns.com
The Americas:
Tel: +1-951 781-5500
Email: americus@bourns.com
www.bourns.com
Package
5.0SMDJ = SMC/DO-214AB
Working Peak Reverse Voltage
12 = 12 VRWM (Volts)
Suffix
A = 5 % Tolerance Unidirectional Device
CA = 5 % Tolerance Bidirectional Device
Reel
(Blank) = 13-inch Reel
-H = 7-inch Reel
* RoHS Directive 2015/863, Mar 31, 2015 and Annex.
**Bourns considers a product to be “halogen free” if (a) the Bromine (Br) content is 900 ppm or less; (b) the Chlorine (Cl) content is 900 ppm or less; and (c) the total Bromine (Br)
and Chlorine (Cl) content is 1500 ppm or less.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
5.0SMDJ Transient Voltage Suppressor Diode Series
Electrical Characteristics (@ T
A
= 25 °C Unless Otherwise Noted)
Unidirectional Device
Part
Number
Part
Marking
5RDE
5RDG
5RDK
5PDM
5PDP
5PDR
5PDT
5PDV
5PDX
5PDZ
5PEP
5PEQ
5PER
5PES
5PET
5PEU
5PEV
5PEW
5PEX
5PEZ
5PFE
5PFG
5PFK
5PFM
5PFP
5PFR
5PFT
5PFV
5PFX
5PFZ
5RGE
5PGG
5PGK
5PGM
5PGP
5PGR
5PGT
5PGV
5PGX
5PGZ
5PHE
5PHG
5PHK
5PHM
5PHP
5PHR
Bidirectional Device
Part
Number
Part
Marking
5DDE
5DDG
5DDK
5DDM
5DDP
5DDR
5DDT
5DDV
5DDX
5DDZ
5BEP
5BEQ
5BER
5BES
5BET
5BEU
5BEV
5BEW
5BEX
5BEZ
5BFE
5BFG
5BFK
5BFM
5BFP
5BFR
5BFT
5BFV
5BFX
5BFZ
5BGE
5BGG
5BGK
5BGM
5BGP
5BGR
5BGT
5BGV
Breakdown Voltage
V
BR
(Volts)
Min.
6.40
6.67
7.22
7.78
8.33
8.89
9.44
10.00
11.10
12.20
13.30
14.40
15.60
16.70
17.80
18.90
20.00
22.20
24.40
26.70
28.90
31.10
33.30
36.70
40.00
44.40
47.80
50.00
53.30
56.70
60.00
64.40
66.70
71.10
77.80
83.30
86.70
94.40
100.00
111.00
122.00
133.00
144.00
167.00
178.00
189.00
Reverse
Standoff
Voltage
V
RWM
(V)
5.0
6.0
6.5
7.0
7.5
8.0
8.5
9.0
10.0
11.0
12.0
13.0
14.0
15.0
16.0
17.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
33.0
36.0
40.0
43.0
45.0
48.0
51.0
54.0
58.0
60.0
64.0
70.0
75.0
78.0
85.0
90.0
100.0
110.0
120.0
130.0
150.0
160.0
170.0
Maximum
Reverse
Leakage
@ V
RWM
I
R
(μA)
1050
1050
750
300
150
70
30
12
6
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Maximum
Clamping
Voltage
@ I
PP
V
C
(V)
9.2
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103.0
113.0
121.0
126.0
137.0
146.0
162.0
177.0
193.0
209.0
243.0
259.0
275.0
Peak
Pulse
Current
I
PP
(A)
543.6
485.5
446.5
416.8
387.7
367.7
347.3
324.8
294.2
274.8
252.0
233.0
216.0
205.0
193.0
181.0
172.0
155.0
141.0
129.0
119.0
110.0
103.0
93.9
86.1
77.6
72.1
68.8
64.7
60.7
57.5
53.5
51.7
48.6
44.3
41.4
39.7
36.5
34.3
30.9
28.3
26.0
24.0
20.6
19.3
18.2
Max.
7.00
7.37
7.98
8.60
9.21
9.83
10.40
11.10
12.30
13.50
14.70
15.90
17.20
18.50
19.70
20.90
22.10
24.50
26.90
29.50
31.90
34.40
36.80
40.60
44.20
49.10
52.80
55.30
58.90
62.70
66.30
71.20
73.70
78.60
86.00
92.10
95.80
104.00
111.00
123.00
135.00
147.00
159.00
185.00
197.00
209.00
@ I
T
(mA)
10
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
5.0SMDJ5.0A
5.0SMDJ6.0A
5.0SMDJ6.5A
5.0SMDJ7.0A
5.0SMDJ7.5A
5.0SMDJ8.0A
5.0SMDJ8.5A
5.0SMDJ9.0A
5.0SMDJ10A
5.0SMDJ11A
5.0SMDJ12A
5.0SMDJ13A
5.0SMDJ14A
5.0SMDJ15A
5.0SMDJ16A
5.0SMDJ17A
5.0SMDJ18A
5.0SMDJ20A
5.0SMDJ22A
5.0SMDJ24A
5.0SMDJ26A
5.0SMDJ28A
5.0SMDJ30A
5.0SMDJ33A
5.0SMDJ36A
5.0SMDJ40A
5.0SMDJ43A
5.0SMDJ45A
5.0SMDJ48A
5.0SMDJ51A
5.0SMDJ54A
5.0SMDJ58A
5.0SMDJ60A
5.0SMDJ64A
5.0SMDJ70A
5.0SMDJ75A
5.0SMDJ78A
5.0SMDJ85A
5.0SMDJ90A
5.0SMDJ100A
5.0SMDJ110A
5.0SMDJ120A
5.0SMDJ130A
5.0SMDJ150A
5.0SMDJ160A
5.0SMDJ170A
5.0SMDJ5.0CA
5.0SMDJ6.0CA
5.0SMDJ6.5CA
5.0SMDJ7.0CA
5.0SMDJ7.5CA
5.0SMDJ8.0CA
5.0SMDJ8.5CA
5.0SMDJ9.0CA
5.0SMDJ10CA
5.0SMDJ11CA
5.0SMDJ12CA
5.0SMDJ13CA
5.0SMDJ14CA
5.0SMDJ15CA
5.0SMDJ16CA
5.0SMDJ17CA
5.0SMDJ18CA
5.0SMDJ20CA
5.0SMDJ22CA
5.0SMDJ24CA
5.0SMDJ26CA
5.0SMDJ28CA
5.0SMDJ30CA
5.0SMDJ33CA
5.0SMDJ36CA
5.0SMDJ40CA
5.0SMDJ43CA
5.0SMDJ45CA
5.0SMDJ48CA
5.0SMDJ51CA
5.0SMDJ54CA
5.0SMDJ58CA
5.0SMDJ60CA
5.0SMDJ64CA
5.0SMDJ70CA
5.0SMDJ75CA
5.0SMDJ78CA
5.0SMDJ85CA
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
5.0SMDJ Transient Voltage Suppressor Diode Series
A
Product Dimensions
A
Recommended Footprint
A
B
C
A
B
B
C
CATHODE BAND
(UNIDIRECTIONAL DEVICES ONLY)
G
CATHODE BAND
(UNIDIRECTIONAL DEVICES ONLY)
G
H
F
E
H
F
E
D
DIMENSIONS:
MM
(INCHES)
D
B
C
Dimension
C
A (Max.)
B (Min.)
C (Min.)
SMC (DO-214AB)
4.69
(0.185)
3.07
(0.121)
1.53
(0.060)
MM
DIMENSIONS:
(INCHES)
Dimension
SMC (DO-214AB)
MM
DIMENSIONS:
(INCHES)
- 7.11
6.60
A
(0.260 - 0.280)
5.59 - 6.22
B
(0.220 - 0.245)
2.90 - 3.20
C
(0.114 - 0.126)
0.15 - 0.31
D
(0.006 - 0.112)
7.75 - 8.13
E
(0.305 - 0.320)
0.05 - 0.20
F
(0.002 - 0.008)
2.01 - 2.62
G
(0.080 - 0.103)
0.76 - 1.52
H
(0.030 - 0.060)
MM
DIMENSIONS:
(INCHES)
Physical Specifications
Encapsulation .............................Molded plastic per UL Class 94V-0
Polarity....................... Cathode band indicates unidirectional device
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
5.0SMDJ Transient Voltage Suppressor Diode Series

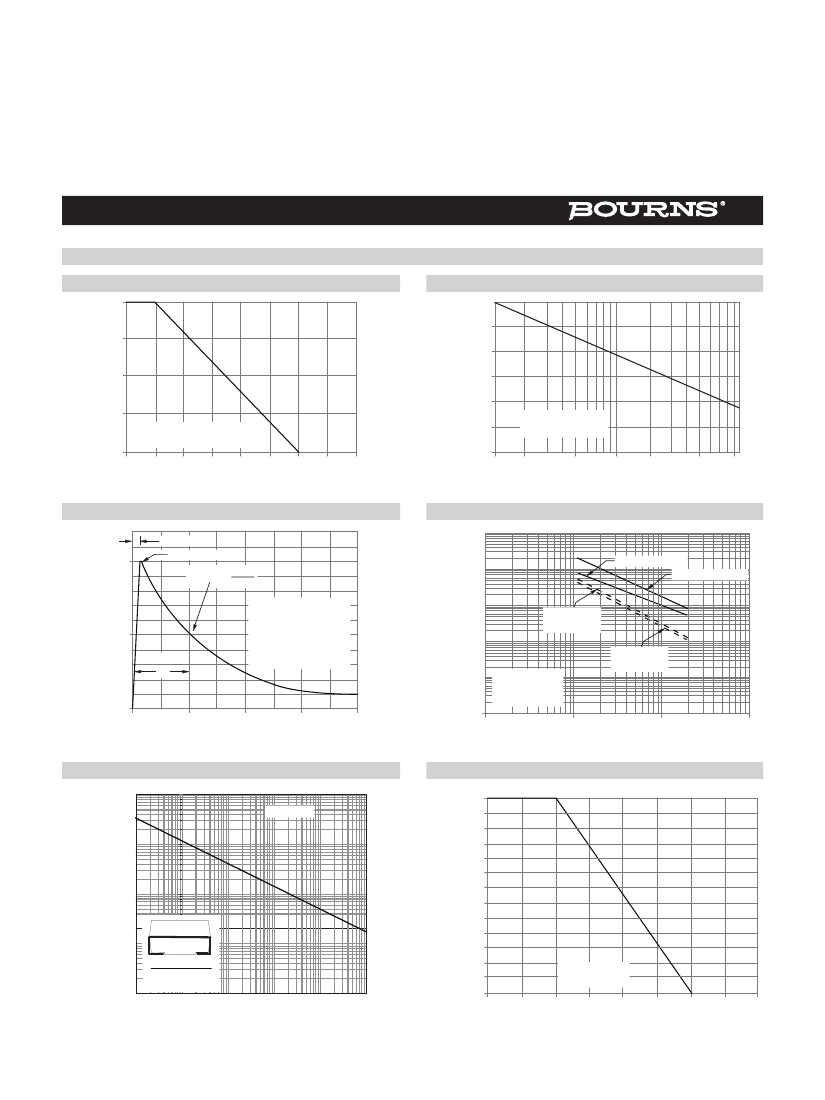

Rating & Characteristic Curves
Pulse Derating Curve
100
Peak Forward Surge Current (Amps)
Peak Pulse Derating in Percent of
Peak Power or Current
Maximum Non-Repetitive Surge Current
300
250
200
150
100
50
0
1
2
5
10
20
50
100
Number of Cycles at 60 Hz
300 A at 1 cycle
100 A at 80 cycles
75
50
25
10 x 1000 Waveform as Defined
by R.E.A.
0
0
25
50
75
100
125
150
175
200
Junction Temperature (°C)
Pulse Waveform
TR=10 µs
100
IP, Peak Pulse Current (%)
Peak value (IRSM)
Half value=
IRSM
2
Pulse width (TP)
is defined as that point
where the peak current
decays to 50 % of IPSM.
TA=25 °C
TP
10 x 1000 waveform
as defined by R.E.A.
Typical Junction Capacitance
100000
Bidirectional v=0v
Unidirectional v=0v
CJ - Junction Capacitance (pF)
10000
1000
50
Unidirectional
@ VR
Bidirectional
@ VR
100
10
TJ = 25 °C
f = 1.0 MHz
Vsig = 50 mVp-p
1
10
0
0
1.0
2.0
T, Time (ms)
3.0
4.0
1
100
1000
VBR - Reverse Breakdown Voltage (V)
Pulse Rating Curve
1000
Steady State Power Derating Curve
6.5
P
M(AV)
Steady State Power Dissipation (W)
TA = 25 °C
6.0
5.5
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
0
25
60 Hz Resistive or
Inductive Load
50
75
100
125
150
175
200
P PPM - Peak Pulse Power (kW)
100
10
1
0.1
0.1 µs
8.0 x 8.0 mm
(0.31 x 0.31 in.)
Copper Pad Areas
1.0 µs
10 µs
100 µs
1.0 ms
10 ms
t d - Pulse Width (sec.)
TL, Lead Temperature (°C)
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
CDDFN5-0504N - TVS/Steering Diode Array
5.0SMDJ Transient Voltage Suppressor Diode Series

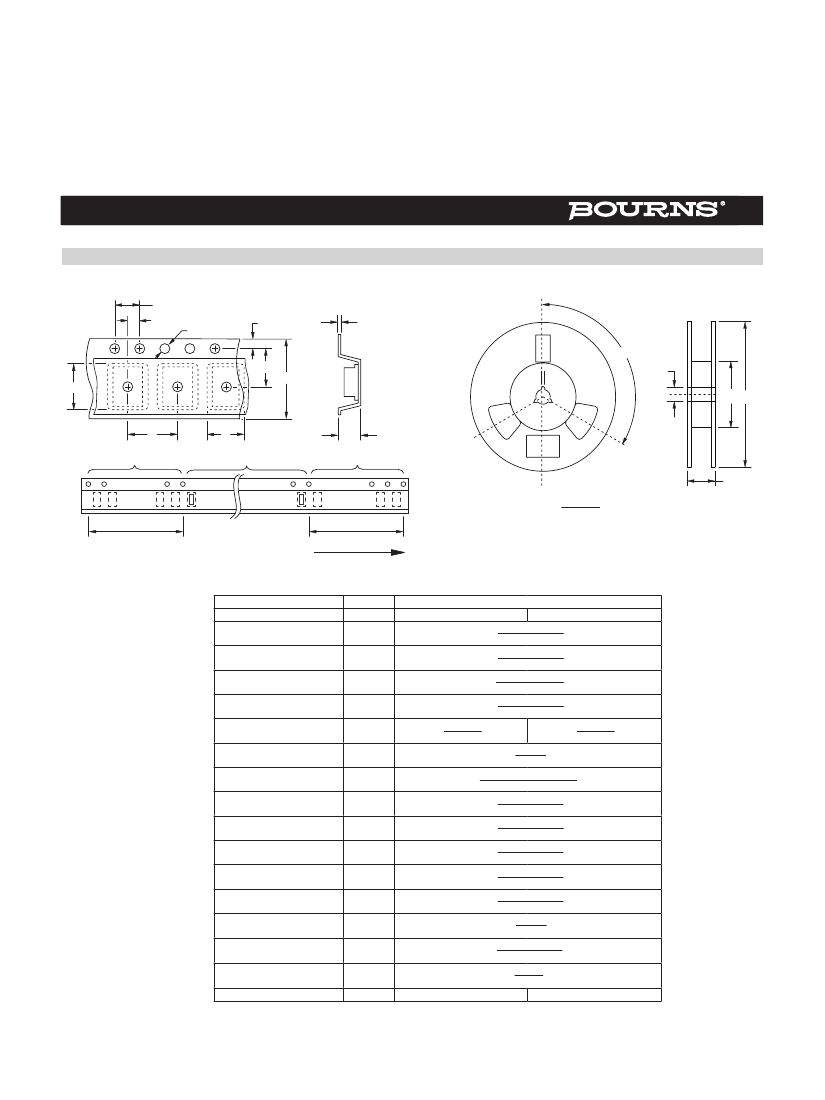

Packaging Information
The product will be dispensed in tape and reel format (see diagram below).
P
0
P
1
d
Index Hole
E
T
120 °
F
W
D2
D1 D
B
P
Trailer
A
Device
C
Leader
End
.......
.......
10 pitches (min.)
.......
.......
.......
.......
.......
.......
10 pitches (min.)
Start
W1
MM
DIMENSIONS:
(INCHES)
Direction of Feed
Devices are packed in accordance with EIA standard
EIA-481-D and specifications shown here.
SMC (DO-214AB)
7-Inch Reel
13-Inch Reel
6.0 ± 0.20
(0.236 ± 0.079)
8.3 ± 0.20
(0.327 ± 0.008)
2.5 ± 0.20
(0.098 ± 0.008)
1.50 ± 0.10
(0.059 ± 0.004)
178
330
(7.008)
(12.992)
50.0
MIN.
(1.969)
13.0 +0.50/-0.20
(0.512 +0.020/-0.008)
1.75 ± 0.10
(0.069 ± 0.004)
7.50 ± 0.10
(0.295 ± 0.004)
8.00 ± 0.10
(0.315 ± 0.004)
4.00 ± 0.10
(0.157 ± 0.004)
2.00 ± 0.10
(0.079 ± 0.004)
0.30± 0.10
(0.012 ± 0.004)
16.00 ± 0.30
(0.630 ± 0.012)
22.4
MAX.
(0.882)
500
3,000
Item
Carrier Width
Carrier Length
Carrier Depth
Sprocket Hole
Reel Outside Diameter
Reel Inner Diameter
Feed Hole Diameter
Sprocket Hole Position
Punch Hole Position
Punch Hole Pitch
Sprocket Hole Pitch
Embossment Center
Overall Tape Thickness
Tape Width
Reel Width
Quantity per Reel
Symbol
A
B
C
d
D
D1
D2
E
F
P
P0
P1
T
W
W1
--
05/18
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
I am new to microprocessors, so my questions may be naive. Please help me.I want to use ST_LINK to connect STM8s103F. I would like to ask you:1. What are the minimum pins that need to be connected to ...
I am a beginner, and now I want to make a pointer dial clock with a perpetual calendar. My problem is that the perpetual calendar and digital clock have been simulated, but the pointer dial cannot be ...
The program is as follows, which pastes the bitmap to the client area: CBitmap bitmap; bitmap.LoadBitmap(IDB_BACKGROUND); BITMAP bmp; bitmap.GetBitmap(&bmp); CDC dcCompatible; dcCompatible.CreateCompa...
As a natural human-machine interface, voice can make the in-vehicle navigation system safer and more user-friendly. Through the functional comparison of domestic and foreign in-vehicle navigation s...[Details]
Pulse oximeters, non-invasive instruments used to monitor a patient's blood oxygen saturation, are benefiting from moving away from expensive discrete component solutions toward more integrated design...[Details]
Designers of hearing aids have stringent requirements. Hearing aids must be small enough to fit in or behind the ear, operate on ultra-low power, and be free of noise or distortion. To meet these requ...[Details]
The overcurrent and overheating coordinated protection technology implemented by polymer positive temperature coefficient devices (PPTC) can protect motors, controllers and electronic components in...[Details]
Wireless personal area networks (or WPANs) are particularly useful for sensing, monitoring, and control applications. Cost-effective WPANs have the unique potential to implement wireless connectivi...[Details]
Overview
Currently, many portable consumer electronic products, such as mobile phones, PDAs, MP3 players, and notebooks, are equipped with display screens. Although the type and size of the di...[Details]
Introduction
Wireless operators are driving demand for broadband and data rates by offering enhanced data services to increase average revenue per user (ARPU). The need to provide users with ...[Details]
1 Introduction
The high temperature tester is mainly used for temperature tracking measurement and data acquisition during the heating process. By systematically analyzing the test data,...[Details]
The microwave multifunctional therapeutic device uses microwave radiation for heating treatment, which can achieve the effects of sterilization and blood circulation. Using microwaves to directly c...[Details]
Although the human eye is very good at distinguishing colors, different people can describe the same color differently, which means that verbal descriptions are not enough in applications that requ...[Details]
Novaled, a German company, has successfully developed p-type and n-type field effect transistors based on a single-layer pentacene semiconductor layer by using its own p-type and n-type dopants. This ...[Details]
Abstract:
A single pulse secondary radar reply processor implemented with EPLD. Its main functions include: reply frame pulse detection, reply information decoding, assembling reply inf...[Details]
With the improvement of people's requirements for vehicle riding comfort and the development of passenger car suspension technology in my country, air suspension is increasingly used in passenger ...[Details]
1. Intrusion Detection System (IDS)
IDS is the abbreviation of "Intrusion Detection Systems" in English, which means "Intrusion Detection System" in Chinese. Professionally speaking, it monito...[Details]
China National Stadium Project Introduction
The National Stadium (Bird's Nest), the main venue for the opening and closing ceremonies of the 2008 Beijing Olympic Games, is located on the g...[Details]
stm32/stm8
京公网安备 11010802033920号
EEWORLD
