Z4KE100A thru Z4KE200A
www.vishay.com
Vishay General Semiconductor
Glass Passivated Power Voltage-Regulating Diodes
FEATURES
•
•
•
•
•
•
•
Plastic MELF package
Ideal for automated placement
Glass passivated chip junction
Low Zener impedance
Low regulation factor
Solder dip 275 °C max. 10 s, per JESD 22-B106
Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
DO-41 (DO-204AL)
DESIGN SUPPORT TOOLS
Models
Available
click logo to get started
MECHANICAL DATA
Case:
DO-41 (DO-204AL)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Terminals:
Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test
Polarity:
Color band denotes cathode end
PRIMARY CHARACTERISTICS
V
Z
P
tot
I
R
(V
Z
12 V)
T
J
max.
V
Z
specification
Package
Circuit configuration
100 V to 200 V
1500 mW
5.0 μA
150 °C
Pulse current
DO-41 (DO-204AL)
Single
TYPICAL APPLICATIONS
For general purpose regulation and protection applications.
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Operating junction and storage temperature range
SYMBOL
T
J
, T
STG
VALUE
-55 to +150
UNIT
°C
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
ZENER VOLTAGE
RANGE
PART
NUMBER
(1)
V
Z
at I
ZT
V
MIN. NOM. MAX.
Z4KE100A
Z4KE110A
Z4KE120A
Z4KE130A
Z4KE140A
Z4KE150A
Z4KE160A
Z4KE170A
Z4KE180A
Z4KE190A
Z4KE200A
95
104
114
124
133
142
152
162
171
180
190
100
110
120
130
140
150
160
170
180
190
200
105
116
126
137
147
158
168
179
189
200
210
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
TEST
CURRENT
I
ZT
I
ZK
mA
MAX.
500
600
700
800
900
1000
1100
1200
1300
1400
1500
MAXIMUM
ZENER
IMPEDANCE
Z
ZT
at I
ZT
Z
ZK
at I
ZK
MAX.
5000
5000
5000
5000
5500
6000
6500
7000
7000
7500
8000
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
MAXIMUM
REVERSE
CURRENT
I
R
at V
R
μA
25 °C 100 °C
100
100
100
100
100
100
100
100
100
100
100
76.0
83.2
91.2
99.2
106.4
113.6
121.6
129.6
136.8
144.0
152.0
V
MAXIMUM
CONTINUOUS
FORWARD
VOLTAGE
V
FM
at 0.5 A
V
MAX.
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
MAXIMUM
ZENER CURRENT
I
ZM
mA
MAX.
15.0
13.0
12.0
11.0
10.7
10.0
9.0
8.0
8.0
7.9
7.0
Note
(1)
Maximum power dissipation is 1500 mW at T = 75 °C with lead length 0.375" (9.5 mm)
L
ORDERING INFORMATION
(Example)
PREFERRED P/N
Z4KE100A-E3/54
UNIT WEIGHT (g)
0.350
PREFERRED PACKAGE CODE
54
BASE QUANTITY
5500
DELIVERY MODE
13" diameter plastic tape and reel
Revision: 30-Mar-17
Document Number: 88408
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Z4KE100A thru Z4KE200A
www.vishay.com
Vishay General Semiconductor

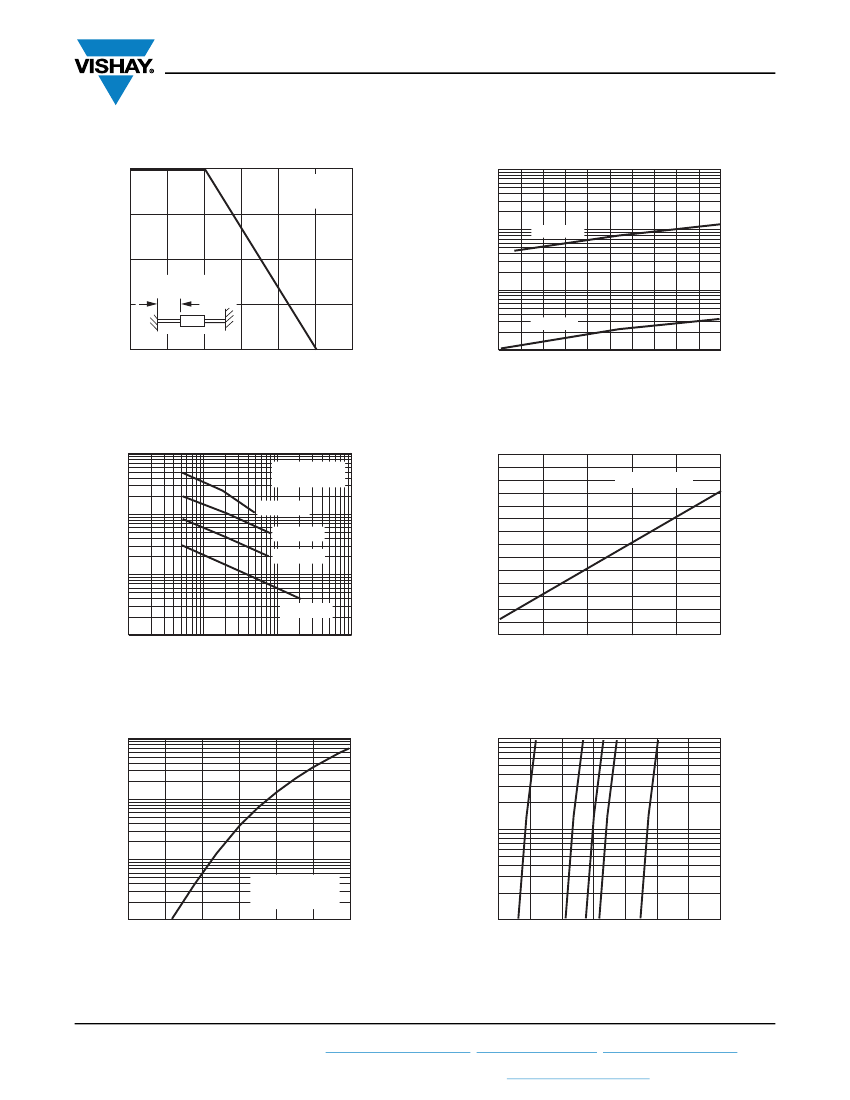

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
1.500
10
1.125
Instantaneous Reverse Current (µA)
P
tot
- Power Dissipation (W)
60 Hz
Resistive or
Inductive Load
1
T
J
= 100 °C
0.750
L = 0.375" (9.5 mm)
Lead Lengths
0.375
0.1
T
J
= 25 °C
0.01
0
25
50
75
100
125
150
175
0
20
40
60
80
100
T
L
- Lead Temperature (°C)
Percent of Rated Zener Voltage (%)
Fig. 1 - Power Derating Curve
Fig. 4 - Typical Reverse Characteristics
10 000
220
T
J
= 25 °C
I
Z(RMS)
= 0.1 I
Z(DC)
V
Z
= 200 V
V
Z
= 180 V
V
Z
= 150 V
ΘV
Z
- Temperature Coefficient (mV/°C)
Z
Z
- Dynamic Zener Impedance (Ω)
200
180
160
140
120
100
80
100
Tested at Rated I
ZT
1000
100
V
Z
= 100 V
10
0.1
1
10
100
120
140
160
180
200
I
ZT
- Zener Test Current (mA)
V
Z
- Zener Voltage (V)
Fig. 2 - Typical Zener Impedance
Fig. 5 - Typical Temperature Coefficients
10
10
Instantaneous Forward Current (A)
1
I
ZT
- Test Zener Current (mA)
1.6
1
0.1
T
J
= 25 °C
Pulse Width = 300 μs
1 % Duty Cycle
0.01
0.4
0.6
0.8
1.0
1.2
1.4
0.1
100
150
200
250
Instantaneous Forward Voltage (V)
V
Z
- Zener Voltage (V)
Fig. 3 - Typical Instantaneous Forward Characteristics
Fig. 6 - Typical Zener Voltage
Revision: 30-Mar-17
Document Number: 88408
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Z4KE100A thru Z4KE200A
www.vishay.com
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
DO-41 (DO-204AL)
Vishay General Semiconductor
1.0 (25.4)
MIN.
0.107 (2.7)
0.080 (2.0)
DIA.
0.205 (5.2)
0.160 (4.1)
1.0 (25.4)
MIN.
0.034 (0.86)
0.028 (0.71)
DIA.
Revision: 30-Mar-17
Document Number: 88408
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
