PRODUCT
DATASHEET
CA16015_STRADA-SQ-SCL

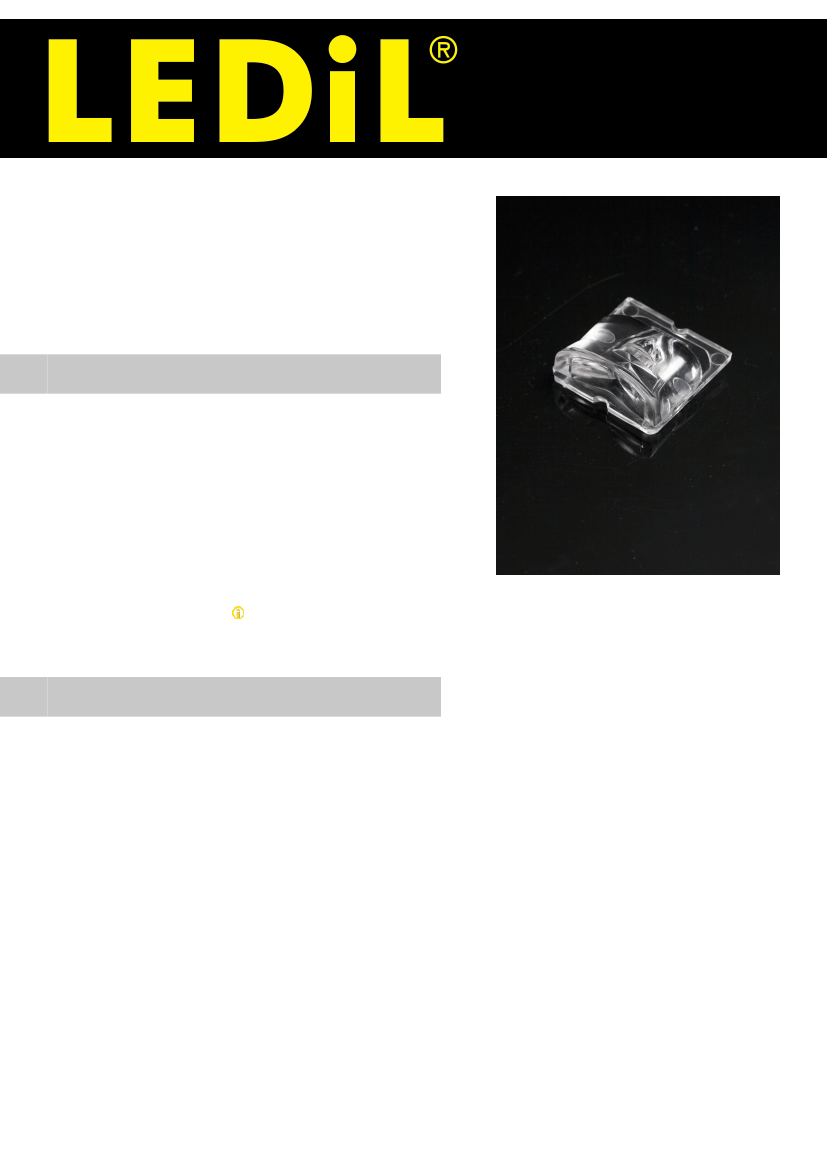

STRADA-SQ-SCL
Type II/III (Long) beam for very wide pole to pole
distances. Ideal for pedestrian path and
residential road lighting. (EN13201 P-classes)
TECHNICAL SPECIFICATIONS:

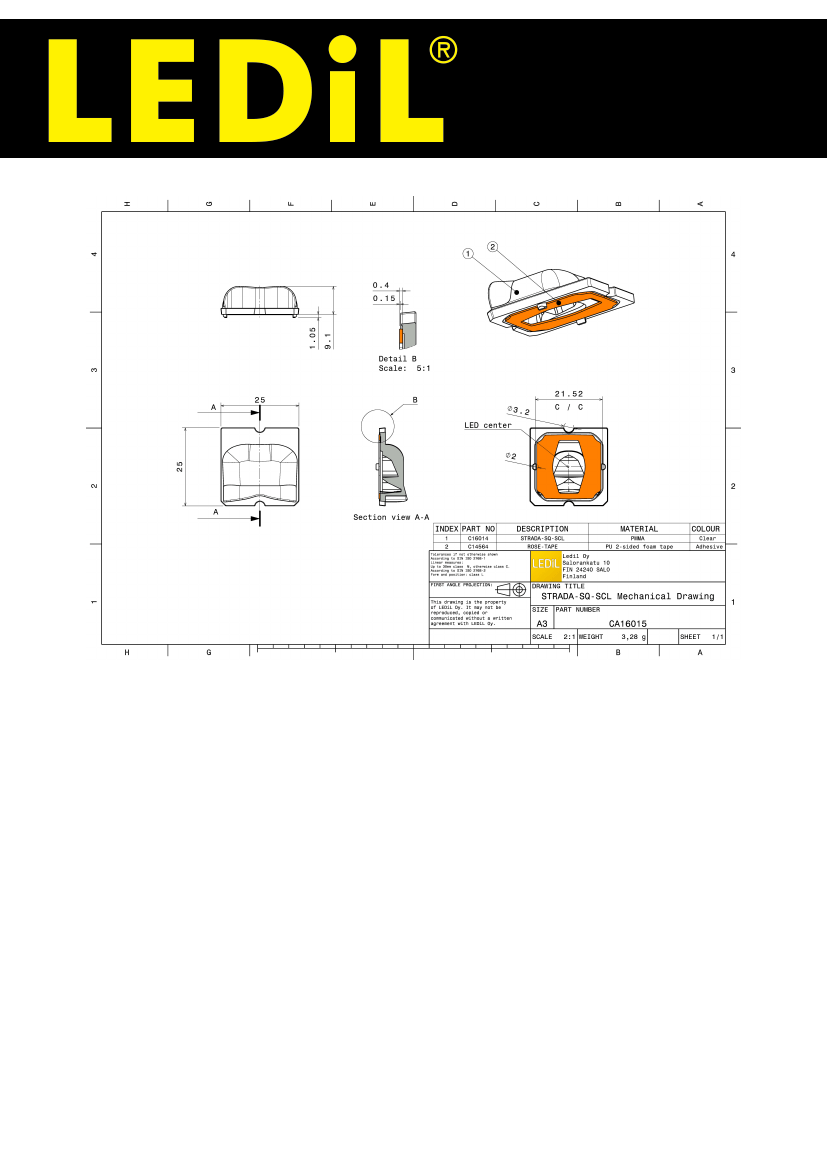

Dimensions
Height
Fastening
Colour
Box size
Box weight
Quantity in Box
ROHS compliant
25.0 mm
9.1 mm
tape, pin
clear
480 x 280 x 300 mm
8.8 kg
2058 pcs
yes
MATERIAL SPECIFICATIONS:
Component
STRADA-SQ-SCL
ROSE-TAPE
Type
Lens
Tape
Material
PMMA
PU tape
Colour
clear
black
Last update: 24/05/2018
Subject to change without prior notice
LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries.
1/5
PRODUCT
DATASHEET
CA16015_STRADA-SQ-SCL

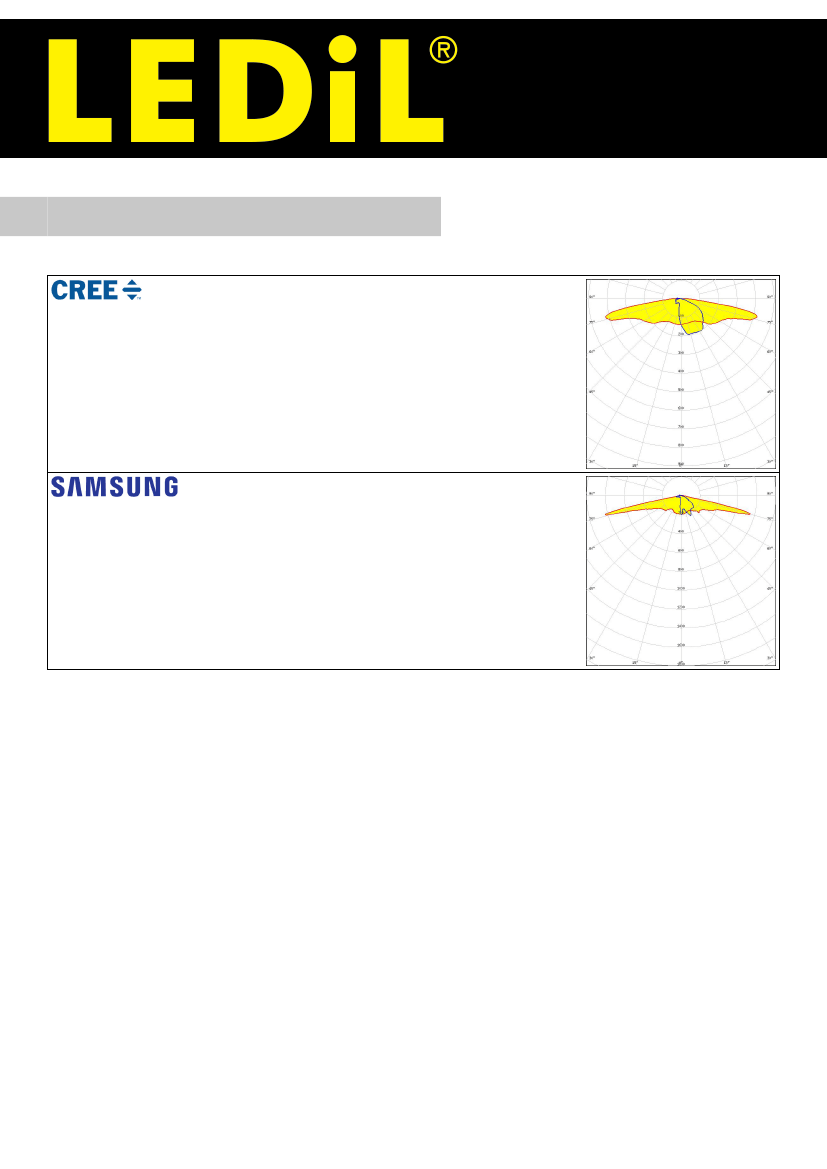

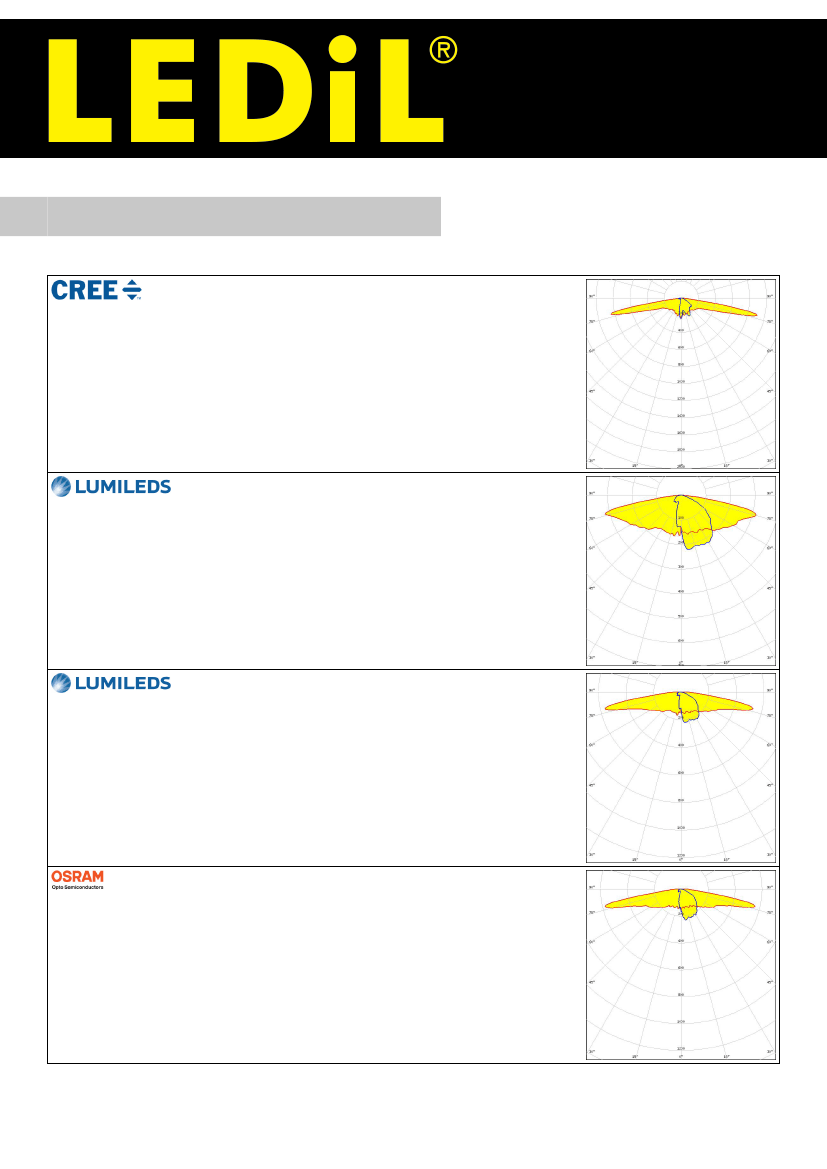

PHOTOMETRIC DATA (SIMULATED):
LED
FWHM
Efficiency
Peak intensity
XP-G2
Asymmetric
89 %
1.040 cd/lm
Required components:
LED
FWHM
Efficiency
Peak intensity
LUXEON M/MX
Asymmetric
74 %
0.400 cd/lm
Required components:
Undefined Manufacturer: Protective Plate, Glass
LED
FWHM
Efficiency
Peak intensity
LUXEON M/MX
Asymmetric
90 %
0.700 cd/lm
Required components:
LED
FWHM
Efficiency
Peak intensity
OSCONIQ P 7070
Asymmetric
86 %
0.795 cd/lm
Required components:
Last update: 24/05/2018
Subject to change without prior notice
LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries.
4/5
PRODUCT
DATASHEET
CA16015_STRADA-SQ-SCL
GENERAL INFORMATION:
NOTE: The typical beam angle will be changed by different color, chip size
and chip position tolerance. The typical total beam angle is the full angle
measured where the luminous intensity is half of the peak value.
LEDiL Oy
Joensuunkatu 13
FI-24240 SALO
Finland
LEDiL Inc.
228 West Page Street
Suite D
Sycamore IL 60178
USA
MATERIALS:
As part of our continuous research and improvement processes, and to ensure
the best possible quality and availability of our products, LEDiL reserves the
right to change material grades without notice.
PRODUCT DATA USER AGREEMENT AND DISCLAIMER:
The measured data in the provided downloadable LEDiL Product Datasheets
and Mechanical 2D-Drawings is rounded and provided as reference for
planning. LEDiL Oy's optical specifications have been verified by conducting
performance testing of the products in accordance with the company's quality
system. The reported data are averaged results of multiple measurements with
typical variation. LEDiL Oy reserves the right to without prior notification make
changes and improvements to its products.
LEDiL Oy assumes neither warranty, nor guarantee nor any other liability of
any kind for the contents and correctness of the provided data. The provided
data has been generated with highest diligence but the provided data may in
reality not represent the complete possible variation range of all intrinsic
parameters. Therefore, in certain cases a deviation from the provided data
could occur.
LEDiL Oy reserves the right to undertake technical changes of its products
without further notification which could lead to changes in the provided data.
LEDiL Oy assumes no liability of any kind for the possible deviation from any
provided data or any other damage resulting from the usage of the provided
data.
The user agrees to this disclaimer and user agreement with the download or
usage of the provided files.
