Series 801 Miniature Plug Connectors
with Size #12 Ultra-Twinax Contacts
801-007 and 801-008 Ordering Information
New Mighty Mouse contact arrangements accept size #12 Ultra-Twinax contacts for
multi-gigabit data rate applications. Series 801 Mighty Mouse plugs feature damage-
resistant double-start ACME mating threads. Available with anti-decoupling feature or
vibration-resistant ratchet mechanism. Purchase twinax contacts separately. Connector
shells are aluminum or stainless steel, with thermoplastic insulators and fluorosilicone
rubber seals.
S
Ultra-Twinax
Sample Part Number
Series (See Table I)
Shell Style
Shell Material and Finish
Shell Size - Insert
Arrangement
Contact Type
Shell Key Positions
(See Table II)
© 2014 Glenair, Inc.

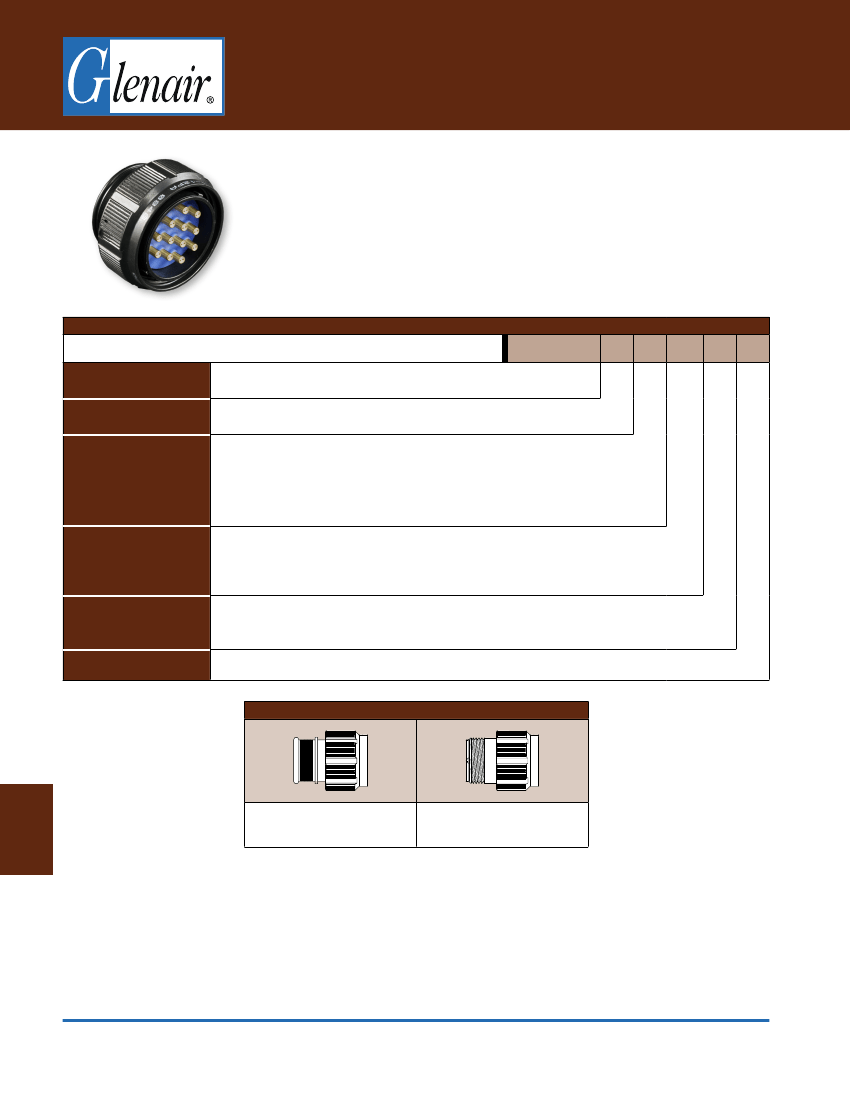

How To Order
801-008
801-007
= Plug Connector with Banding Termination Porch
801-008
= Plug Connector with Rear Accessory Thread
-16
= Plug with Anti-Decoupling Spring
-26
= Self-Locking Plug with Ratchet Mechanism
M
= Aluminum / Electroless Nickel RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
ZR
= Aluminum / Zinc-Nickel with Non-Reflective Black Chromate RoHS Compliant
MT
= Aluminum / Nickel-PTFE RoHS Compliant
Z1
= Stainless Steel / Passivated RoHS Compliant
Size #12 Contacts (See Page S-2 for Contact Layout)
7-1, 10-2, 13-2, 13-3, 16-5, 17-7, 21-12,
Size #12 Combo Contacts (See Page S-2 for Contact Layout)
10-200, 10-201, 13-200, 13-201, 13-204, 13-205, 16-206, 16-207, 17-204
-16
M
7-1
P
A
Connector supplied without contacts (Order twinax contacts separately.)
A
= Pin connector, less contacts
B
= Socket connector, less contacts
A
= Normal
B
= Pos. B
C
= Pos. C
D
= Pos. D
E
= Pos. E
F
= Pos. F
Table I: Series
801-007
Plug Connector with Banding
Porch
801-008
Plug Connector with Rear
Accessory Thread
Dimensions in Inches (millimeters) are subject to change without notice.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Rev. 11.29.17
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
S-8
E-Mail: sales@glenair.com

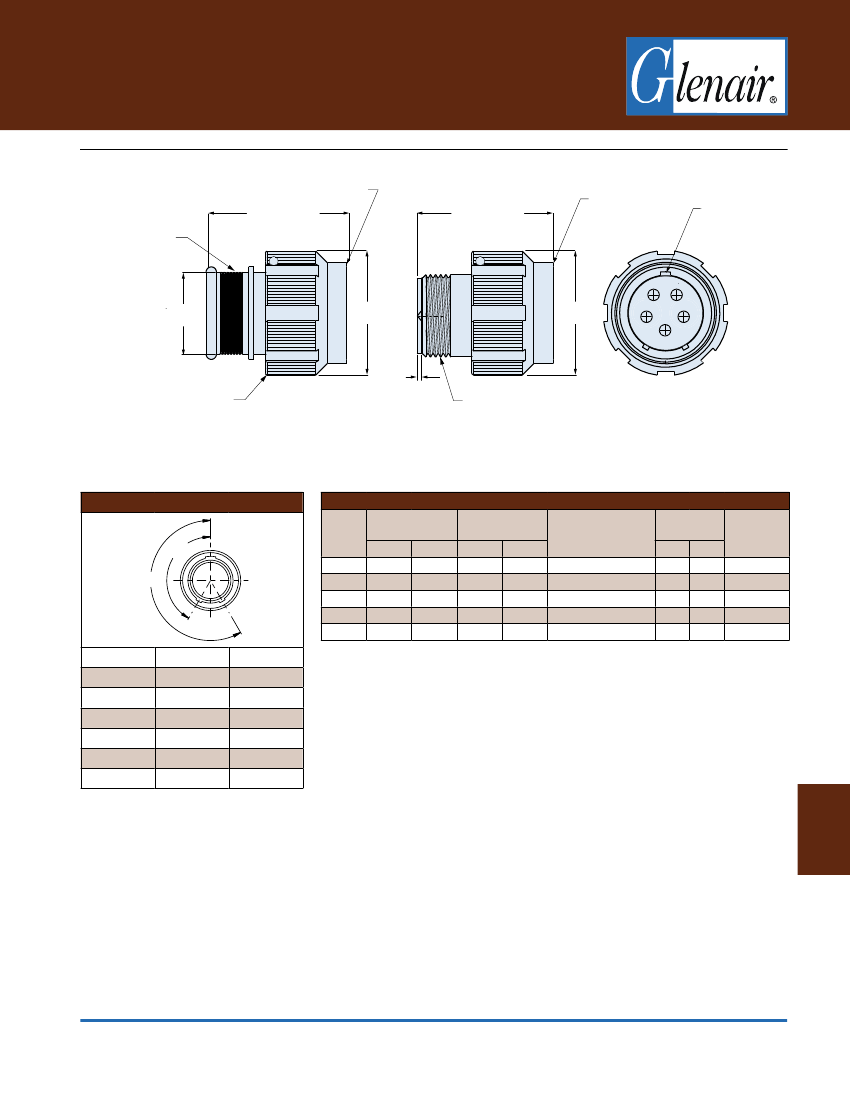

801-007 and 801-008 Dimensions
Series 801 Plug Connectors with Size #12 Contacts - shell style 16/26
B THREAD
1.130 (28.70)
MAX
1.090 (29.97)
MAX.
B THREAD
MASTER
KEY
SHIELD
TERMINATION
PLATFORM
1
2
3
4
øC
øA
øA
5
STRAIGHT KNURL
.080(2.03)
MAX
D THREAD
16-5 ARRANGEMENT
SHOWN
Banding Porch
801-007-16 and 801-007-26
Table II: Plug Key Positions
Shell
Size
7
10
16
17
21
Position
A
B
C
D
E
F
A°
150°
75°
95°
140°
75°
95°
B°
210°
210°
230°
275°
275°
210°
Accessory Thread
801-008-16 and 801-008-26
Dimensions
Style 16
ØA
In.
.690
.880
1.240
1.300
1.550
mm.
17.53
22.35
31.50
33.02
39.07
Style 26
ØA
In
.790
.980
1.340
1.450
1.650
mm.
20.07
24.89
34.04
36.83
41.91
B Thread
.4375-.05P-.1L-DS-2B
.6250 -.05P-.1L-DS-2B
1.000-.1P-.2L-DS-2B
1.0625-.1P-.2L-DS-2B
1.3125-.1P-.2L-DS-2B
ØC
In
.390
.560
.805
.850
1.110
mm.
9.91
14.22
20.45
21.59
28.19
D Thread
UNEF-2A
.4375-28
.6250-24
.9375-20
.9375-20
1.1875-18
A°
B°
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
Rev. 05.04.18
S-9
E-Mail: sales@glenair.com
Ultra-Twinax
Series 801 Miniature Plug Connectors
with Size #12 Ultra-Twinax Contacts
S
