QPB9015TR13: DescriptionBasic information of QPB9015TR13 amplifier: QPB9015TR13 is a radio frequency amplifier (RF Amplifier) from Qorvo. It belongs to the QPB9015 series of products. QPB9015TR13 amplifier core information: The minimum operating temperature of QPB9015TR13 is - 40 C and the maximum operating temperature is + 85 C. The corresponding working power supply current is 300 mA The amplifier gain of QPB9015TR13 can reach: 37 dB (Amplifier gain is the logarithm of the ratio of amplifier output power to input power, which is used to express the degree of power amplification. It also refers to the amplification factor of voltage or current. Similarly, decibel is the unit of amplifier gain. ) The range of its power supply is: 5 V. Related dimensions of QPB9015TR13: Number of channels in total: 2 Channels. QPB9015TR13 amplifier additional information: And its more detailed single package form is: MCM-28. When suppliers on the market sell QPB9015TR13, they use the form: Reel.; Categorysemiconductor And wireless radio frequency integrated circuits Rf amplifier; File Size2MB，16 Pages; ManufacturerQorvo; Websitehttps://www.qorvo.com; Environmental Compliance; Alternative parts：QPB9015TR13

Download Datasheet Parametric Compare View All

QPB9015TR13 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	QPB9015TR13	-	-	View	Buy Now

QPB9015TR13 Overview

Basic information of QPB9015TR13 amplifier:

QPB9015TR13 is a radio frequency amplifier (RF Amplifier) from Qorvo. It belongs to the QPB9015 series of products.

QPB9015TR13 amplifier core information:

The minimum operating temperature of QPB9015TR13 is - 40 C and the maximum operating temperature is + 85 C. The corresponding working power supply current is 300 mA

The amplifier gain of QPB9015TR13 can reach: 37 dB (Amplifier gain is the logarithm of the ratio of amplifier output power to input power, which is used to express the degree of power amplification. It also refers to the amplification factor of voltage or current. Similarly, decibel is the unit of amplifier gain. )

The range of its power supply is: 5 V.

Related dimensions of QPB9015TR13:

Number of channels in total: 2 Channels.

QPB9015TR13 amplifier additional information:

And its more detailed single package form is: MCM-28. When suppliers on the market sell QPB9015TR13, they use the form: Reel.

QPB9015TR13 Parametric

Parameter Name	Attribute value
Maker	Qorvo
Product Category	RF amplifier
Installation style	SMD/SMT
Package/box	MCM-28
type	Video Receiver
technology	Silicon
working frequency	45 MHz to 1218 MHz
Gain	37 dB
Working power voltage	5 V
Working power current	300 mA
Minimum operating temperature	- 40 C
Maximum operating temperature	+ 85 C
series	QPB9015
Encapsulation	Reel
Number of channels	2 Channel
development kit	QPB9015PCBA-410
Pd-power dissipation	1.5 W
Factory packaging quantity	750

Preview

Download Datasheet

View All

QPB9015

xPON Video Receiver with integrated VCA

Product Description

The QPB9015 is a video receiver integrated circuit (IC)

which provides a low noise analog interface to optical

access triplexer modules used in single family ONTs in

fiber to the premise (FTTP) applications. The QPB9015

exhibits low input noise and distortion to meet critical

FTTP link requirements. QPB9015 employs an

integrated voltage controlled attenuator that provides,

with external control circuitry, automatic gain control to

maintain a constant +19 to +23 dBmV / channel output

to insure consistent video quality.

28 pin, 11.0 mm x 11.0 mm x 1.375 mm package

Product Features



45 – 1218 MHz Operational Bandwidth

Efficient Power Consumption: 1.5 W

Low Noise: 3.5

pA / √Hz Equivalent Input Noise

Current (EINC)

Linearity: -65 dBc CSO and -66 dBc CTB at +22

dBmV RF Output per Channel

(79-NTSC Equivalent Channels)

Integrated VCA, 25 dB Attenuation Range

Temperature Sensing Feature

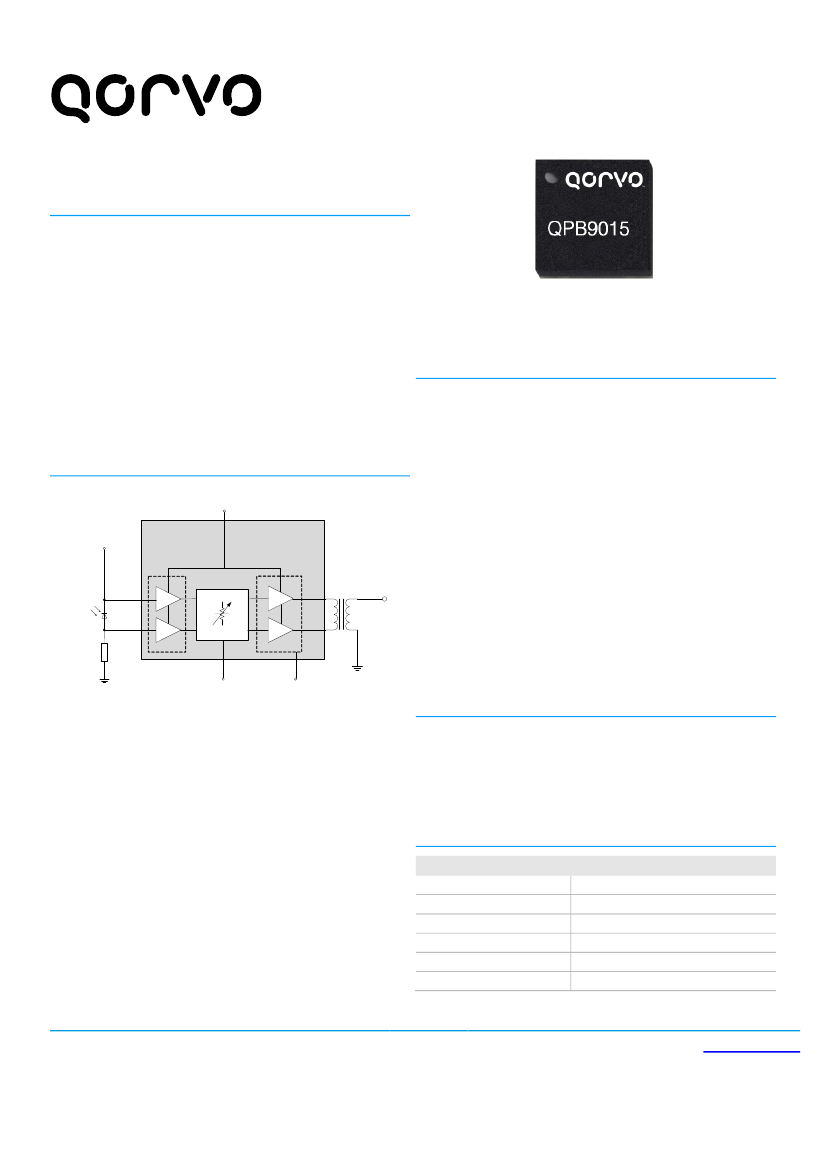

Functional Block Diagram

Vdd1,Vdd2

Vcc

QPB9015



OUTPUT



Photo Diode

TIA

Driver

Att. adjust

Temperature

Sensing

Applications

xPON RF Overlay Video Receiver for FTTX Triplexer-

Equipped Optical Network Termination (ONT) and

RFoG Network Interface Unit (NIU)

Ordering Information

Part No.

QPB9015SB

QPB9015SQ

QPB9015SR

QPB9015TR7

QPB9015TR13

QPB9015PCBA-410

Description

Sample bag 5 pcs

Sample bag 25 pcs

7” Reel with 100 pcs

7” Reel with 250 pcs

13” Reel with 750 pcs

Fully assembled Evaluation Board

Data Sheet Rev D, May 22, 2018 | Subject to change without notice

1 of 15

www.qorvo.com

QPB9015TR13 Related Products

	QPB9015TR13	QPB9015SR	QPB9015PCBA-410
Description	RF amplifier 45-1218MHz VCA Range 25dB	RF amplifier 45-1218MHz VCA Range 25dB	RF development tools 45-1218MHz QPB9015 EVAL BOARD
Maker	Qorvo	Qorvo	Qorvo
Product Category	RF amplifier	RF amplifier	RF development tools
type	Video Receiver	Video Receiver	RF Amplifiers
Working power voltage	5 V	5 V	5 V
Minimum operating temperature	- 40 C	- 40 C	- 40 C
Maximum operating temperature	+ 85 C	+ 85 C	+ 85 C
series	QPB9015	QPB9015	QPB9015
Factory packaging quantity	750	100	1
Installation style	SMD/SMT	SMD/SMT	-
Package/box	MCM-28	MCM-28	-
technology	Silicon	Silicon	-
working frequency	45 MHz to 1218 MHz	45 MHz to 1218 MHz	-
Gain	37 dB	37 dB	-
Working power current	300 mA	300 mA	-
Encapsulation	Reel	Reel	Bulk
Number of channels	2 Channel	2 Channel	-
development kit	QPB9015PCBA-410	QPB9015PCBA-410	-
Pd-power dissipation	1.5 W	1.5 W	-
