TL1220R4NNBR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> The sense of touch switch> TL1220R4NNBR

TL1220R4NNBR: DescriptionTactile switch; CategoryMechanical and electronic products switch The sense of touch switch; File Size4MB，13 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet Parametric Compare View All

TL1220R4NNBR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TL1220R4NNBR	-	-	View	Buy Now

TL1220R4NNBR Overview

Tactile switch

TL1220R4NNBR Parametric

Parameter Name	Attribute value
Maker	E-Switch
Product Category	Tactile switch
illumination	Illuminated
lighting color	Red, Yellow
Lamp type	LED
Installation style	Through Hole
Installation direction	Straight
Transistor base height	10 mm
Actuator	Round
switch function	OFF - (ON)
work force	1.8 N
Current rating	50 mA
Voltage ratingDC	12 VDC
Voltage ratingAC	-
Ground terminal	No
Contact form	SPST
Termination type	Snap-In
cover color	Black
series	TL1220
life	500000 Cycles
IP rating	-
Contact plating	Silver
journey	0.2 mm
Maximum operating temperature	+ 70 C
Minimum operating temperature	- 20 C

Preview

Download Datasheet

View All

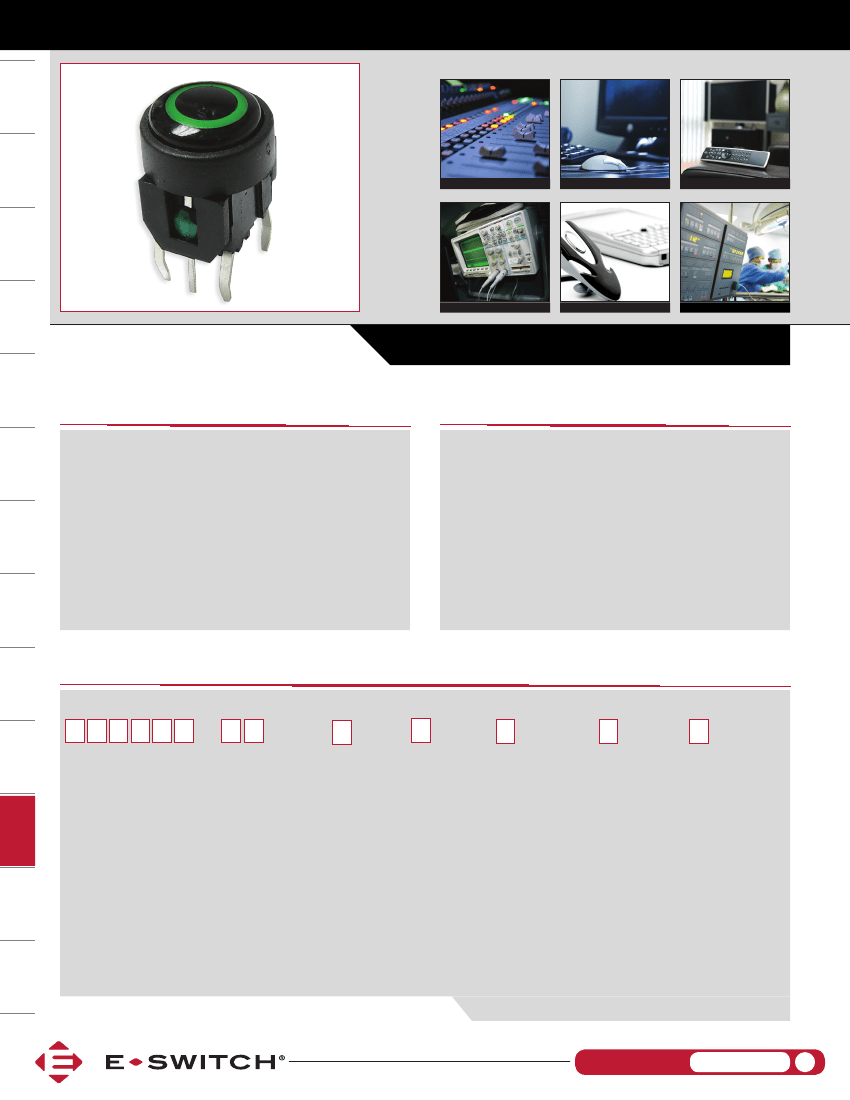

TL1220 Series Tact Switch

ANTI-VANDAL

SWITCHES

Applications / Markets

DETECTOR

SWITCHES

Audio / Visual

Computer Peripherals

Consumer Electronics

KEYLOCK

SWITCHES

DIP

SWITCHES

Instrumentation

Telecommunication

Medical Equipment

NAVIGATION

SWITCHES

RoHS

Specifications

Electrical Rating:

50mA @ 12VDC

Life Expectancy:

500,000 cycles

Contact Resistance:

100mΩ @ 1.5 VDC Max. Initial

Insulation Resistance:

100 MΩ Min. at 500VAC

Dielectric Strength:

500VAC for 1 min.

Operating Temperature:

-20°C to 70°C

Operating Force:

180 gf ± 50gf

Travel:

0.20mm ± 0.1mm

Contact Arrangement:

SPST

Features & Benefits

• Multiple illuminated cap options

• Single color and bi-color LED options

• Sharp tactile response

SLIDE

SWITCHES

ROTARY

SWITCHES

ROCKER

SWITCHES

PUSHBUTTON

SWITCHES

Part Number Configurator

Series

Button

Bezel

Color

N -

No Bezel

B -

Black

G -

Gray

Button

Color

- No Button

- Black

-Gray

- Red

- Silver

- Translucent

White**

- Translucent

Green***

LED

Color

- No LED

- Red

- Green

- Yellow

- Blue

- White

- Red-Green

- Red-Yellow

- Red-Blue

- Yellow-Green

- Yellow-Blue

- Green-Blue

Graphic

SNAP ACTION

SWITCHES

TL1220

TOGGLE

SWITCHES

- No Button

N -

No Bezel

- 7.5mm sq. short

B -

With Bezel

- 7.5mm sq. tall

- 10x14 rect.*

- 10x19 rect.*

- 12mm sq. *

(W-tran. white only)

- 9.6x13.7 rect.*

(T-tran. green only)

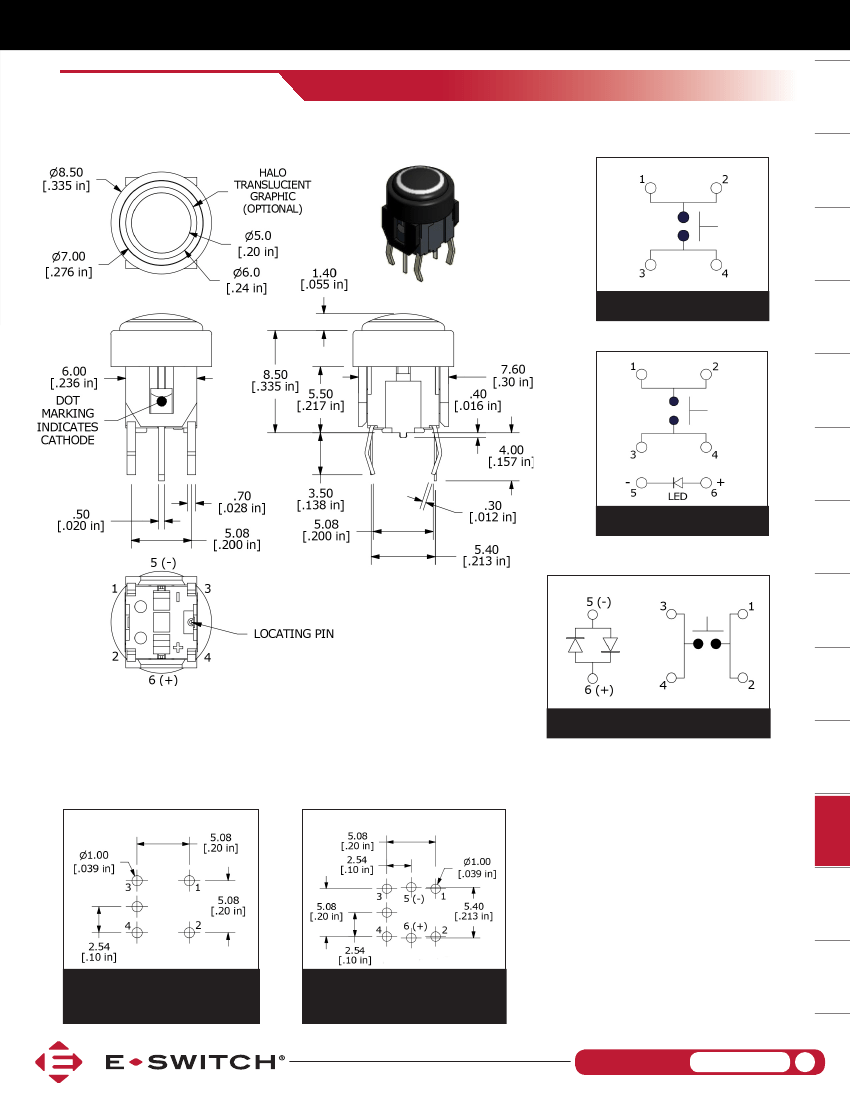

- 7.0mm dia.

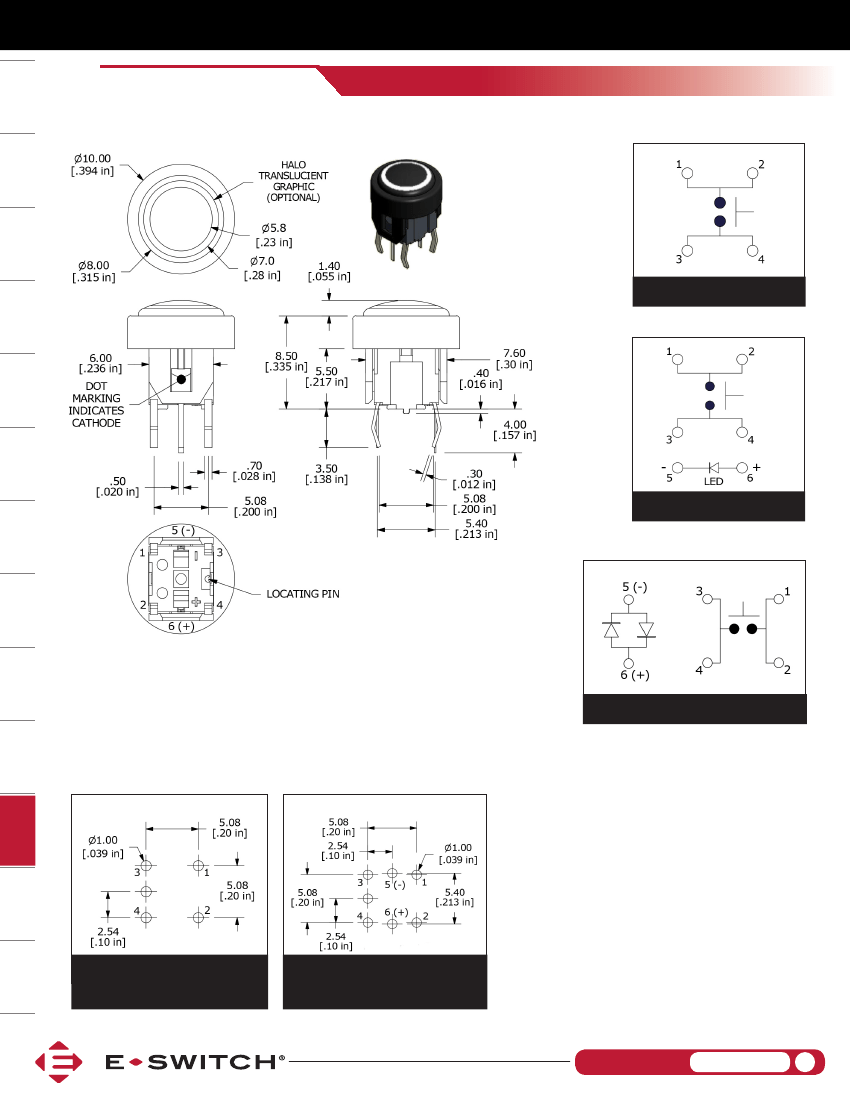

- 8.0mm dia.

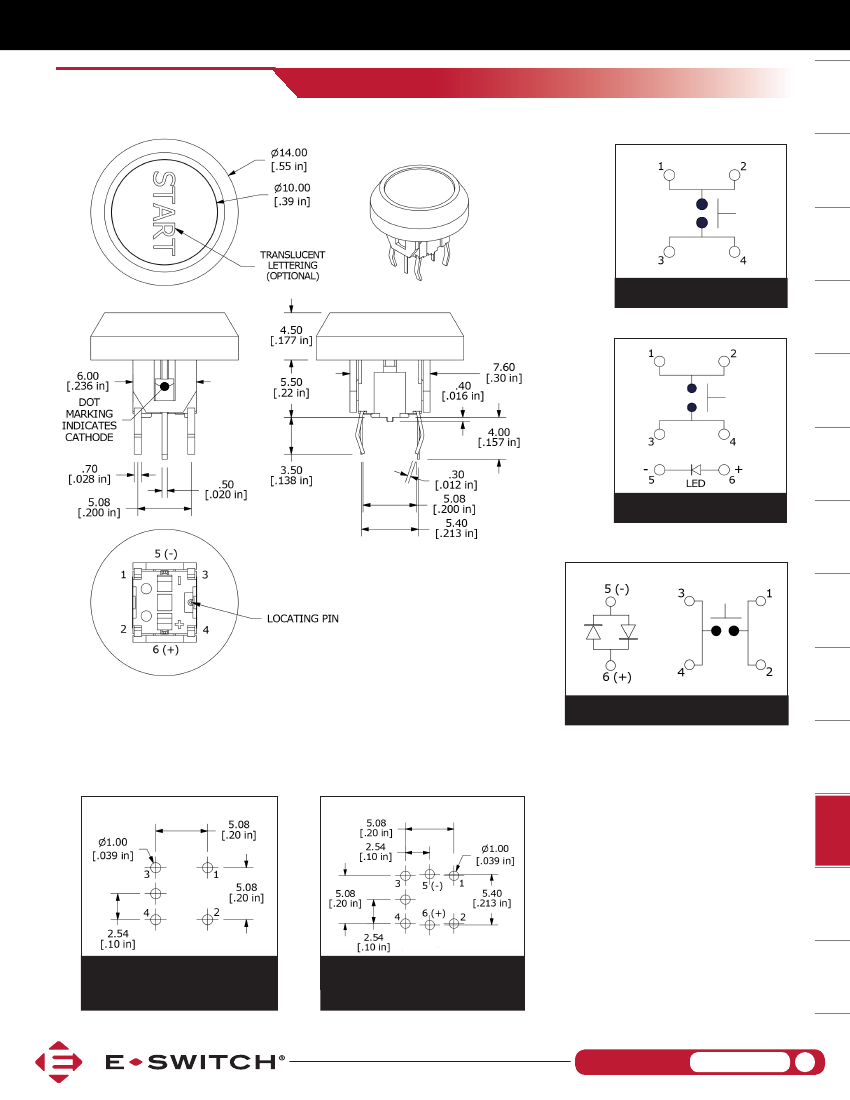

- 10.0mm dia.

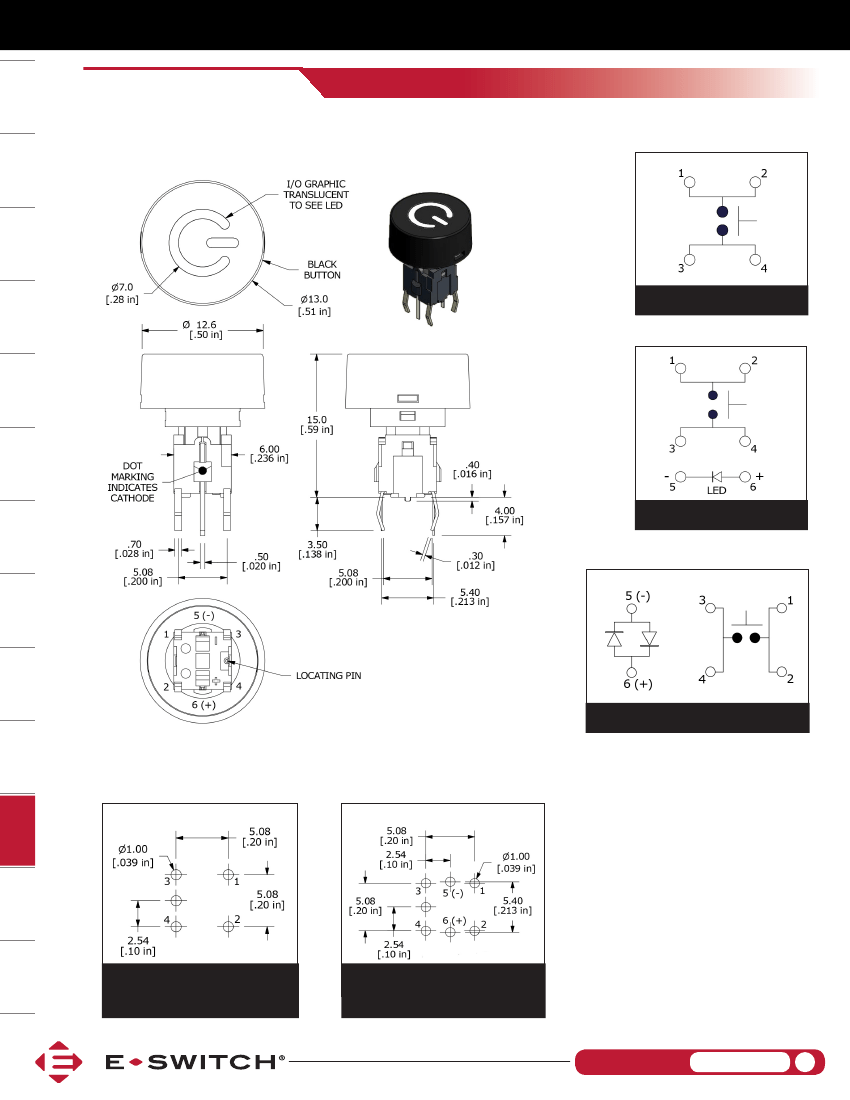

- 13.0mm dia. w/ I/O*

- 8.0mm dia.

(W-tran. white only)****

- No Graphic

TACTILE

SWITCHES

CAP

OPTIONS

* The S3, S4, S5, S6 and R4 buttons are not available with bezel options.

** W-Translucent white is only available with R5 and S5 buttons

*** T-Translucent green is only available with S6 button

**** R5 is only available with bezel option

Specifications subject to change without notice 9.27.2018

www.e-switch.com

800.867.2717
