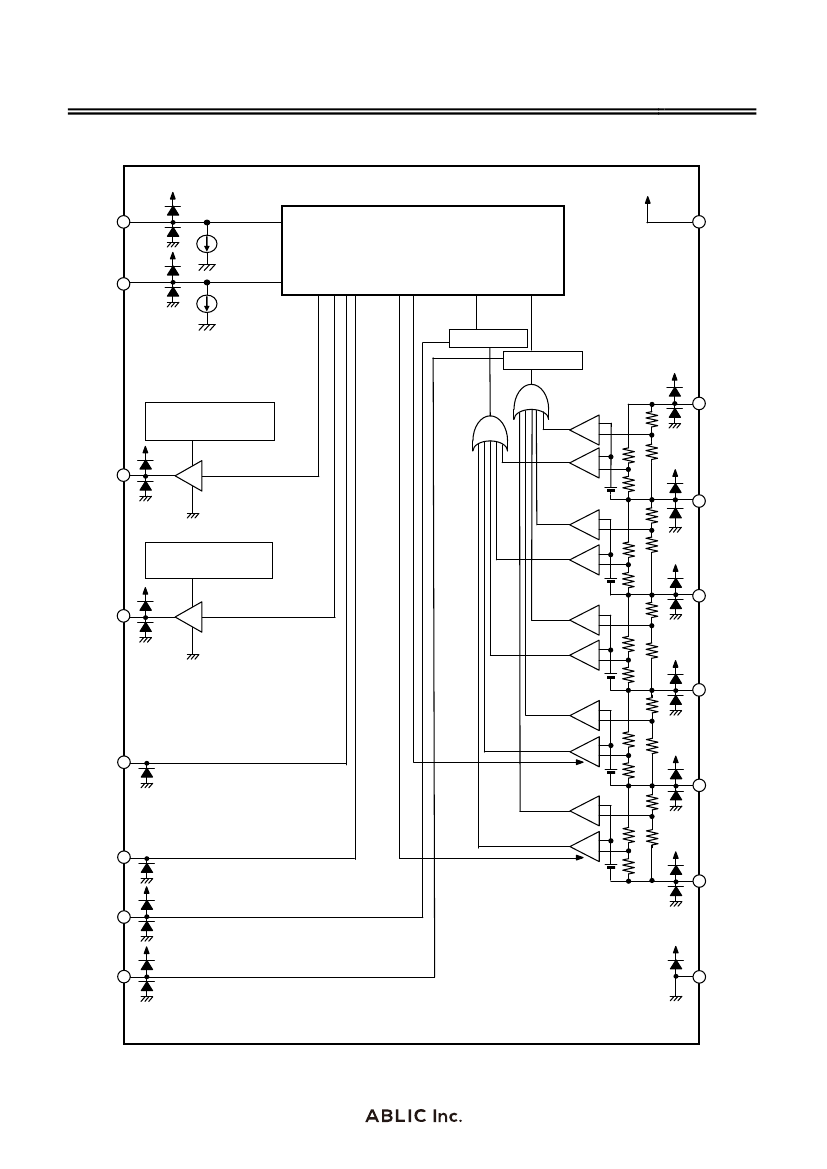

S-8225A Series
www.ablic.com
© ABLIC Inc., 2012-2018
BATTERY MONITORING IC
FOR 3-SERIAL TO 5-SERIAL CELL PACK
Rev.1.8
_02
The S-8225A Series includes high-accuracy voltage detection circuits and delay circuits, and can monitor the status of
3-serial to 5-serial cell lithium-ion rechargeable battery in single use. By switching the voltage level which is applied to the
SEL1 pin and SEL2 pin, users are able to use the S-8225A Series for 3-serial to 5-serial cell pack.
By cascade connection using the S-8225A Series, it is also possible to protect 6-serial or more cells lithium-ion rechargeable
battery pack.
Features
High-accuracy voltage detection function for each cell
Overcharge detection voltage n (n = 1 to 5)
3.500 V to 4.400 V (50 mV step)
Accuracy
±20
mV (Ta =
+25°C), ±30
mV (Ta = 0°C to
+60°C)
Overcharge release voltage n (n = 1 to 5)
3.300 V to 4.400 V
*1
Accuracy
±50
mV
Overdischarge detection voltage n (n = 1 to 5)
2.000 V to 3.200 V (100 mV step) Accuracy
±80
mV
*2
Accuracy
±100
mV
Overdischarge release voltage n (n = 1 to 5)
2.100 V to 3.400 V
Overcharge detection delay time and overdischarge detection delay time can be set by external capacitor.
Switchable between 3-serial to 5-serial cell by using the SEL1 pin and the SEL2 pin
Cascade connection is available.
The CO pin and the DO pin are controlled by the CTLC pin and the CTLD pin, respectively.
Output voltage of the CO pin and the DO pin is limited to 12 V max.
High-withstand voltage
Absolute maximum rating: 28 V
Wide operation voltage range
4 V to 26 V
Wide operation temperature range
Ta =
−40°C
to
+85°C
Low current consumption
During operation (V1 = V2 = V3 = V4 = V5 = 3.4 V)
22
μA
max. (Ta =
+25°C)
During power-down (V1 = V2 = V3 = V4 = V5 = 1.6 V) 4.5
μA
max. (Ta =
+25°C)
Lead-free (Sn 100%), halogen-free
*1.
Overcharge hysteresis voltage n (n = 1 to 5) is selectable in 0 V, or in 0.1 V to 0.4 V in 50 mV step.
(Overcharge hysteresis voltage = Overcharge detection voltage
Overcharge release voltage)
*2.
Overdischarge hysteresis voltage n (n = 1 to 5) is selectable in 0 V to 0.7 V in 100 mV step.
(Overdischarge hysteresis voltage = Overdischarge release voltage
Overdischarge detection voltage)
Application
Lithium-ion rechargeable battery pack
Package
16-Pin TSSOP
