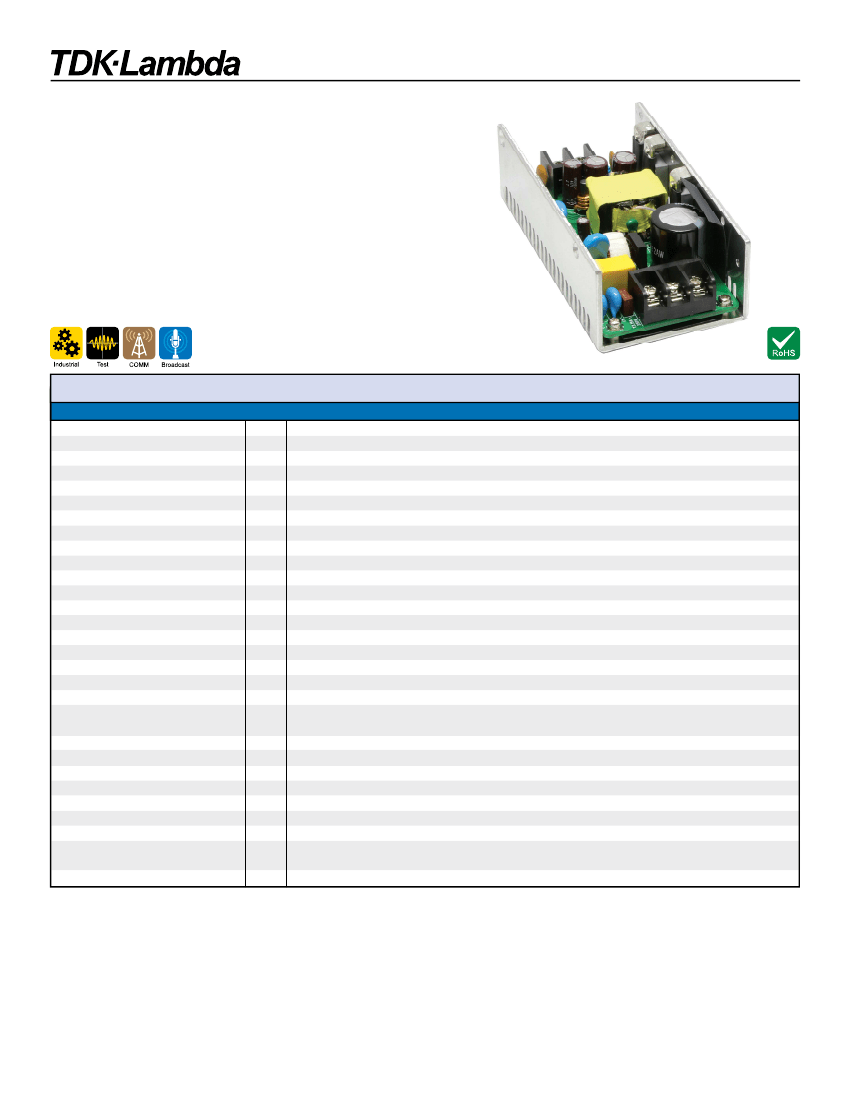

CSW65 Series
40-65W 90-305V AC-DC Power Supplies
Features
Accepts 115/230/277VAC Nominal Inputs
DIN Rail Mount Option
Global Safety Agency Compliance
<150mW Off-Load Power Consumption
DOE Efficiency Level VI, ErP Tier 2
Class 2 24V Model to UL1310
Key Market Segments & Applications
Specifications
Model
Input Voltage range
Inrush Current (230VAC)
Input Current (115/230VAC)
Hold Up Time (Typ)
Off-Load Power Consumption
Average Efficiency
Temperature Coefficient
Output Voltage Accuracy
Output Adjustment Range
Remote Sense
Minimum Load
Output Regulation
Ripple & Noise
Overcurrent Protection
Overvoltage Protection
Operating Temperature
Storage Temperature
Humidity (non condensing)
Cooling
Withstand Voltage
Isolation Resistance
Vibration (non operating)
Shock
Safety Agency Certifications
Conducted & Radiated EMI
Immunity
Weight (Typ)
Size (WxLxH) U-Channel
Warranty
-
A
A
ms
W
%
%/°C
%
-
-
A
%
%
-
V
°C
°C
%RH
-
VAC
MΩ
-
-
-
-
-
g
in
mm
yrs
CSW65
90 - 305VAC (47 - 63Hz)
Less than 65A, 25°C ambient cold start
2/1
>10ms at 115VAC input
<150mW
5V: 87.2%, 12-54V: 89%
±0.05%/°C
±1%
None
No
None
5-24V: ±3%, 28-54V: ±2%
See Model Selector
105 - 160%, Auto-Recovery
See Model Selector (Cycle AC to reset)
-10 to +70°C derate linearly to 50% load from 50 to 70°C*
-20 to +85°C
5 - 95%RH
Convection
Input to Ground 1.5kVAC, Input to Output 3kVAC
Output to Ground 500VDC
>20MΩ at 25C & 70%RH, Output to Ground 500VDC
23.52m/s
2
(10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour)
< 196.1 m/s
2
(20G)
UL/CSA/IEC/EN60950-1, UL1310 Class 2 (1), CE Mark
EN55032-B, FCC Class B
EN55024
U channel: 250, /A: 270, /D: 290
2.5 x 4.75 x 1.5”
63.5 x 120.7 x 38.1mm
Three Years
Note:
* Derate linearly to 90% load from 0
o
C to -10
o
C
(1) NEC Class 2 in accordance with UL1310. CSW65-24 only)
1-800-526-2324 • www.us.tdk-lambda.com/lp/
90
Disclaimer: us.tdk-lambda.com/lp/legal.htm
CSW65 Series

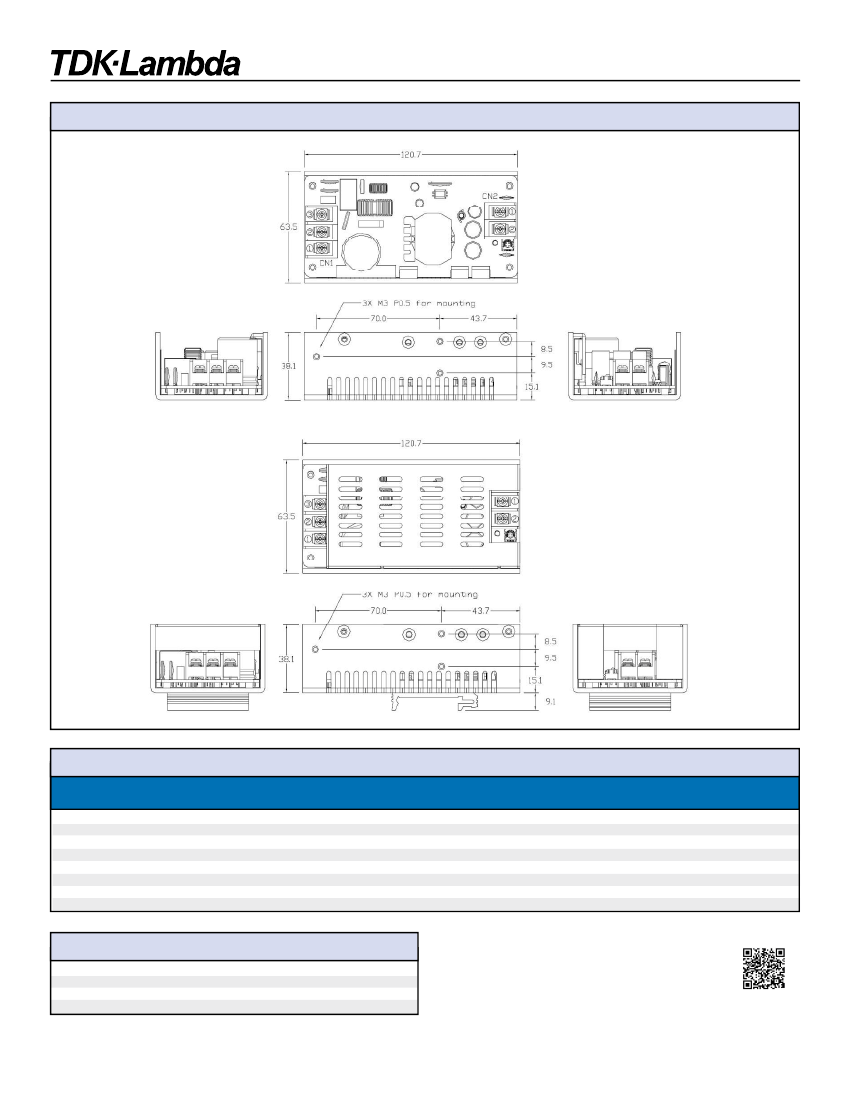

Outline Drawings
U Channel
/D DIN Rail Mount
Model Selector
Model
CSW65-5
CSW65-12
CSW65-15
CSW65-18
CSW65-24
CSW65-28
CSW65-48
CSW65-54
Output (V)
5
12
15
18
24
28
48
54
Maximum
Output (A)
8.0
5.42
4.34
3.62
2.71
2.33
1.36
1.21
Maximum
Power (W)
40
65
65
65
65
65
65
65
Ripple and Noise
(mV)
100
120
150
180
240
280
280
280
Overvoltage
(V)
6-8
13.2 - 15.6
16.5 - 19.5
19.8 - 23.4
26.4 - 31.2
30.8 - 36.4
52.8 - 62.4
59.4 - 64.8
Options
Suffix
Blank
/A
/D
Description
U-Channel
U-Channel & Cover
U-Channel, Cover & DIN Rail Bracket
For Additional Information, please visit
us.tdk-lambda.com/lp/products/csw-series.htm
1-800-526-2324 • www.us.tdk-lambda.com/lp/
91
Revision P4: Dec 2017
