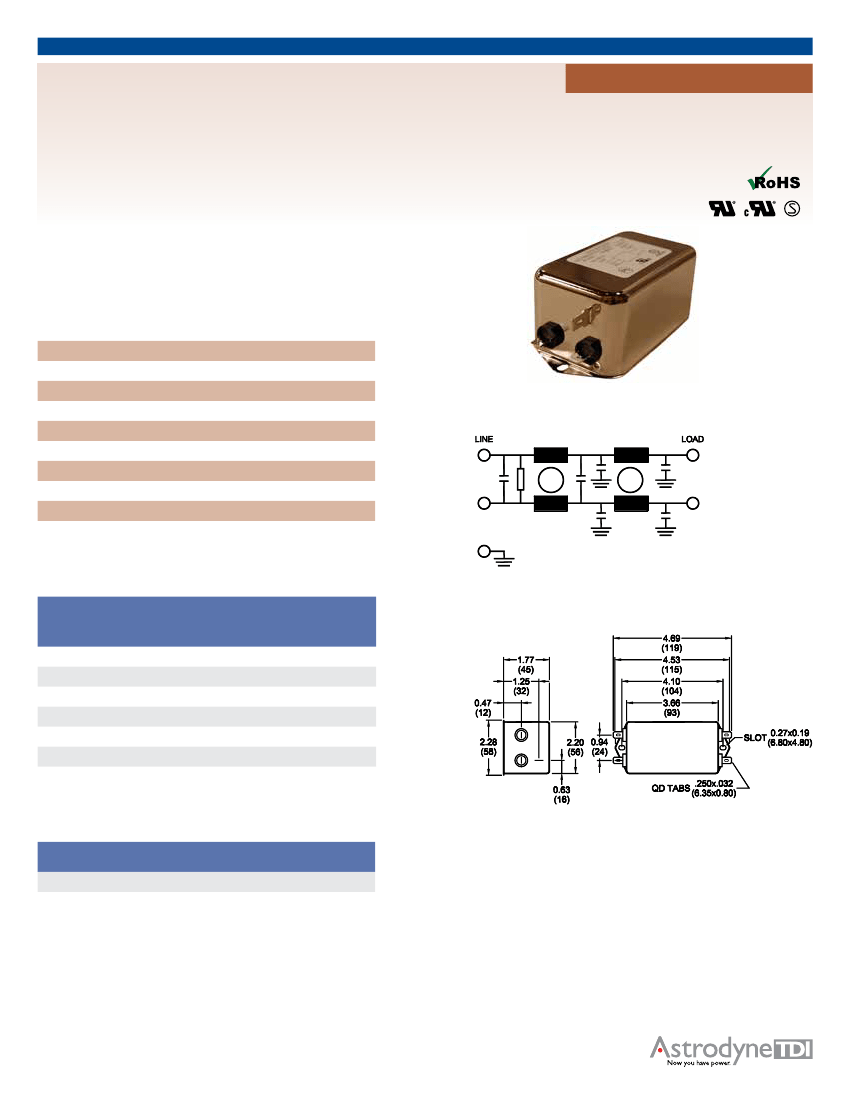

DSC1000-4
16 A Chassis Mount Filter
Specifications
Operating Frequency
Usable Frequency
Max. Operating Voltage*
Ambient Temperature
Climatic Category
Hipot Rating (L-G)
Terminals (-T)
Safety Approvals
Typ. Weight, lbs (kg)
50/60 Hz
DC - 400 Hz
250 V +10%
-25 to 40°C
25/100/21
2700 VDC
QD: 0.25 Tabs
cURus, EN60939
0.8 (0.4)
SINGLE PHASE FILTERS
High Performance Dual Stage Power Line Filters
Electrical Schematic
*Available up to 300 VAC. Please contact us to verify specifications.
Part Number/Ordering
DSC1000-4
-Y
(Ycap,
Center, nF)
0
0.47
1
2.2
4.7
10
-Z
(Ycap,
Load, nF)
0
0.47
1
2.2
4.7
10
Mechanical Dimensions
-T
QD
120 V/60 Hz 250 V/60 Hz
(LK, mA)
(LK, mA)
0.0
0.08
0.18
0.4
0.8
1.8
0.0
0.16
0.35
0.8
1.6
3.5
TYPICAL TOLERANCE: +/-0.02” (0.50 mm)
Note:
Use any combination of -Y and -Z
Typical Insertion Loss, dB (50/50 Ohm)
Freq (MHz)
CM(dB)
DM(dB)
0.15
50
36
0.5
70
60
1.0
70
65
10
70
70
30
66
70
Specifications are subject to change. Consult factory to verify specifications.
For more information on our filter products call us at: (800) 527-4362 or (714) 289-0055
LCR, Radius Power, and Filter Concepts are now part of Astrodyne TDI
www.AstrodyneTDI.com
