RP
RP188 Series
RP188
IEC INLET TO 10A
DUAL FUSE/ SWITCH
ROHS COMPLIANT
RADIUS POWER
Your Power Partner
IEC Inlet Single Stage Power Line Filter
SPECIFICATIONS
Operating Freq.
Max. Operating Voltage
Ambient Temperature
Climatic Category
Hipot Rating (L-G)
Plastic Mtg Force
Terminals (-T)
Safety Approvals
Typ. Weight, LBS (KG)
:
:
:
:
:
:
:
:
:
50/60Hz
250V +10%
-25 to 40C
25/100/21
2121VDC
18 LBS
QD: 0.187 Tabs
cURus, EN60939
0.2 (0.1)
LEAKAGE CURRENT
Y-cap, nF
0
.47
1
2.2
4.7
mA,
120V/60Hz
0
0.04
0.09
0.2
0.4
mA,
250V/60Hz
0
0.08
0.18
0.4
0.8
PART NUMBER/ ORDERING
RP188
-X
(Amps)
-Y
(Ycap, nF)
-T

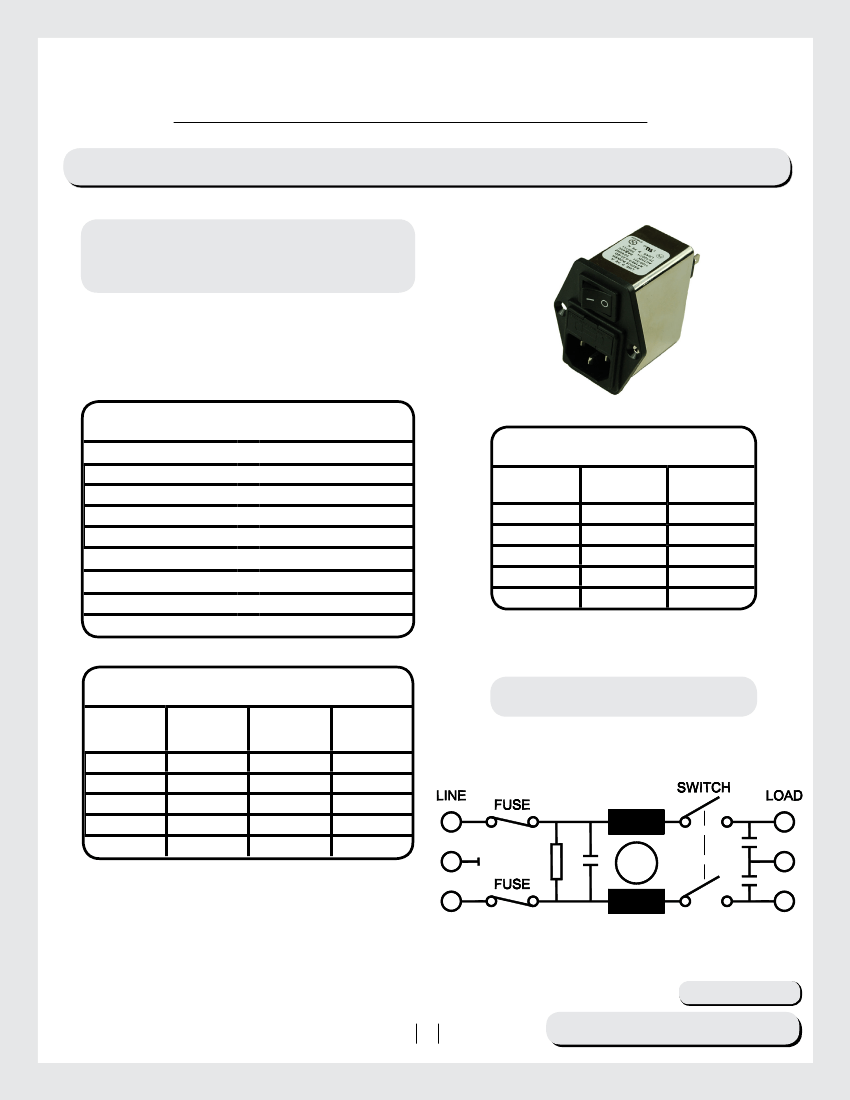

SCHEMATIC
3
6
10
0
.47
1
2.2
4.7
QD
Note:
Use any combination of -Y with any -X (Amps) rating
e.g. RP188-3-4.7-QD (3Amps with 4.7nF Ycap)
www.radiuspower.com
Reference purposes only.
Specifications are subject to change.
Consult factory to verify specifications.
Engineering Assistance: engg@radiuspower.com
Sales:sales@radiuspower.com
49
RP
RP188
Typical Insertion Loss, dB (50/50ohm)
RADIUS POWER
Your Power Partner

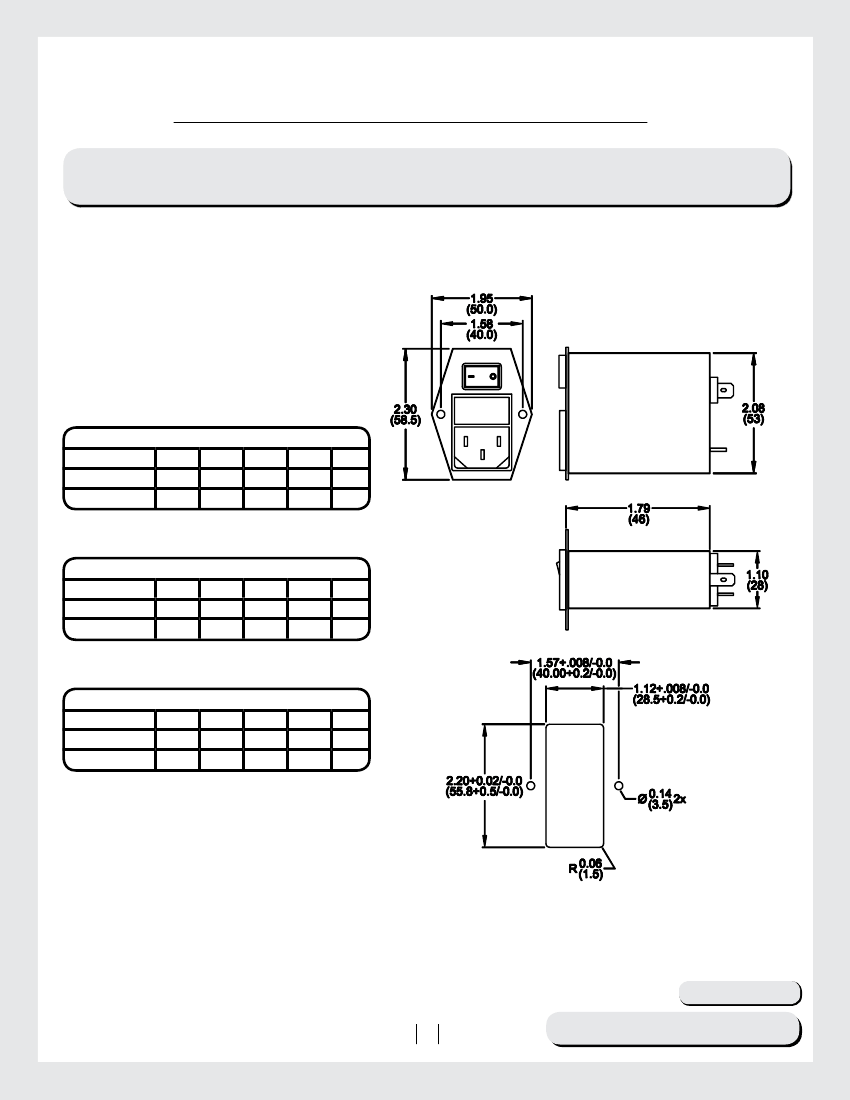

Mechanical Dimensions
3 Amp
FREQ (MHz)
CM(dB)
DM(dB)
.15
28
18
.5
38
28
1.0
50
38
10
50
60
30
50
60
6 Amp
FREQ (MHz)
CM(dB)
DM(dB)
.15
24
18
.5
38
28
1.0
50
36
10
50
55
30
50
55
10 Amp
FREQ (MHz)
CM(dB)
DM(dB)
.15
10
18
.5
22
28
1.0
30
36
10
55
50
30
45
50
TYPICAL TOLERANCE: +/-0.02 (0.50)
www.radiuspower.com
Reference purposes only.
Specifications are subject to change.
Consult factory to verify specifications.
Engineering Assistance: engg@radiuspower.com
Sales:sales@radiuspower.com
50
