DIGITAL THYRISTOR SWITCH
8 TO 350 AMPS
THYRO-S
The high-effiency, connection-ready Thyro-S thyristor switch
delivers accurate, reliable, switch-free performance. It can be
connected to bus systems, used as a standalone unit, or used in
combination with all established two-point process controllers,
PLCs, or computer systems. With simple mounting, minimal
space requirements, quick commissioning, and safe operation,
Thyro-S thyristor switches are easily integrated into a wide
range of applications.
®
PRODUCT HIGHLIGHTS
For ohmic or transformer loads
Current, voltage, or power switching
230, 400, or 500 V
8 to 350 A
Integrated semiconductor fuse
Secure isolation between control
1-, 2- and 3-phase versions
of Thyro-S units
DIN rail mounting for 8, 16, 30 A
LED status and level indication
USB interface
and power sections
TYPICAL APPLICATIONS
Automotive (paint drying equipment)
Chemical (pipe trace heaters, pre-heating equipment)
Furnace construction (industrial, diffusion, drying ovens)
Glass processing (drying coatings)
Machine building (extruders, plastic presses)
Packaging (shrink tunnels)
Printing machines (IR drying)
©2018 Advanced Energy Industries, Inc.
THYRO-S
THYRO-S
Models
1S…
2S…
3S…
Rated Voltage …H 3
230 V -57% +10%
230 V -15% +10%
400 V -57% +10%
400 V -15% +10%
500 V -57% +10%
500 V -15% +10%
Operating Specifications
Network Frequency
All types from 47 to 63 Hz
Max frequency change 5% per half-wave
Load Types
Relay Output
Rated Current
…-xxx…
Digital Set Point Inputs
Set Point 1
Set Point 2
Load Types
Types
Ohmic loads
Transformer loads
System Interface
Optional bus module for Profibus® DPV1, Modbus® RTU, DeviceNetTM, CANopen®, Profinet®, Modbus® TCP, Ethernet/IP®
Thyro-Tool PC software via USB interface
Environmental Specifications
Ambient Temperature
35°C (95°F) external fan cooling (F-type, with integrated fan)
45°C (113°F) passive convection cooling
Operation at higher temperature is possible with reduced current limits:
Temperature range up to 55°C (131°F): rated current -2%/°C
UL applications: max. 40°C (104°F)
Type Key Example
Type Key
Explanation
Thyro-S
2A
400
-280
H
F
R
L
P
3
Digital power controller
Thyro-S as 2-phase version, suitable for 3-phase load in cost-saving 3-phase circuit
400 V rated voltage
280 A rated current
Semiconductor fuse
Forced ventilation
Failure indicator relay
Load monitoring, including analog output
Power measurement
Additional Thyro-S series identification
Thyro-S 2S 400-280 HF RLP3
Logical input DC 0 … 24 V Ri > 3.3 kΩ ON > 3 V
System interface, connection to controlling automation system via optional bus module is possible
8, 16, 30, 45, 60, 100, 130, 170, 280, 350 A
Ohmic loads and transformer loads
1 changeover contact
H 3 types
H RLP3 types > 99 V using an external 24 V electronic power supply
H 3 types
H RLP3 types > 172 V using an external 24 V electronic power supply
H 3 types
H RLP3 types > 215 V using an external 24 V electronic power supply
1-phase version for 1-phase load between 2-phases or for 1-phase connected to the neutral phase
2-phase version for 3-phase load in cost saving 3-phase circuit
3-phase version for 3-phase load
2
advanced-energy.com
THYRO-S
Thyro-S 1S H 3/H RLP3 Single-Phase Power Controller
…H 3 …H RLP3 Current
(A)
8
16
30
45
60
100
130
170
…F…
…F…
…F…
…F…
280
350
Unit Rating (kVA)
230 V
3.2
3.7
6.9
10
14
23
30
39
64
80
400 V
3.2
6.4
12
18
24
40
52
68
112
140
500 V
4
8
15
22.5
30
50
65
85
140
175
Power
Loss
(W)
9
30
47
52
80
105
150
210
330
390
Dimensions
W
45 mm
(1.8 in)
45 mm
(1.8 in)
45 mm
(1.8 in)
52 mm
(2.0 in)
52 mm
(2.0 in)
75 mm
(3.0 in)
125 mm
(4.9 in)
125 mm
(4.9 in)
125 mm
(4.9 in)
125 mm
(4.9 in)
H
136 mm
(5.4 in)
136 mm
(5.4 in)
136 mm
(5.4 in)
203 mm
(8.0 in)
203 mm
(8.0 in)
203 mm
(8.0 in)
320 mm
(12.6 in)
320 mm
(12.6 in)
370 mm
(14.6 in)
400 mm
(15.8 in)
D
129 mm
(5.1 in)
129 mm
(5.1 in)
129 mm
(5.1 in)
184 mm
(7.2 in)
184 mm
(7.2 in)
193 mm
(7.6 in)
241 mm
(9.5 in)
241 mm
(9.5 in)
241 mm
(9.5 in)
261 mm
(10.3 in)
Approx.
Weight
0.7 kg
(1.5 lb)
0.7 kg
(1.5 lb)
0.7 kg
(1.5 lb)
1.7 kg
(3.8 lb)
1.7 kg
(3.8 lb)
1.9 kg
(4.2 lb)
4 kg
(8.8 lb)
4 kg
(8.8 lb)
5 kg
(11.0 lb)
8.4 kg
(18.5 lb)

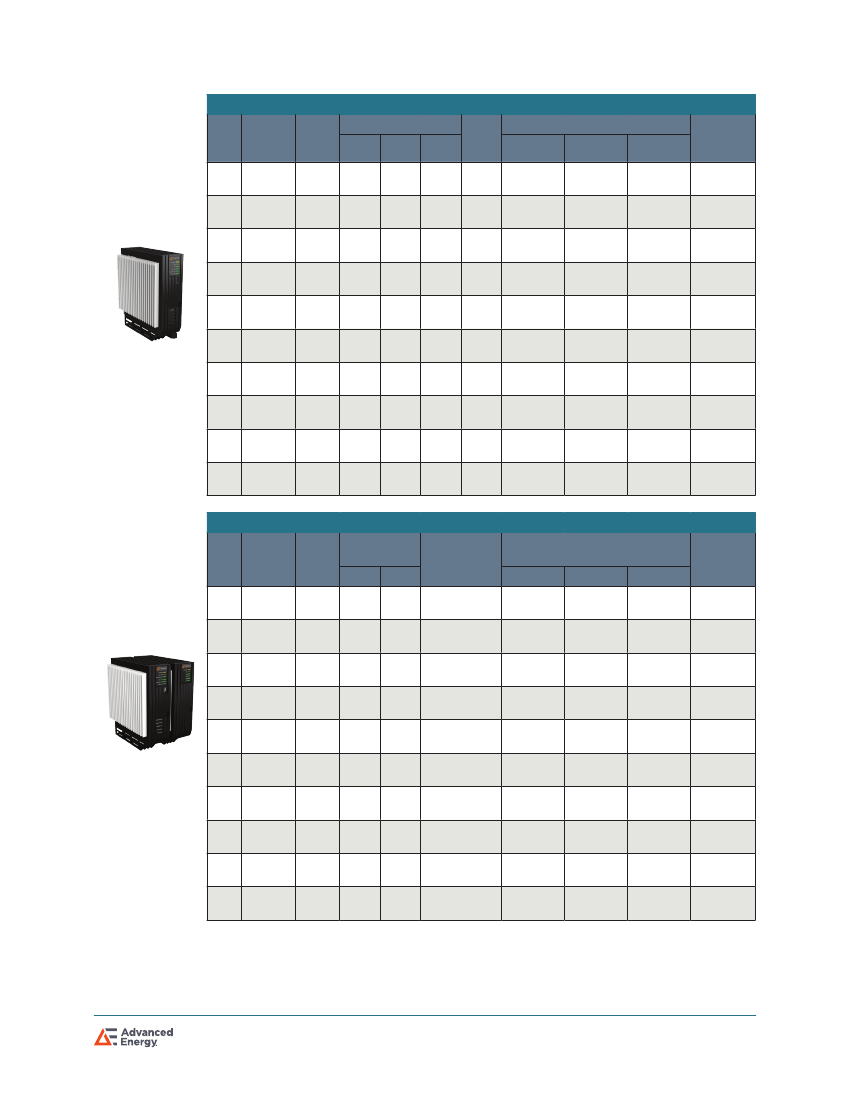

Thyro-S 2S H 3/H RLP3 Dual-Phase Power Controller for Three-Phase Loads with Three-Phase Circuit
…H 3 …H RLP3 Current
(A)
Unit Rating
(kVA)
400 V
8
16
30
45
60
100
130
170
…F…
…F…
...F...
…F…
280
350
6
11
21
31
42
69
90
118
194
242
500 V
7
14
26
39
52
87
112
147
242
303
18
60
94
96
160
210
300
420
660
780
Power Loss (W)
W
89 mm
(3.5 in)
89 mm
(3.5 in)
89 mm
(3.5 in)
104 mm
(4.1 in)
104 mm
(4.1 in)
150 mm
(5.9 in)
250 mm
(9.8 in)
250 mm
(9.8 in)
250 mm
(9.8 in)
250 mm
(9.8 in)
Dimensions
H
136 mm
(5.4 in)
136 mm
(5.4 in)
136 mm
(5.4 in)
203 mm
(8.0 in)
203 mm
(8.0 in)
203 mm
(8.0 in)
320 mm
(12.6 in)
320 mm
(12.6 in)
393 mm
(15.5 in)
430 mm
(16.9 in)
D
129 mm
(5.1 in)
129 mm
(5.1 in)
129 mm
(5.1 in)
184 mm
(7.2 in)
184 mm
(7.2 in)
193 mm
(7.6 in)
241 mm
(9.5 in)
241 mm
(9.5 in)
241 mm
(9.5 in)
261 mm
(10.3 in)
1.4 kg
(3.1 lb)
1.4 kg
(3.1 lb)
1.4 kg
(3.1 lb)
3.4 kg
(7.5 lb)
3.4 kg
(7.5 lb)
3.8 kg
(8.4 lb)
8 kg
(17.6 lb)
8 kg
(17.6 lb)
11 kg
(24.3 lb)
16.7 kg
(36.9 lb)
Approx.
Weight
advanced-energy.com
3
THYRO-S
Thyro-S 3S H 3/H RLP3 Three-Phase Power Controller
…H 3 …H RLP3 Current
(A)
Unit Rating
(kVA)
400 V
8
16
30
45
60
100
130
170
…F…
…F…
…F…
…F…
280
350
6
11
21
31
42
69
90
118
194
242
500 V
7
14
26
39
52
87
112
147
242
303
27
90
141
144
240
315
450
630
990
1170
Power Loss (W)
W
135 mm
(5.3 in)
135 mm
(5.3 in)
135 mm
(5.3 in)
156 mm
(6.1 in)
156 mm
(6.1 in)
225 mm
(8.9 in)
375 mm
(14.8 in)
375 mm
(14.8 in)
375 mm
(14.8 in)
375 mm
(14.8 in)
Dimensions
H
136 mm
(5.4 in)
136 mm
(5.4 in)
136 mm
(5.4 in)
203 mm
(8.0 in)
203 mm
(8.0 in)
203 mm
(8.0 in)
320 mm
(12.6 in)
320 mm
(12.6 in)
393 mm
(15.5 in)
430 mm
(16.9 in)
D
129 mm
(5.1 in)
129 mm
(5.1 in)
129 mm
(5.1 in)
184 mm
(7.2 in)
184 mm
(7.2 in)
193 mm
(7.6 in)
241 mm
(9.5 in)
241 mm
(9.5 in)
241 mm
(9.5 in)
261 mm
(10.3 in)
2.1 kg
(4.6 lb)
2.1 kg
(4.6 lb)
2.1 kg
(4.6 lb)
5.1 kg
(11.2 lb)
5.1 kg
(11.2 lb)
5.7 kg
(12.6 lb)
12 kg
(26.5 lb)
12 kg
(26.5 lb)
15 kg
(33.1 lb)
25.5 kg
(56.2 lb)
Approx.
Weight
CERTIFICATION AND COMPLIANCE
UL 508A (100 kVA SCCR)
CE
ISO 9001 quality standards
Canadian National Standard C22.2 No. 14-95
ORDERING INFORMATION
For ordering information, please contact your local Advanced Energy sales representative.
4
advanced-energy.com
