GLQ110 Series Installation & Operating Instructions
Installation & Safety
To comply with the published safety standards, the following must be observed when
using this power supply:
1.
Maximum ambient temperature for the power supply must not exceed 50°C.
2.
When installing the power supply in the end-use equipment, special attention
is required to ensure safety compliance with the following safety standards:
UL60950, EN60950-1, IEC60950-1, and CSA22.2 No. 234-M90; including the
requirements for creepage distances, clearances, and distance through insulation
between primary wiring and earth or secondary (SELV) wiring.
3.
The power supply’s rated input voltage is automatically selected. Please refer to
the specification sheet for the input voltage range.
4.
The maximum output power of the supply must not exceed the rating indicated in
the specification sheet.
5.
The earth ground wire must be connected only to the point marked with the earth
ground symbol (on the unit).
6.
Hazardous voltages exist in the primary circuits. Disconnect the power supply
before servicing.
7.
When operating with a dc input voltage range, the unit input must be protected by
a dc rated fuse in the end-use installation system.
8.
The internal fuse should only be replaced with a 4 A, 250 V ac, Type SP0001.1010
manufactured by Schurter AG, Type 216004 manufactured by Littelfuse or Type
S501 manufactured by Cooper.
9.
This power supply is
Directive, 2006/95/EC.
marked following the provisions of the Low Voltage
SK2
Input Connector
SK1
Output Connector
GLQ114
GLQ112
Model
Output Voltage
(V)
+5
+12
-12
±5 to ±25
+5
GLQ113
+15
-15
±5 to ±25
+5
+12
-12
+24
Output Ratings
Convection Cooling
Max. Output
Current (A)
9.0
4.5
0.7
2.5
9.0
4.5
0.7
2.5
9.0
4.5
0.7
3.5
80
Max. Output
Power (W)
30 CFM Forced Air Cooling
Max. Output
Current (A)
11.0
5
1.0
3.0
11.0
5.0
1.0
3.0
11.0
5.0
1.0
4.5
110
Max. Output
Power (W)

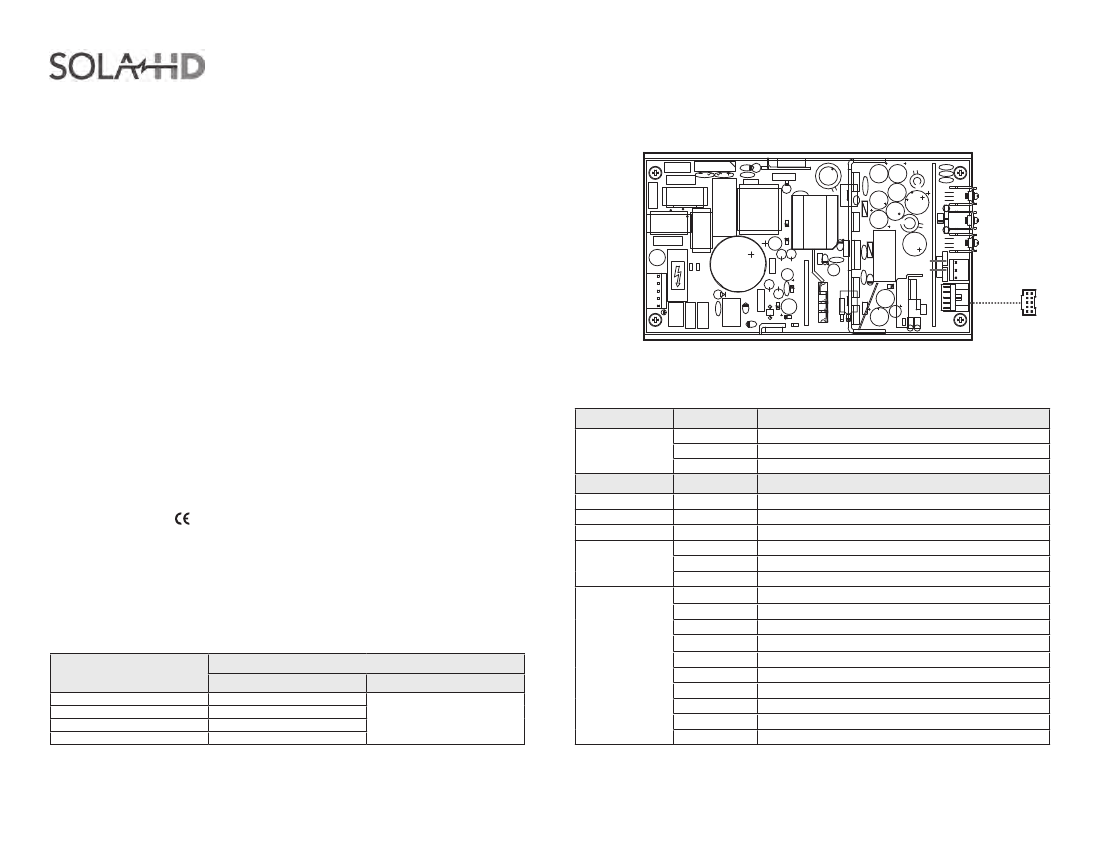

Connector PIN Designation
PIN
1
3
5
PIN
1
2
3
4
5
6
7
8
9
10
11
12
SK201
SK202
1
2
1
2
+12 V
+12 V
-12 V
+5 V to +25 V
-5 V to -25 V
+15 V
+15 V
-15 V
+5 V to +25 V
-5 V to -25 V
+Sense
-Sense
P OK
GND
+12 V
+12 V
-12 V
+24 V
Common
Common
+5 V
GLQ112
GLQ112
GLQ113
GND
Neutral
Line
GLQ113
GLQ114
GLQ114
For technical assistance, contact SolaHD Technical Support at (800) 377- 4384 or
send an e-mail to tech@solahd.com. Please visit our Web site at www.solahd.com for
additional product information and specification sheets.
P/N: A272-168 Rev 2 12/29/09 Ref: 03361001602
GLQ110 Series Installation & Operating Instructions

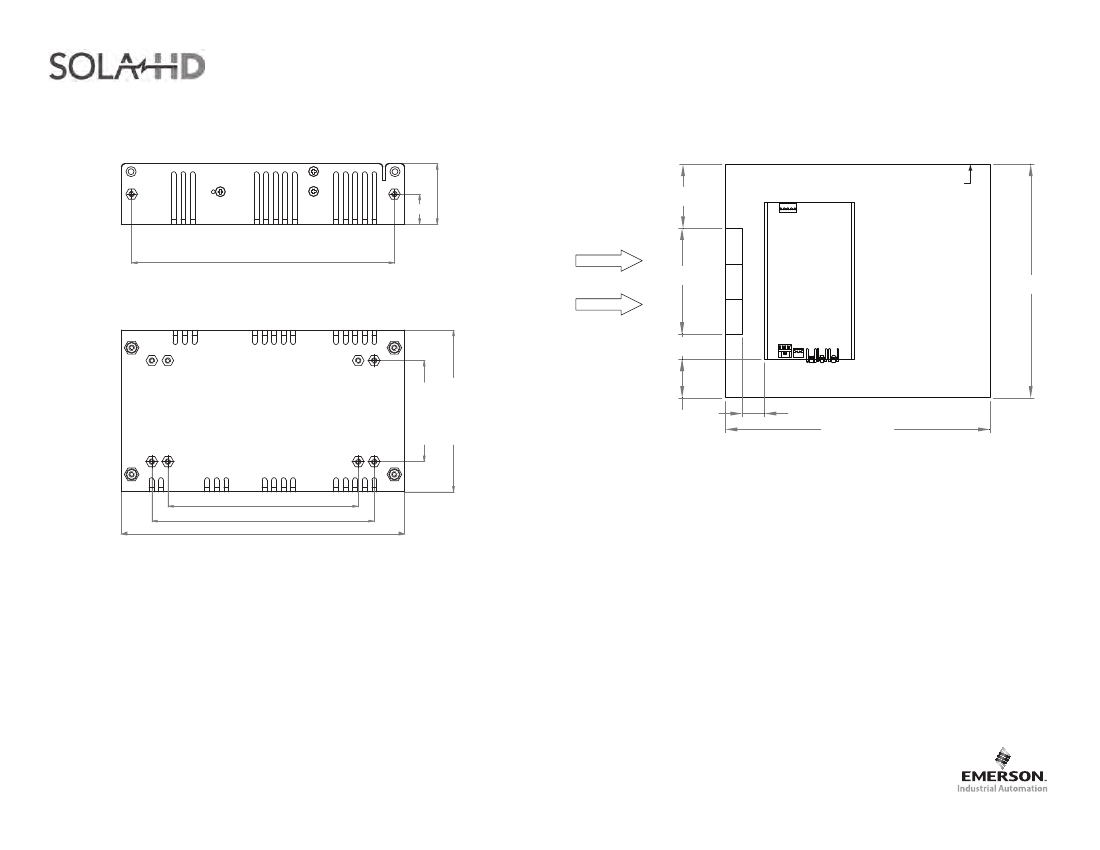

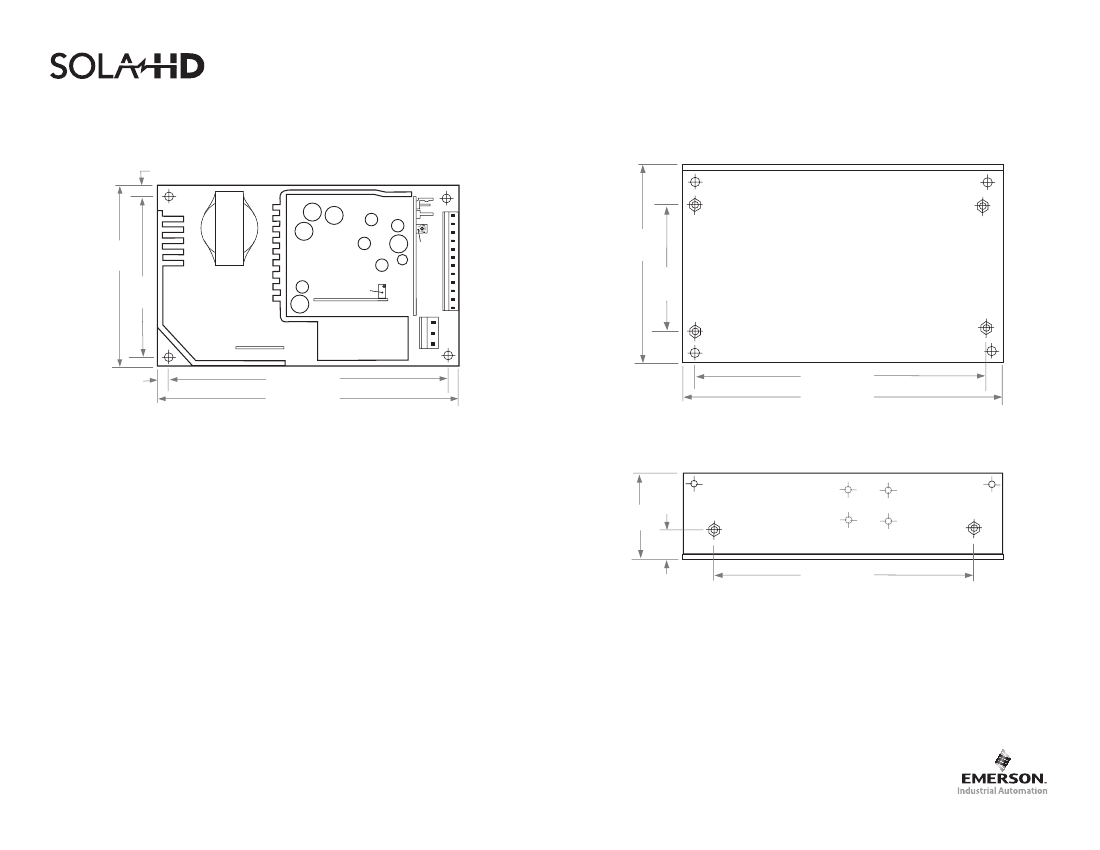

Mechanical Outline
.25 [6.35]
SK201
SK202
1
Mechanical Dimensions
4.00
[101.6]
3.50
[88.9]
±5 ~ ±25 V
O/P ADJ
SK2
4.28
[108.6]
2.50
[63.5]
5 V O/P ADJ
1
3
5
12
SK1
6.40 [162.6]
7.30 [185.5]
Bottom View with Optional L-Bracket
.25 [6.35]
6.50 [165.1]
7.00 [177.8]
Top View
2.20
[56.0]
.86
[21.8]
5.90 [150.0]
Side View with Optional L-Bracket
All dimensions are in inches [mm]
Screw size: #6-32
GLQ112, GLQ113, and GLQ114 are commercial designations of model numbers LPQ112, LPQ113, and LPQ114 respectively.
While every precaution has been taken to ensure accuracy and completeness in this manual, EGS Electrical Group, LLC. assumes no responsibility, and disclaims all liability for damages resulting from use of this information or for any errors or omissions.
