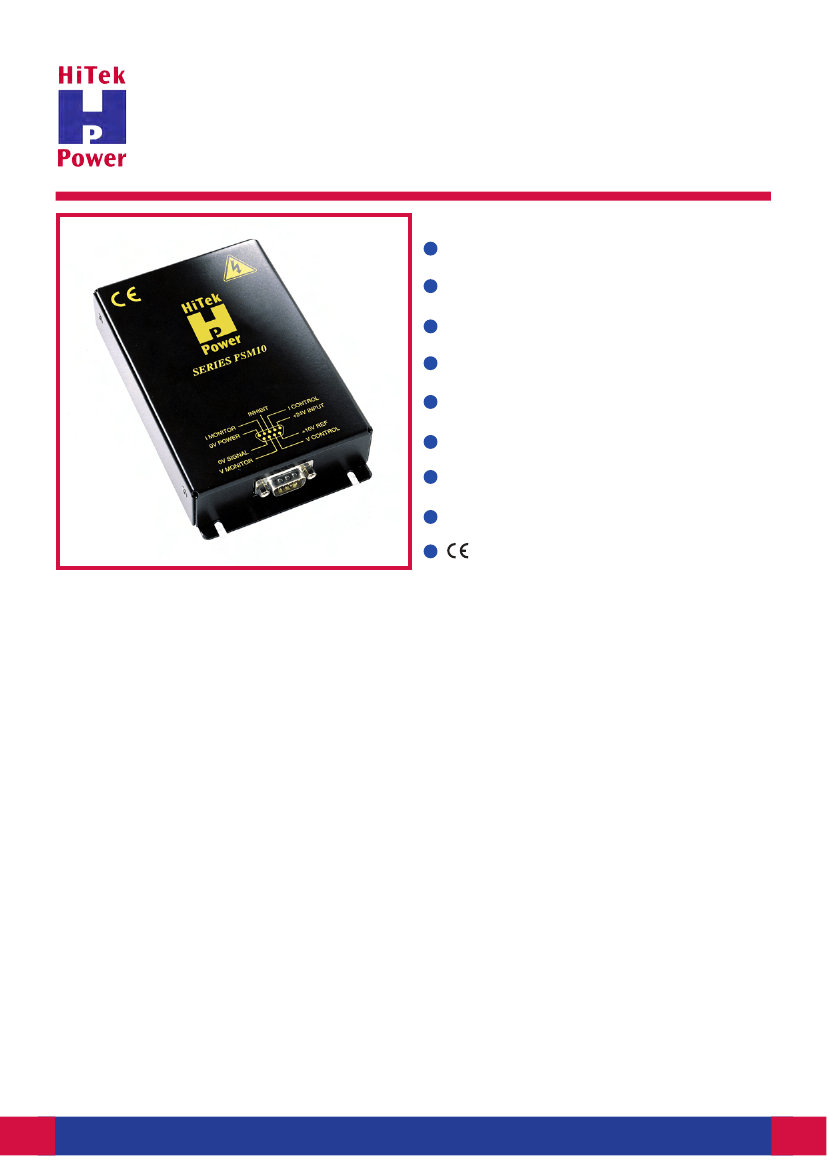

PRECISION SCIENTIFIC POWER SUPPLY MODULES
Series PSM10
FEATURES
10W output power
V & I control
V & I monitor
Output inhibit
High stability
Positive or negative polarity models
Short circuit & flashover protected
RoHS Compliant to EU Directive 2002/95/EC
marked (LVD)
DESCRIPTION
The Series PSM10 is a range of versatile high voltage component power
supply modules equally suited to both laboratory and development
work and for specification in OEM equipment. Powered from 24V DC,
these units allow full range control and monitoring of voltage and
current via 0-10V analogue signals and inhibit signal input. Positive or
negative polarity models are available.
As well as photomultipliers, the PSM10 is suitable for gamma cameras,
image scanners, spectroscopy, scintillation counters, microchannel
plates, piezo crystal devices, ultrasonic transducers, electron beam
deflection, electrorheological fluids, and electrostatic lenses (SEMs
and STMs).
Output Polarity:
Positive or negative to order.
Line Regulation:
Less than 0.005% change in output voltage over range 22V to 26V at
rated output power.
Voltage Load Regulation:
Less than 0.005% change in output voltage for change in output current
from zero to max output current at rated output voltage.
Ripple:
20mV to 1V peak to peak depending on model (see table).
Voltage Control:
Voltage Demand:
Input Impedance:
0 to 10V for 0 to max output voltage ±2%.
22kΩ (±1%).
SPECIFICATION
Output Power:
10W at full rated output voltage and current.
Output Voltage:
10V-1kV to 150V-15kV max depending on model (see table).
Output Current:
667µA to 10mA max depending on model (see table).
Input Voltage:
24V DC.
Input Current:
1A max.
Using DAC or OP-AMP:
Connect output of Digital to Analogue Converter (DAC) or Operational
Amplifier to Pin 8 and 0V to Pin 6.
Using a potentiometer and internal reference:
Connect the high end (clockwise) of potentiometer to Pin 9, connect
low end (counter clockwise) of potentiometer to Pin 6, connect wiper
of potentiometer to Pin 8.
Using a potentiometer and external 10 Volt reference:
Connect the high end (clockwise) of potentiometer to external 10V
reference, connect low end of potentiometer (counter clockwise) to Pin
6 and external 10V reference return, connect wiper of potentiometer to
Pin 8.
w w w. h i t e k p o w e r. c o m
Series PSM10
PRECISION SCIENTIFIC POWER SUPPLY MODULES
Using single fixed resistor:
Connect a resistor between Pin 9 and Pin 8 using the internal impedance
(22kΩ ±1%) as potential divider.
Using two fixed resistors:
Connect a resistor between Pin 9 and Pin 8, connect an additional
resistor between Pin 8 and Pin 6.
Note: Internal impedance 22kΩ (±1%).
Current Control:
Current Demand:
0 to 10V for 0 to max output current ±2%.
Note: If left open, circuit supply assumes maximum
current capability.
Input Impedance: 1MΩ internal pull-up, to a +15V rail.
Using DAC or OP-AMP:
Connect output to Digital to Analogue Converter (DAC) or Operational
Amplifier to Pin 4 and 0V to Pin 6.
Using potentiometer and internal reference:
Connect the high end (clockwise) of potentiometer to Pin 9, connect
low end (counter clockwise) of potentiometer to Pin 6, connect wiper
of potentiometer to Pin 4.
Using two fixed resistors:
Connect a resistor between Pin 9 and Pin 4, connect an additional
resistor between Pin 4 and Pin 6.
Monitors:
Voltage:
0 to 10V ±2% or ±100mV, whichever is greater, for 0
to maximum output voltage.
Output Impedance: 10KΩ ±1%.
Current:
0 to 10V ±2% or ±100mV, whichever is greater, for 0
to maximum output current.
Output Impedance: 10KΩ ±1%.
Inhibit:
Disable:
Enable:
0 to 0.8V
2.2V to 24V
Open circuit
=OFF
=ON
=ON
In accordance with MIL-HDBK-217F.
Protection:
The PSM10 is protected against continuous short circuit and
flashover.
Safety:
Meets the requirements of the Low Voltage Directive, 73/23/EEC, by
complying with BS EN60950 when installed as a component part of
compliant equipment. Units are CE marked accordingly.
Mechanical Specification:
Dimensions:

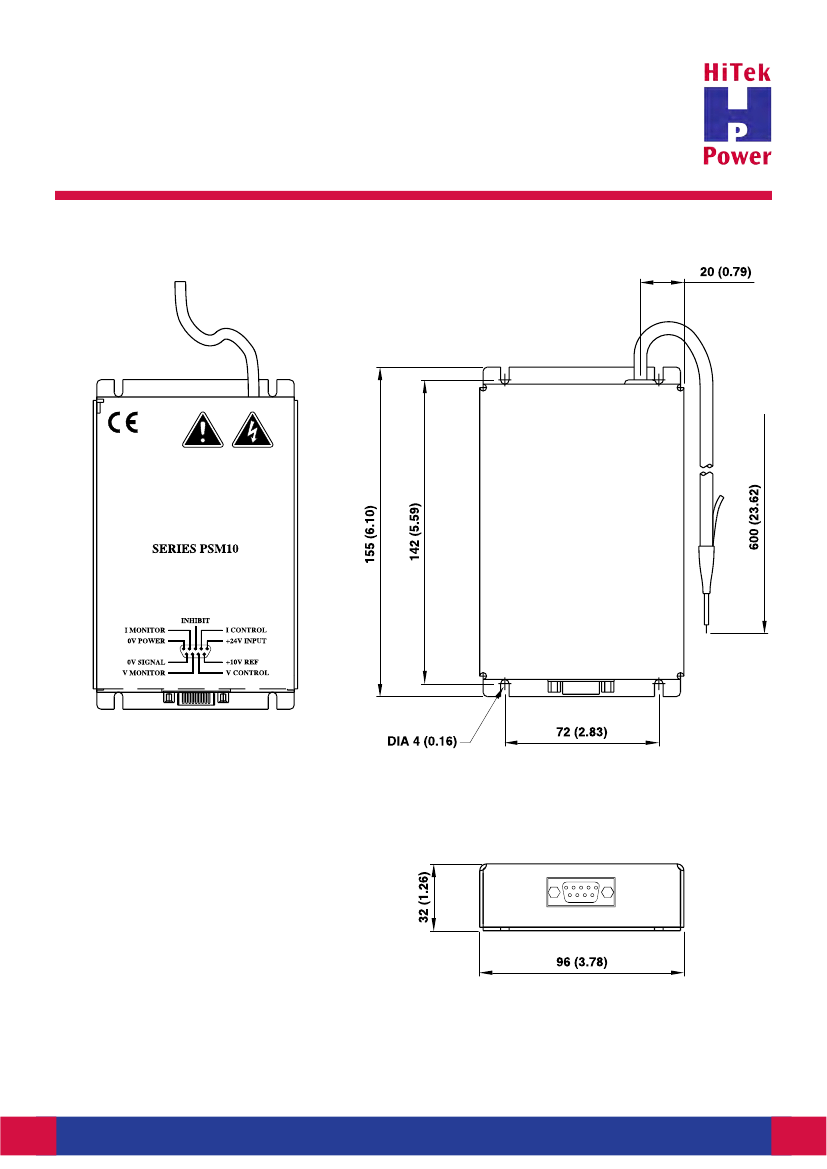

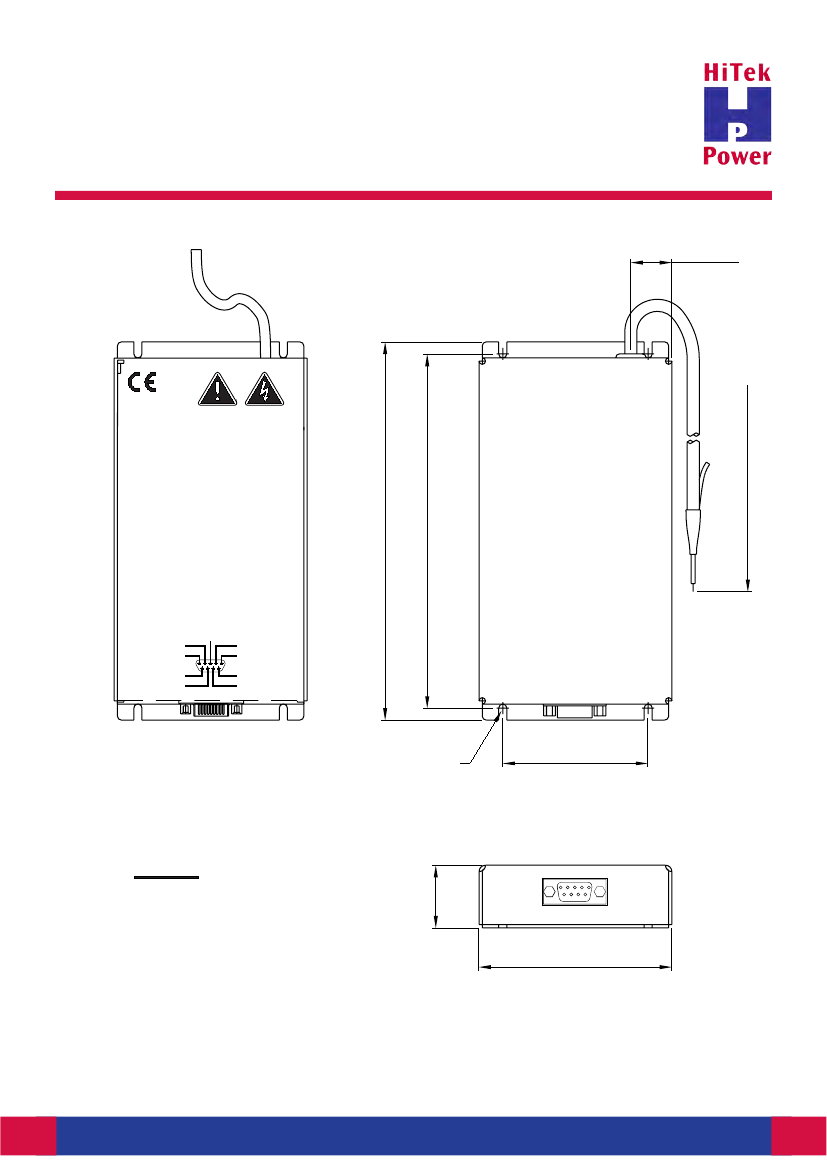

See outline drawing.
Weight:
PSM10/102 & PSM10/202:
0.4kg (0.88 lb)
All other models:
0.7kg (1.54 lb)
Construction:
Fabricated alloy with black painted finish.
Earthing:
Case internally connected to 0V.
Output connection: 600mm long screened flying lead (see drawing).
RoHS:
The Series PSM10 meets the requirements of EU Directive 2002/95/EC
on the Restriction of use of certain Hazardous Substances in Electrical
and Electronic Equipment (RoHS).
Output and Ordering Information:
Model no
Output
Voltage
Output
Current
Current
Load
Regulation
0.05%
0.05%
0.1%
0.1%
0.1%
Ripple
pk-pk
Output
Stored
Charge/
Energy
<45µC
<35µC
<20µC
<15µC
<110mJ
PSM10/102*
PSM10/202*
PSM10/502*
PSM10/103*
PSM10/153*
10V-1kV
10V-2kV
50V-5kV
100V-10kV
150V-15kV
10mA
5mA
2mA
1mA
667µA
<20mV
<20mV
<500mV
<1V
<1V
* Please add either suffix P for positive polarity, or N for negative
polarity, eg PSM10/202N for a negative polarity unit with 10V-2kV
output voltage.
This model is only one of a selection of photomultiplier modules
available from HiTek Power. Should you require a different output
voltage or current please contact our sales team.
Interface Connections:
9-way male D-type connector fitted to module:
+22V to +26V DC INPUT SUPPLY
CURRENT CONTROL
INHIBIT
CURRENT MONITOR
0V POWER
5
4
3
2
1
9
8
7
6
10V REFERENCE
VOLTAGE CONTROL
VOLTAGE MONITOR
0V SIGNAL
Stability:
Less than 50ppm per hour at constant ambient temperature and rated
output power after 1 hour warm-up.
Temperature Coefficient:
Less than 50ppm/oC at max output power.
Operating Temperature:
0oC to 50oC at up to 90% RH non-condensing.
Storage Temperature:
-20oC to +70oC.
Altitude:
Sea level to 2000 metres (6500 feet).
Reliability:
Mean Time Between Failure (MTBF) is greater than 100,000 hours.
Please note: The above pin-out diagram is view looking at the
connector pins.
These component power supplies meet the requirements of EC Directive 73/23/EEC (LVD).
w w w. h i t e k p o w e r. c o m
