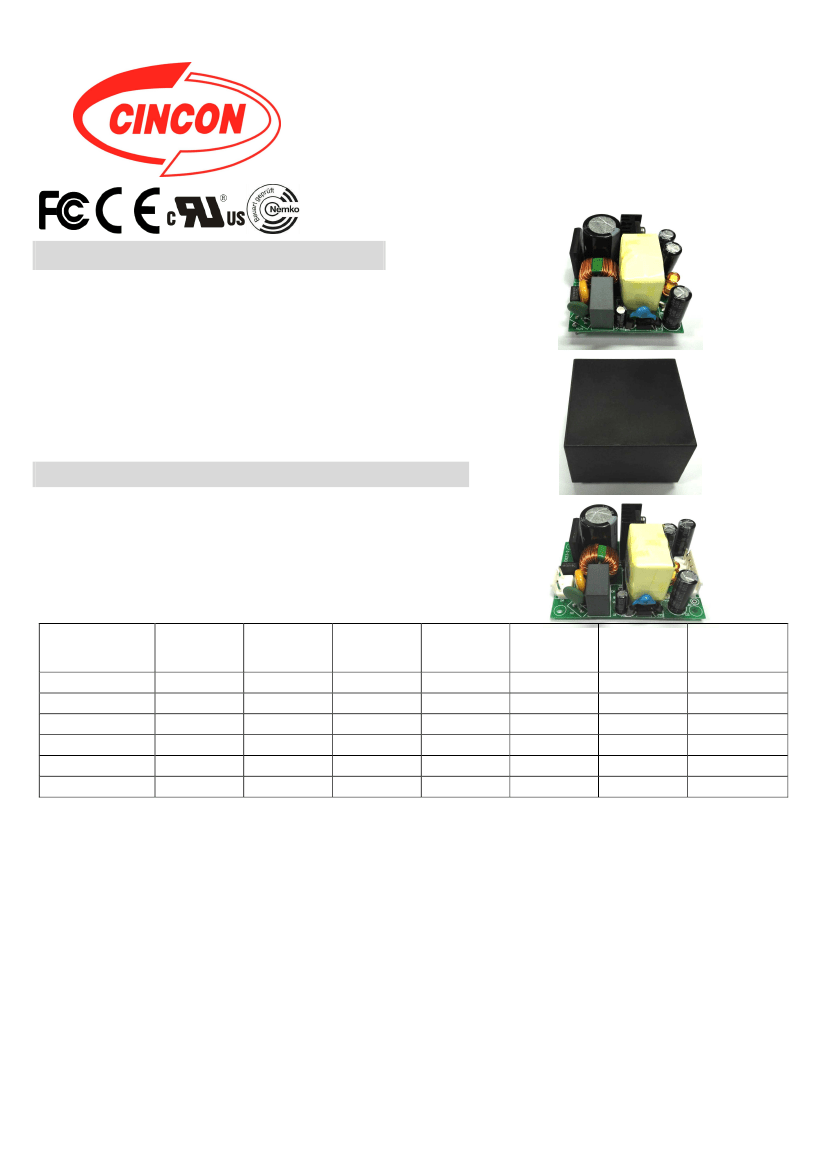

V10
︳
Features
* Universal Input 90~264VAC
* High Efficiency up to 90%
* Meets EN55032 Class B and CIRSS/FCC Class B
* Approved IEC62368-1, UL62368-1, EN62368-1
* Continuous Short Circuit Protection
* Over Voltage Protection
*
Peak Load (2 times of rated current (note6))
*
Class II
CFM61S SERIES
60 WATT SINGLE OUTPUT
AC-DC OPEN FRAME
Ordering information
CFM61SXXX -
X
Blank: PCB mount
E: Encapsulated
T: WAFER
YZ
(Optional)
Blank
PL: PEAK LOAD FUNCTION
MODEL
CFM61S050
CFM61S120
CFM61S150
CFM61S240
CFM61S360
CFM61S480
Output
Voltage
5V
12 V
15 V
24 V
36 V
48 V
Output
Current
8A
5A
4A
2.5 A
1.67 A
1.25 A
Ripple
(mV p-p)
NOTE 1
50mV
120mV
150mV
240mV
360mV
480mV
Voltage
Accuracy
NOTE 2
±2%
±1%
±1%
±1%
±1%
±1%
Line
Regulation
NOTE 3
±1%
±1%
±1%
±1%
±1%
±1%
Load
Regulation
NOTE 4
±1%
±1%
±1%
±1%
±1%
±1%
% EFF.
(typ.)
NOTE 5
86%
88%
88%
89%
89%
90%
Typical at 25˚C, nominal line and 75% load, unless otherwise Specified
1
V10

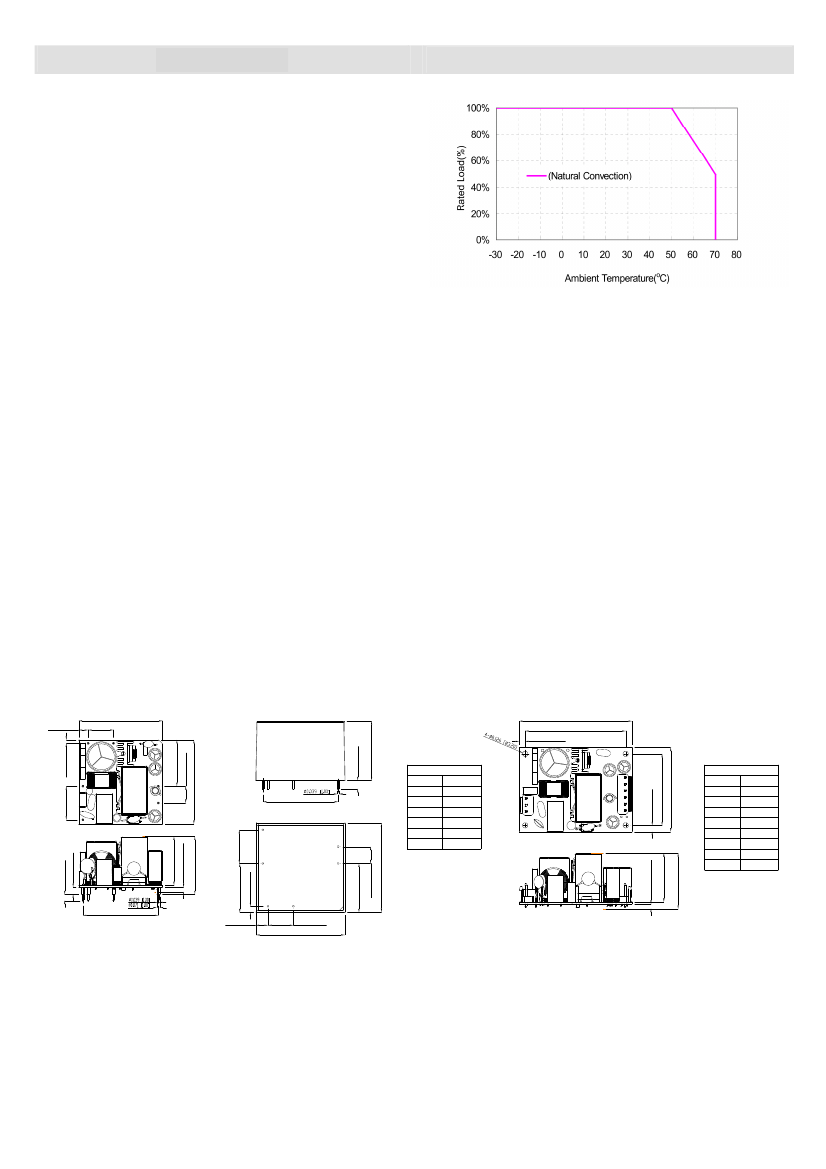

Specifications
INPUT SPECIFICATIONS:
Voltage …...…….…........………………………….........……….. 90~264Vac
Frequency ……………………………………….………….…....... 47 to 63Hz
Inrush Current ……..………..…. 120A max. @240Vac, Cold Start @25℃
Leakage Current ………………………………….. 0.25mA max. @ 264Vac
Input Current ……………………… 100Vac/1.5A max., 240Vac/0.8A max.
CFM61S Series De-rating Curve
OUTPUT SPECIFICATIONS:
Holdup Time …………………………………….……… 10ms typ. @115Vac
Short Circuit Protection …………………… Hiccup Mode (Auto Recovery)
Temperature Coefficient .…………………................................… ±0.05%/℃
Over Voltage Protection ……………………..… TVS Component to Clamp
Startup time ……………..…………….…………………… <3.0s
Switching Frequency ………………………………….……. 65KHz Typical
GENERAL SPECIFICATIONS:
Isolation Voltage(Input to Output) …………...……………………. 3000VAC
Operating Temperature.............. -30℃~70℃ (Derating from 50℃ to 70℃)
Storage Temperature …………..……………………....……. -30℃~85℃
Cooling …………………………………….……….…….. Natural Convection
Humidity ………….……………………...……. 93%RH max. Non condensing
Isolation Voltage (Input to Output) ………………...………………. 3000VAC
MTBF ……….…. MIL-HDBK-217F, GB, 25℃/115VAC ……… 300Khrs min.
Life time….. …………….……………… 26000 hours min.@ 75% load, 40℃
Altitude ………………………………………………………………..… 5000m
Dimensions ……….. 2.000x2.000x1.346 inches (50.80x50.80x34.20 mm)
-E: 2.136x2.136x1.409 inches (54.25x54.25x35.80 mm)
-T: 2.700x2.000x1.291 inches (68.58x50.80x32.80 mm)
Weight ………………………………………………… 93g, 96g(-T), 190g(-E)
SAFETY AND EMISSION:
Emission and Immunity ……...… EN55032 Class B, FCC Part 15 Class B
EN61000-3-2, EN61000-3-3, EN61000-6-3, EN61000-6-4
Immunity …………… EN55024,EN61204-3, EN61000-6-1, EN61000-6-2
Safety ……………………………………………. IEC62368-1, UL62368-1
NOTE:
1. Voltage accuracy is set of 100% rated load.
2. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for
ripple&noise measuring @20MHz BW. (CFM61S050: Add a 0.1uF
ceramic capacitor and 47uF E.L. capacitor.)
3. Line regulation is measured from high line to low line with full load.
4. Load regulation is measured from 10% to 100% full load.
5. T Version wafer with JST B3B-XH / B4B-XH and mate with JST housing
XH series or equivalent.
6. PL(Peak load function) Lasting time < 10 seconds with a maximum 10%.
duty cycle And must add external 100uF / 400V capacitor to BC+ & BC-
Mechanical Specification
All Dimensions In Inches[mm]
Tolerance Inches:x.xxx= ± 0.02
Millimeters: x.xx = ± 0.5
CFM61SXXX
2.000 [50.80]
0.225 [5.72]
0.605 [15.37]
CFM61SXXX-E
CFM61SXXX-T
2.700 [68.58]
2.400 [60.96]
1.409 [35.80]
0.150 [3.81]
5
0.081 [2.05]
6
1.100 [27.94]
0.400 [10.16]
0.205 [5.20]
2.000 [50.80]
3
0.800 [20.32]
4
2
0.800 [20.32]
1.800 [45.72]
1
2
2
4
1
0.149 [3.78]
1.126[28.60]max
0.118 [3.00]max
1.346[34.20]max
0.173 [4.40]
1.168 [29.67]
1.800 [45.72]
0.293 [7.44]
5
6
0.605 [15.37]
2.136[54.25]
Typical at 25˚C, nominal line and 75% load, unless otherwise Specified
1.168 [29.67]
2
1.291[32.80]max
BOTTOM VIEW
0.400 [10.16]
0.118 [3.00]max
1.126[28.60]max
0.150 [3.80]
3
2.136[54.25]
0.150 [3.81]
1
PIN CONNECTION
Pin
Function
1
ACL
2
ACN
+Vout
3
4
-Vout
5
BC+
BC-
6
8
7
6
5
4
3
PIN CONNECTION
Pin
Function
1
ACL
2
ACN
-Vout
3
4
-Vout
5
-Vout
+Vout
6
+Vout
7
+Vout
8
1.700 [43.18]
2.000 [50.80]
