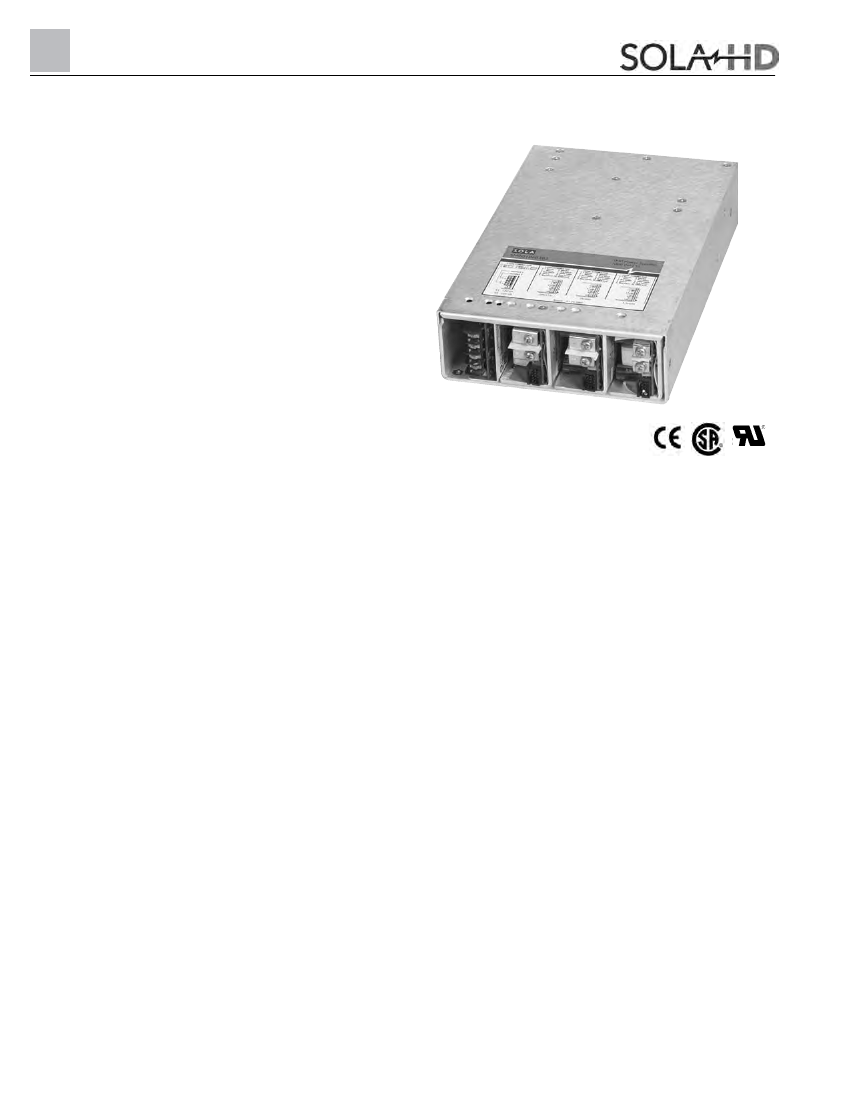

SMP Series: Super Slim Modular Power Supplies
These medium power, modular power supplies, from 250
through 1000 watts, are capable of up to 12 independent
outputs. Modular design makes these units easy to
customize for unusual voltage and power combinations.
All units have power factor corrected inputs, an end
mounted fan for cooling and a variety of built-in signals and
controls. High reliability and a flexible design make these
an excellent choice for process control and semiconductor
fabrication applications.
Features
• Input Worldwide safety agency approval (UL, CSA and CE)
• Input 250, 350, 450, 600 & 1000 Watt Power Platforms
• Input Meets IEC 61000-3-2
• Input Power Factor Correction (0.99)
• Input Universal AC Input (90-264V)
• Input Single wire current share
• Input Power fail TTL signal
• Input
• Input
• Input
• Input
• Input
• Input
• Input
Cover and End mounted fan
Capable of up to 12 independent outputs
Highly Accelerated Life Tested (HALT)
Fully isolated outputs
Thermal overload protection
MTBF demonstrated >500,000 hours
Two year warranty
UL 60950
E137632
Applications
• Input
• Input
• Input
• Input
Process Control
Semiconductor Fabrication
Low Profile Chassis Mount
Service Automation
Related Products
• Input GL Series
• Input SHP Series
Clearwater Tech - Phone: 800.894.0412 - Fax: 208.368.0415 - Web: www.clrwtr.com - Email: info@clrwtr.com
Power Supplies
Specifications
Description
SM2
AC Input
Inrush Current
PFC and Harmonic
Correction
Input Transient
and ESD, AC
Line Regulation
AC input
Load Regulation
Cross Regulation
Current Share
Output Adjustment
Range
Current Limit
Overvoltage
Protection
Minimum Load
Dynamic Response
SM3
Input
90-264 Vac, 47-63 Hz single phase
Less than 20 A peak
Compliant with EN61000-3-2.
Compliant with EN61000-4-2,3,4,5,6 (Level 3 minimum)
Output
Less than 0.1% for line variations from 90-264 Vac. Less than 0.3% for dual and triple output modules
Less than 1.0% no load to full load and full load to no load, mains. Less than 2.0% for dual and triple output modules
Less than 40 A peak
Catalog Number
SM4
SM6
SM9
4
Less than 0.1% between single output modules. Less than 2% between dual outputs with 25% step load change on main output.
Single wire on all main outputs, droop on secondary outputs. Single wire parallel current share
±10% of nominal on all Main outputs 5 -15 volts
on U and T module Auxiliary outputs
140% nominal rating
OVP is standard on all Main Output Modules and
low voltage secondary outputs. 120-130% of nominal.
OVP is standard on all Main Output Modules and low
voltage secondary outputs. 115-130% of nominal.
±5% min on all outputs
No preload is required on any Single, Dual output module. A min 1A, max 10% preload is required on main output
of Triple and Slim-Line Dual (U) outputs in order to achieve specified regulation.
±25% load change from a steady state 75% of nominal at a rate of 1A/µsec will result in an output deviation no greater than 2% or
100 mV peak. 125 mV for outputs 4V or less. Outputs should recover to within 1% of nominal voltage within 350 µsec.
General
75% typical at nominal line. 24 V+ single outputs 80%
Radiated and Conducted per CISPR 11 level B, CE compliant.
0.02 - 0.03%/°C
All AC Input units will maintain regulation within specifications for a period
of not less than 16 msec for 60 Hz, (20 msec for 50 Hz) at full rated
load from nominal 115/230 line voltage.
All AC Input units will maintain regulation within
specifications for a period of not less than 16 msec
for 60 Hz, (20 msec for 50 Hz) at full rated
load from nominal 230 line voltage.
All single output, main output on triple outputs and
dual output “D” modules incorporate remote sense
and are able to compensate for a total cable drop
up to 0.5 Vdc. Dual output “G” modules do not have
remote sense.
75% typical at nominal line.
EN55022 Class B,
EN61000-4-2, 3, 4, 5 & 6 Level 3
Efficiency
EMC
Temperature
Coefficient
Holdup Time,
AC Input
Remote Sense
All main outputs incorporate remote sense and are able to
compensate for a total cable drop up to 0.5 Vdc.
Cooling
Operating
Temperature
Range
Storage
Temperature
Operating Altitude
Shock and
Vibration
Mounting
HxWxD
(inches/mm)
Weight - (lbs/kg)
Temperature performance curves are available. Contact Technical Services.
0 to +70°C (full power to 50°C, derate linearly to 50% at 70°C).
-40° to +85°C
-350 to 7,500 feet with no derating
Commercial transportation ratings, suitable for International Air and Ground transport
Dimensions
All platforms - two surfaces, bottom and one side
1.56 x 5 x 9.5
(40 x 127 x 241)
2.3 lbs (1.04 kg), Unit
3.5 lbs (1.59 kg) Shipping
1.56 x 5 x 10.5
(40 x 127 x 266)
2.9 lbs (1.32 kg), Unit
4.0 lbs (1.81 kg), Shipping
1.68 x 5 x 10.5
(43 x 127 x 266)
3.0 lbs (1.36 kg), Unit
4.5 lbs (2.04 kg), Shipping
Chassis mount via threaded M4 holes on two surfaces.
2.5 x 5 x 11
(64 x 127 x 280)
3.2 lbs (1.45 kg), Unit
4.8 lbs (2.18 kg), Shipping
2.5 x 7 x 11
(64 x 178 x 280)
4.4 lbs (2 kg), Unit
6.6 lbs (3 kg), Shipping
Clearwater Tech - Phone: 800.894.0412 - Fax: 208.368.0415 - Web: www.clrwtr.com - Email: info@clrwtr.com
Power Supplies

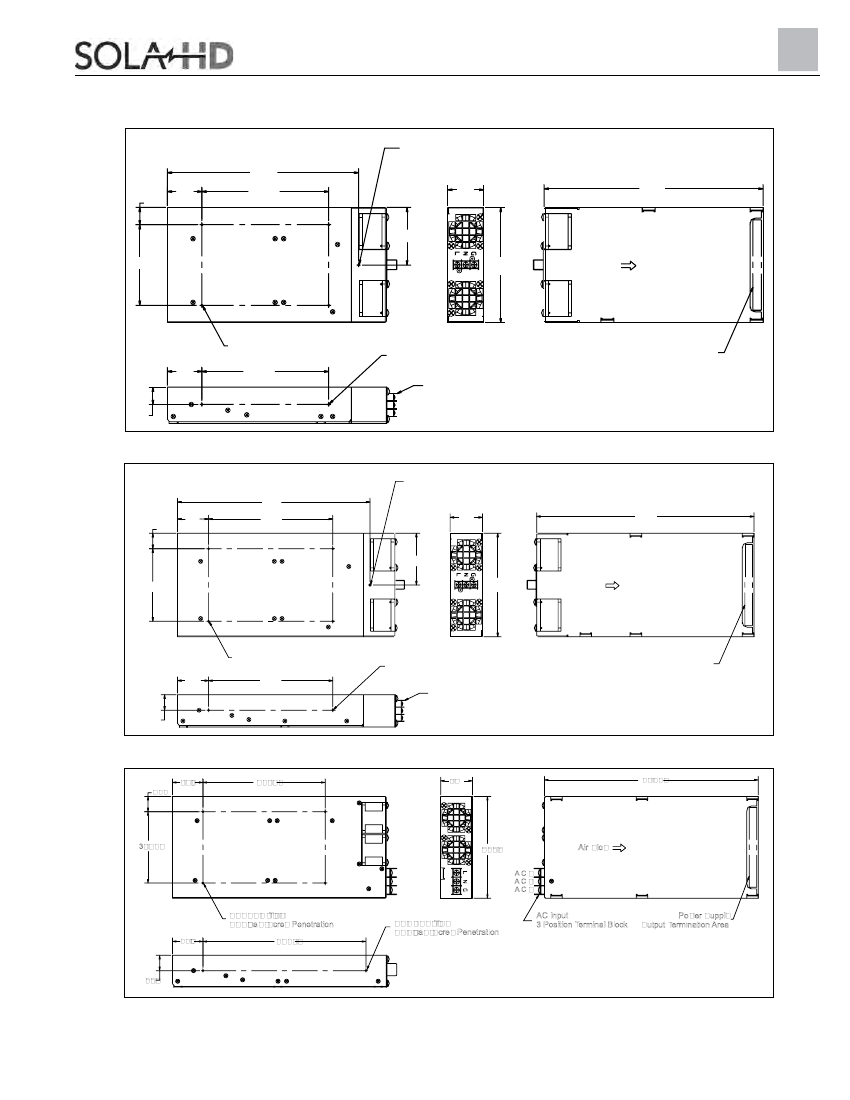

Mechanical Dimensions
M3-0.5 THD
Additional Mtg. Hole if required
0.15 Max. Screw Penetration
8.30
.75
1.50
5.500
1.56
9.50
4
2.50
3.500
5.00
Air Flow
4X M4-0.7 THD
0.15 Max. Screw Penetration
1.50
5.500
2X M4-0.7 THD
0.15 Max. Screw Penetration
AC Input
3 Position Terminal Block
Power Supply
Output Termination Area
.75
ACL
ACN
ACG
SM2
M3-0.5 THD
Additional Mtg. Hole if required
0.15 Max. Screw Penetration
1.56
10.50
9.30
1.50
6.000
.75
2.50
3.500
5.00
Air Flow
4X M4-0.7 THD
0.15 Max. Screw Penetration
1.50
6.000
2X M4-0.7 THD
0.15 Max. Screw Penetration
AC Input
3 Position Terminal Block
Power Supply
Output Termination Area
.75
ACL
ACN
ACG
SM3
3
Air lo
AC
AC
AC
a
T
cre Penetration
a
T
cre Penetration
AC Input
3 Position Terminal Block
Po er uppl
utput Termination Area
SM4
Clearwater Tech - Phone: 800.894.0412 - Fax: 208.368.0415 - Web: www.clrwtr.com - Email: info@clrwtr.com
4

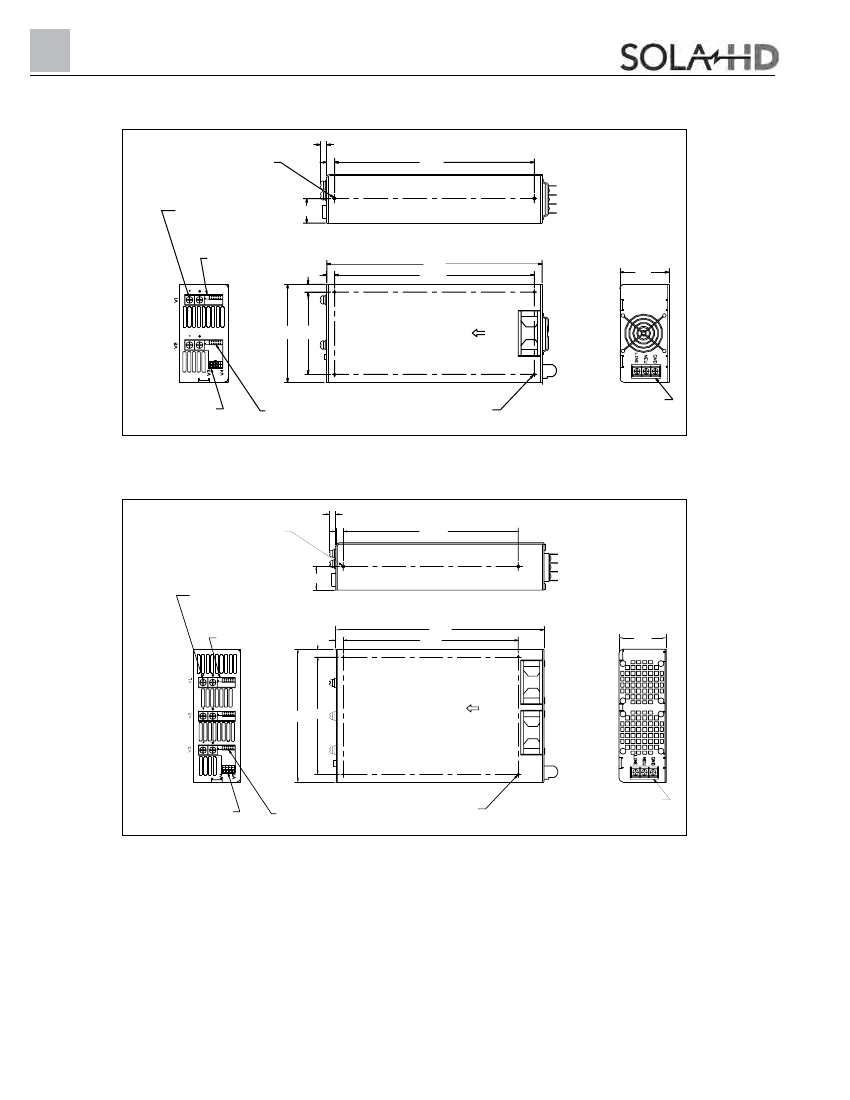

Mechanical Dimensions - continued
2X M4 x 0.7 THD 0.15 Max.
Screw Penetration
Power Supplies
.33 Max Before Adding Terminal Lugs
.40
10.200
M4 x 0.7 THD Output
Hardware, Typ.
Optional Output Connectors
(Consult Technical Service)
Voltage Adjust, Typ.
1.250
11.00
.40
.40
10.200
2.50
+
-
5.00
4.200
Air Flow
+
-
Multi Output Connector
Molex PN 39-30-1080
Logic Connector, Typ
AMP PN 102617-3
2X M4 x 0.7 THD
0.15 Max.
Screw Penetration
AC Input Terminal Block
Number 6 Hardware, 0.375 Centers
Optional Input Connector
SM6
.33 Max Before Adding Terminal Lugs
2X M4 x 0.7 THD
0.15 Max. Screw Penetration
.40
9.250
M4 x 0.7 THD Output
Hardware, Typ.
Optional Output Connectors
(Consult Technical Service)
Voltage Adjust, Typ.
1.250
11.00
.40
.40
9.250
2.50
+
-
7.00 6.200
Air Flow
+
-
+
-
Multi Output Connector
Molex PN 39-30-1080
Logic Connector, Typ
AMP PN 102617-3
2X M4 x 0.7 THD
0.15 Max. Screw Penetration
AC Input Terminal Block
Number 6 Hardware, 0.375 Centers
Optional Input Connector
SM9
Clearwater Tech - Phone: 800.894.0412 - Fax: 208.368.0415 - Web: www.clrwtr.com - Email: info@clrwtr.com
