ZWS15B-5/A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> Switching power supply> ZWS15B-5/A

ZWS15B-5/A: DescriptionSwitching power supply 5V 3A 15W; CategoryPower/power management Switching power supply; File Size249KB，3 Pages; ManufacturerTDK-LAMBDA

Download Datasheet Parametric Compare View All

ZWS15B-5/A Overview

Switching power supply 5V 3A 15W

ZWS15B-5/A Parametric

Parameter Name	Attribute value
Maker	TDK-LAMBDA
Product Category	switching power supply
Output voltage—channel 1	5 VDC
Number of outputs	1 Output
Output Power	15 W
open frame/closed	Open Frame
Input voltage	85 VAC to 265 VAC, 120 VDC to 370 VDC
Output current—channel 1	3 A
Insulation voltage	3 kVAC
Installation style	Chassis
length	107.5 mm
width	60 mm
high	32 mm
Certification	CSA60950-1, DENAN, EN60950-1, EN50178(OV II), UL60950-1
series	ZWS-B
efficiency	78 %
size	107.5 mm x 60 mm x 32 mm
input frequency	47 Hz to 63 Hz
type	AC - DC Power Supply
load regulation	Regulated
Maximum operating temperature	+ 60 C
Minimum operating temperature	- 10 C
Factory packaging quantity	1

Preview

Download Datasheet

View All

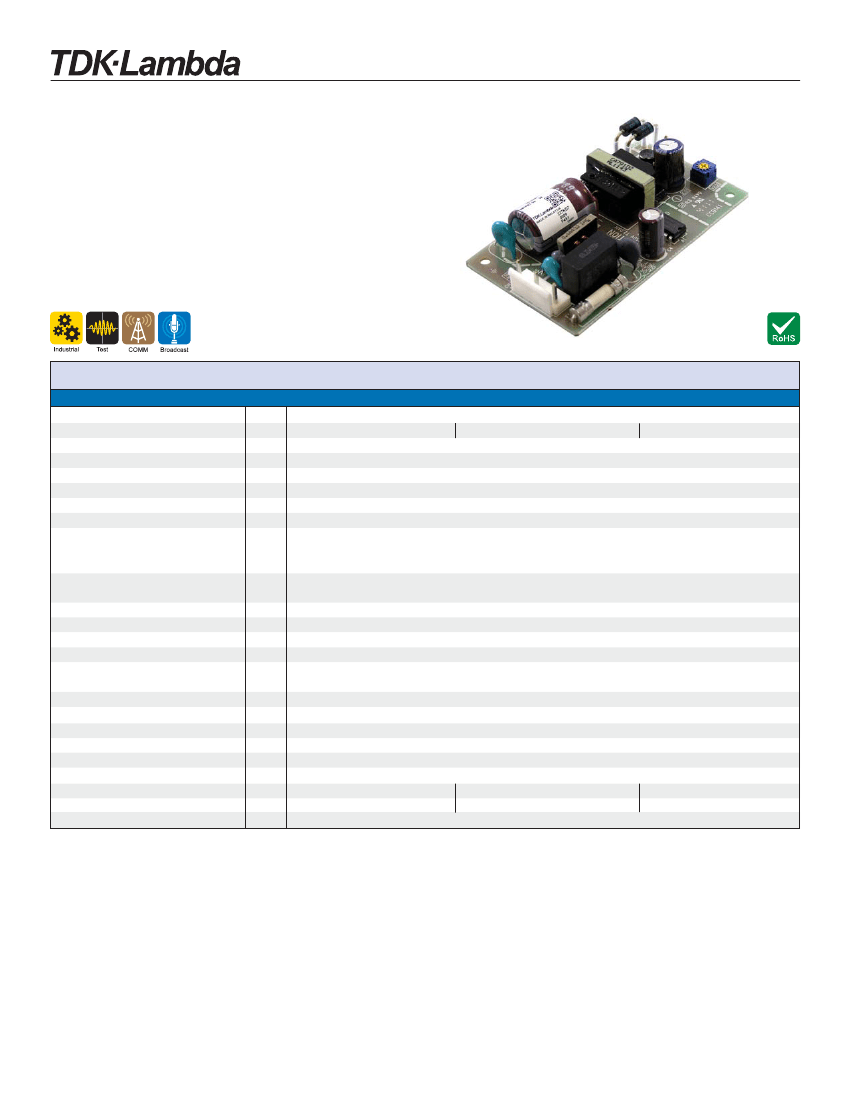

ZWS10-30B Series

10-30W Single Output, High Reliability Power Supplies

Features



Universal Input (85 - 265VAC)



5 year warranty



Small Size



<0.5W off load power draw



10 year E-cap lifetime

Key Market Segments & Applications

ZWS15B Shown

Speciﬁcations

Model

Input Voltage range (1)

Input Current (100 / 200VAC)

Inrush Current (100 / 200VAC)

No Load Power Draw

Leakage Current (100 / 200VAC)

Temperature Coefﬁcient

Overcurrent Protection

Hold Up Time (Typ) @ 100VAC

Operating Temperature

Convection Cooled

Operating Temperature

Forced Air Cooled (0.7m/s)

Storage Temperature

E-cap Lifetime

Humidity (non condensing)

Cooling

Withstand Voltage

Isolation Resistance

Vibration (non operating)

Shock

Safety Agency Certiﬁcations

Conducted & Radiated EMI

Immunity

Weight (Typ)

Size (WxHxD)

Warranty

°C

ZWS15B

ZWS30B

85 - 265VAC (47 - 63Hz), 120 - 370VDC*

0.25 / 0.13A

0.34 / 0.17A

0.65 / 0.35A

15 / 30A

Typically 0.2W at 100/200VAC, 0.5W maximum

< 150uA / 300uA

<0.02%/°C

> 105% of maximum current rating

20ms

ZWS10B: -10 to +70°C, derate linearly to 20% load from 50 to 70°C

ZWS15B: -10 to +70°C, derate linearly to 40% load from 50 to 70°C

ZWS30B: -10 to +70°C, derate linearly to 20% load from 50 to 70°C

-10 to +70°C, derate linearly to 70% load from 60 to 70°C

-30 to +75°C

10 year E-cap lifetime (80% load, 24 hours per day, 50°C ambient)

Operating 30 - 90%RH, Storage 10 - 90%RH

Convection or forced air

Input to Ground 2kVAC (10mA), Input to Output 3kVAC (10mA)

Output to Ground 500VAC (20mA) for 1 minute

>100M at 25°C & 70%RH, Output to Ground 500VDC

10 - 55Hz (1 minute sweep), 19.6m/s

constant. X, Y, Z for 1 hour each

< 196m/s

UL60950-1, CSA60950-1, EN60950-1, EN50178 (OV II), CE Mark

EN55011 / EN55022-B, FCC-B, VCCI-B

IEC61000-4-2 (lv 4), -3 (lvl 3), -4 (lvl 4), -5 (lvl 4), -6 (lvl 3), -8 (lvl 4), -11

45g

55g

105g

50 x 22 x 73.5mm

50 x 22 x 87.5mm

50 x 26.5 x 105mm

Five Years

*Safety certiﬁed for AC input only

ZWS10B

°C

%RH

VAC

m/s

yrs

Notes:

(1)

Derate linearly to 90% load from 90VAC to 85VAC input

Refer to detailed speciﬁcations and application notes on web page

1-800-526-2324 • www.us.tdk-lambda.com/lp/

Disclaimer: us.tdk-lambda.com/lp/legal.htm

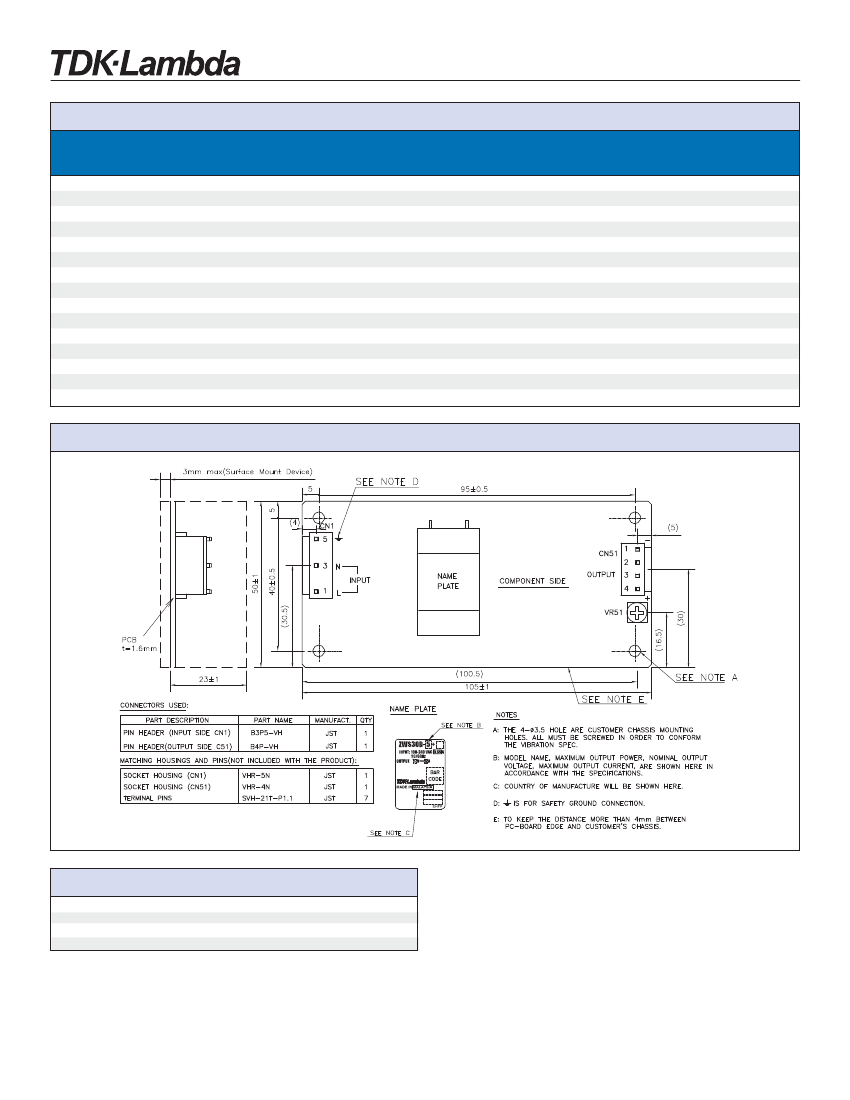

ZWS15B-5/A Related Products

	ZWS15B-5/A	ZWS10B-5/A	ZWS30B-5/A	ZWS10B-3/A
Description	Switching power supply 5V 3A 15W	Switching power supply 5V 2A 10W	Switching power supply 5V 6A 30W	Switching power supply 3.3V 2A 6.65W
Maker	TDK-LAMBDA	TDK-LAMBDA	TDK-LAMBDA	TDK-LAMBDA
Product Category	switching power supply	switching power supply	switching power supply	switching power supply
Output voltage—channel 1	5 VDC	5 VDC	5 VDC	3 VDC
Number of outputs	1 Output	1 Output	1 Output	1 Output
Output Power	15 W	10 W	30 W	6.6 W
open frame/closed	Open Frame	Open Frame	Open Frame	Open Frame
Input voltage	85 VAC to 265 VAC, 120 VDC to 370 VDC	85 VAC to 265 VAC, 120 VDC to 370 VDC	85 VAC to 265 VAC, 120 VDC to 370 VDC	85 VAC to 265 VAC, 120 VDC to 370 VDC
Output current—channel 1	3 A	2 A	6 A	2 A
Insulation voltage	3 kVAC	3 kVAC	3 kVAC	3 kVAC
Installation style	Chassis	Chassis	Chassis	Chassis
length	107.5 mm	93.5 mm	125 mm	93.5 mm
width	60 mm	60 mm	60 mm	60 mm
high	32 mm	32 mm	36 mm	32 mm
Certification	CSA60950-1, DENAN, EN60950-1, EN50178(OV II), UL60950-1	CSA60950-1, DENAN, EN60950-1, EN50178(OV II), UL60950-1	CSA60950-1, DENAN, EN60950-1, EN50178(OV II), UL60950-1	CSA60950-1, DENAN, EN60950-1, EN50178(OV II), UL60950-1
series	ZWS-B	ZWS-B	ZWS-B	ZWS-B
efficiency	78 %	78 %	82 %	70 %
size	107.5 mm x 60 mm x 32 mm	93.5 mm x 60 mm x 32 mm	125 mm x 60 mm x 36 mm	93.5 mm x 60 mm x 32 mm
input frequency	47 Hz to 63 Hz	47 Hz to 63 Hz	47 Hz to 63 Hz	47 Hz to 63 Hz
type	AC - DC Power Supply	AC - DC Power Supply	AC - DC Power Supply	AC - DC Power Supply
load regulation	Regulated	Regulated	Regulated	Regulated
Maximum operating temperature	+ 60 C	+ 60 C	+ 60 C	+ 60 C
Minimum operating temperature	- 10 C	- 10 C	- 10 C	- 10 C
Factory packaging quantity	1	1	1	1
