50015-5076JLF datasheet, PDF - EEWORLD Datasheet

50015-5076JLF: DescriptionHard Metric Connector 4 ROW VERTICAL HEADER -SOLDER TAIL 0 GP; CategoryThe connector The connector; File Size229KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

50015-5076JLF Overview

Hard Metric Connector 4 ROW VERTICAL HEADER -SOLDER TAIL 0 GP

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	11 weeks 1 day

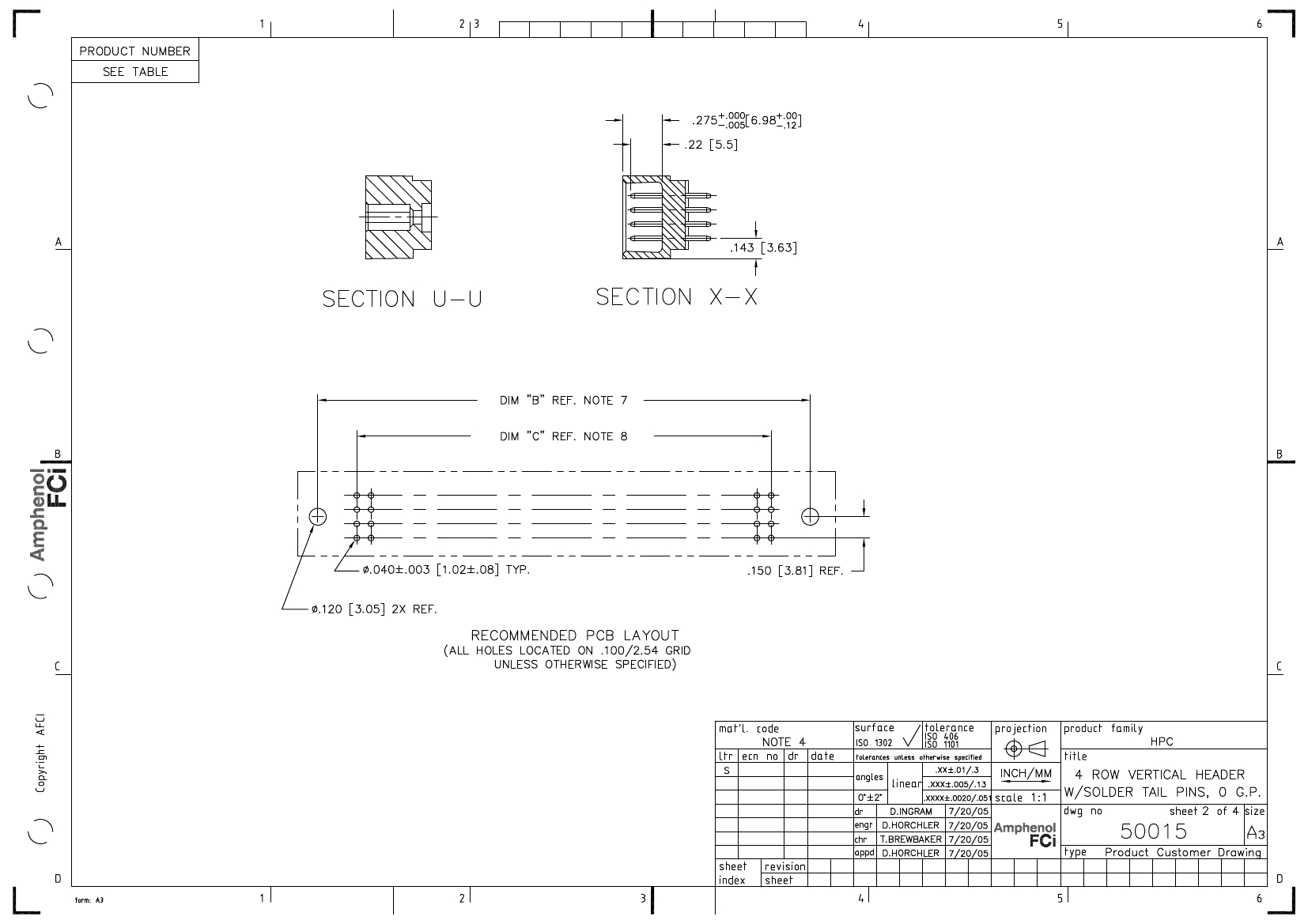

Board mount options	HOLE .112-.124

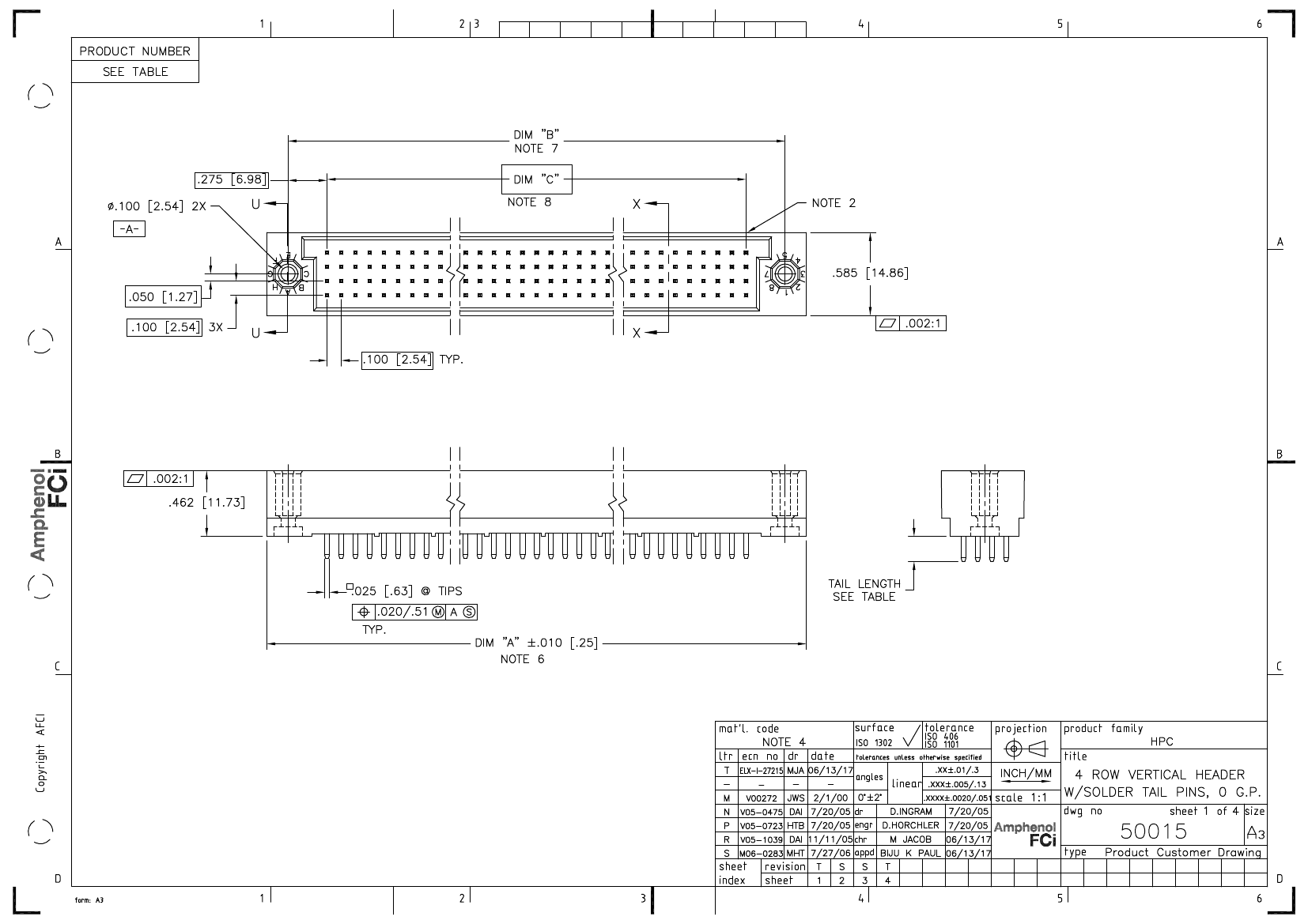

body width	0.585 inch
subject depth	0.462 inch
body length	8.35 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH (30) OVER PALLADIUM NICKEL
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	50015
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	304
UL Flammability Code	94V-0
Base Number Matches	1

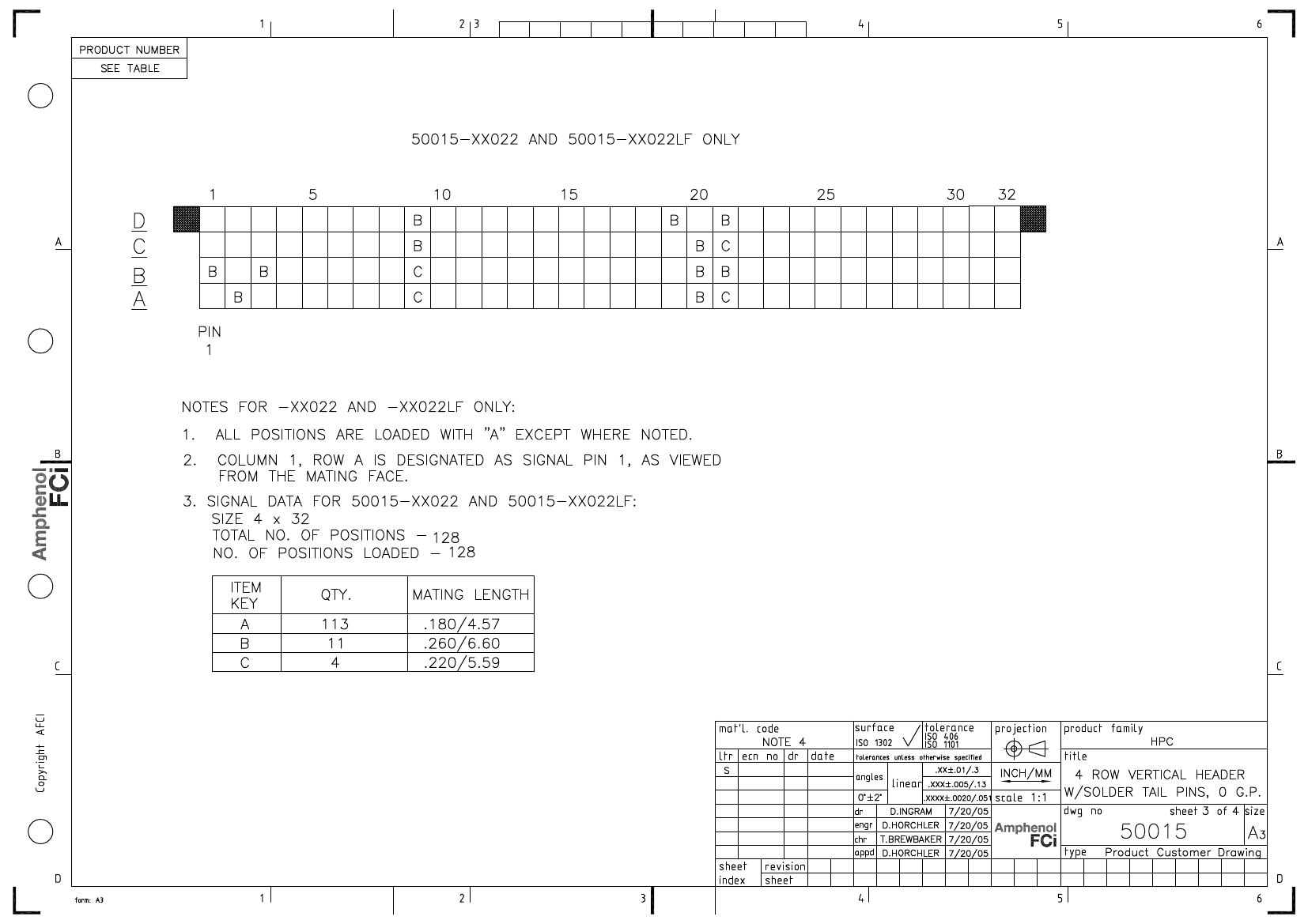

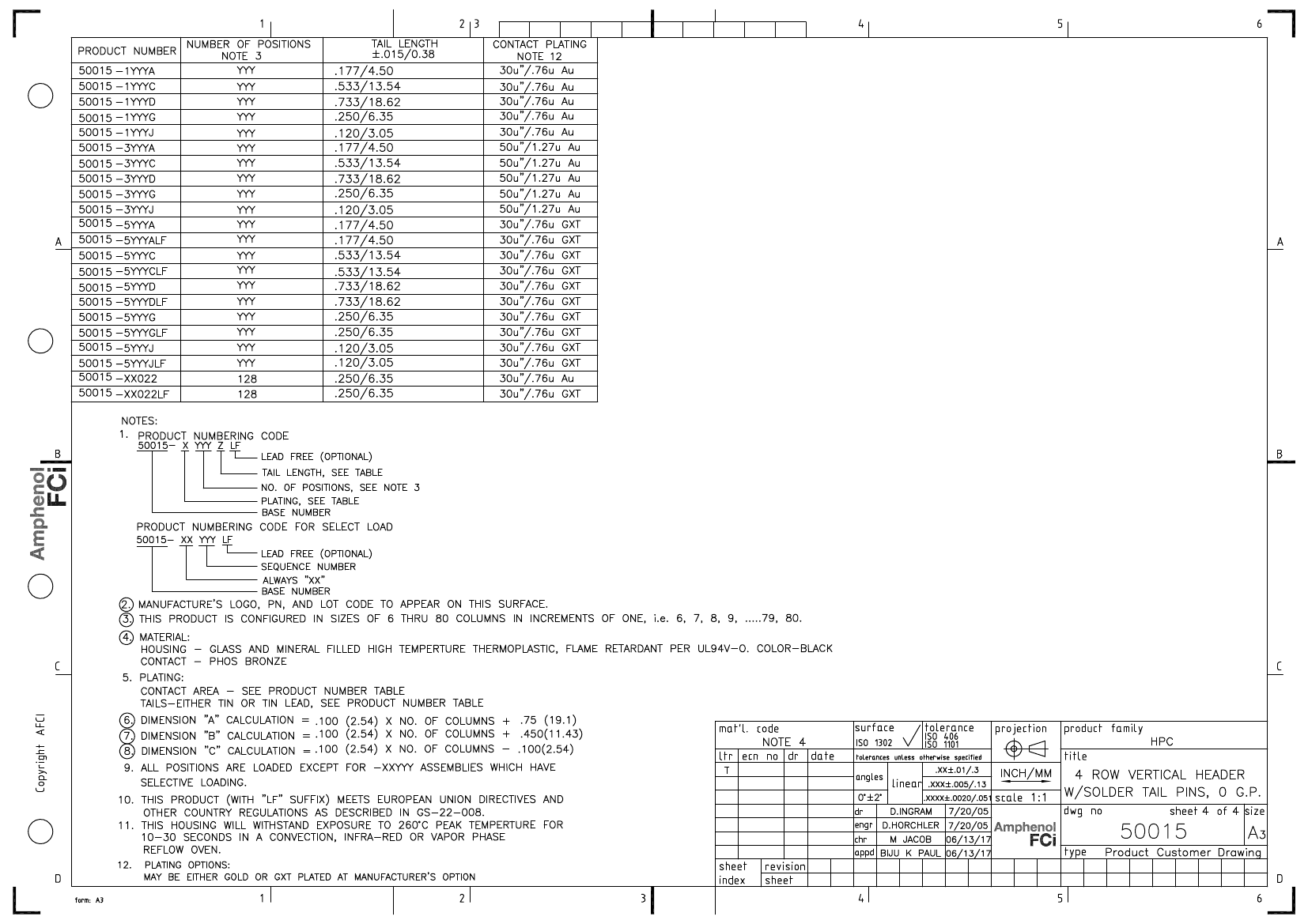

PDS: Rev :T

STATUS:Released

Printed: Jun 19, 2017

	50015-5076JLF	50015-5160DLF	50015-1188JLF
Description	Hard Metric Connector 4 ROW VERTICAL HEADER -SOLDER TAIL 0 GP	Hard Metric Connector 4 ROW VERTICAL HEADER -SOLDER TAIL 0 GP	Hard Metric Connector HPC Hdr 4 Row 0 Guides Solder
Maker	Amphenol	Amphenol	Amphenol
Is it Rohs certified?	conform to	-	conform to
package instruction	LEAD FREE	-	ROHS COMPLIANT
Reach Compliance Code	compliant	-	compliant
Factory Lead Time	11 weeks 1 day	-	11 weeks 1 day
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH (30) OVER PALLADIUM NICKEL	-	NOT SPECIFIED
Contact point gender	MALE	-	MALE
Contact material	PHOSPHOR BRONZE	-	NOT SPECIFIED
DIN compliance	NO	-	NO
Filter function	NO	-	NO
IEC compliance	NO	-	NO
MIL compliance	NO	-	NO
Mixed contacts	NO	-	NO
Installation method	STRAIGHT	-	STRAIGHT
Installation type	BOARD	-	BOARD
Number of rows loaded	4	-	4
Options	GENERAL PURPOSE	-	GENERAL PURPOSE
Termination type	SOLDER	-	SOLDER
Total number of contacts	304	-	188
