CCPD-034 5×7mm SMD
LVPECL Clock Oscillator
CCPD-034 Model
5×7 mm SMD,
3.3V, LVPECL

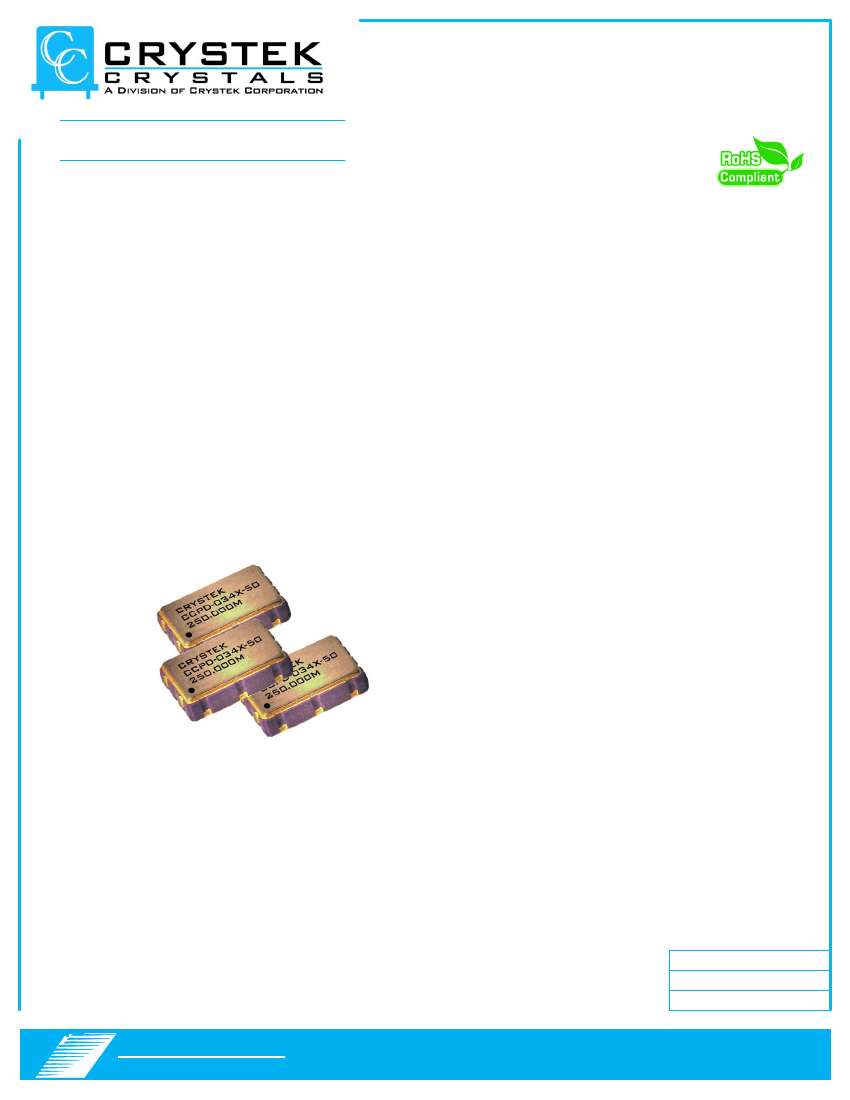

Model CCPD-034 is a 162.000 MHz to 250.000 MHz LVPECL
Clock Oscillator operating at 3.3 Volts. The oscillator
utilizes a High Q crystal design providing very low
Jitter and Phase Noise. No Sub-Harmonics are present in
the Output Signal.
Applications:
5×7mm SMD
Digital Video
SONET/SDH/DWDM
Storage Area Networks
Broadband Access
Ethernet, Gigabit Ethernet
Rev: X
Date: 19-Jan-2017
Page 1 of 3
C
CRYSTEK
CORPORATION
12730 Commonwealth Drive • Fort Myers, Florida 33913
Phone: 239-561-3311 • 800-237-3061
Fax: 239-561-1025 • www.crystek.com
CCPD-034 5×7mm SMD
LVPECL Clock Oscillator
CCPD-034 Model
5×7 mm SMD,
3.3V, LVPECL
162.000 MHz to 250.000 MHz
Frequency Range:
±20, ±25, ±50, ±100
Frequency Stability Options (ppm):
Temperature Range:
(standard) 0°C to +70°C
-20°C to +70°C
(Option M)
-40°C to +85°C
(Option X)
-45°C to 90°C
Storage:
Input Voltage:
3.3V ±0.3V
55mA Typical, 88mA Max
Input Current:
Standby Current:
30uA Max
Differential LVPECL
Output:
45/55% Max @ zero crossing point
Symmetry:
1ns Max (20% to 80%)
Rise/Fall Time:
Logic: Terminated to Vdd-2V into 50
Ω
“0”=1.490 Min, 1.680 Max
Temp. 0°C to 85°C
“1”=2.275 Min, 2.420 Max
“0”=1.470 Min, 1.745 Max
Temp. -40°C to 0°C
“1”=2.215 Min, 2.420 Max
200ns Max
Disable Time:
2ms Max
Start-up Time:
0.5ps Typical, 1ps RMS Max
Phase Jitter: 12kHz~80MHz
Phase Noise: (See Plot Below)
None
Sub-harmonics:
<3ppm 1
st
year, <1ppm every year thereafter
Aging:

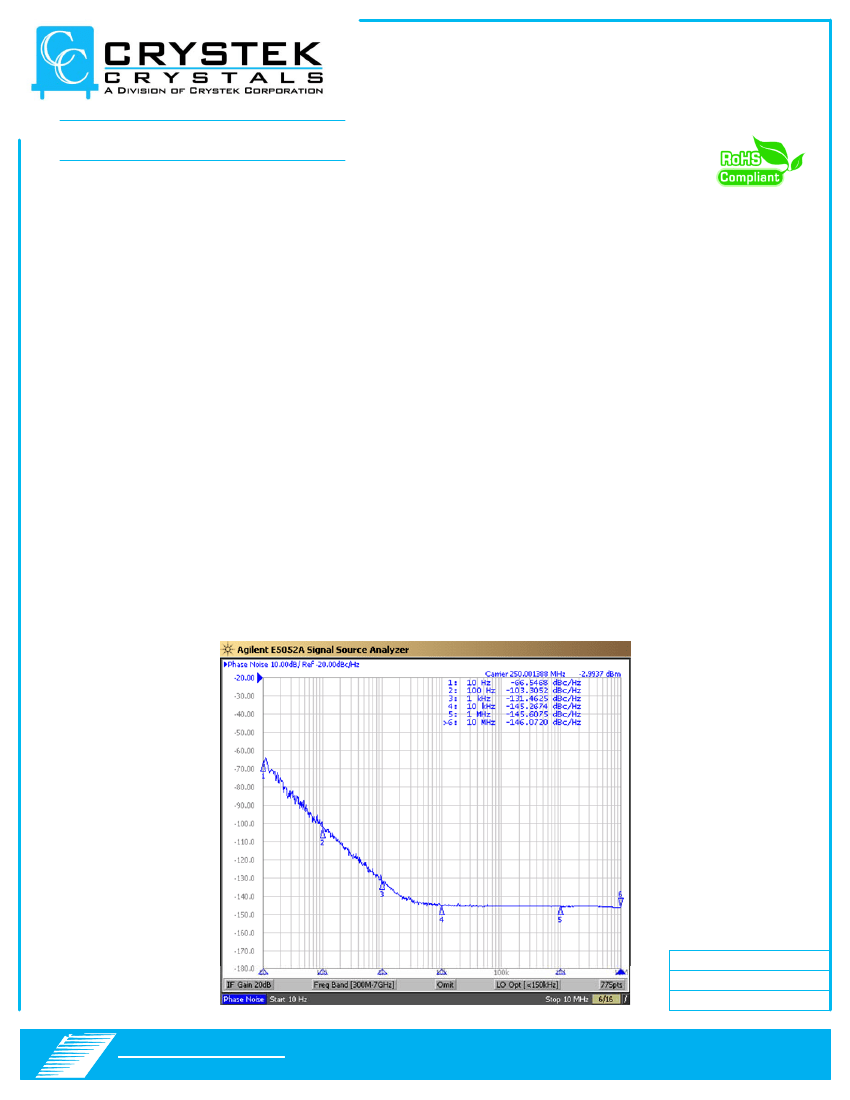

Actual CCPD-034X-50-250.000 MHz Plot
Rev: X
Date: 19-Jan-2017
Page 2 of 3
Specifications subject to change without notice.
C
CRYSTEK
CORPORATION
12730 Commonwealth Drive • Fort Myers, Florida 33913
Phone: 239-561-3311 • 800-237-3061
Fax: 239-561-1025 • www.crystek.com
CCPD-034 5×7mm SMD
LVPECL Clock Oscillator
CCPD-034 Model
5×7 mm SMD,
3.3V, LVPECL

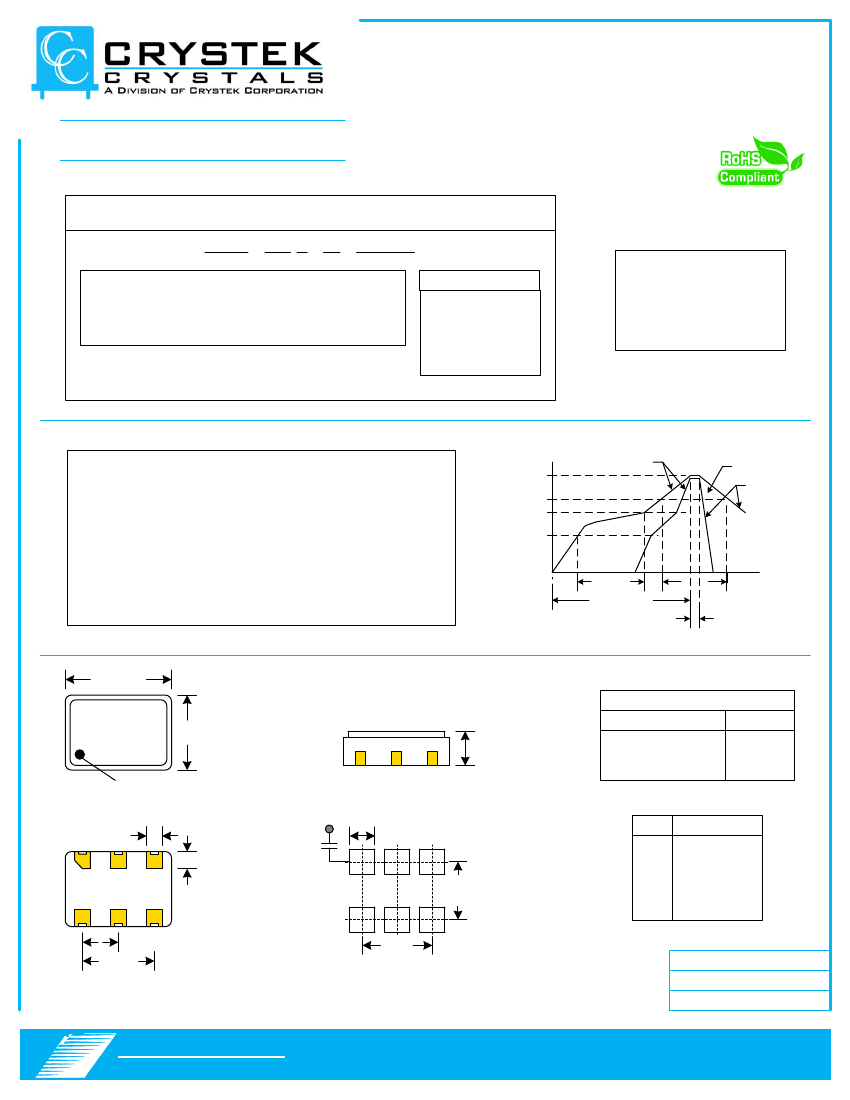

Crystek Part Number Guide
CCPD - 034 X - 50 - 250.000
#1
#2
#3
#4
#5
#1 Crystek LVPECL Osc.
#2 Model 034
#3 Temp Range: Blank = 0/70°C, M = -20/70°C, X = -40/85°C
#4 Stability: (see Table 1)
#5 Frequency in MHz: 3 or 6 decimal places
Example:
CCPD‐034X‐50‐250.000
3.3V, ‐40/85°C, ±50ppm, 250.000 MHz
Stability Indicator
Blank
50
25
20*
± 100ppm
± 50ppm
± 25ppm
± 20ppm
Table 1
Standard Frequencies
(±50ppm, 0/70°C)
200.000 MHz
212.500 MHz
250.000 MHz
*not available in -40/85
RECOMMENDED REFLOW SOLDERING PROFILE
Mechanical:
Shock:
Solderability:
Vibration:
Solvent Resistance:
Resistance to Soldering Heat:
Environmental:
Thermal Shock:
Moisture Resistance:
MIL-STD-883, Method 2002, Condition B
MIL-STD-883, Method 2003
MIL-STD-883, Method 2007, Condition A
MIL-STD-202, Method 215
MIL-STD-202, Method 210, Condition I or J
MIL-STD-883, Method 1011, Condition A
MIL-STD-883, Method 1004
TEMPERATURE
260°C
217°C
200°C
150°C
Ramp-Up
3°C/Sec Max.
Critical
Temperature Zone
Ramp-Down
6°C/Sec.
Preheat
180 Secs. Max.
8 Minutes Max.
90 Secs. Max.
260°C for
10 Secs. Max.
NOTE: Reflow Profile with 240°C peak also acceptable.
0.276 ±0.008
(7.00 ±0.20)
Dimensions inches (mm)
All dimensions are Max unless otherwise specified.
0.197 ±0.008
(5.00 ±0.20)
Enable/Disable
Function pin 1
Open or N/C
"1" level 0.7×Vdd Min
"0" level 0.3×Vdd Max
Output pin
Active
Active
High Z
Part Number
Frequency
DC Lot Code
Denotes pad 1
via to
ground
0.01µF
0.045 ±0.008
(1.14 ±0.20)
#1
#6
#2
#5
#3
#4
0.071
(1.80)
SUGGESTED PAD LAYOUT
0.055 Typ
(1.40 Typ)
0.071 SQ
(1.80)
PIN
1
2
3
4
5
6
Connection
Enable/Disable
N/C
GND
Output
Comp Output
Vcc
0.148
(3.75)
0.100
(2.54)
0.200
(5.08)
0.200
(5.08)
0.01uF Bypass Capacitor Recommended
Rev: X
Date: 19-Jan-2017
Page 3 of 3
C
CRYSTEK
CORPORATION
12730 Commonwealth Drive • Fort Myers, Florida 33913
Phone: 239-561-3311 • 800-237-3061
Fax: 239-561-1025 • www.crystek.com
