P.C.B. LAYOUT
RPL & RP CONSTRUCTION
RPL series
1.
2.
3.
4.
5.
RP series
Terminal plating by gold gives excellent results when
soldering.

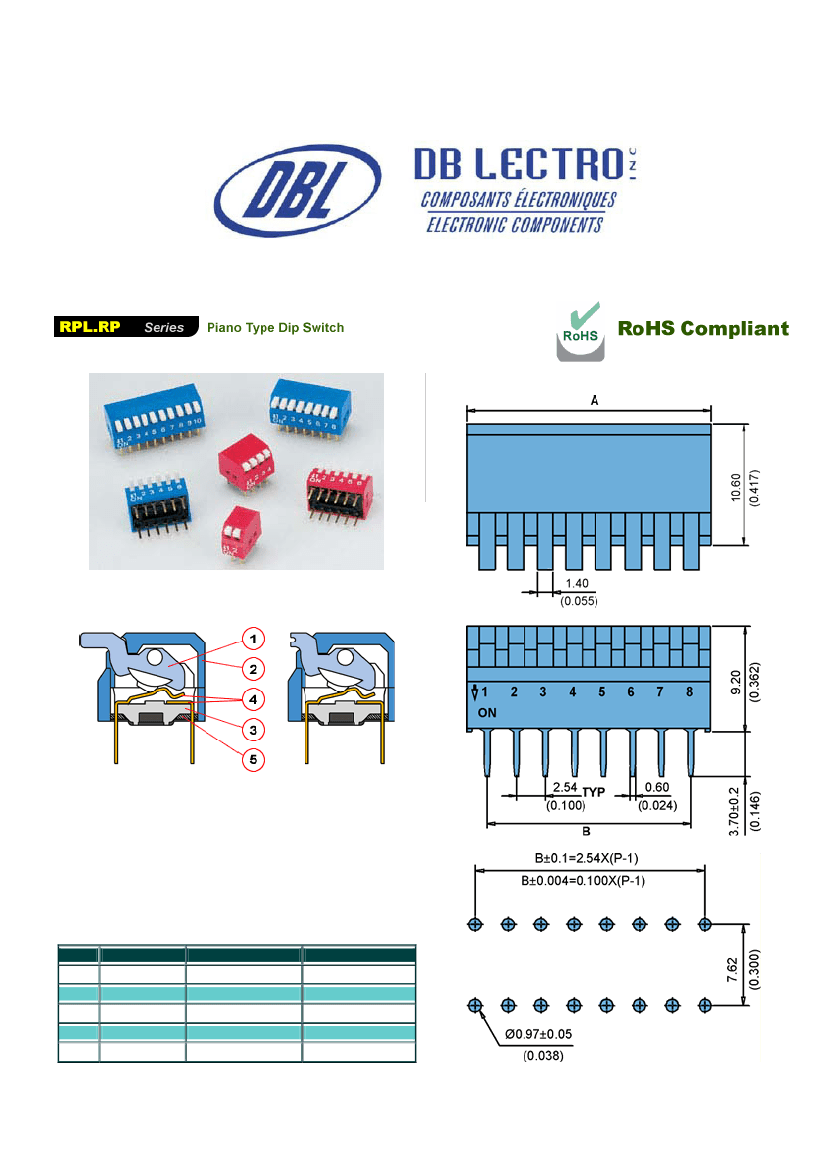

RPL series (raised actuator) and RP series (recessed
actuator)
Low contact resistance, and self-clean on contact area.
Double contacts offer high reliability.
All materials are UL94V-0 grade fire retardant plastics.
ITEM
1
2
3
4
5
Description
Actuator
Cover
Base
Terminal
Potting
Materials
UL94V-0 PBT
UL94V-0 PBT
UL94V-0 PBT
Phosphor bronze
Epoxy
Treatment
White
Blue, Red, Black
Black
Gold Plating
Black
MODEL
PROD NO.
RPL/RP-02
RPL/RP-03
RPL/RP-04
RPL/RP-05
RPL/RP-06
RPL/RP-08
RPL/RP-10
RPL/RP-12
HOW TO ORDER
NO. OF POS
02
03
04
05
06
08
10
12
DIM A
6.26
9.06
11.34
13.88
16.42
21.5
26.58
31.60
0.246
0.357
0.446
0.546
0.646
0.846
1.046
1.244

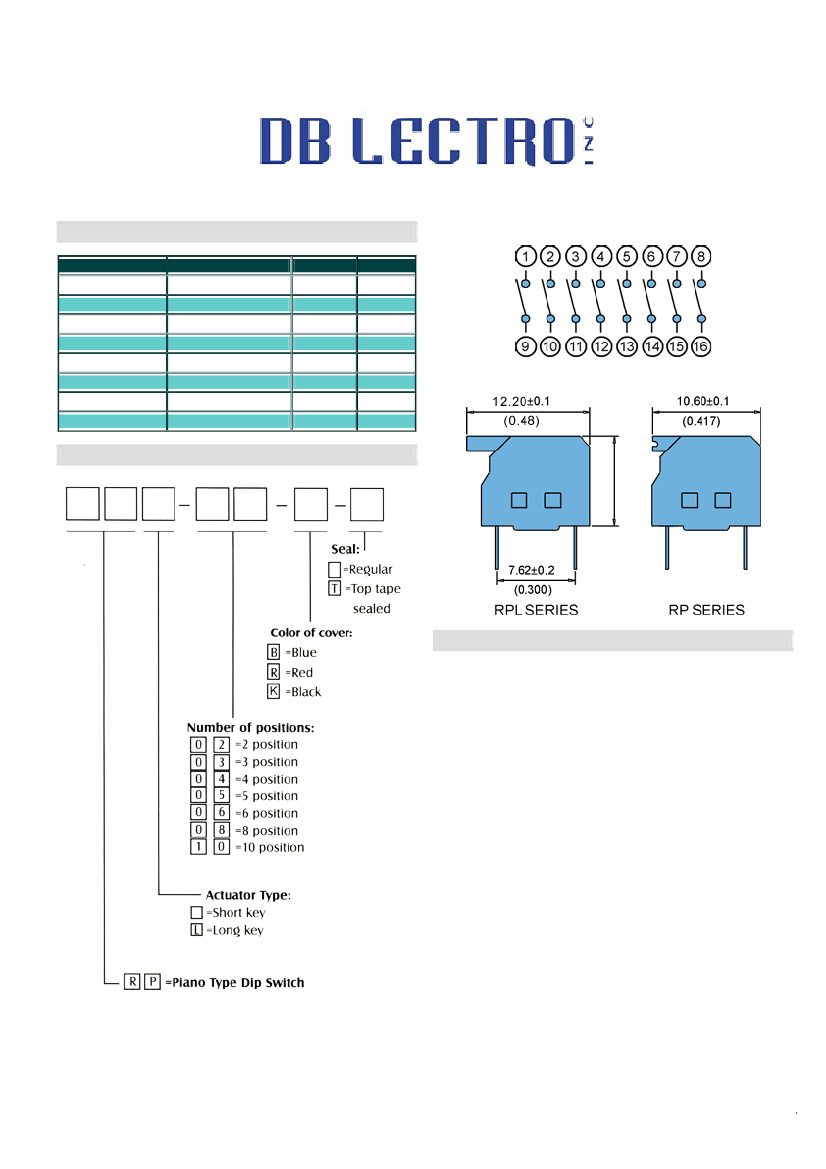

CIRCUIT DIAGRAM
TERMINAL TYPE
SPECIFICATION
ELECTRICAL
Electrical life: 2000 operation cycles per switch 24VDC, 25mA.
Non-Switching Rating: 100mA, 50 VDC
Switching Rating: 25mA, 24VCD.
Contact resistance: (a) 50mΩ max. at initial
(b) 100mΩ max. after life test.
Insulation resistance: 100MΩ min. (at 500VDC)
Dielectric Strength: 500VAC/1 minute.
Capacitance: 5pF max.
Circuit: Single pole single throw.
MECHANICAL
Mechanical life: 2000 operations per cycle switch
Operation Force: 400gf max.
Stroke: 2.0mm
Operation Temp: -25° C to +70° C
Storage Temp: -40° C to +85° C
Vibration Test: MIL-STD-202F METHOD 201A
Frequency: 10-55-10Hz/1 min
Directions: X, Y, Z, three mutually
perpendicular directions.
Time: 2 hours each direction.
High reliability.
Shock Test: MIL-STD-202F METHOD 213B.
CONDITION A
GRAVITY: 50G (peak value), 11 m/sec.
Direction and times: 6 sides and three times in
each direction. High reliability.
SOLDERING AND CLEANING PROCESSES
For best results, please follow these recommendations: Keep all
switch contacts in their "OFF" position for all operations.
Example:
RPL-08-B-T is a Piano Type Dip Switch, Long key, 8
position with top tape sealed.
PACKING
All Dip Switches are shipped in standard IC tubes with
all poles in "OFF" position.
WAVE SOLDERING: Recommended solder temperature at 500 F
(260° C) max. 5 seconds.
HAND SOLDERING: Use a soldering iron of 30 watts, controlled
at 608 F(320° C) approximately 2 seconds
while applying solder.
CLEANING PROCESS: Flux clean using force rinse, high agitation
or triple bath cleaning method. Freon TF
or TE give excellent results. When vapor
methods are used, do not subject the
switch to solvents at temperatures above
125 F (51° C).
