RP150K SERIES
LOW NOISE Dual 300mA LDO
NO. EA-131-070724
OUTLINE
The RP150K Series are CMOS-based dual voltage regulator ICs with high output voltage accuracy, low
supply current, low dropout, and high ripple rejection. Each of these voltage regulator ICs consists of a voltage
reference unit, an error amplifier, resistors for setting Output Voltage, a current limit circuit, and a chip enable
circuit.
These ICs perform with low dropout voltage due to built-in transistor with low ON resistance, and a chip
enable function prolongs the battery life of each system. The line transient response and load transient
response of the RP150 Series are excellent, thus these ICs are very suitable for the power supply for hand-held
communication equipment.
The output voltage of these ICs is internally fixed with high accuracy (1%). Since the packages for these ICs
are PLP2020-8 package, 2ch LDO regulators are included in each packages, high density mounting of the ICs
on boards is possible.
FEATURES
•
Supply Current ..................................................................... Typ. 24µA×2 (VR1&VR2)
•
Standby Current ................................................................... Typ. 0.1µA
•
Dropout Voltage.................................................................... Typ. 0.21V (I
OUT
=300mA,
V
OUT
=2.8V)
Typ. 0.24V (I
OUT
=300mA,
V
OUT
=2.5V)
•
Ripple Rejection ................................................................... Typ. 80dB (f=1kHz)
•
Temperature-Drift Coefficient of Output Voltage .................. Typ.
±30ppm/°C
•
Line Regulation .................................................................... Typ. 0.02%/V
•
Output Voltage Accuracy......................................................±1.0%
•
Input Voltage Range............................................................. 2.5V to 5.25V
•
Output Voltage Range.......................................................... 1.5V to 3.3V
•
Package .............................................................................. PLP2020-8
•
Built-in Fold Back Protection Circuit..................................... Typ. 50mA
•
Built-in Auto Discharge Function .......................................... B Version
•
Ceramic capacitors are recommended to be used with this IC .... C
IN
=C
OUT
=1.0µF
or more
APPLICATIONS
•
Power source for portable communication equipment.
•
Power source for electrical appliances such as cameras, VCRs and camcorders.
•
Power source for battery-powered equipment.
1

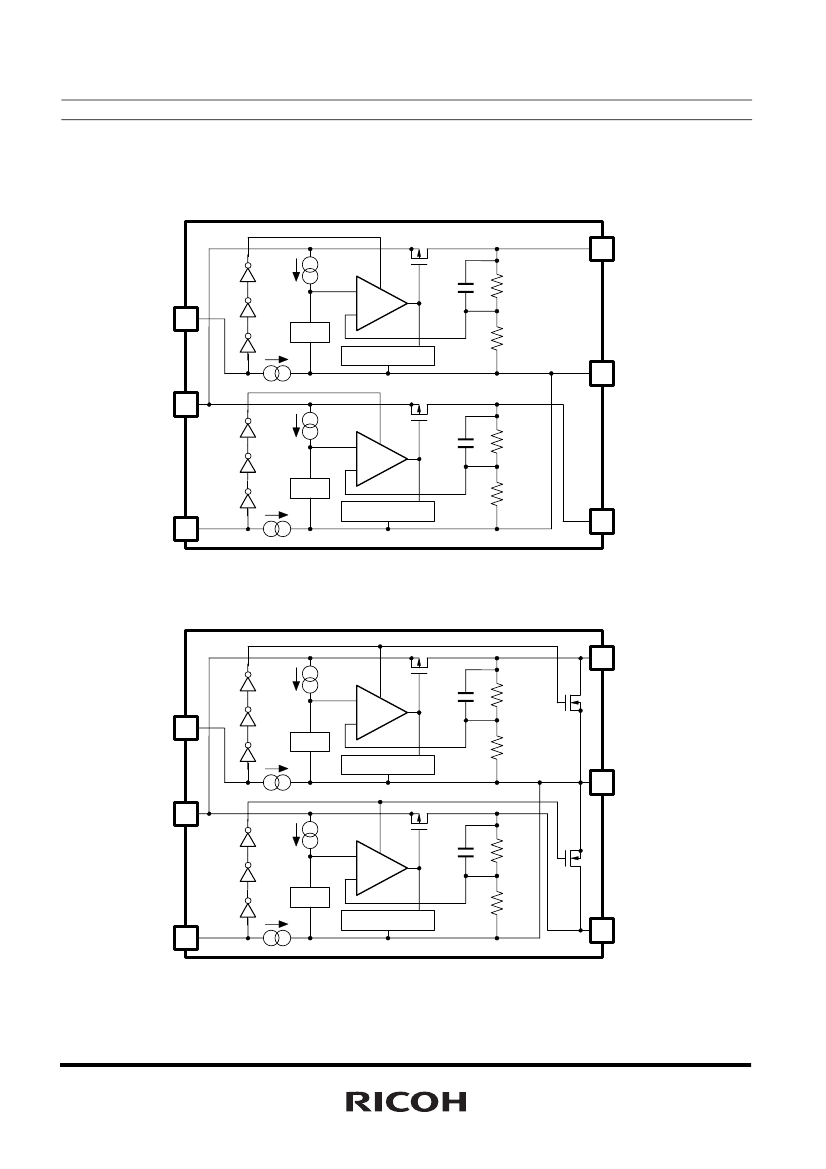

RP150K
SELECTION GUIDE
The output voltage, auto discharge function*, and the taping type for the ICs can be selected at the user's
request.
The selection can be made with designating the part number as shown below;
RP150Kxxxx-xx-x
←Part
Number
↑ ↑ ↑ ↑ ↑
a b c d e
Code
a
b
Contents
Designation of Package Type:
K: PLP2020-8
Setting combination of 2ch Output Voltage (V
OUT
):
Serial Number for Voltage setting from 001,
Stepwise setting in the range of 1.5V to 3.3V is possible for each channel.
Designation of Mask Option:
A: without auto discharge function* at OFF state.
B: with auto discharge function* at OFF state
Designation of Taping Type:
Ex. TR (refer to Taping Specifications; TR type is the standard direction.)
Designation of composition of plating:
None : Au plating
c
d
e
*) When the mode is into standby with CE signal, auto discharge transistor turns on, and it makes the turn-off
speed faster than normal type.
3
RP150K
PIN CONFIGURATIONS
PLP2020-8
8
Top View
7
6
5
5
Bottom View
6
7
8
1
2
3
4
4
3
2
1
PIN DESCRIPTIONS
•
RP150K
Pin No.
1
2
3
4
5
6
7
8
Symbol
CE1
GND
CE2
NC
NC
V
OUT2
V
DD
V
OUT1
Ground Pin
Chip Enable Pin 2 ("H" Active)
No Connection
No Connection
Output Pin 2
Input Pin
Output Pin 1
Description
Chip Enable Pin 1 ("H" Active)
* Tab in the
parts have GND level. (They are connected to the back side of this IC.)
Do not connect to other wires or land patterns.
ABSOLUTE MAXIMUM RATINGS
Symbol
V
IN
V
CE
V
OUT
I
OUT1
I
OUT2
P
D
Topt
Tstg
Input Voltage
Input Voltage (CE Pin)
Output Voltage
Output Current 1
Output Current 2
Power Dissipation (PLP2020-8)
*1
Operating Temperature Range
Storage Temperature Range
Item
Rating
6.0
6.0
−0.3
to V
IN
+0.3
400
400
880
−40
to 85
−55
to 125
Unit
V
V
V
mA
mA
mW
°C
°C
*1) For Power Dissipation, please refer to PACKAGE INFORMATION to be described.
4
