ES2BHE3_A/I datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> ES2BHE3_A/I

ES2BHE3_A/I: DescriptionRectifier 2A, 100V, 20ns SMB, UF Rect, SMD; CategoryDiscrete semiconductor diode; File Size104KB，6 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

ES2BHE3_A/I Overview

Rectifier 2A, 100V, 20ns SMB, UF Rect, SMD

ES2BHE3_A/I Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Vishay
package instruction	SMB, 2 PIN
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
Other features	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.9 V
JEDEC-95 code	DO-214AA
JESD-30 code	R-PDSO-C2
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Guideline	AEC-Q101
Maximum repetitive peak reverse voltage	100 V
Maximum reverse current	10 µA
Maximum reverse recovery time	0.03 µs
surface mount	YES
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

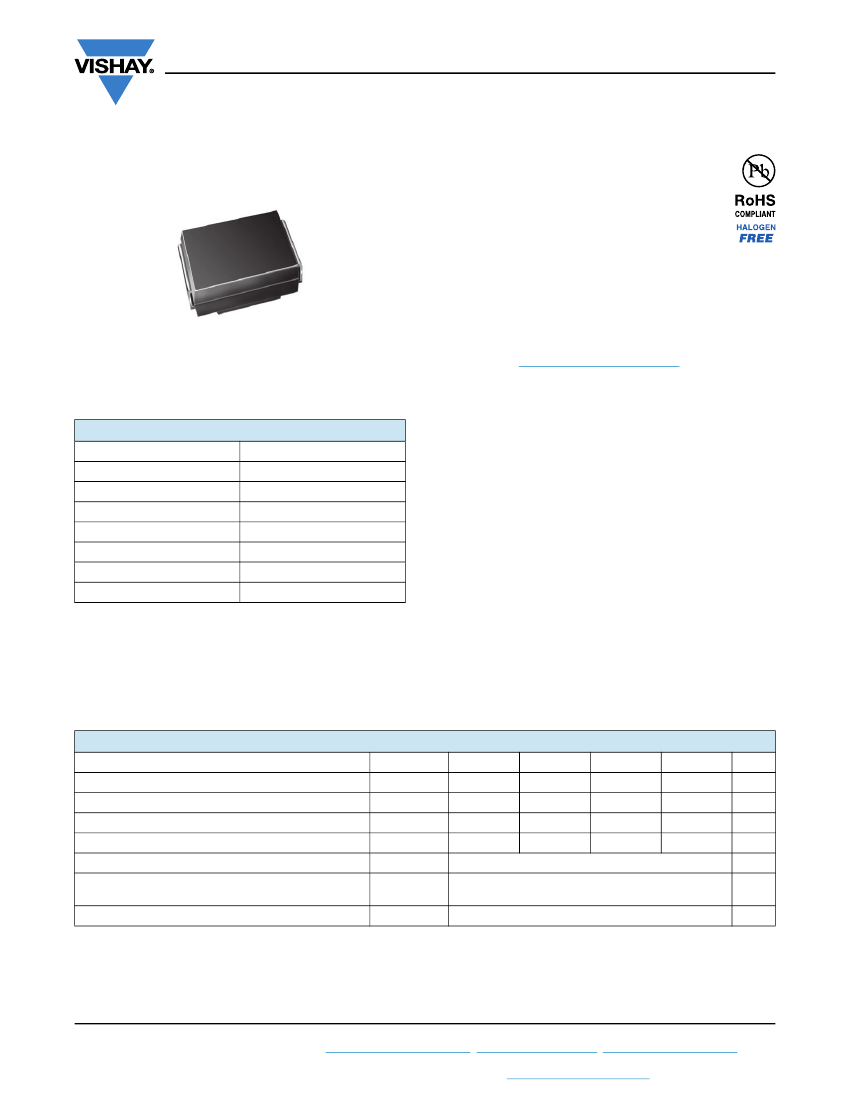

ES2A, ES2B, ES2C, ES2D

www.vishay.com

Vishay General Semiconductor

Surface Mount Ultrafast Plastic Rectifier

FEATURES

• Glass passivated pellet chip junction

• Ideal for automated placement

• Ultrafast recovery times for high efficiency

• Low forward voltage, low power losses

Available

• High forward surge capability

• Meets MSL level 1, per J-STD-020, LF maximum peak

of 260 °C

• AEC-Q101 qualified available

- Automotive ordering code: base P/NHE3 or P/NHM3

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

SMB

(DO-214AA)

TYPICAL APPLICATIONS

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

max.

Package

Diode variations

2.0 A

50 V, 100 V, 150 V, 200 V

50 A

20 ns

0.90 V

150 °C

SMB (DO-214AA)

Single

For use in high frequency rectification and freewheeling

application in switching mode converters and inverters for

consumer, computer, automotive, and telecommunication.

MECHANICAL DATA

Case:

SMB (DO-214AA)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E3 - RoHS-compliant, commercial grade

Base P/N-M3 - halogen-free, RoHS-compliant, commercial

grade

Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified

Base P/NHME3_X - halogen-free, RoHS-compliant, and

AEC-Q101 qualified

(“_X” denotes revision code e.g. A, B, .....)

Terminals:

matte tin plated leads, solderable per

J-STD-002 and JESD 22-B102

E3, M3, HE3, and HM3 suffix meets JESD 201 class 2

whisker test

Polarity:

color band denotes cathode end

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Device marking code

Maximum repetitive peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward rectified current at T

= 110 °C

Peak forward surge current 8.3 ms single half sine-wave

superimposed on rated load

Operating junction and storage temperature range

RRM

RMS

F(AV)

FSM

, T

STG

SYMBOL

ES2A

ES2B

100

2.0

-55 to +150

ES2C

150

105

150

ES2D

200

140

200

°C

UNIT

Revision: 21-Jul-17

Document Number: 88587

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay
