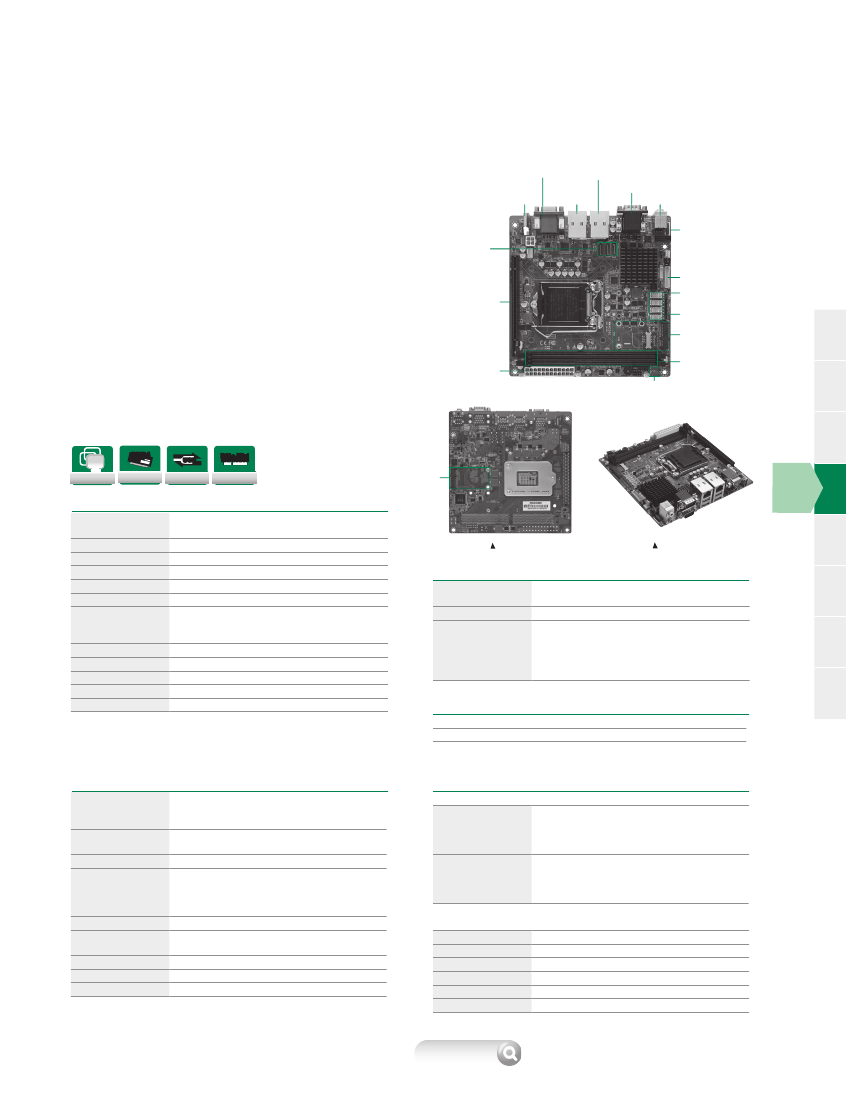

MANO500

Mini-ITX SBC with LGA1151 Socket 6th/7th Gen Intel® Core™ Processor,

Intel® H110/Q170, HDMI/DisplayPort/VGA/LVDS/eDP Dual LANs and USB 3.0

Features

●

LGA1151 socket 6th/7th gen Intel® Core™ i7/i5/i3,

Pentium® & Celeron® processor (Skylake/Kaby Lake)

●

Intel® chipset H110/Q170

●

2 DDR4-2133 Long-DIMM, up to 32GB

●

1 PCIe x16 slot

●

1 PCI Express Mini Card slot and SIM card slots

●

3 SATA-600 and 1 mSATA

●

4 USB 3.0 and 4 USB 2.0

SATA-600

1~3

VGA + DP

HDMI

LAN 1 +

USB 3.0 1/2

LAN 2 +

COM 1/2

USB 3.0 3/4

Audio

PS/2

KB & MS

LVDS

PCIe x16

COM 3 ~ 6

eDP

PCI Express

Mini Card slot + SIM

Mini-ITX SBC

ATX PWR

Conn.

DDR4

USB 2.0 1 ~ 4

DDR4

USB

PCIe Mini

TripleView

DDR4

USB 3.0

PCIe Mini

mSATA

Core System

CPU

System Memory

Chipset

BIOS

SSD

Watchdog Timer

Expansion Interface

LGA1151 socket 6th/7th gen Intel® Core™ i7/i5/i3,

Pentium® & Celeron® processor

2 x 288-pin Long-DIMM dual channel DDR4-2133, up to 32GB

Intel® H110/Q170

AMI

N/A

255 level, 1 ~ 255 sec.

1 x PCIe x16

1 x PCI Express Mini Card slot

1 x SIM Card slot

Lithium 3V/220 mAH

170 x 170 mm

1.6 mm

0°C ~ +60°C (+32°F ~ +140°F), operation

10% ~ 95% relative humidity, non-condensing

Rear view

Side view

Display

Chipset

Memory Size

Display Interface

Intel® HD Graphics 530/510 for 6th gen processors

Intel® HD Graphics 630/610 for 7th gen processors

Shared memory

1 x HDMI

1 x VGA

1 x DisplayPort

1 x LVDS

1 x eDP (co-lay with LVDS) (optional)

Battery

Size/Weight

Board Thickness

Temperature

Operation Humidity

Packing List

Standard

I/O bracket, Driver DVD

I/O

MIO

1 x PS/2 keyboard & mouse

1 x RS-232/422/485 (COM 1 with 5V/12V power select)

5 x RS-232 (COM 2 ~ 6)

3 x SATA-600

1 x mSATA

Detect CPU/system temperature, voltage and fan speed

1st port as 10/100/1000 Mbps supports WOL, PXE with

Intel® i219LM (LAN 1)

2nd port as 10/100/1000 Mbps supports, PXE with

Intel® i211AT (LAN 2)

HD Audio as Mic-in/Line-out with Realtek ALC662

4 x USB 3.0 (rear I/O)

4 x USB 2.0

N/A

8 channels programmable

N/A

Ordering Information

Standard

MANO500VHGGA

(P/N:E38M500101)

Mini-ITX SBC with LGA1151 socket 6th/7th gen Intel®

Core™ i7/i5/i3, Pentium®, Celeron® processor, Intel®

H110, HDMI/DisplayPort/VGA/LVDS/eDP, 2 GbE LANs and

USB 3.0

Mini-ITX SBC with LGA1151 socket 6th/7th gen Intel®

Core™ i7/i5/i3, Pentium® Celeron® processor, intel®

Q170, HDMI/DisplayPort/VGA/LVDS/eDP, 2 GbE LANs and

USB 3.0

SATA

Hardware Monitoring

Ethernet

MANO500VHGGA-Q170

(P/N:E38M500105)

Audio

USB

TPM

Digital I/O

SM BUS

Optional

594M5002100E

59382631000E

59384500100E

594M5002A00E

5077L07C000E

50721127100E

2 x COM port with bracket, P=2.0 mm, L=300 mm

2 x USB 2.0 wafer cable with bracket, 180 mm

Audio cable with bracket, P=2.0 mm, L=450 mm

PS/2 cable PS/wafer 6-pin P=2.0 mm, L=200 mm

LGA115x 1U fan back plate H:2.45 mm

LGA115x 1.5U fan JAC6L23C-C H=35

Updated Nov. 12, 2018.

* All specifications and photos are subject to change without notice.
