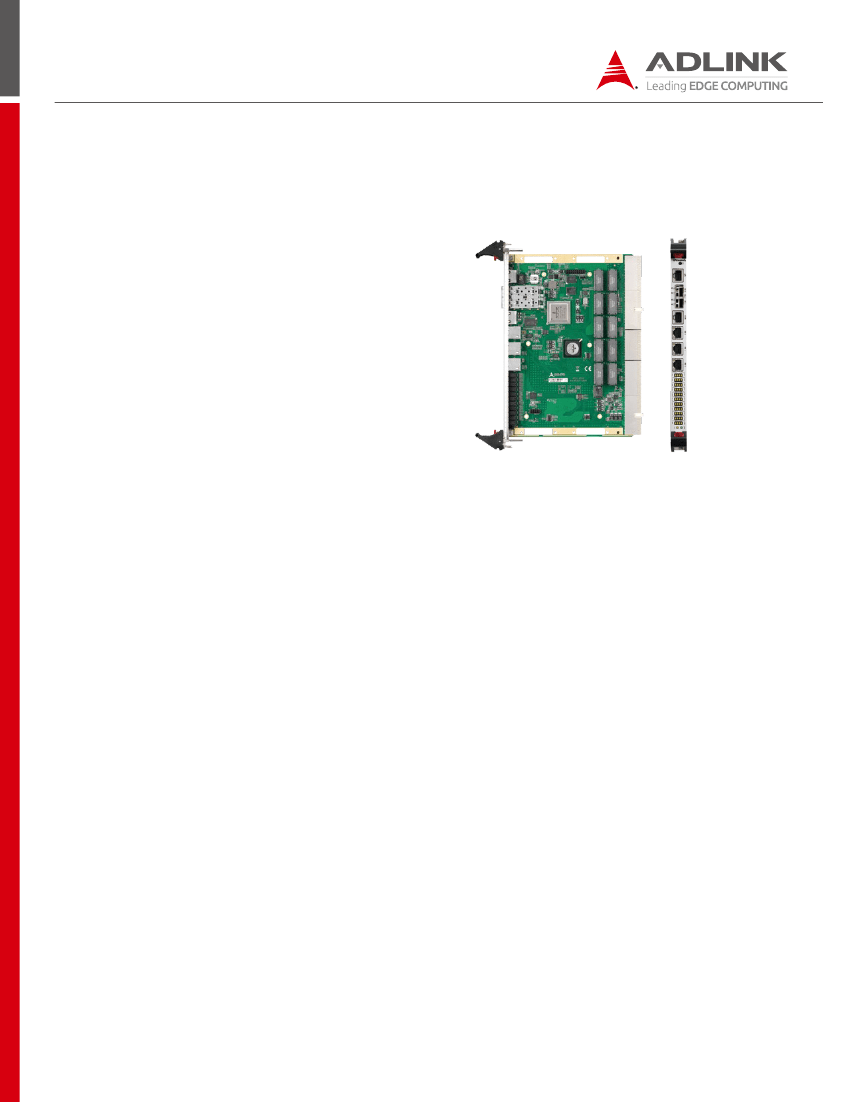

cPCI-6S10
6U CompactPCI 10 Gigabit Ethernet Switch Blade
Features
●
●
24-port fully managed Gigabit Ethernet switch
ARM Cortex-A9 processor integrated in Broadcom BCM56150
switch
Layer 2/3 switching with advanced support for VLANs, QoS
and IPv6
Two 10 Gigabit Ethernet SFP+ uplink ports
Supports based on PCIMG 2.9 (System Management
Specification)
Pre-installed ADLINK PacketManager accelerates packet
processing
●
●
●
●
Specifications
●
Processor & System
Switch Fabric
Broadcom BCM56150 24-port Gigabit Ethernet switch with two 10 Gigabit
SFP+ uplink ports, integrated ARM Cortex-A9 processor
●
Operating System
OS
Broadcom SDK under Linux (Please contact ADLINK for other OS support)
PHY
Broadcom BCM54685 Octal port 1000BASE-T PHY
Broadcom BCM5221 100M PHY
●
Miscellaneous
LEDs
Power Good, 24-port 1000BASE-T, 2-port 10 Gigabit
CPU
ARM Cortex-A9 CPU integrated in Broadcom BCM56150
Hardware Monitor
Monitors voltages of CPU, switch and PHY by IPMI
Flash
8MB SLC QSPI NAND flash
Reset Button
Passive reset button on front panel for blade reset
PICMG standards
PICMG 2.0 CompactPCI R3.0
PICMG 2.9 System Management R1.0
PICMG 2.16 Packet Switch Backplane R1.0
●
Mechanical & Environmental
Form Factor
6U 4HP (single slot)
233.35mm x 160mm (L x W)
●
Interface
Ethernet
Twenty 1000BASE-T ports to J3/J5 for node slots
Three 1000BASE-T ports to front panel
Two 10 Gigabit ports to front panel for uplink
One 10/100/1000BASE-T port to J4 for optional applicaiton
One 10/100BASE-TX port PHY to front panel for remote management
Operating Temperature
0°C to +60°C for air cooled
Storage Temperature
-50°C to +100°C
RH Humidity
95% non-condensing
Management
500 kB on-chip frame buffer
DSCP remarking for both IPv4 and IPv6
Jumbo frame support
Programmable classifier for QoS, IEEE802.1p and DSCP for IPv4 and IPv6
8k MAC addresses and 4k VLANs (IEEE 802.1Q)
Flexible link aggregation compliant to IEEE 802.3ad
Full-duplex flow control (IEEE 802.3x) and half duplex back pressure,
symmetric and asymmetric multiple protocol support: IEEE 802.1D, IEEE
802.1w, IEEE 802.1s and IEEE 802.1X
Shock
15G peak-to-peak, 11ms duration, non-operating
Vibration
2Grms random vibration between 5-500Hz in 3 axis, operating
●
Safety & EMI
Certification
CE/ FCC Class A
COM
One RJ-45 RS-232 console port on front panel for management
Specifications
●
Compatible CPU Blades
CPU Blade
cPCI-6940/cPCI-6530/cPCI-6520/cPCI-6930/cPCI-6210/cPCI-6510
●
Compactible Chassis
cPCIS-3300BLS
9U CompactPCI chassis with dual fabric switch slots and redundant power
supply
Ordering Information
Switch Blade
●
cPCI-6S10
1-slot 4HP 6U CompactPCI Switch Blade with 24 1000BASE-T
ports, 2 10G SFP+ ports and PacketManager software
bundle
6x GbE
20x GbE

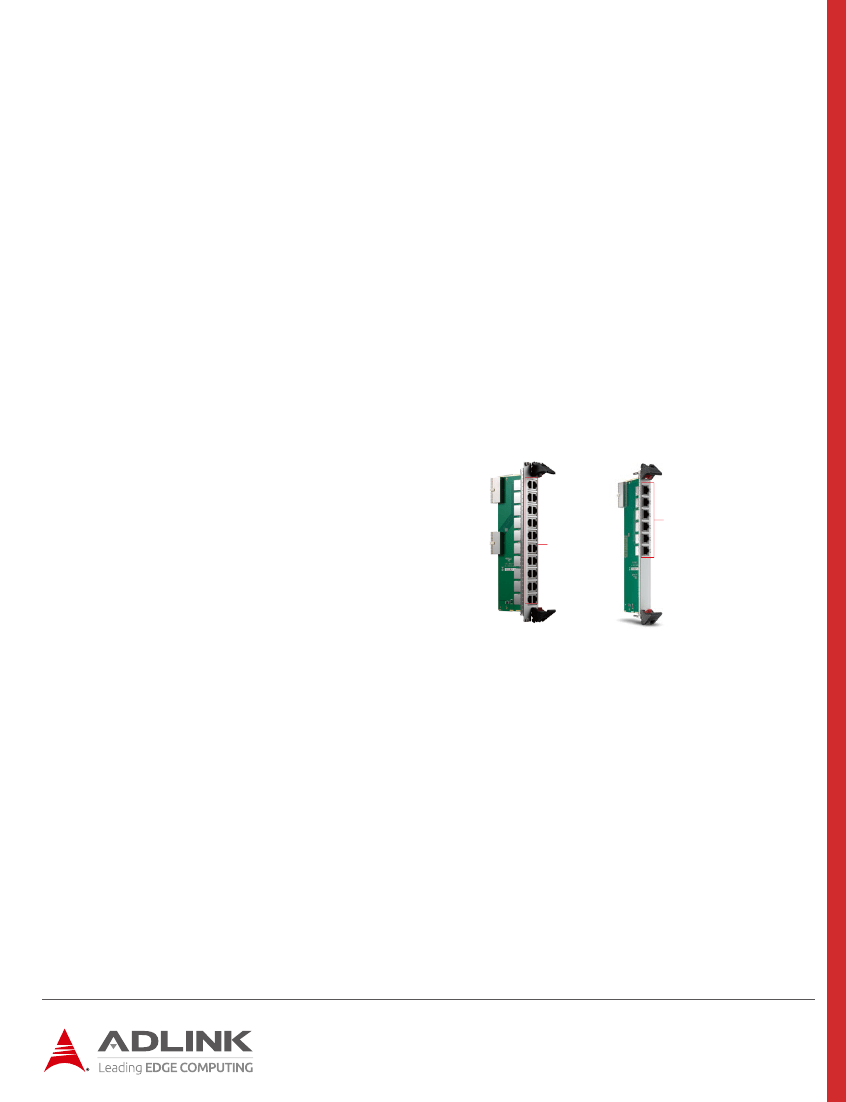

Rear Transition Modules
●
cPCI-R6S10
6U 8HP Rear Transition Module for cPCI-6S10 with 20 GbE
RJ-45 ports
cPCI-R6S11
6U 4HP Rear Transition Module for cPCI-6S10 with 6 GbE
RJ-45 ports supporting PICMG 2.16
cPCI-R6S10
●
Backplanes
●
cPCI-R6S11
cBP-6609A
6U 8-slot CompactPCI PICMG H.110 & PICMG 2.16 packet
switching backplane
cBP-6614A
6U 14-slot PICMG 2.16 CompactPCI blade server backplane
●
