RI3-2415S/H2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The power supply> DC/DC converters> Isolated DC/DC converter> RI3-2415S/H2

RI3-2415S/H2: DescriptionIsolated DC/DC converter 3W 24Vin 15Vout 200mA; CategoryThe power supply DC/DC converters Isolated DC/DC converter; File Size1MB，6 Pages; ManufacturerRECOM; Environmental Compliance

Download Datasheet Parametric Compare View All

RI3-2415S/H2 Overview

Isolated DC/DC converter 3W 24Vin 15Vout 200mA

RI3-2415S/H2 Parametric

Parameter Name	Attribute value
Maker	RECOM
Product Category	Isolated DC/DC converter
Shipping restrictions	Mouser does not currently sell this product.
Output Power	3 W
length	11.5 mm
width	10.2 mm
high	7.6 mm
product	Isolated
series	RI3
Encapsulation	Tube
Factory packaging quantity	42
unit weight	2.200 g

Preview

Download Datasheet

View All

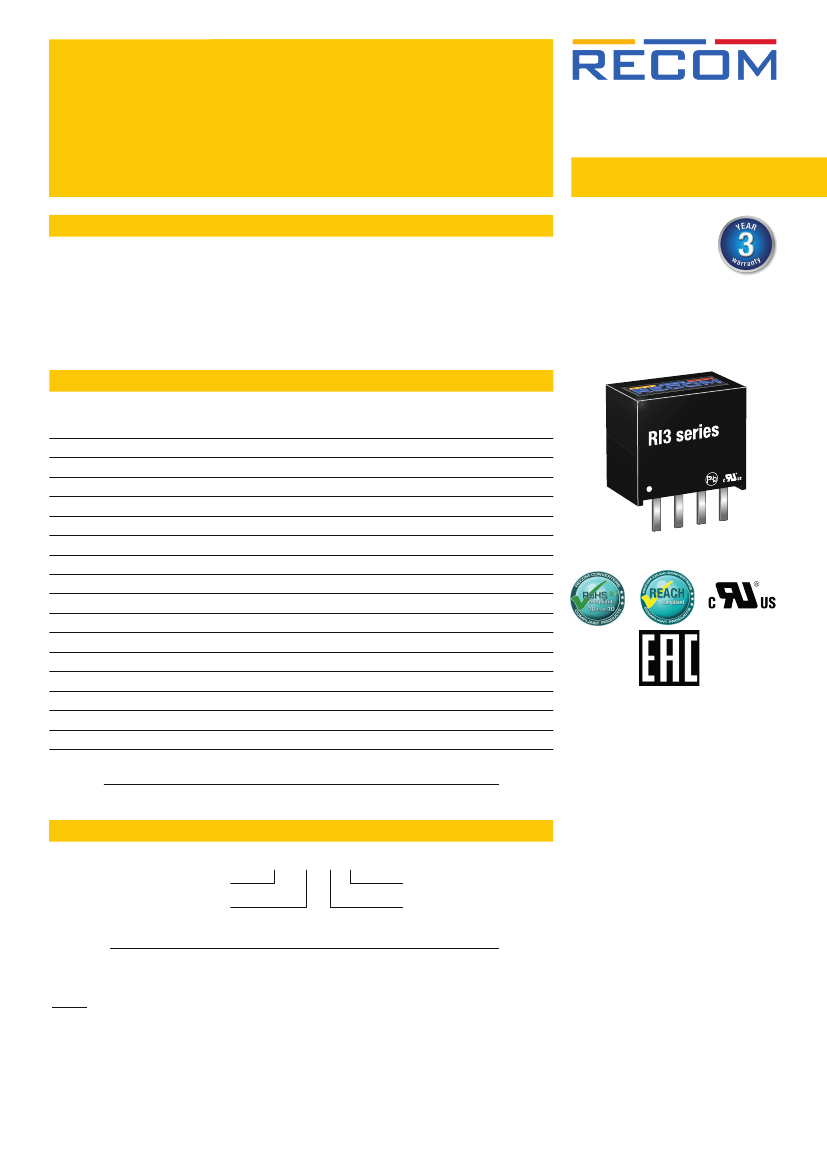

Features

Unregulated

Converters

Description

•

3 Watt in a SIP4 package

1-3kVDC isolation

Efficiency up to 90%

-40°C to +100°C operating temperature range

IEC/EN/UL60950 certified

CB Report

Industry standard pinout

DC/DC Converter

RI3

The RI3 series has been specifically designed for applications where board space is at a premium since

these 3 Watt converters have the same foot print as the RI series 2 Watt converters. With efficiencies

up to 90%, the full output power is available over the operating temperature range -40°C to +85°C and

the converters can be used in ambient temperatures of up to 100°C with derating. The wide selection

of input voltage and output voltage options plus an I/O-Isolation of 1kVDC, 2kVDC or 3kVDC makes

these converters suitable for many industrial applications.

3 Watt

SIP4

Single Output

Selection Guide

Part

Number

RI3-0505S

RI3-0509S

RI3-0512S

RI3-0515S

RI3-1205S

RI3-1209S

RI3-1212S

RI3-1215S

RI3-1505S

RI3-1509S

RI3-1512S

RI3-1515S

RI3-2405S

RI3-2409S

RI3-2412S

RI3-2415S

Input

Voltage

[VDC]

Output

Voltage

[VDC]

Output

Current

[mA]

600

333

250

200

600

333

250

200

600

333

250

200

600

333

250

200

Efficiency

max. Capacitive

typ. @ full load

Load

(1)

[%]

[µF]

2200

1200

1000

820

2000

1200

1000

820

2000

1200

1000

820

2000

1200

1000

820

IEC/EN60950-1 certified

UL60950-1 certified

CSA C22.2 NO. 60950 certified

EN55032 compliant

E224736

Notes:

Note1: Max. capacitive load is tested at nominal input and constant resistive load

Model Numbering

RI3-__ __ _/_

Input Voltage

Output Voltage

Isolation

(2)

Single

Notes:

Note2: add suffix “/H2” for 2kVDC/1second or “/H3” for 3kVDC/1second isolation

without suffix standard 1kVDC/1second isolation

Examples:

e.g. RI3-1212S, Single Output, 12Vin and 12Vout, 1kVDC isolation

e.g. RI3-1212S/H2, Single Output, 12Vin and 12Vout, 2kVDC isolation

e.g. RI3-1212S/H3, Single Output, 12Vin and 12Vout, 3kVDC isolation

e.g. RI3-2405S, Single Output, 24Vin and 5Vout, 1kVDC isolation

e.g. RI3-2405S/H2, Single Output, 24Vin and 5Vout, 2kVDC isolation

e.g. RI3-2405S/H3, Single Output, 24Vin and 5Vout, 3kVDC isolation

www.recom-power.com

REV.: 2/2018

ECO-1
