SMBZ5931B-E3/52

Description
Zener diode 18 Volt 3.0 Watt 5%
CategoryDiscrete semiconductor    diode
File Size125KB,6 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

SMBZ5931B-E3/52 Overview

Zener diode 18 Volt 3.0 Watt 5%

SMBZ5931B-E3/52 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
MakerVishay
Parts packaging codeDO-214AA
package instructionR-PDSO-C2
Contacts2
Reach Compliance Codeunknown
ECCN codeEAR99
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeZENER DIODE
Maximum dynamic impedance12 Ω
JEDEC-95 codeDO-214AA
JESD-30 codeR-PDSO-C2
JESD-609 codee3
Humidity sensitivity level1
Number of components1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-65 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
polarityUNIDIRECTIONAL
Maximum power dissipation0.55 W
Certification statusNot Qualified
Nominal reference voltage18 V
surface mountYES
technologyZENER
Terminal surfaceMatte Tin (Sn)
Terminal formC BEND
Terminal locationDUAL
Maximum time at peak reflow temperature40
Maximum voltage tolerance5%
Working test current20.8 mA

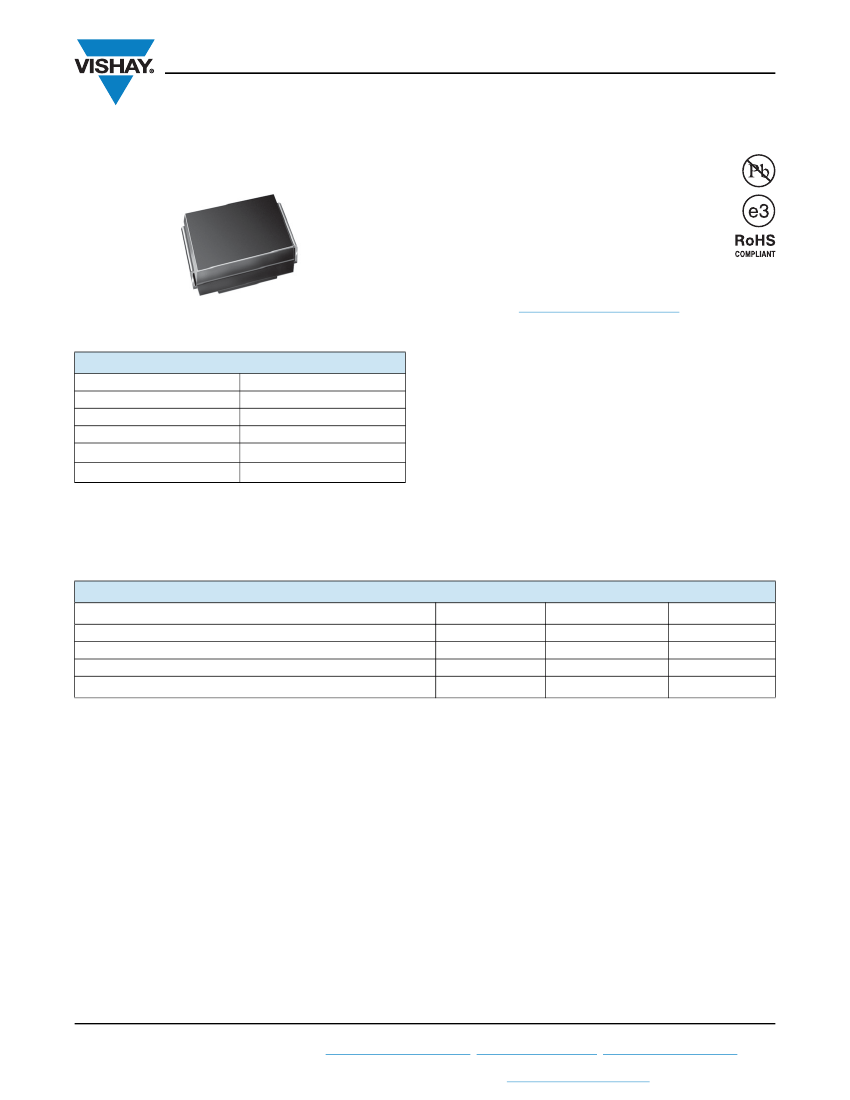

SMBZ5919B thru SMBZ5945B
www.vishay.com
Vishay General Semiconductor
Surface Mount Power Voltage-Regulating Diodes
FEATURES
Low profile package
• Ideal for automated placement
• Low Zener impedance
• Low regulation factor
• Meets MSL level 1, per
LF maximum peak of 260 °C
DO-214AA (SMBJ)
J-STD-020,
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
MECHANICAL DATA
PRIMARY CHARACTERISTICS
V
Z
P
tot
at T
L
= 75 °C
P
tot
at T
A
= 25 °C
T
J
max.
V
Z
specification
Int. construction
5.6 V to 85 V
3000 mW
550 mW
150 °C
Pulse current
Single
Case:
DO-214AA (SMBJ)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant and commercial grade
Terminals:
Matte tin plated leads, solderable
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test
Polarity:
Color band denotes cathode end
per
TYPICAL APPLICATIONS
For general purpose regulation and protection applications.
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum steady state power dissipation at T
L
= 75 °C (fig. 1)
Maximum steady state power dissipation at T
A
= 25 °C (fig. 1)
Operating junction and storage temperature range
(1)
(2)
SYMBOL
P
tot
P
tot
V
F
T
J
, T
STG
VALUE
3000
550
1.5
- 65 to + 150
UNIT
mW
mW
V
°C
Maximum instantaneous forward voltage at 200 mA for all types
Notes
(1)
Mounted on PCB with 5.0 mm x 5.0 mm copper pads attached to each terminal
(2)
Pulse test: 300 μs pulse width, 1 % duty cycle
Revision: 25-May-12
Document Number: 88485
1
